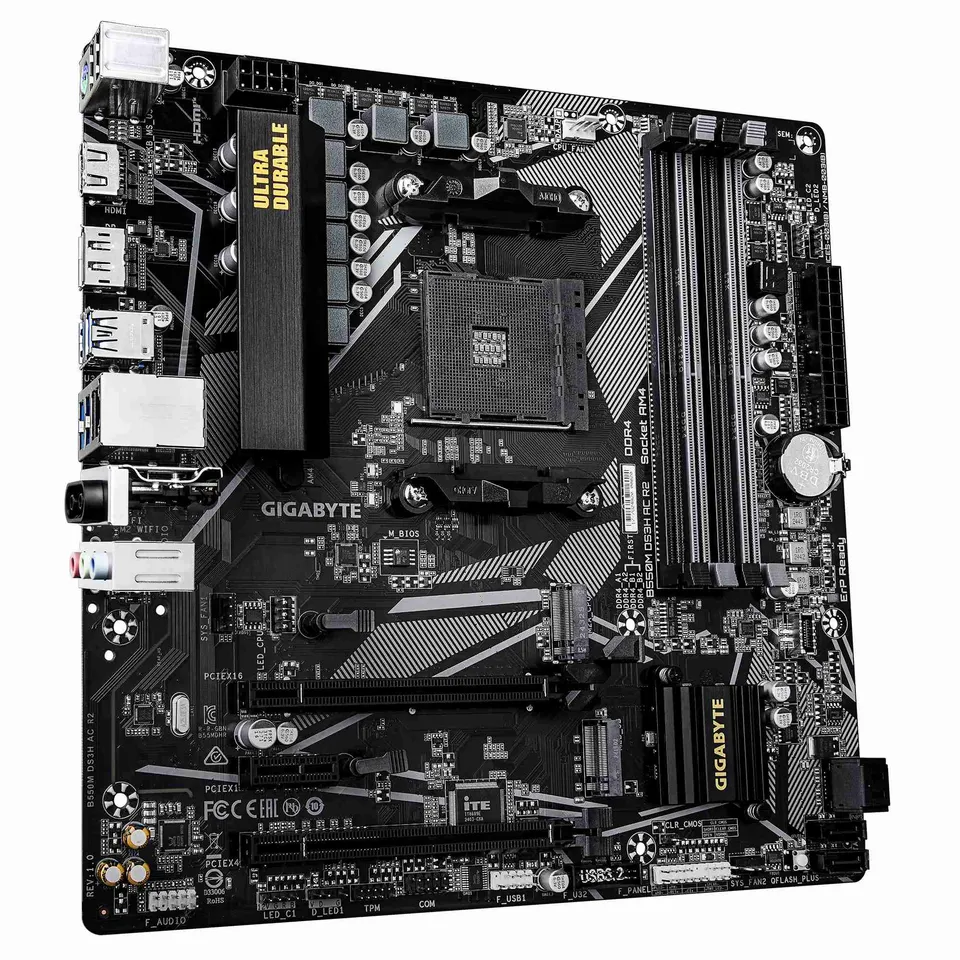

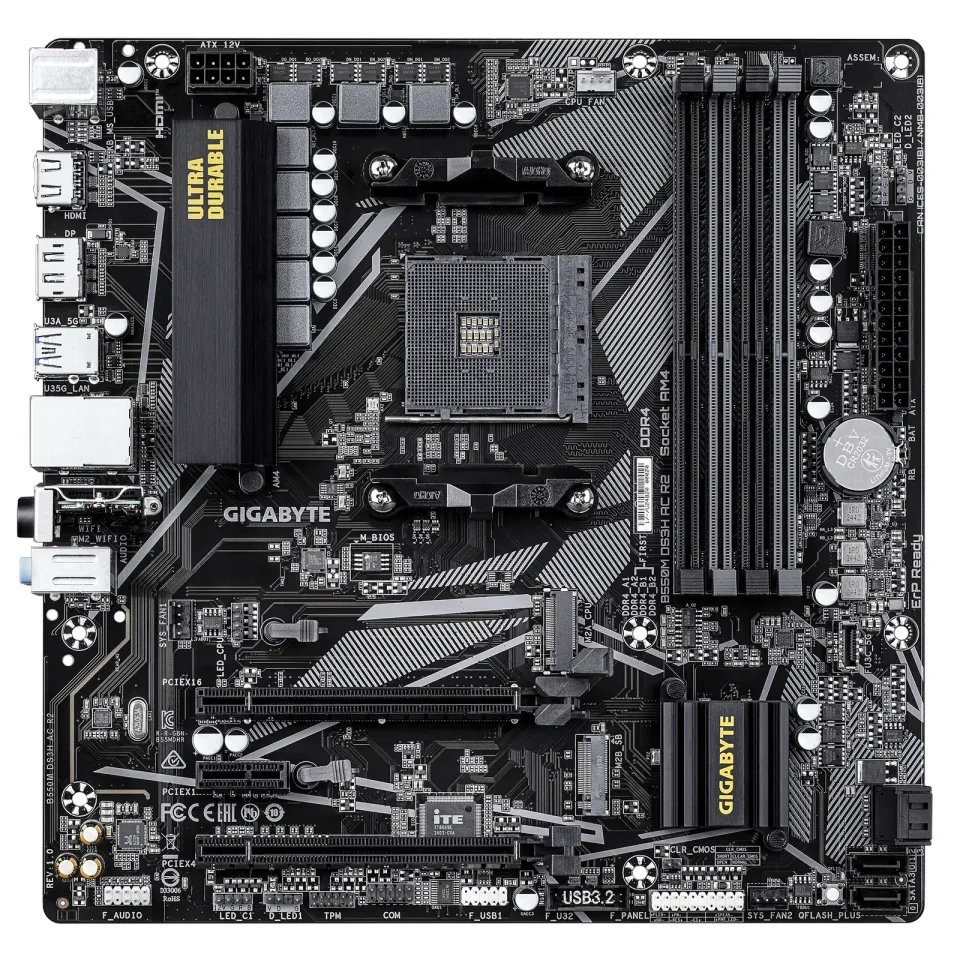

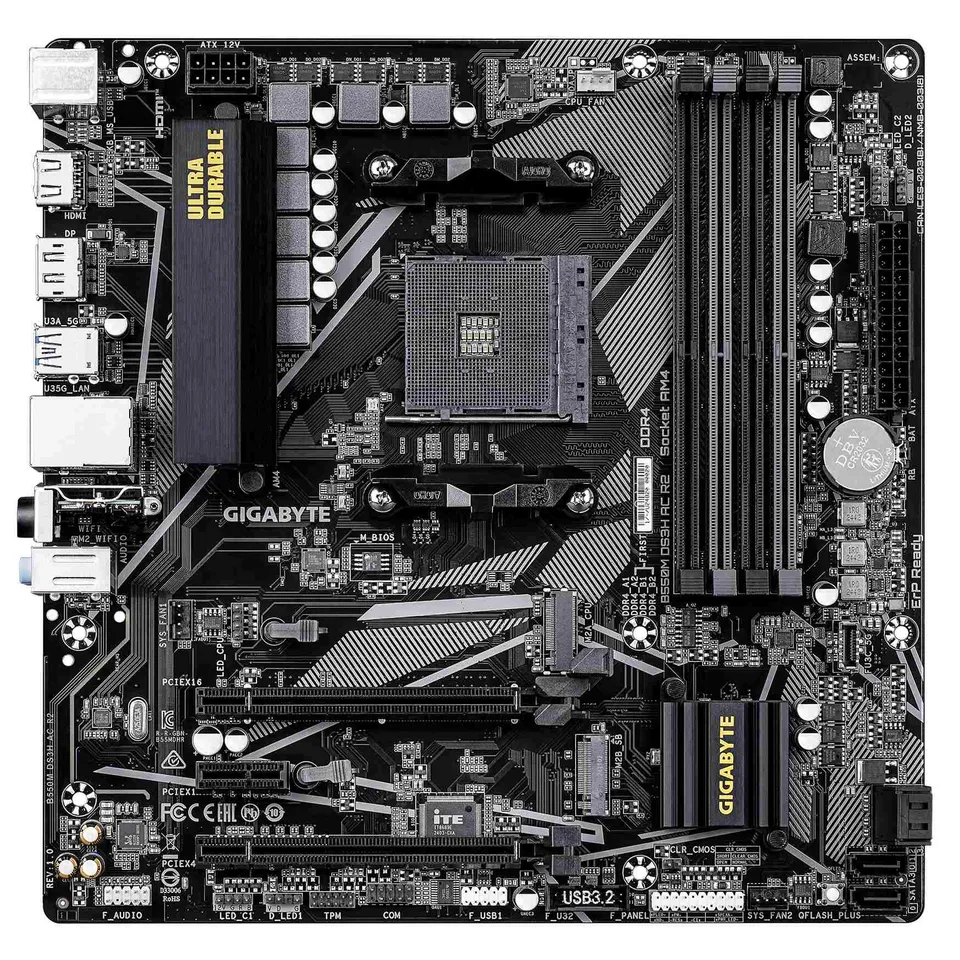

GIGABYTE MB Sc AM4 B550M DS3H AC R2, AMD B550, 4xDDR5, DP, HDMI, mATX

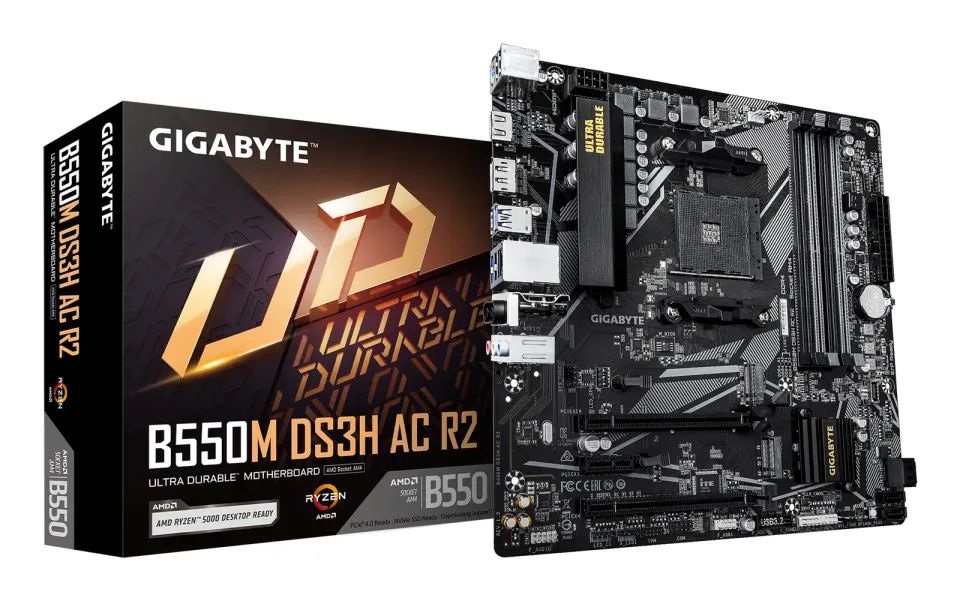

GIGABYTE B550M DS3H AC R2

• AMD Socket AM4:Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
• Digital 5+3 phases VRM solution
• Dual Channel DDR4:4*DIMMs
• WIFI EZ-Plug:Quick and easy design for Wi-Fi antenna installation
• EZ-Latch:PCIe slots with Quick Release Design
• Ultra-Fast Storage:2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal:VRM Thermal Armor Advanced
• Fast Networking:GbE LAN & Wi-Fi 5
• Extended Connectivity:HDMI, Displayport
• PCIe UD Slot:PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
  CPU
  AMD Socket AM4, support for:
  AMD Ryzen™ 5000 G-Series Processors/
  AMD Ryzen™ 5000 Series Processors/
  AMD Ryzen™ 4000 G-Series Processors/
  AMD Ryzen™ 3000 G-Series Processors/
  AMD Ryzen™ 3000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  Chipset
  AMD B550
  Memory
  4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
  Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  Onboard Graphics
  Integrated Graphics Processor with AMD Radeon™ Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

• Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)
  Maximum shared memory of 16 GB
  Audio
  Realtek ALC1220 CODEC
• The back panel line out jack supports DSD audio.High Definition Audio
  2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  LAN
  Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
  Wireless Communication module
  Realtek Wi-Fi RTL8821CE

• WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.0
• Support for 11ac wireless standard
  (Actual data rate may vary depending on environment and equipment.)
  Expansion Slots
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
  AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode

• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:

• 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
• 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
  Storage Interface
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
  AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  USB
  CPU:
• 4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  1 x CPU cooler LED strip/RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  1 x serial port header
  1 x Clear CMOS jumper
  1 x Q-Flash Plus button

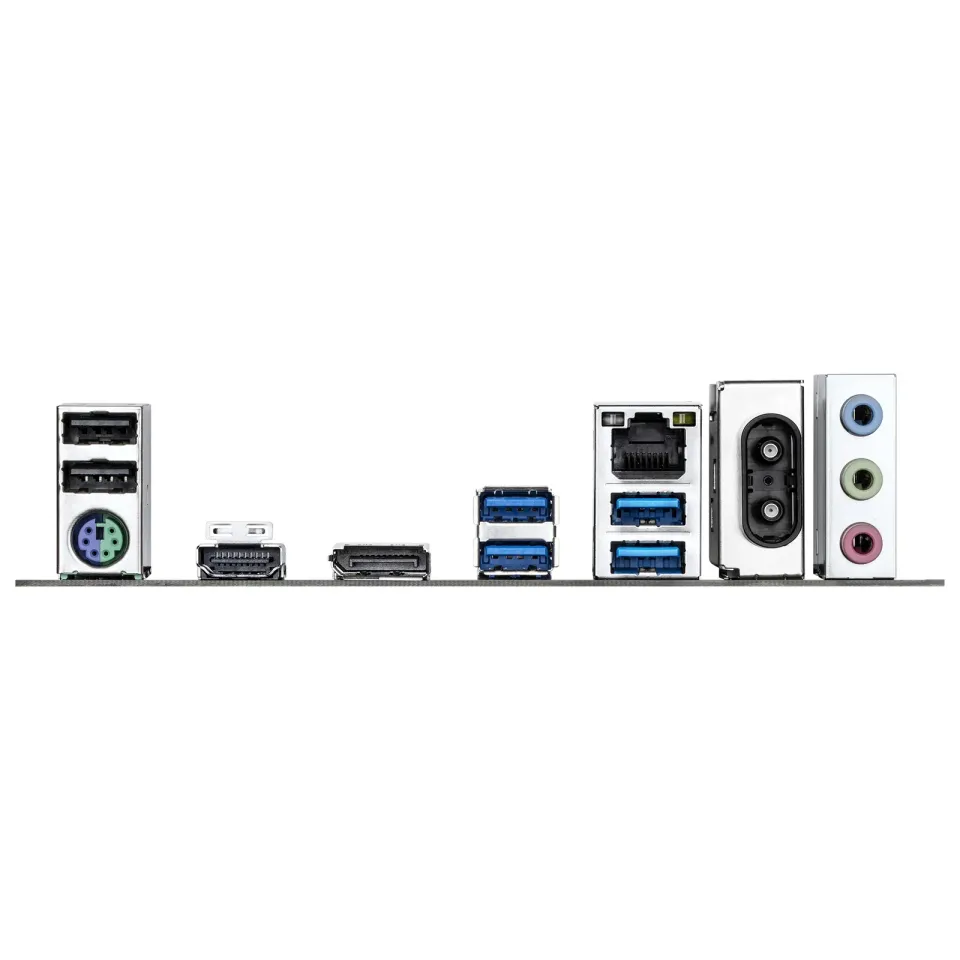

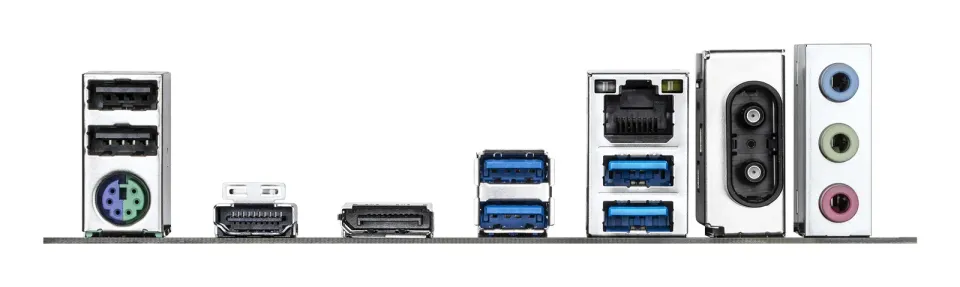

  Back Panel Connectors
  2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  4 x USB 3.2 Gen 1 ports
  1 x RJ-45 port
  2 x antenna connectors
  3 x audio jacks(Note) Actual support may vary by CPU.
  I/O Controller
  iTE I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Overheating warning
  Fan fail warning
  Fan speed control

• Whether the fan speed control function is supported will depend on the fan you install.
  BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS

• EasyTune
• RGB Fusion
• Smart Backup
• System Information Viewer
  Support for Q-Flash Plus
  Support for Q-Flash
  Bundled Software
  Norton Internet Security (OEM version)
  LAN bandwidth management software
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Form Factor
  Micro ATX Form Factor; 24.4cm x 24.4cm

Formát základní desky: micro ATX
Chipset: AMD B550
Socket (patice): Socket AM4
Pro procesory: AMD
Technologie paměti RAM: DDR4
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 2
PCI Express x1: 1
LAN: 1Gbit/…
