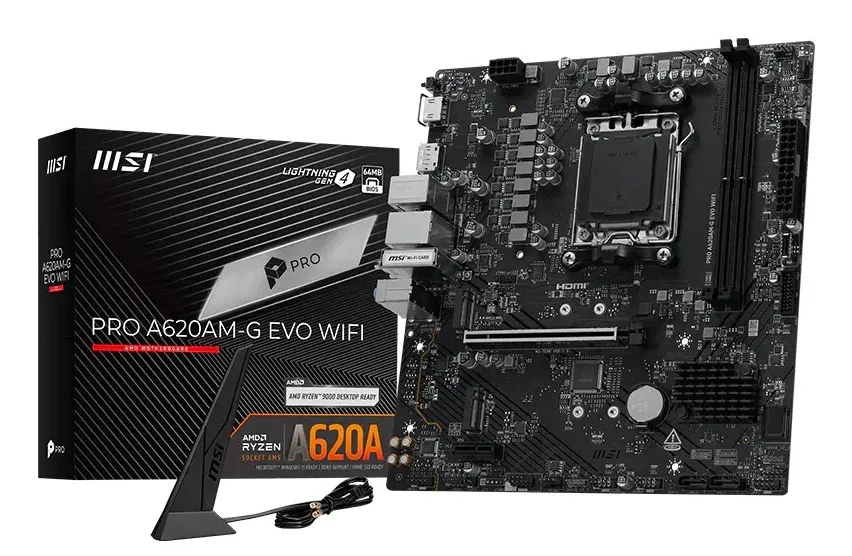

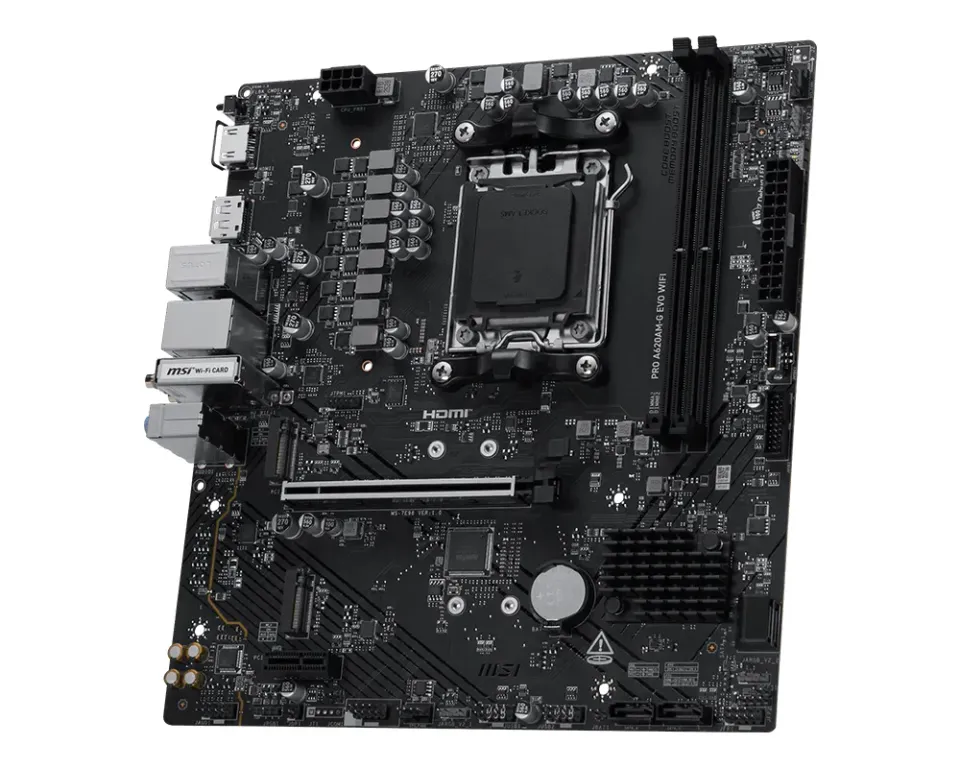

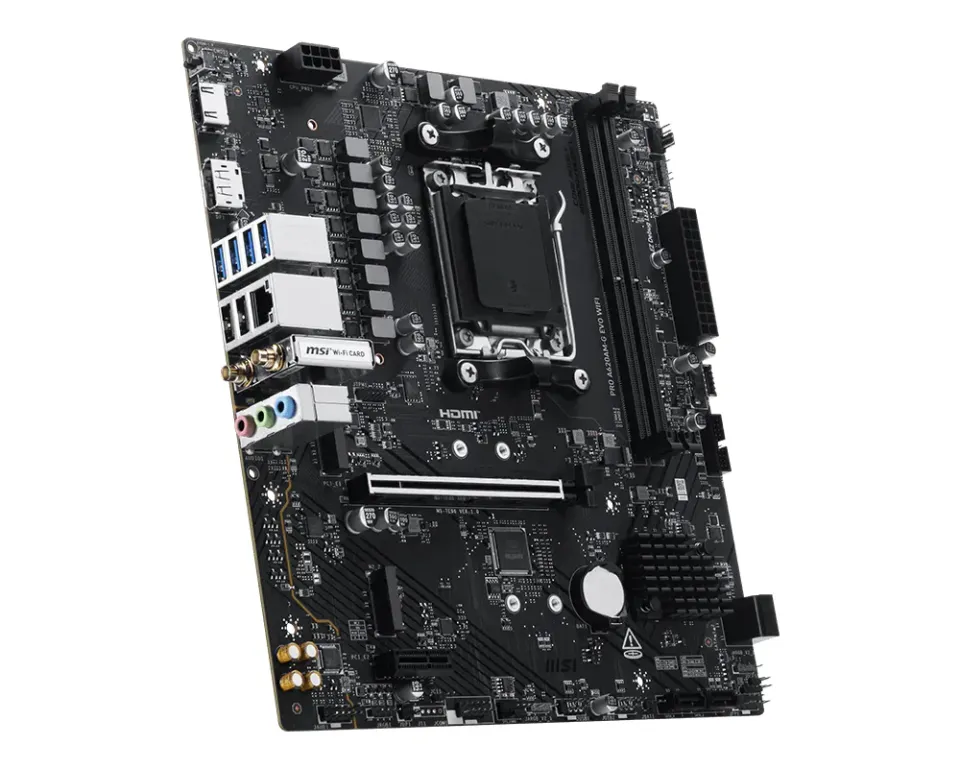

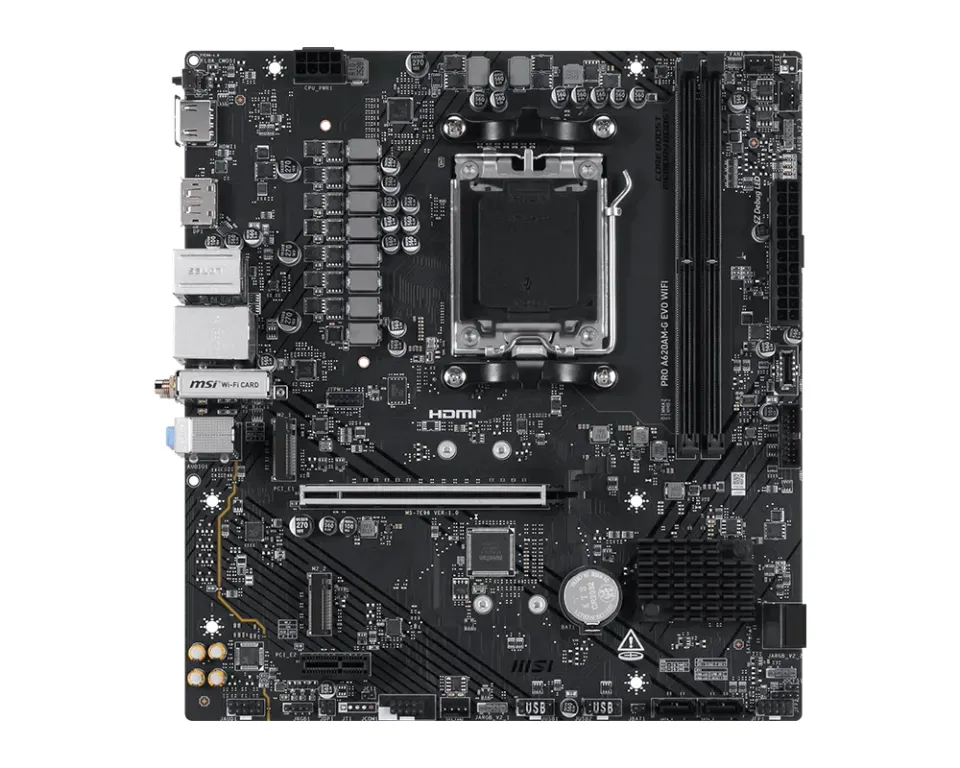

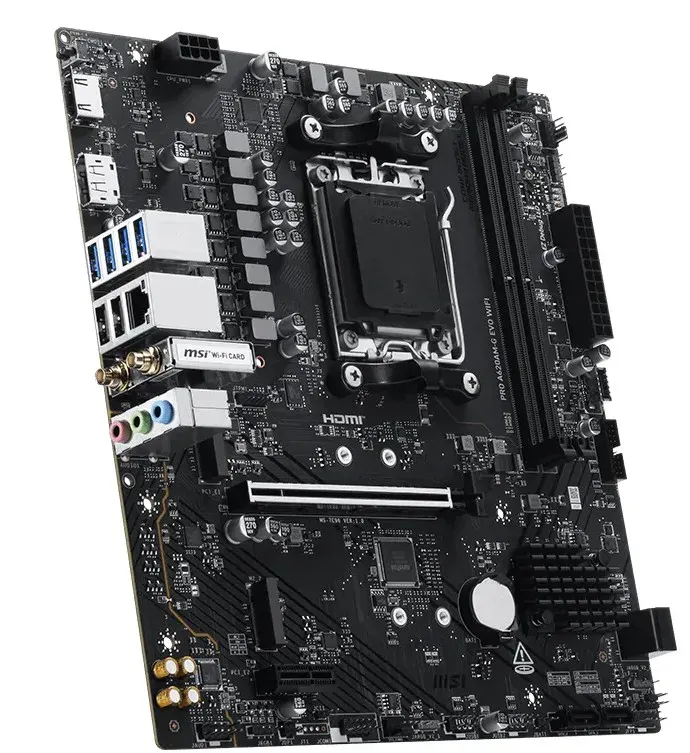

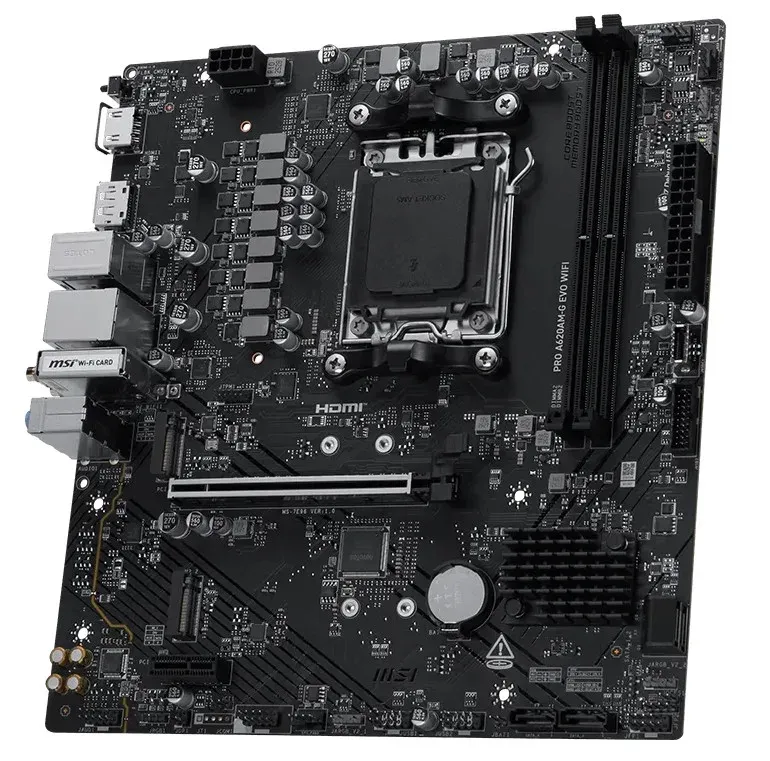

MSI PRO A620AM-G EVO WIFI/AM5/mATX

MSI PRO A620AM-G EVO WIFI

Chipset:  AMD A620A
Rozměrový formát: mATX 226mmx243.84mm
Podpora pro procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5

Paměť:

*2x DDR5 UDIMM, Maximum Memory Capacity 128GB
*Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
*Max. overclocking:
*1DPC 1R Max speed up to 7200+ MT/s
*1DPC 2R Max speed up to 6400+ MT/s
*Supports AMD POR Speed and JEDEC Speed
*Supports Memory Overclocking and AMD EXPO™
*Supports Dual-Channel mode
*Supports non-ECC, un-buffered memory

Grafické porty:

1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC897 Codec
*7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8125D 2.5G LAN
WLAN + Bluetooth: Wi-Fi 6E

*The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

Rozšiřující sloty:

*1x PCI-E x16 slot
*1x PCI-E x1 slot
*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
*PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
*M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_2 slot

*Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
*Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

USB:
Zadní USB

*2x USB 2.0
*4x USB 5Gbps Type A

Přední USB

*4x USB 2.0
*2x USB 5Gbps Type A
*1x USB 5Gbps Type C

Interní porty:

Napájení

*1× Power Connector (ATX_PWR)
*1× Power Connector (CPU_PWR)
*1× CPU Fan
*2× System Fan

USB

*4× USB 2.0 ports
*2× USB 5Gbps Type-A ports
*1× USB 5Gbps Type-C port

Ostatní

*2× Front Panel (JFP)
*1× Chassis Intrusion (JCI)
*1× Front Audio (JAUD)
*1× COM Port (JCOM)
*3× Addressable V2 RGB LED connectors (JARGB_V2)
*1× RGB LED connector (JRGB)
*1× TPM pin header (TPM 2.0)

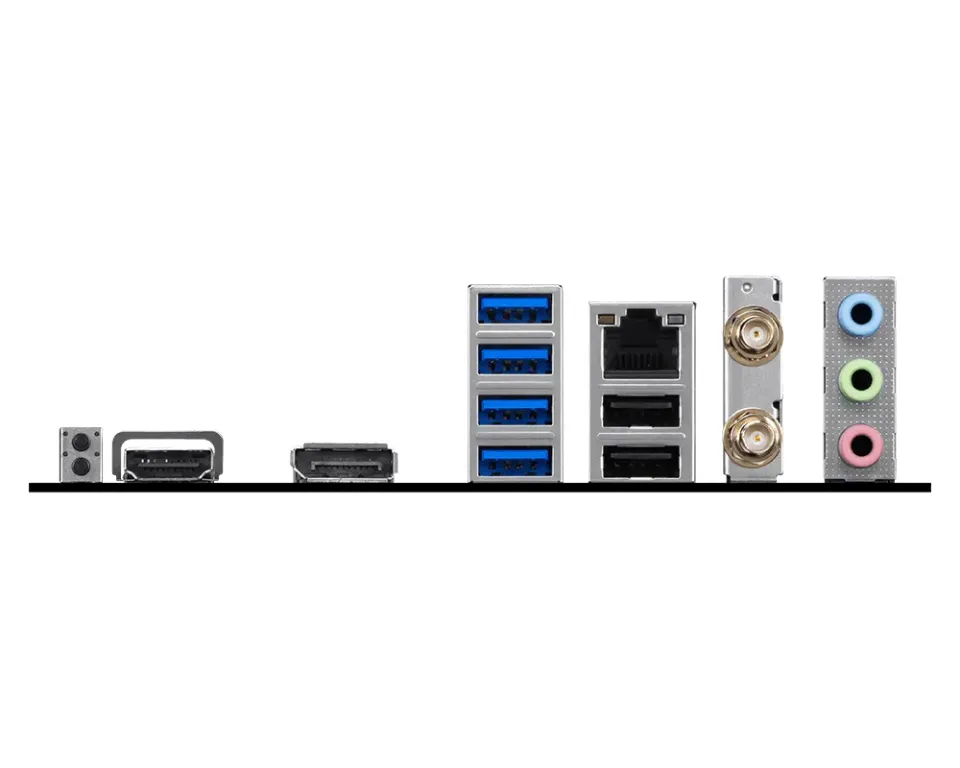

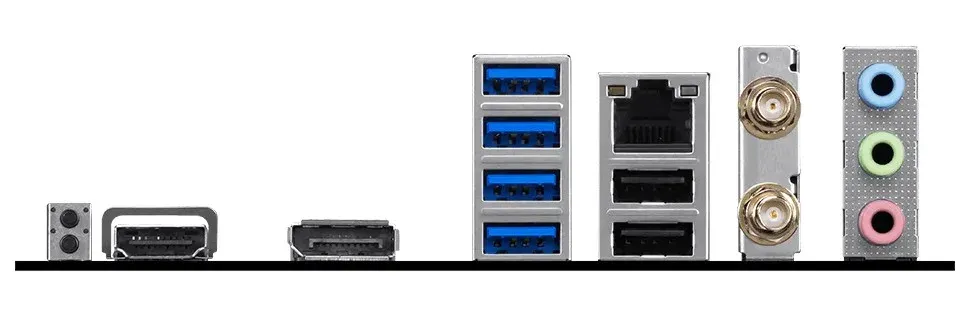

Porty na zadním panelu:

*Clear CMOS Button
*HDMI
*DisplayPort
*USB 5Gbps Type-A
*2.5G LAN
*Wi-Fi / Bluetooth
*Audio connectors
*Flash BIOS Button
*USB 2.0

OS: Windows 11 64-bit, Windows 10 64-bit
