ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI A, AMD TRX50, 4xDDR5, WiFi, CEB

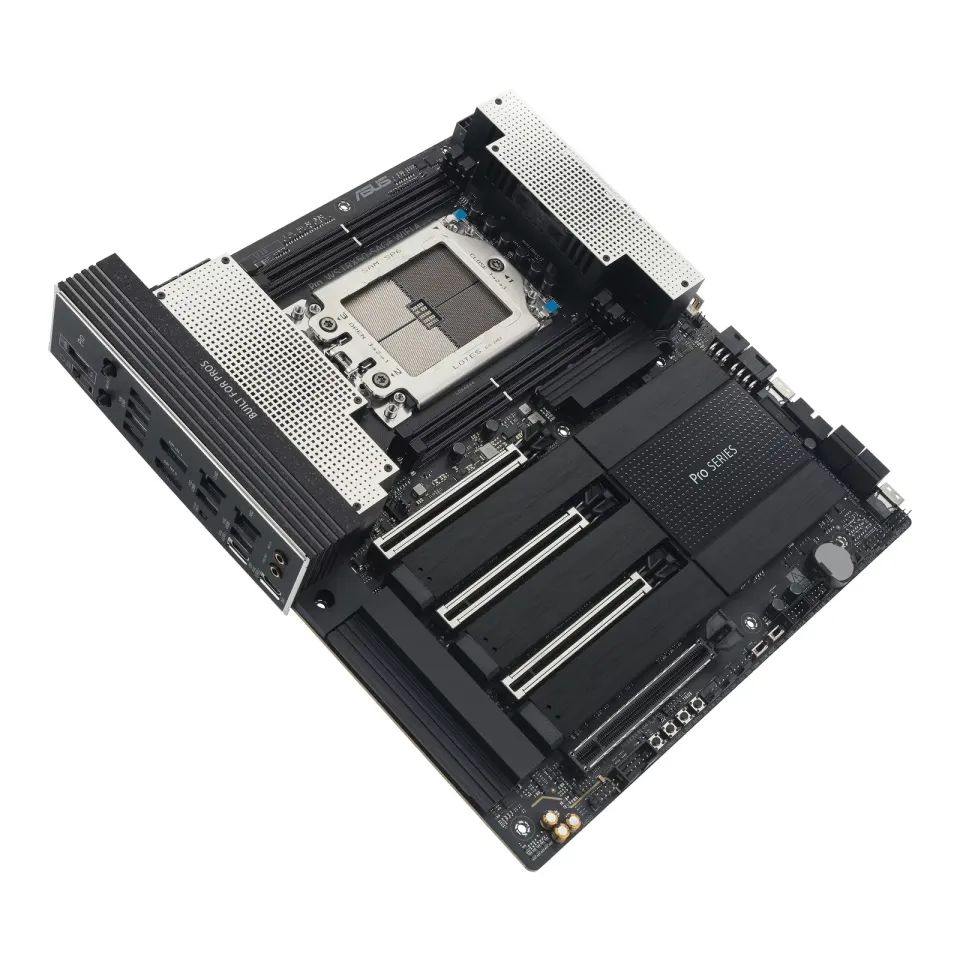

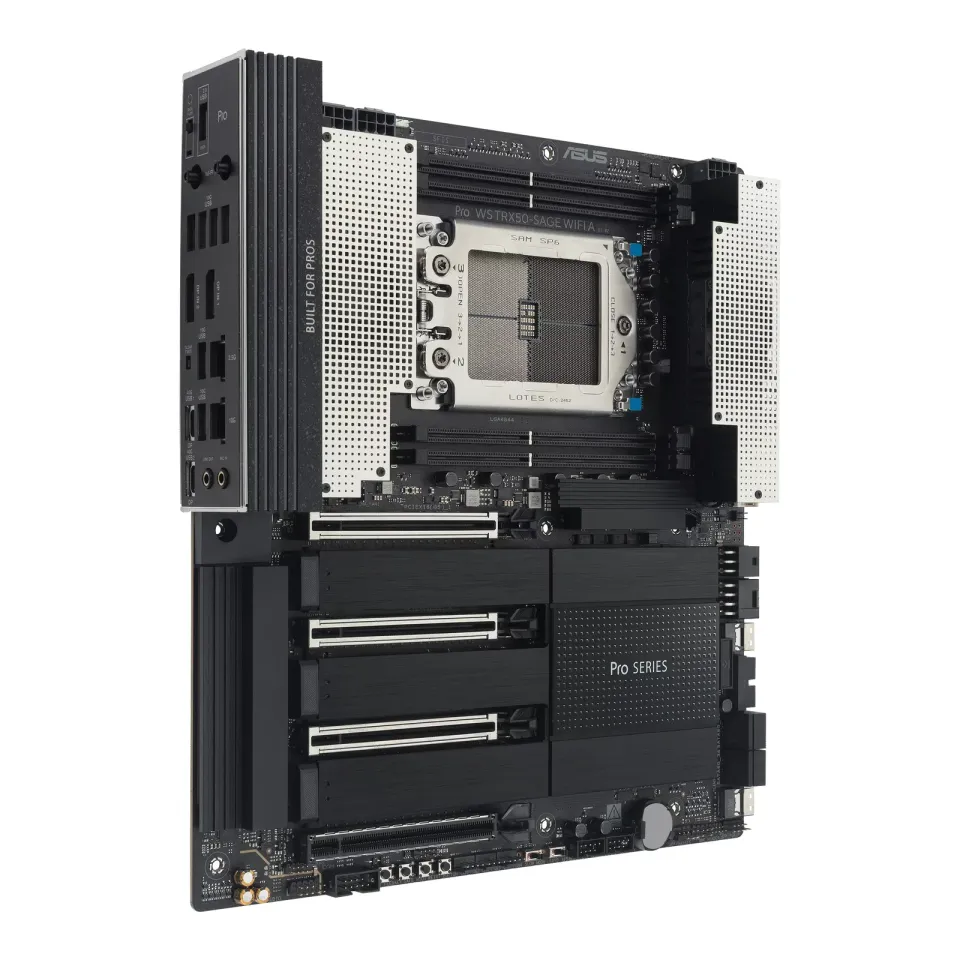

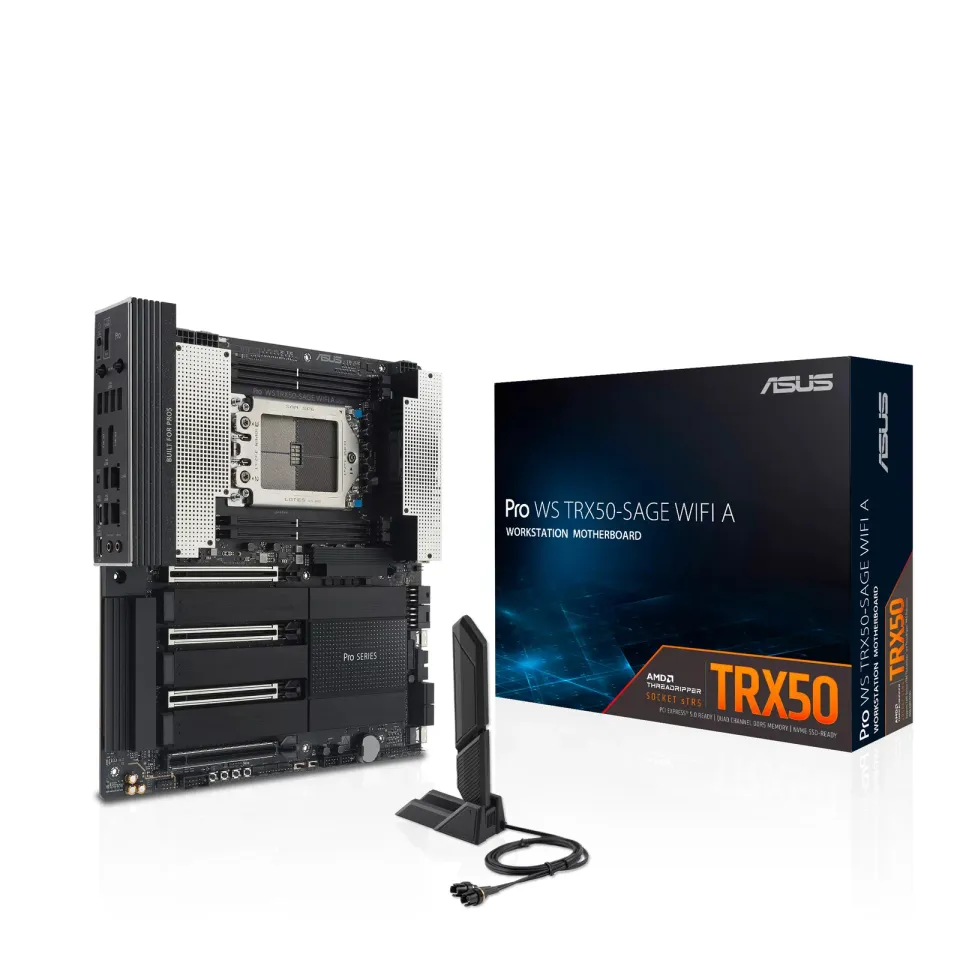

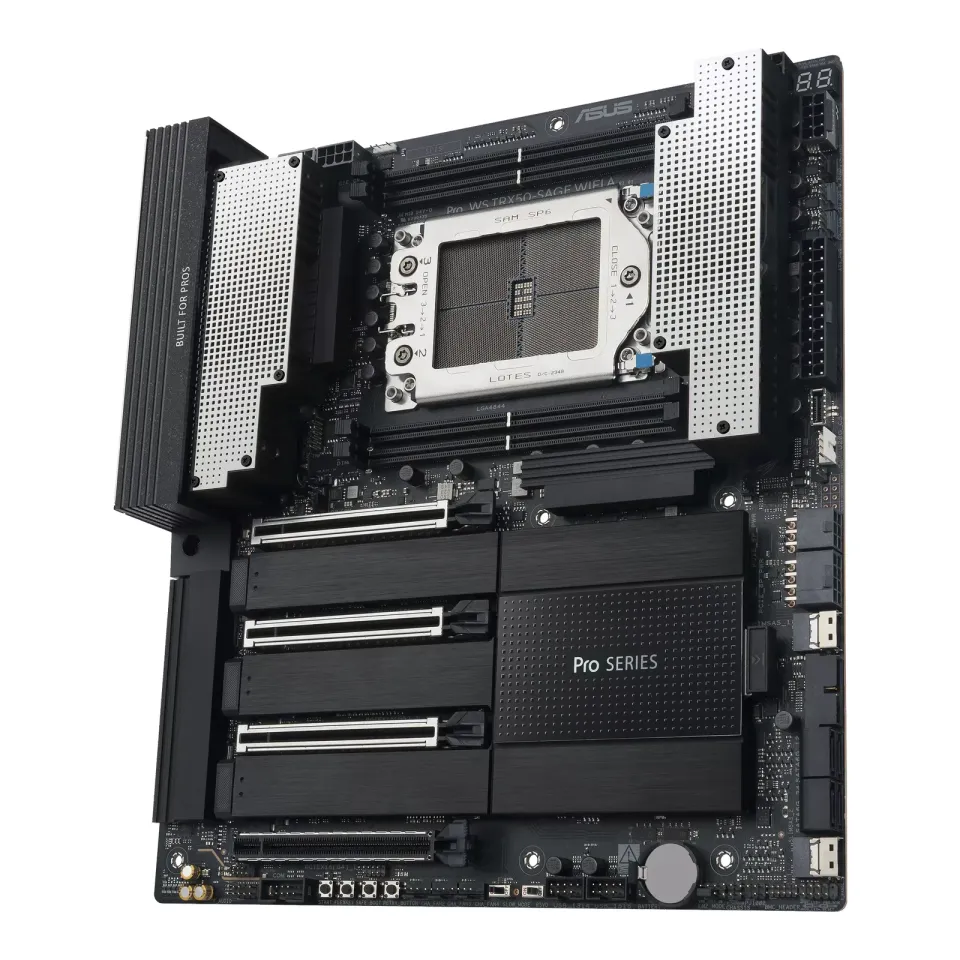

ASUS Pro WS TRX50-SAGE WIFI A
AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 20 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, USB4, 10 Gb and 2.5 Gb LAN, multi-GPU support

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
• CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
• Ultrafast Connectivity: Three PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C ports, and SlimSAS NVMe support
• Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
• Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
  CPU
  AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors **
  *Refer to www.asus.com for CPU support list.
  *System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
  Chipset
  AMD TRX50 Chipset
  Memory
  4 x DIMM slots, DDR5, ECC Registered Memory
  4 Channel Memory Architecture

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
  Expansion Slots
  AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
  3 x PCIe 5.0 x16 slots
  1 x PCIe 4.0 x16 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
  Storage
  Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
  AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  AMD TRX50 Chipset
  M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
  4 x SATA 6Gb/s ports
  SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
  AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
  SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
  ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
  *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
  **** Supported when the Threadripper™ PRO series CPU is installed
  AMD RAIDXpert2 Technology
  PCIe RAID 0/1/5/10
  SATA RAID 0/1/5/10
  LAN
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel I226-LM 2.5Gb Ethernet
  Wireless & Bluetooth
  Wi-Fi 7 (Realtek RTL8922AE)
  2x2 Wi-Fi 7* (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth
  Bluetooth v5.4***
  Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 9 ports)
  2 x USB4 (40Gbps) (2 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A )
  1 x USB 2.0 ports (1 x Type-A )
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD)
  1 x USB 5Gbps header supports 2 additional USB 5G ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
• USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
  Audio
  Realtek ALC1220P Surround Sound High Definition Audio CODEC*

• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Dedicated audio PCB layers
• Unique de-pop circuit

• A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
• This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

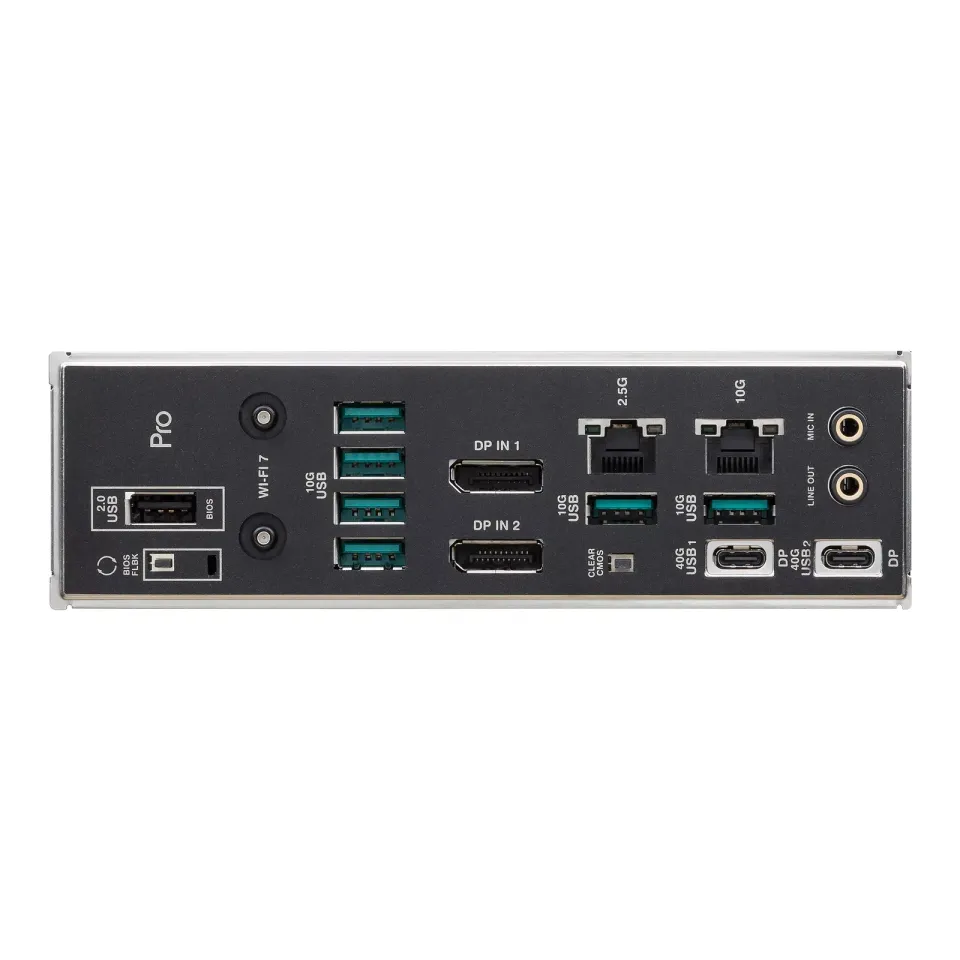

  Back Panel I/O Ports
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  2 x DisplayPort IN
  1 x Wi-Fi Module
  1 x Marvell AQtion 10Gb Ethernet port
  1 x Intel 2.5Gb Ethernet port
  2 x Audio jacks
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x W_PUMP+ header
  4 x 4-pin Chassis Fan headers
  2 x 4-pin VRM Fan header (with VRM FAN onboard)
  Power related
  1 x 24-pin Main Power connectors
  1 x 4-pin to 24-pin Main Power connectors
  2 x 8-pin +12V CPU Power connector
  2 x 8-pin PCIe to CPU power connectors
  1 x 6-pin PCIe Power connector
  1 x 8-pin PCIe Power connector…
