ASUS MB Sc LGA1851 ROG STRIX B860-I GAMING WIFI

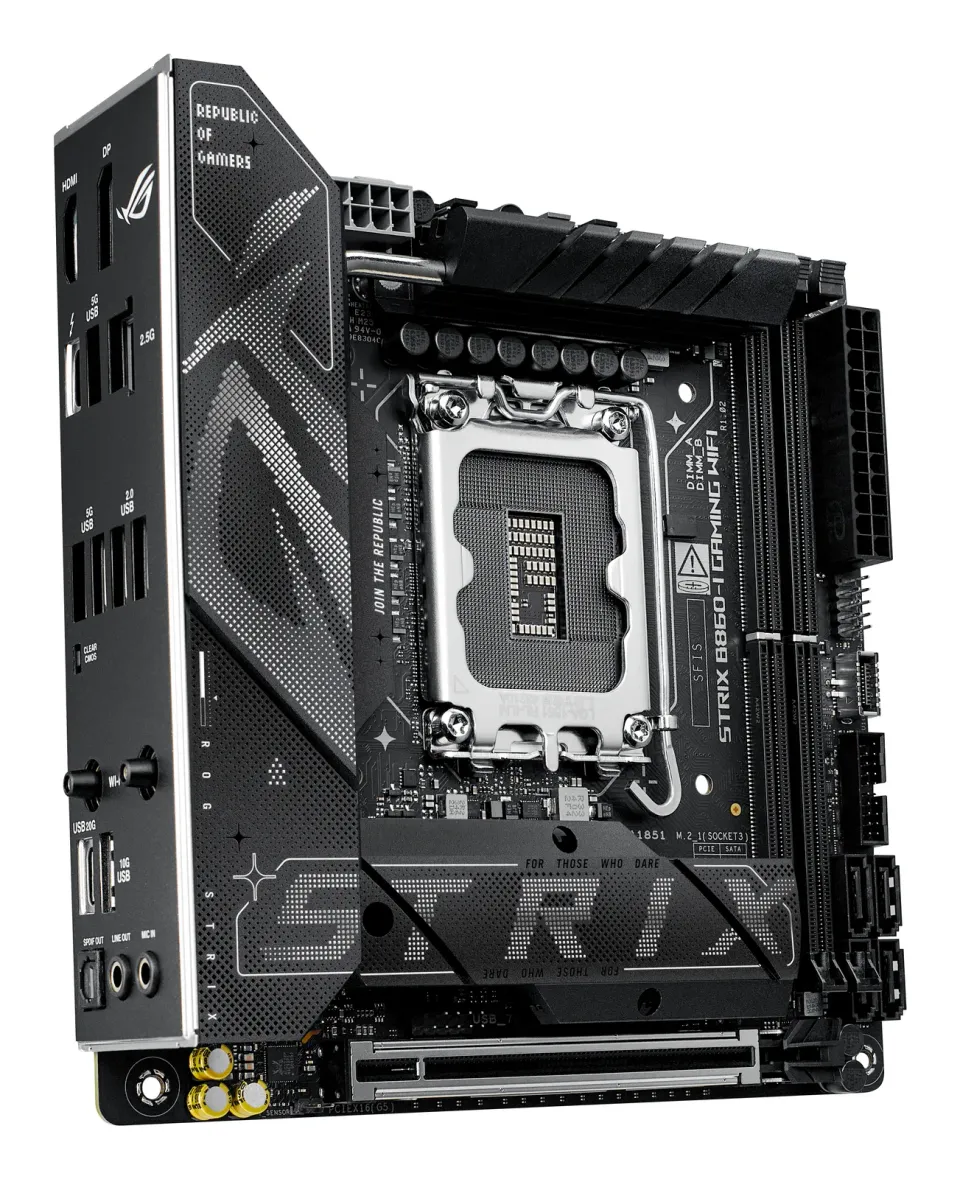

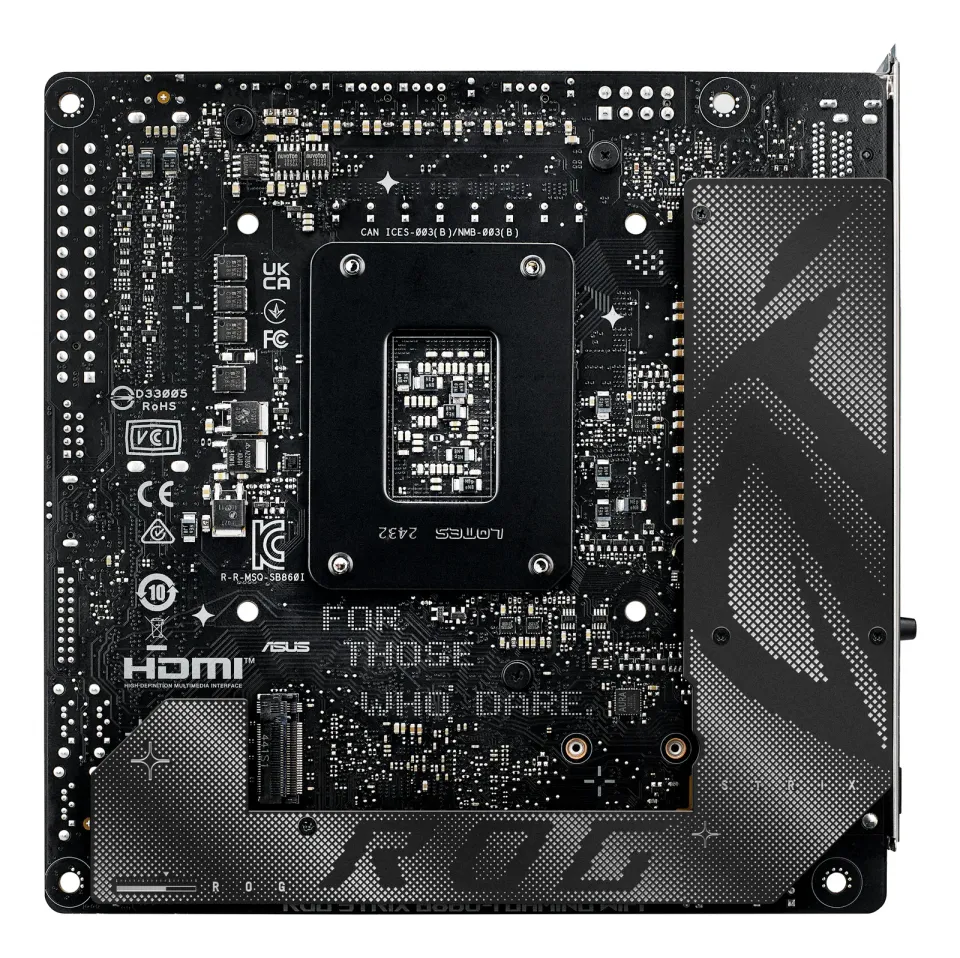

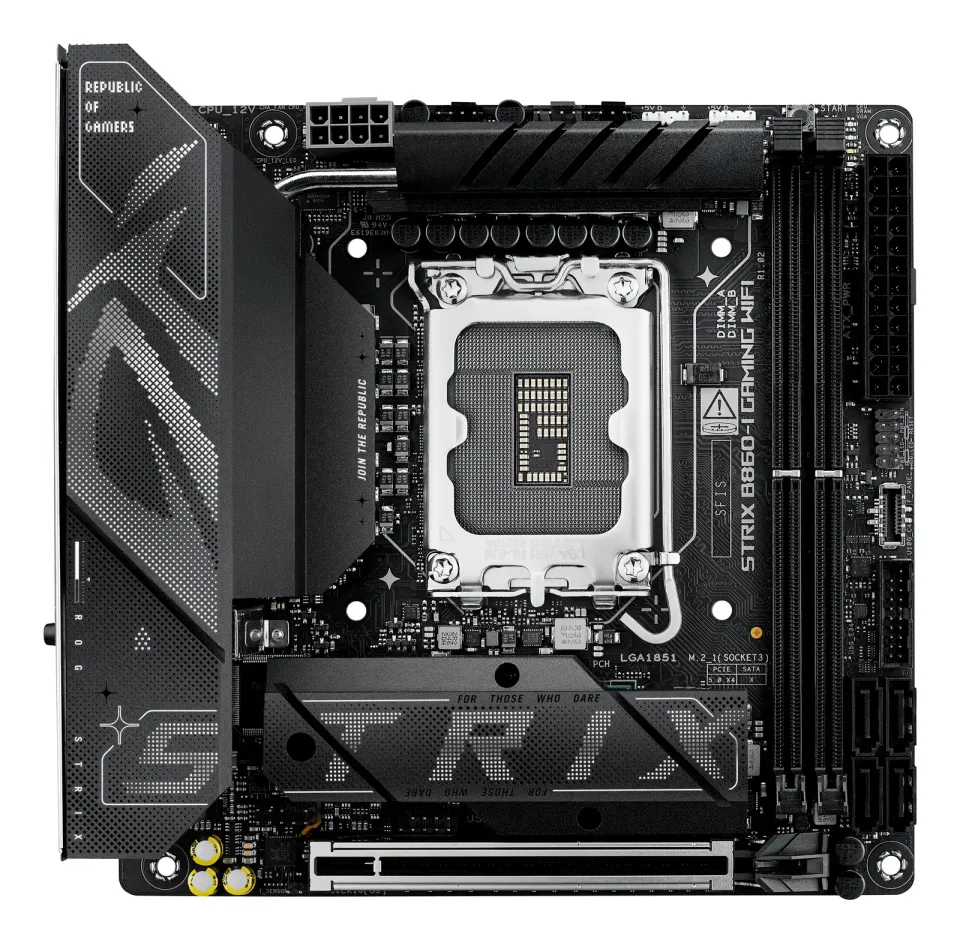

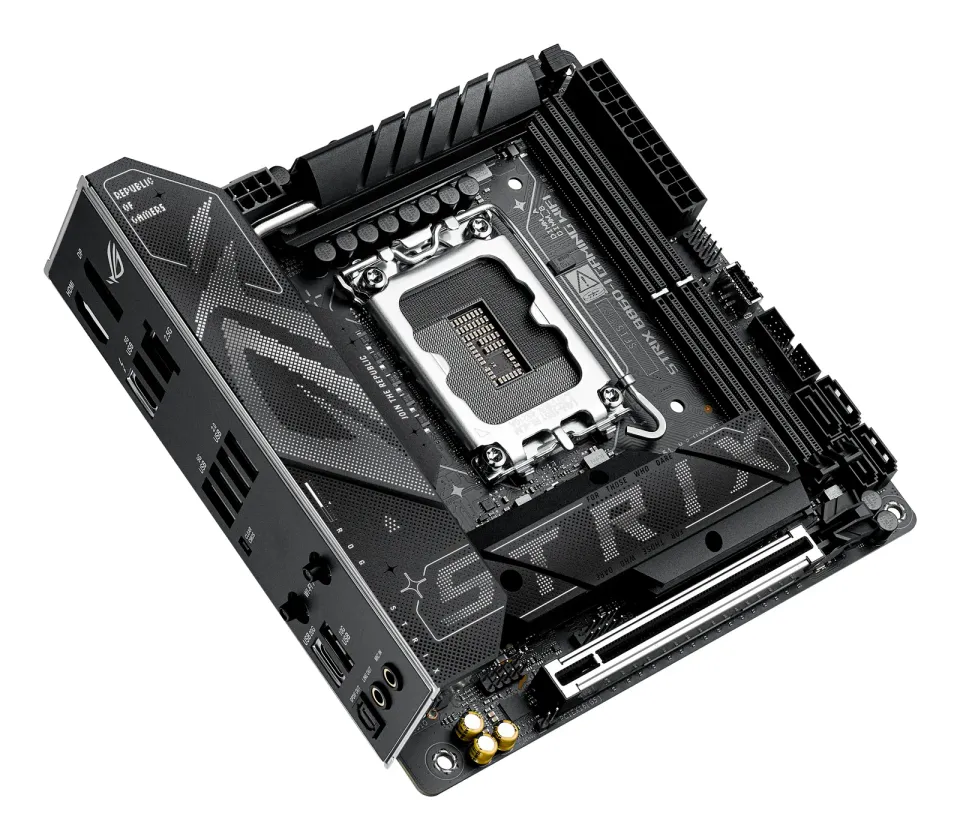

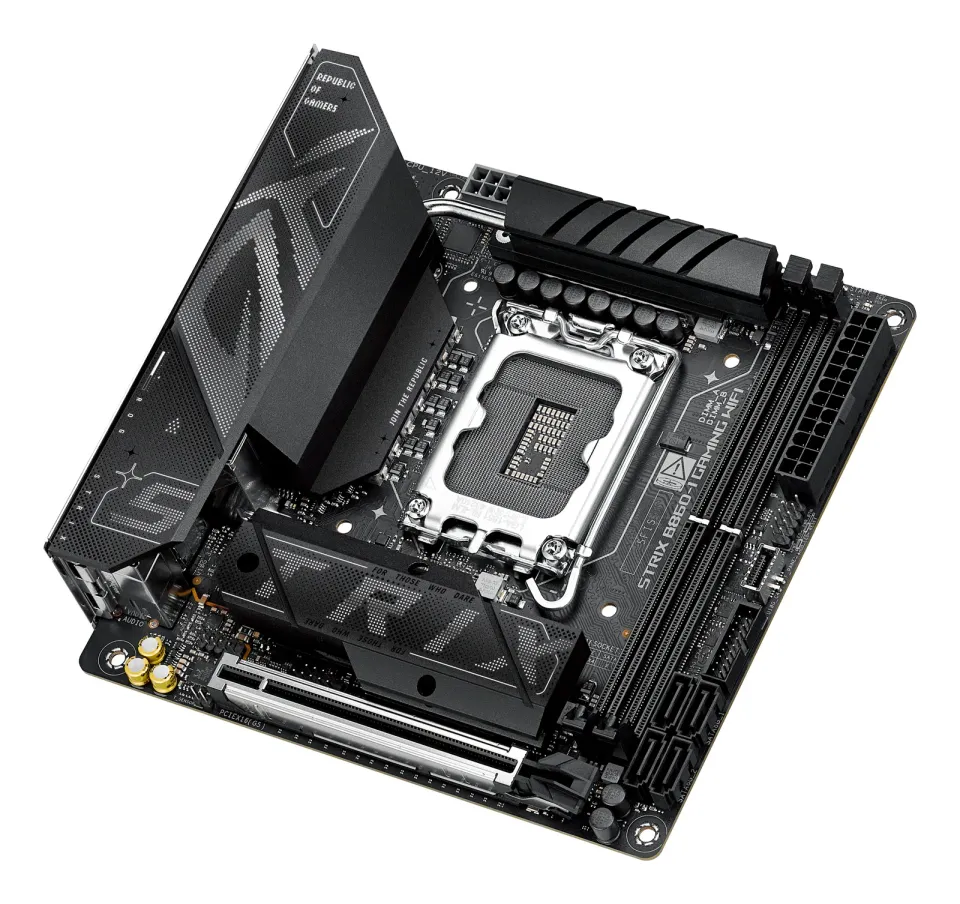

ASUS ROG STRIX B860-I GAMING WIFI
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
CPU
Support Intel Core™ Ultra Processors
(Series 2)*
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0**

• Refer to
  https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0
  support depends on the CPU types.
  Chipset
  Intel B860 Chipset
  Memory
  2 x DIMM slots, max. 128GB, DDR5
  Supports up to 9066+MT/s (OC), Non-ECC
  Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel Extreme Memory Profile
  (XMP) memory module
  ASUS Enhanced Memory Profile III (AEMP III)
  *Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Supported memory types, data rate
  (speed), and number of DRAM modules vary depending on the CPU and memory
  configuration, for more information please refer to CPU/Memory Support list
  under the Support tab of product information site or visit
  https://www.asus.com/support/download-center/.
• Non-ECC, un-buffered DDR5 memory
  supports On-Die ECC function.
  Graphics
  1 x DisplayPort*
  1 x HDMI™ port***
  1 x Intel Thunderbolt™ 4 supports
  DisplayPort and Thunderbolt™ video outputs****
• Graphics specifications may vary between
  CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in
  DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI
  2.1.
  ****Supports up to 8K@60Hz x1 with DSC,
  maximum total bandwidth up to 23.8Gbps, for resolution support please check
  DisplayPort 2.1 specs.
  ***** VGA resolution support depends on
  processors' or graphic cards' resolution.
  Expansion Slots
  Intel Core™ Ultra Processors (Series 2)
  1 x PCIe 5.0 x16 slot

• To ensure compatibility of the device
  installed, please refer to https://www.asus.com/support/download-center/ for
  the list of supported peripherals.
  Storage
  Total supports 2 x M.2 slots and 4 x SATA
  6Gb/s ports*
  Intel Core™ Ultra Processors (Series 2)
  M.2_1 slot (Key M), type 2260/2280
  (supports PCIe 5.0 x4 mode)
  Intel B860 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280
  (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports
  SATA RAID 0/1/5/10.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth v5.4***
  *Wi-Fi features may vary depending on the operating system
  For
  Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
  6E.
  For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 8 ports)
  1 x Thunderbolt™ 4 port (1 x USB Type-C)
  1 x USB 20Gbps port (1 x USB Type-C)
  1 x USB 10Gbps ports (1 x Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 10Gbps connector (supports USB
  Type-C)
  1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional
  USB 2.0 ports
• USB Type-C power delivery output: max.
  5V/3A
  Audio
  Realtek ALC1220P 7.1 Surround Sound High
  Definition Audio CODEC*

• Impedance sense for front and rear
  headphone outputs
• Internal audio Amplifier to enhance the
  highest quality sound for headphone and speakers
• Supports: Jack-detection,
  Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback
  output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz
  playback*"
  Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

• Due to limitations in HDA bandwidth,
  32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  ** A chassis with an HD audio module in the
  front panel is required to support 7.1 Surround Sound audio output.

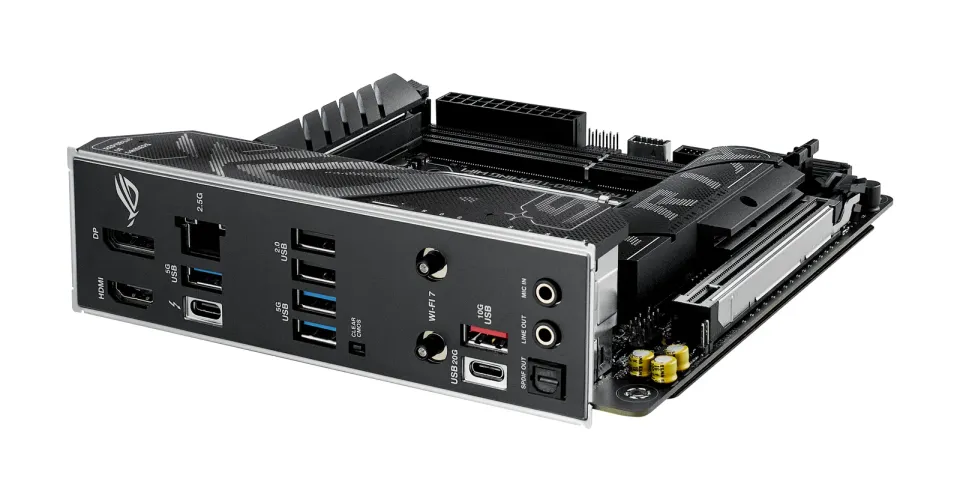

  Back Panel I/O Ports
  1 x Thunderbolt™ 4 port (1 x USB Type-C)
  1 x USB 20Gbps port (1 x USB Type-C)
  1 x USB 10Gbps ports (1 x Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel 2.5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x Clear CMOS button
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin AIO Pump header
  1 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB
  Type-C)
  1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional
  USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen2 headers
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  Special Features
  Extreme Engine Digi+

• 5K Black metallic capacitors
  ASUS Q-Design
• PCIe Slot Q-Release Slim (with PCIe
  SafeSlot)
• M.2 Q-Latch

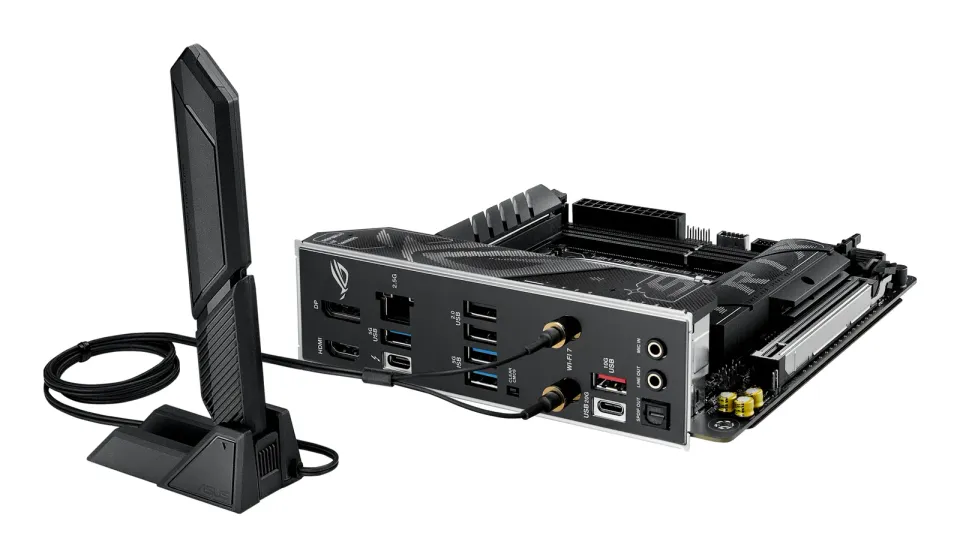

• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA
  [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• Clear CMOS button
• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
  Aura Sync
• Addressable Gen2 headers
  Software Features
