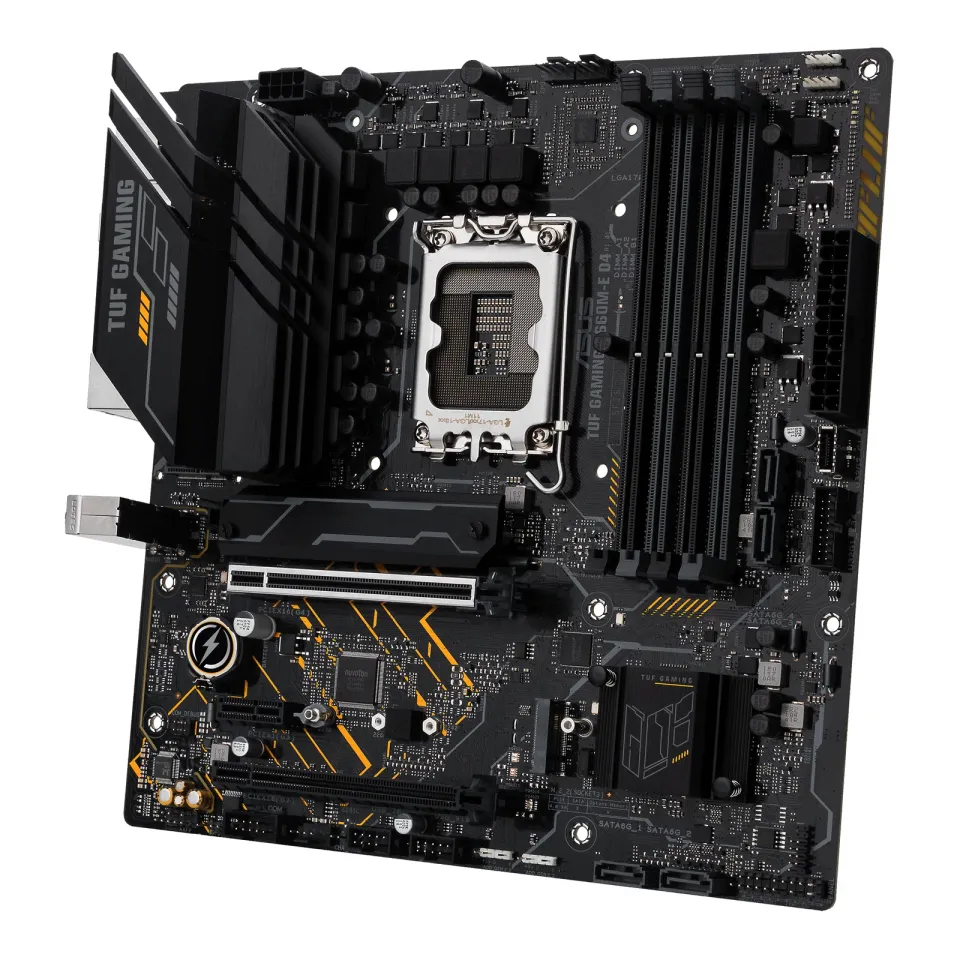

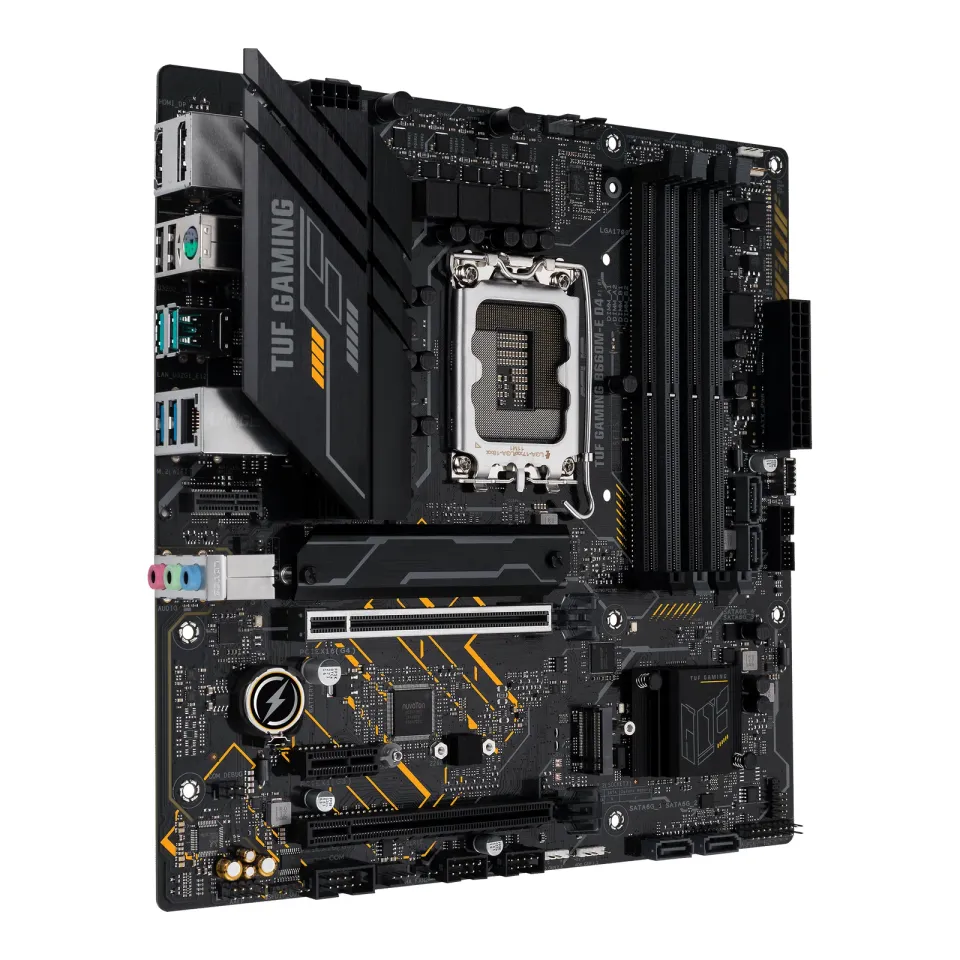

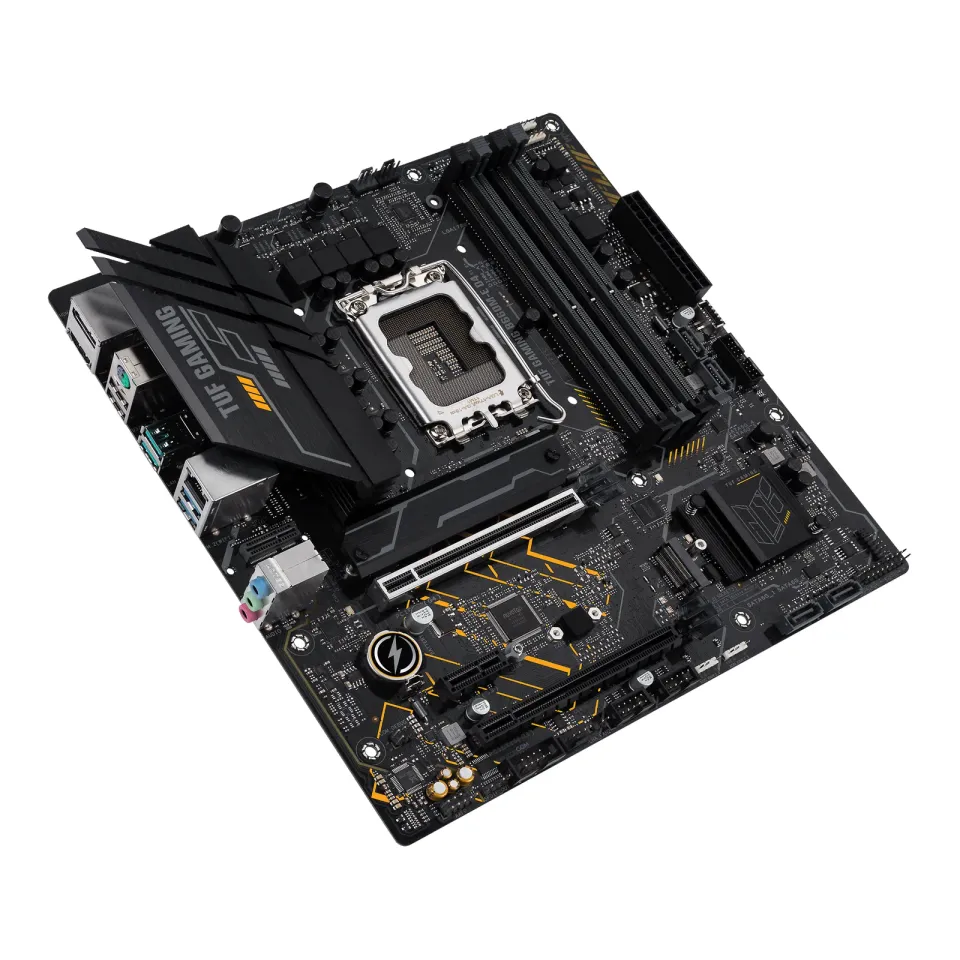

ASUS TUF GAMING B660M-E D4
ASUS TUF GAMING B660M-E D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-E D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
CPU
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B660 Chipset
  Memory
  4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  Graphics
  1 x DisplayPort*
  1 x HDMIport***
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  **Support 4K@60Hz as specified in DisplayPort 1.4.
  *Support 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel13th & 12th Gen Processors
  1 x PCIe 4.0/3.0 x16 slot
  Intel B660 Chipset
  1 x PCIe 3.0 x16 slot (supports x4 mode)
  1 x PCIe 3.0 x1 slot
• Supports Intel Optane Memory H Series on PCH-attached PCIE slot
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel13th &12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280
  Intel B660 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
  Ethernet
  1 x Realtek2.5Gb Ethernet
  TUF LANGuard
  Wireless & Bluetooth
  V-M.2 slot only (Key E, CNVi & PCIe)*
• Wi-Fi module is sold separately.
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 ports (Type-A)
  2 x USB 3.2 Gen1 ports (Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Power pre-regulator reduces power input noise to ensure consistent performance
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

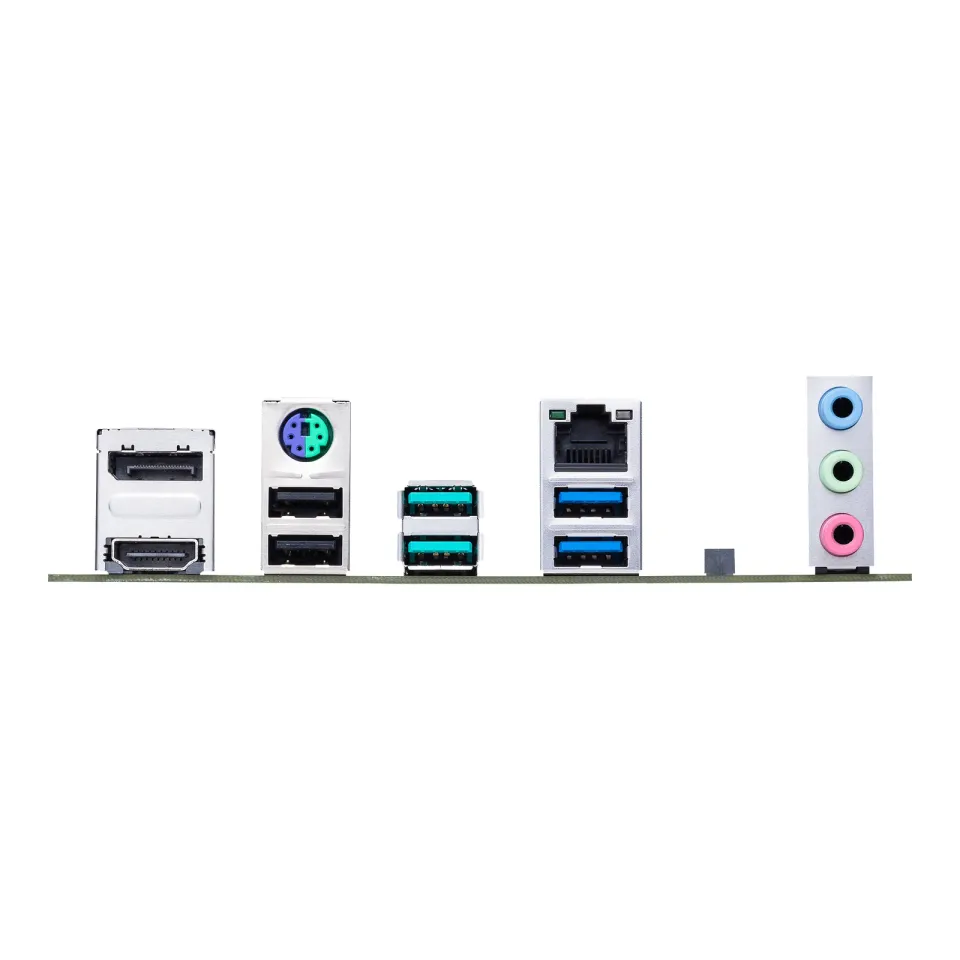

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI port
  1 x Realtek2.5Gb Ethernet port
  3 x Audio jacks
  1 x V-M.2 slot (Key E)
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x S/PDIF Out header
  Special Features
  ASUS TUF PROTECTION

• DIGI+ VRM
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
  ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• Box Headers
• ProCool
• SafeDIMM
  AURA Sync
• AURA RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• AURA Creator
• AURA Sync
• Fan Xpert 2+
• Two-Way AI Noise Cancelation
  AI Suite 3
• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  TUF GAMING CPU-Z
  DTS Audio Processing
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x M.2 SSD screw package
  1 x TUF Gaming sticker
  Installation Media
  1 x Support DVD
  Documentation
  1 x TUF Certification card
  1 x User manual
  Operating System
  Windows 11 64-bit, Windows 10 64-bit,
  Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Formát základní desky: micro ATX
Chipset: Intel B660
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR4
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
