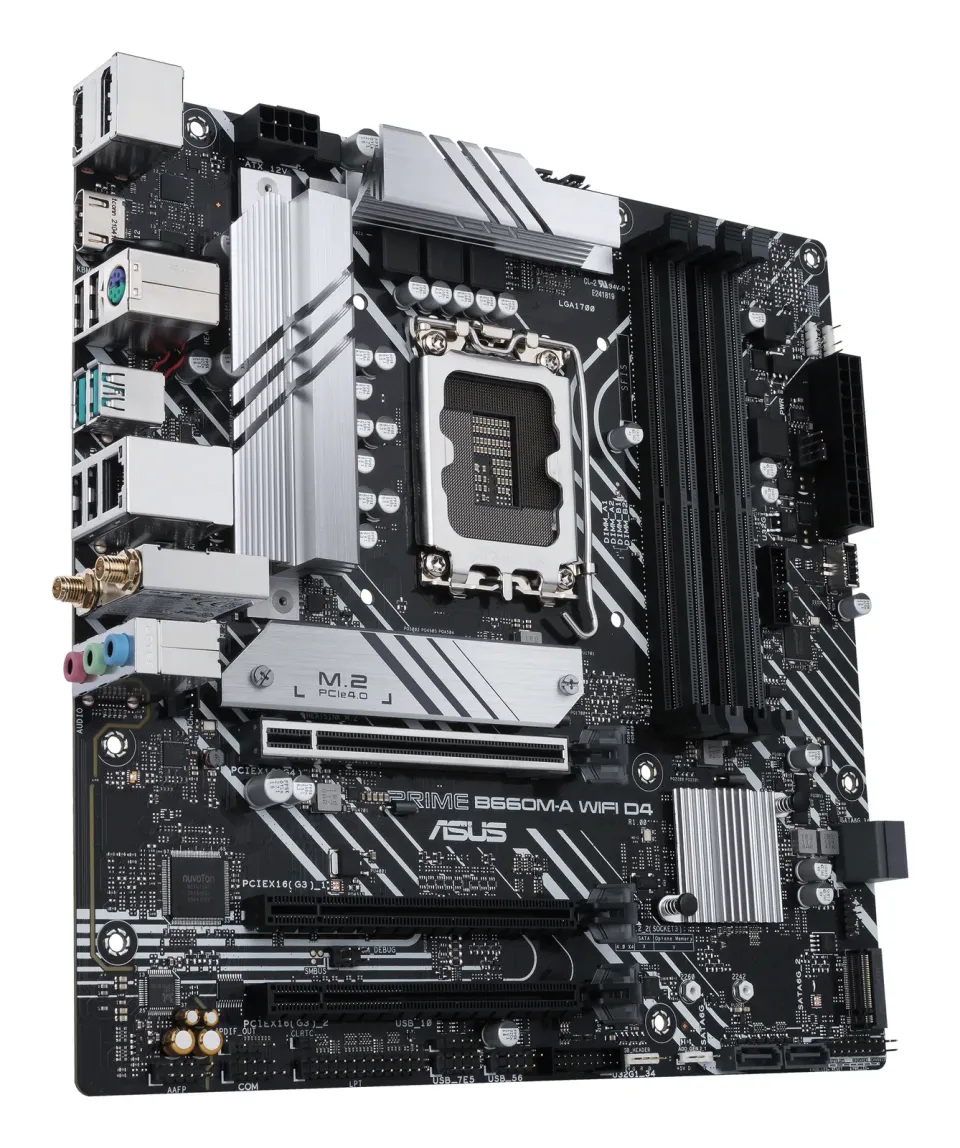

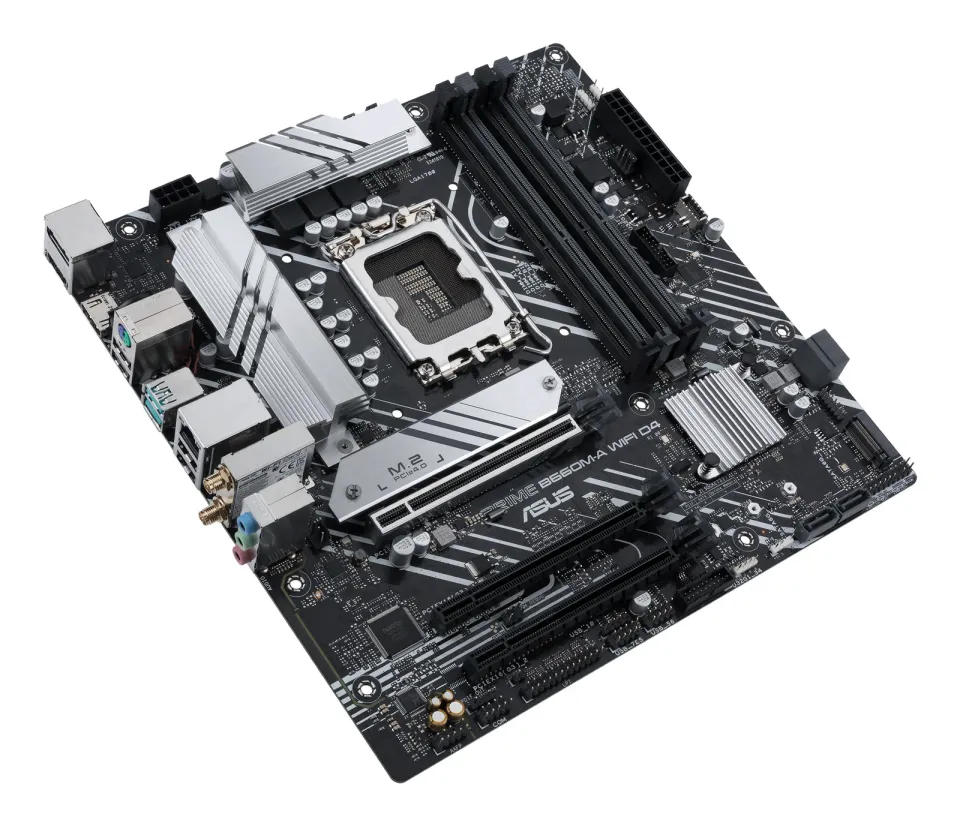

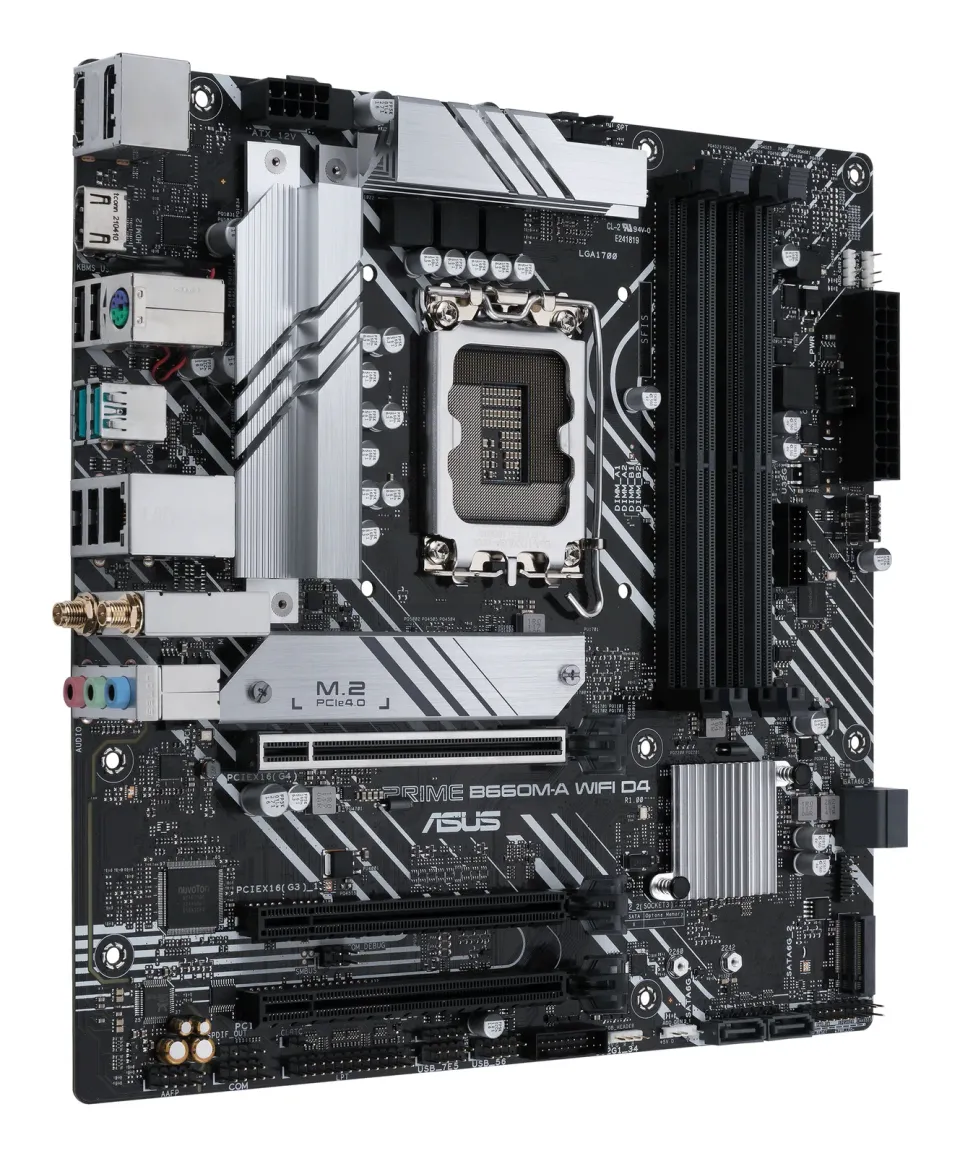

ASUS MB Sc LGA1700 PRIME B660M-A WIFI DDR4, Intel B660, 4xDDR4, 1xDP, 2xHDMI, WI-FI, mATX

PRIME B660M-A WIFI D4
Intel B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet, Intel Wi-Fi 6 , DP,2 x HDMI , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors
• Ultrafast connectivity : Intel Wi-Fi 6, PCIe 4.0, Intel 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  CPU
  Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B660 Chipset
  Memory
  4 x DIMM, Max. 128GB, DDR4
  5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
  Graphics
  1 x DisplayPort*
  2 x HDMI ports***
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel 12th Gen Processors
  1 x PCIe 4.0/3.0 x16 slot
  Intel B660 Chipset *
  1 x PCIe 3.0 x16 slot (supports x4 mode)
  1 x PCIe 3.0 x16 slot (supports x1 mode)
  *Supports Intel Optane Memory H Series on PCH-attached PCIe slot
  Storage
  Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280

• Intel 12th Gen processors support PCIe 4.0 x4 mode.
  Intel B660 Chipset **
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
  Ethernet
  1 x Intel 1Gb Ethernet
  Wireless & Bluetooth
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2
  USB
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  1 x USB 2.0 headers support additional 1 USB 2.0 port
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
  ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

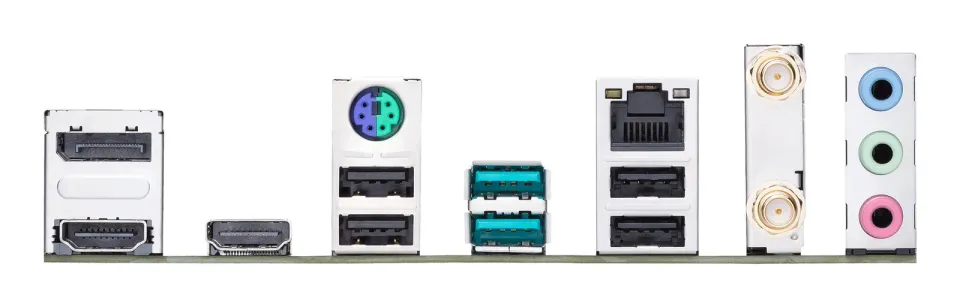

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  2 x HDMI ports
  1 x Wi-Fi Module
  1 x Intel 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  2 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  1 x USB 2.0 header support 1 USB 2.0 port
  Miscellaneous
  3 x AURA Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x LPT header
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  Special Features
  ASUS 5X PROTECTION III
• DIGI+ VRM
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• ProCool
  AURA Sync
• AURA RGB header
• Addressable Gen 2 RGB headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• AURA Creator
• AURA Sync
• Fan Xpert 2+
  AI Suite 3
• Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  ASUS CPU-Z
  MyAsus
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

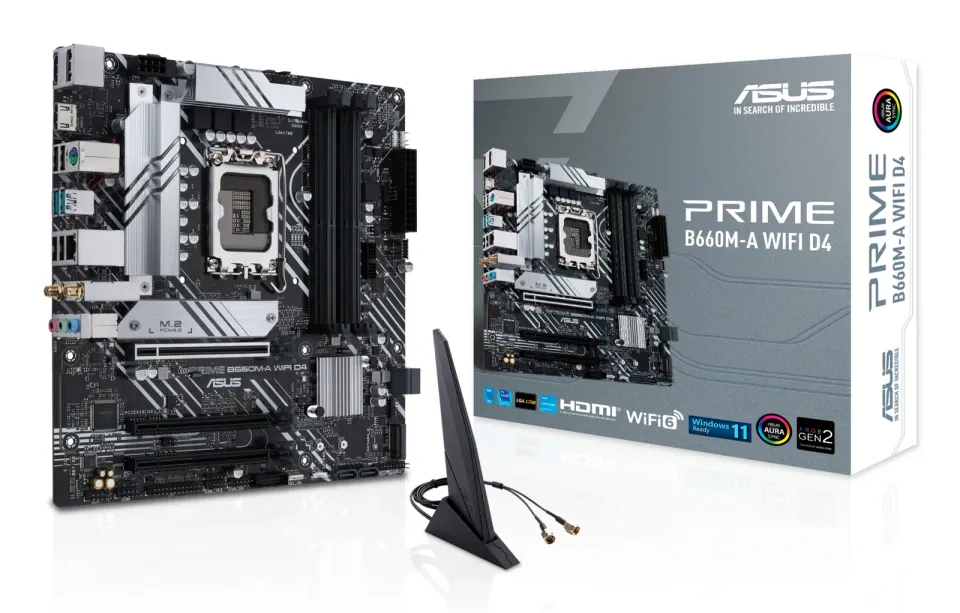

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x M.2 SSD screw package
  Installation Media
  1 x Support DVD
  Documentation
  1 x User manual
  Form Factor
  microATX
  24.4cm x 24.4cm

Formát základní desky: micro ATX
Chipset: Intel B660
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR4
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
PCI Express x16: 3
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 2
LPT port
3.5mm Jack
TPM
