ASUS MB Sc AM5 TUF GAMING B850-E WIFI, AMD B850, 4xDDR5, 1xDP, 1xHDMI, WiFi, ATX

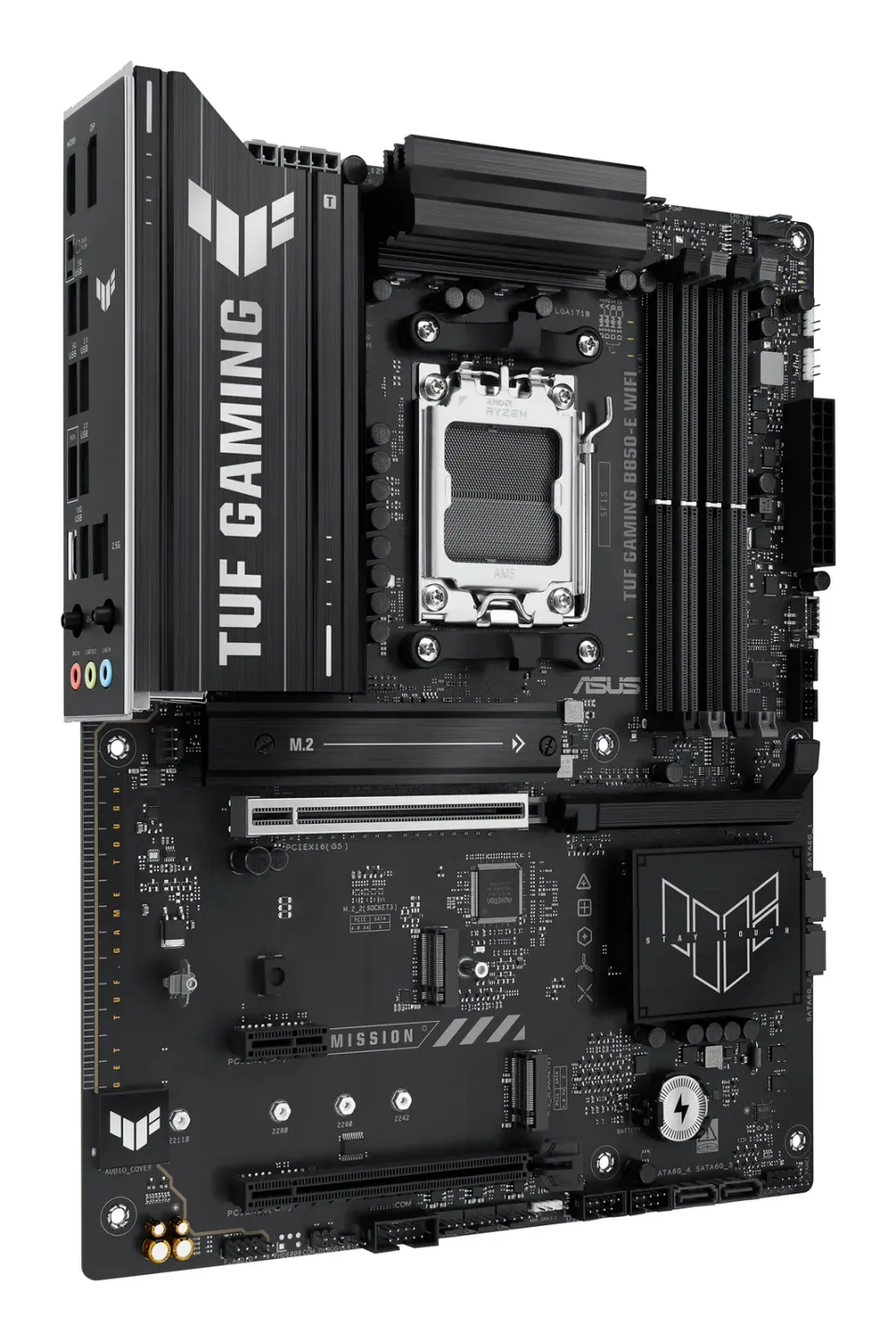

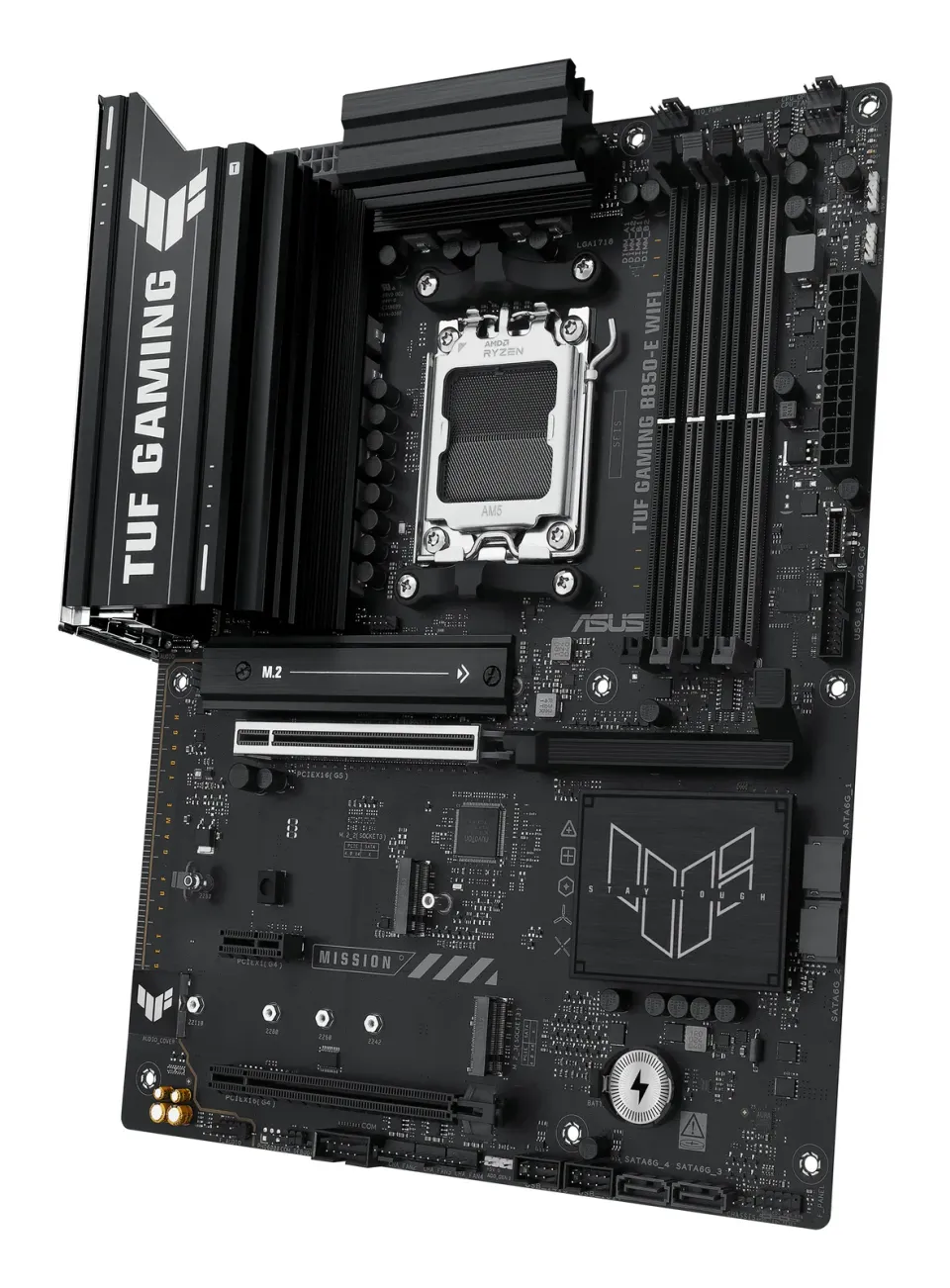

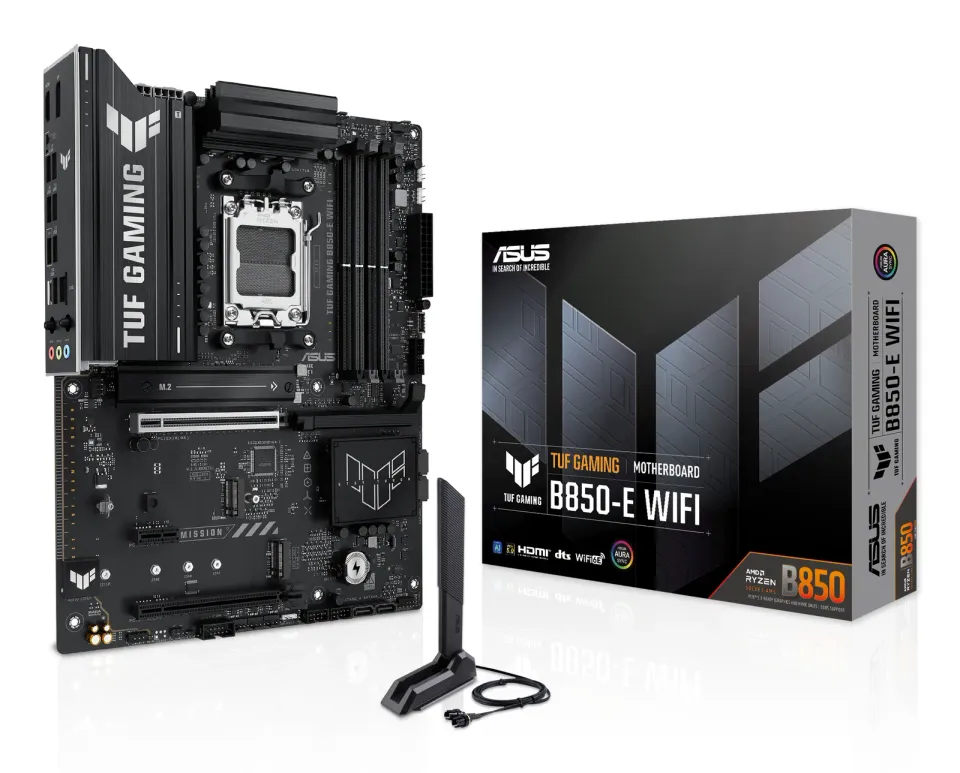

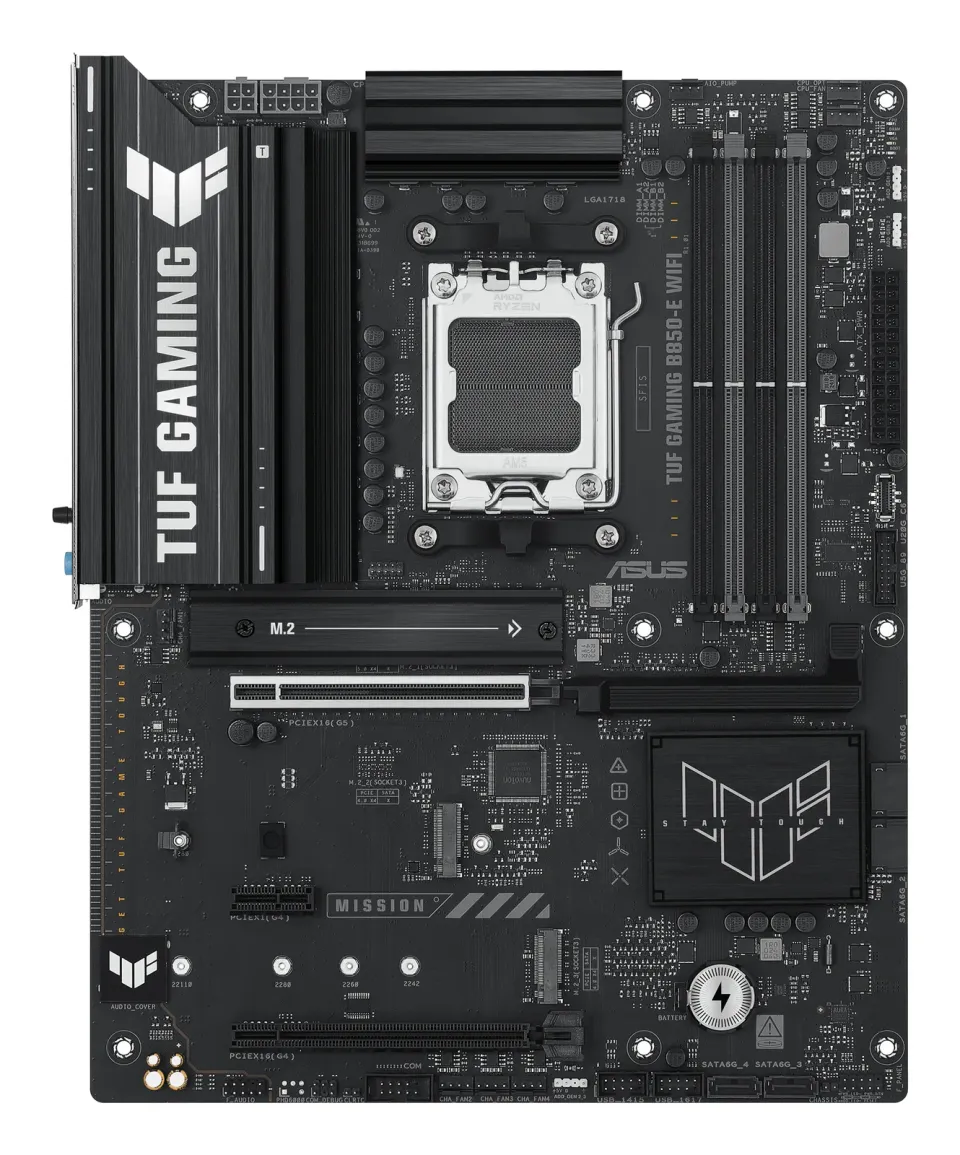

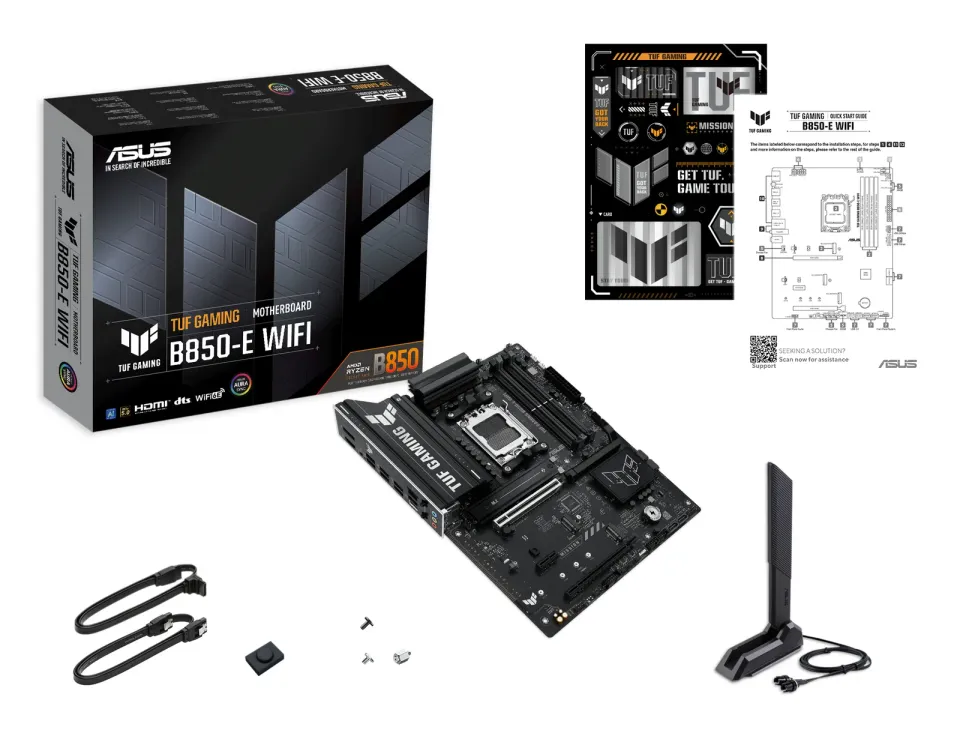

ASUS TUF GAMING B850-E WIFI
ASUS TUF GAMING B850-E WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD B850 Chipset
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (supports x1 mode)
  1 x PCIe 4.0 x1 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** Specifications vary by CPU types.

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
  Storage
  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
  AMD B850 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Specifications vary by CPU types.
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3**
• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
  ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 8 ports)
  2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
  3 x USB 5Gbps ports (3 x Type-A)
  3 x USB 2.0 ports (3 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A.
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

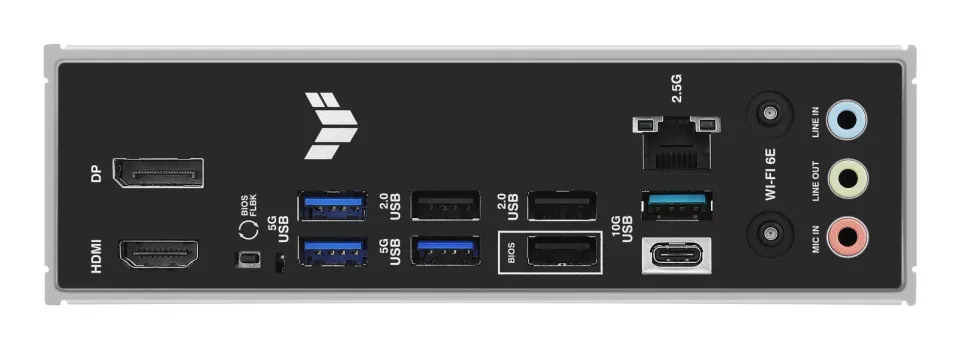

  Back Panel I/O Ports
  2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
  3 x USB 5Gbps ports (3 x Type-A)
  3 x USB 2.0 ports (3 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  1 x 4-pin +12V CPU Power connector
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable RGB Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front Panel System header
  Special Features
  ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
  ASUS Q-Design
• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
  Aura Sync
• Addressable RGB Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4
• Power Saving
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  TUF GAMING CPU-Z
  DTS Audio Processing
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (4…
