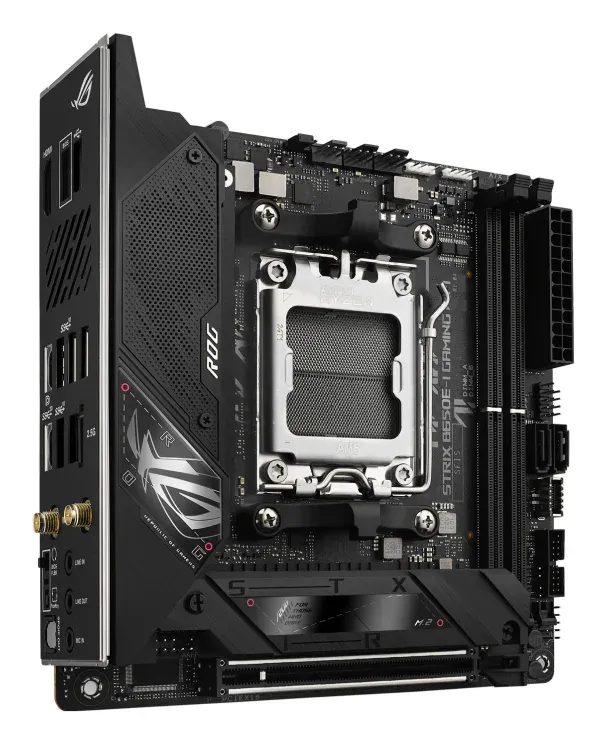

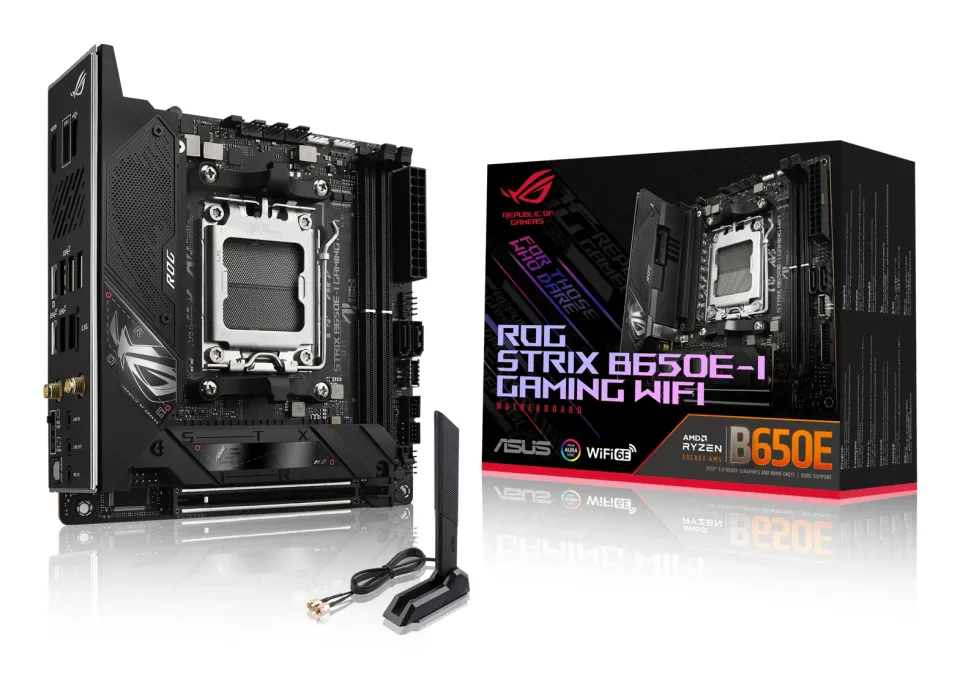

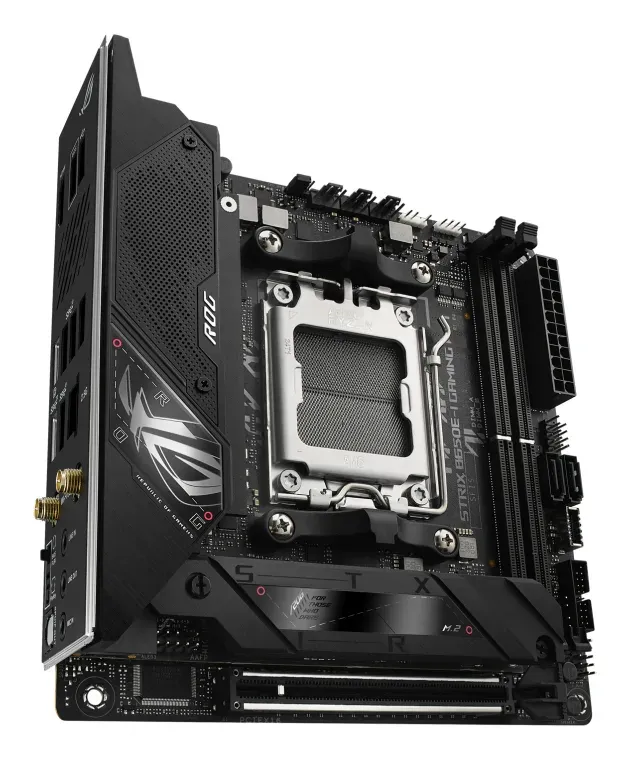

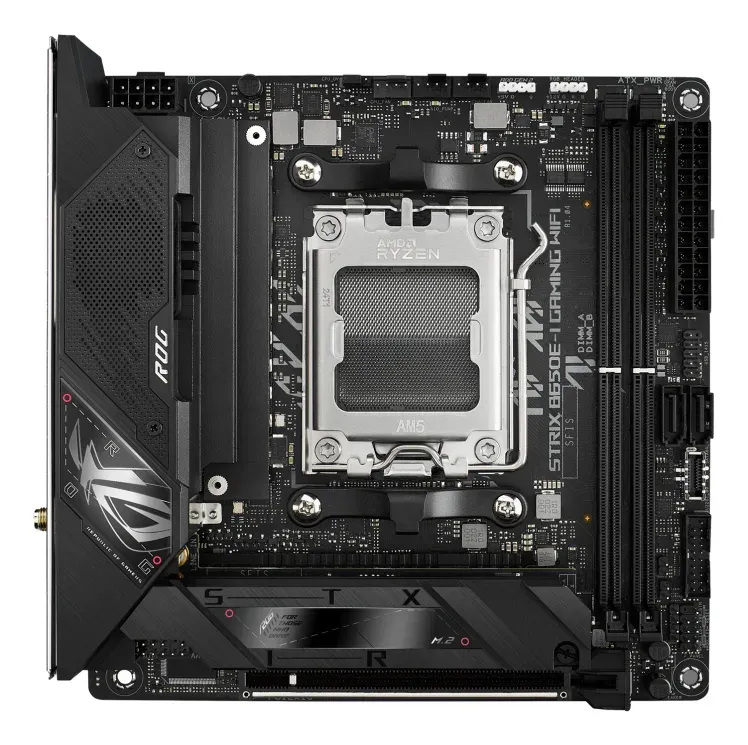

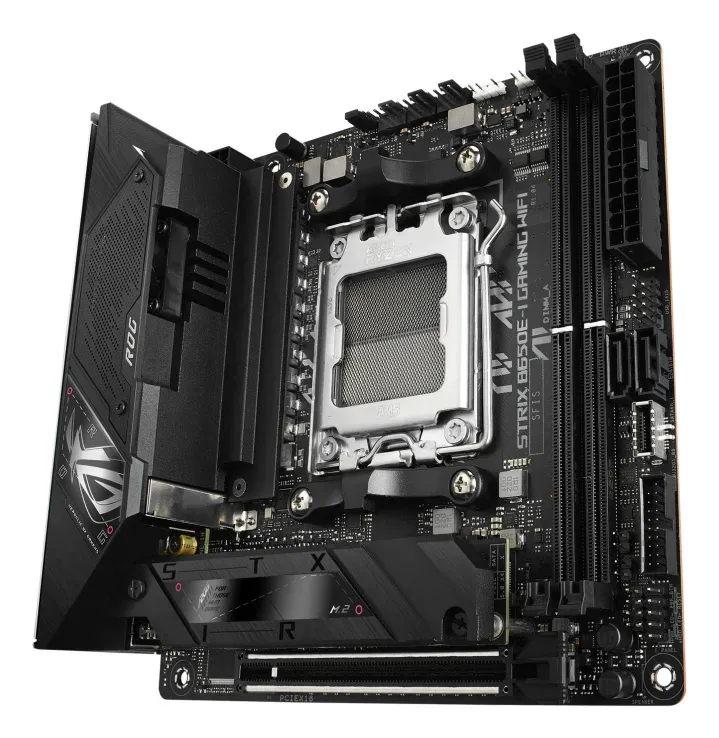

ASUS MB Sc AM5 ROG STRIX B650E-I GAMING WIFI, AMD B650, 2xDDR5, 1xHDMI, WI-FI, mini-ITX

ROG STRIX B650E-I GAMING WIFI
Don’t be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it’s a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

• Refer to www.asus.com for CPU support
  list.
  Chipset
  AMD B650
  Memory
  2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD EXTended Profiles for Overclocking (EXPO™)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
  Graphics
  1 x HDMI port***
  1 x USB3.2 Gen2 port supports USB Type-C display outputs****
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@60Hz as specified in display outputs
  *Supports 4K@60Hz as specified in HDMI 2.1.
  **** VGA resolution support depends on processors' or graphic cards' resolution.
  Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  2 x SATA 6Gb/s ports
  AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2**

• WiFi 6E 6GHz regulatory may vary between countries.
  ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 2 connector
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
  Audio Features
• Audio Shielding
• Savitech SV3H712 AMP
• LED-illuminated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

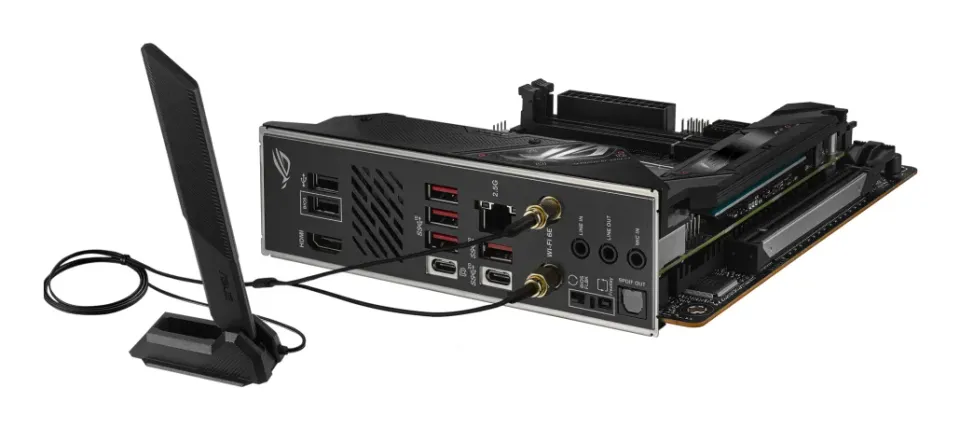

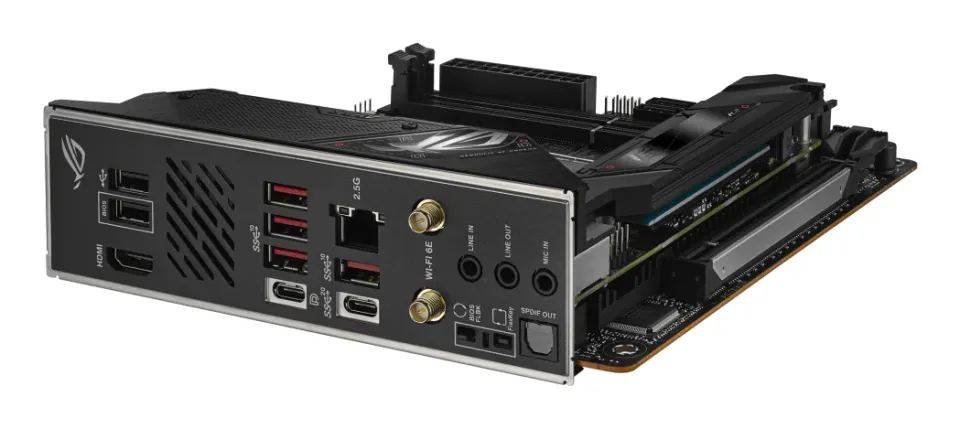

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C with DP Alt mode)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMI port
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet port
  3 x LED-illuminated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x FlexKey button
  *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin AIO Pump header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 headers supports additional 2 USB 2.0 ports
  Miscellaneous
  1 x Addressable Gen 2 header
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x CPU Over Voltage jumper
  1 x 12-1 pin Front Panel Audio header (AAFP)
  1 x 10-1 pin System Panel header
  1 x Speaker header
  1 x Thermal Sensor header
  Special Features
  Extreme Engine Digi+
  -5K Black Metallic Capacitors
  ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
  AURA Sync
• AURA RGB header
• Addressable Gen 2 header
  Software Features
  ROG Exclusive Software
• GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual
  Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS Sound Unbound
• Anti-virus software
  ASUS Exclusive Software
  Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• Two-Way AI Noise Cancellation
  AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleaner
  MyAsus
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  Dynamic OC Switcher
  FlexKey
  BIOS
  256 MbFlash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  1 x ROG USB2.0 splitter cable
  1 x Panel cable
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Bracket
  1 x M.2 SSD screw package
  1 x M.2 Q-Latch package for M.2 backplate
  1 x ROG key chain
  1 x ROG Strix sticker
  1 x ROG Strix thank you card
  1 x Rubber Package for M.2 backplate
  Documentation
  1 x User guide
  Operating System
  Windows 11 64-bit, Windows 10 64-bit
  Form Factor
  Mini-ITX Form Factor
  6.7 inch x 6.7 inch (17 cm x 17 cm)

Formát základní desky: Mini-ITX
Chipset: AMD B650
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR…
