ASUS MB Sc AM5 PRIME B650-PLUS WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, WI-FI

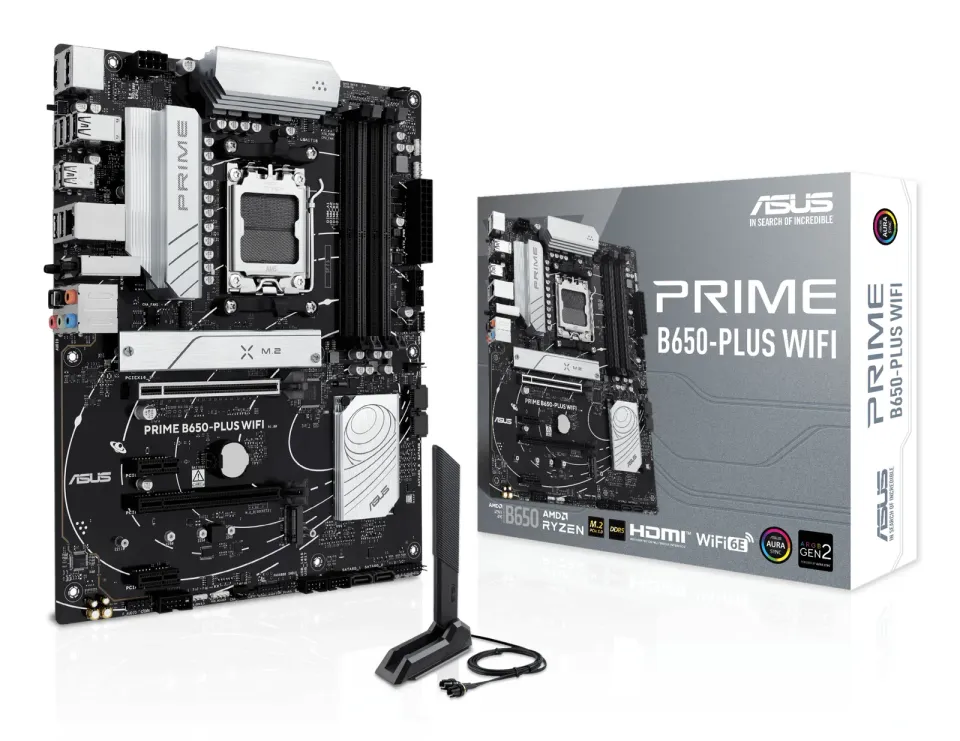

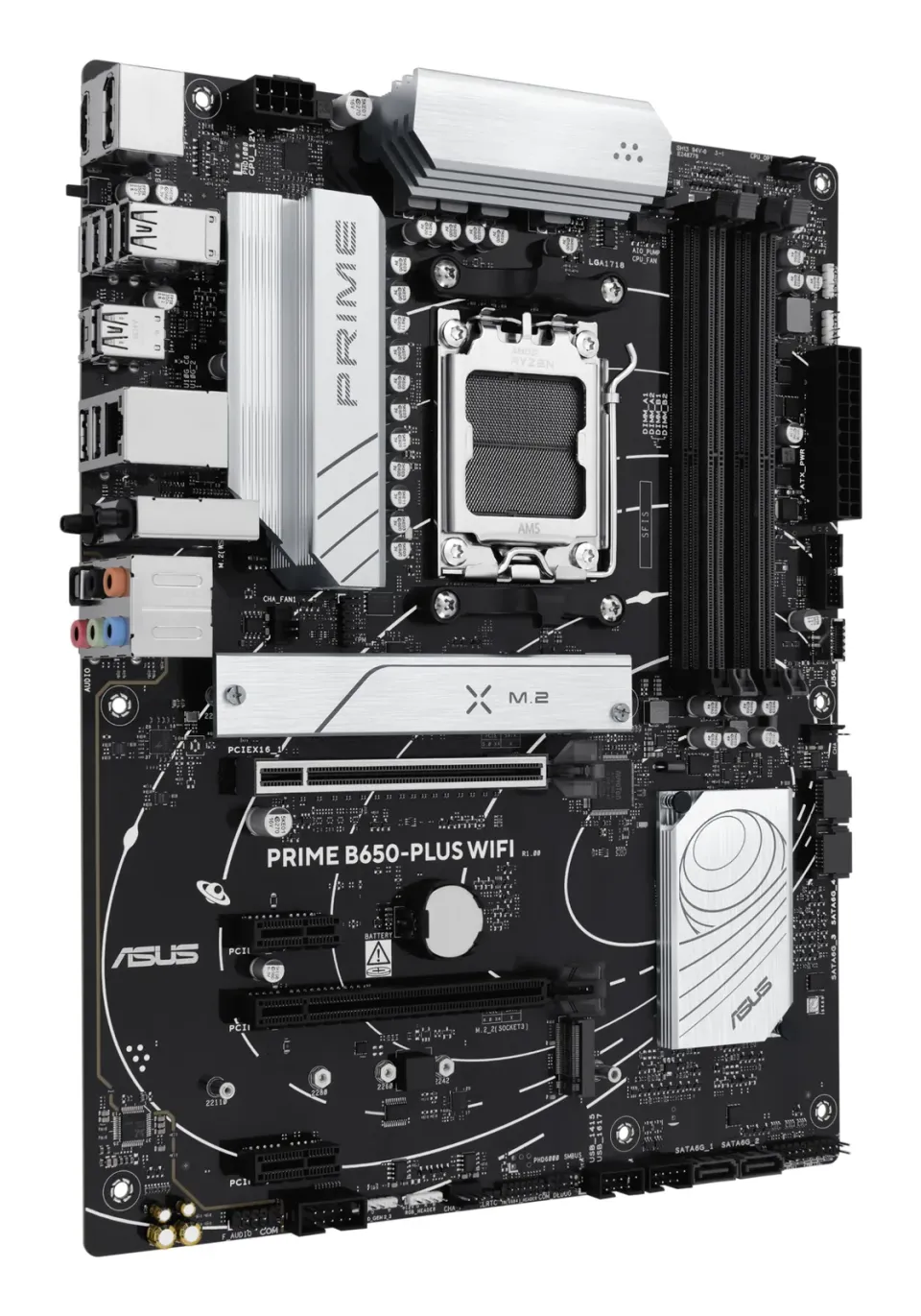

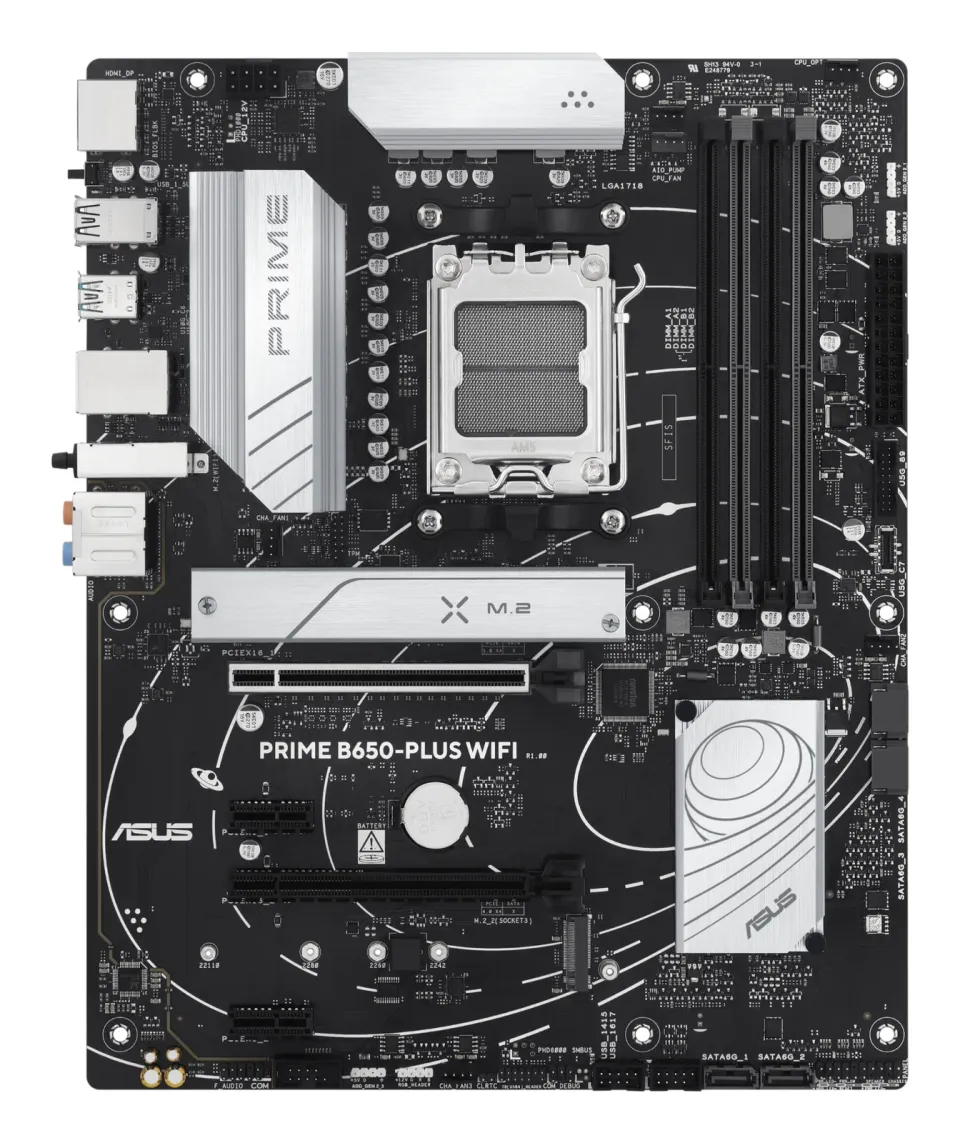

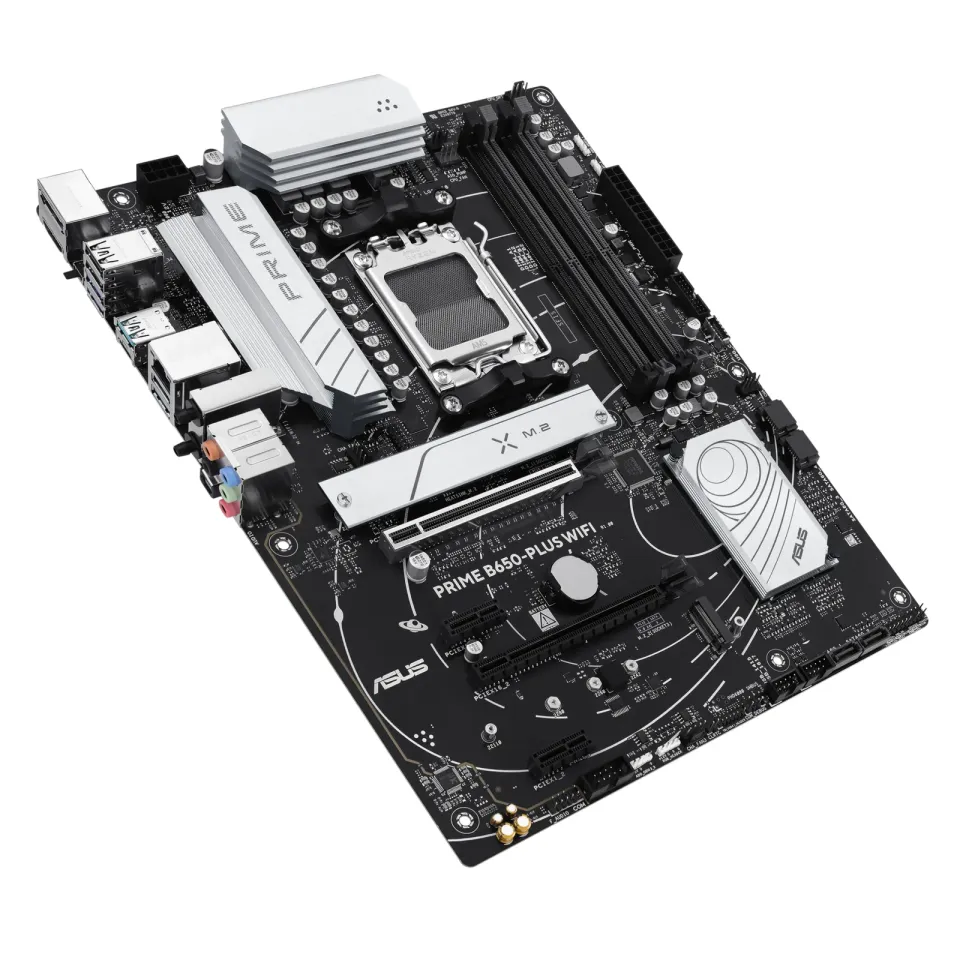

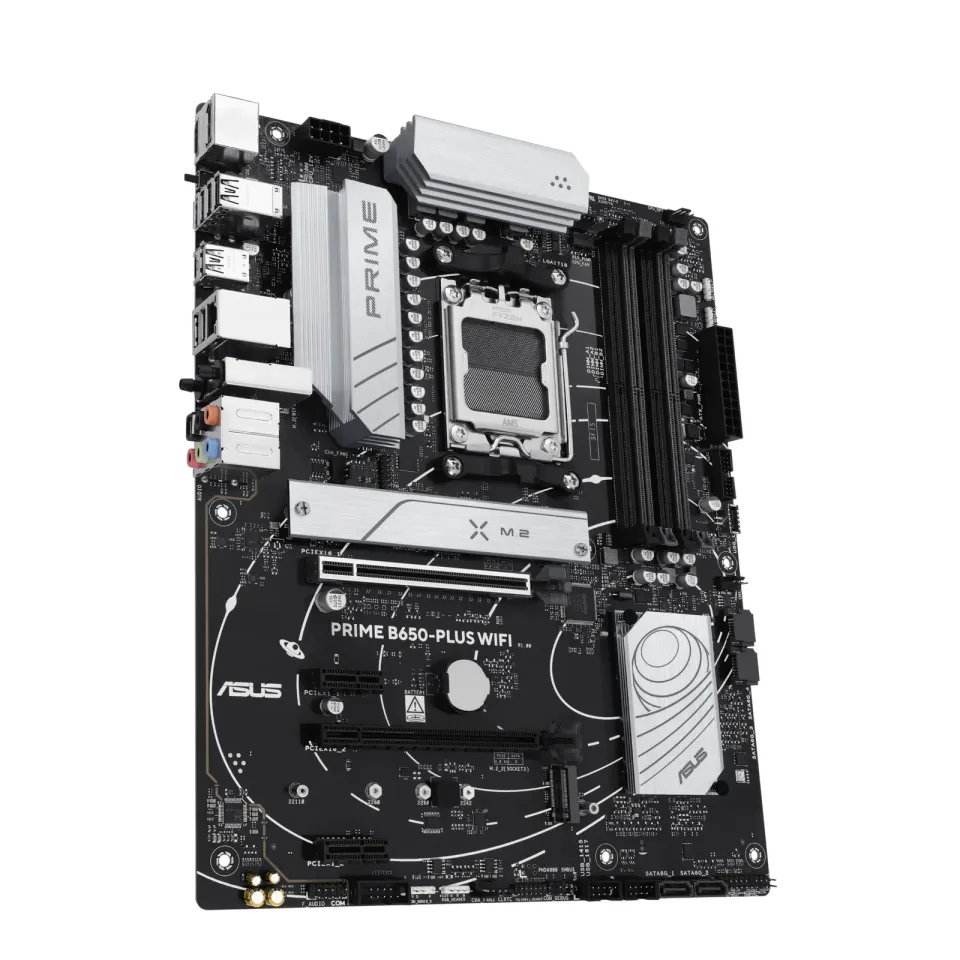

ASUS PRIME B650-PLUS WIFI
AMD B650 ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, WIFI 6E, DisplayPort, HDMI™, SATA 6 Gbps, USB 10Gbps Type-C,front USB 5Gbps Type-C, BIOS FlashBack™, Thunderbolt™ 4 header, AURA Sync

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt™ 4 header support
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  CPU
  AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD B650 Chipset
  Memory
  4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x HDMITM port***
• Graphics specifications may vary between CPU types.
  ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 4.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD B650 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  2 x PCIe 4.0 x1 slots
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** Specifications vary by CPU types.
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
  AMD B650 Chipset
  4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  ** Specifications vary by CPU types.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  Wireless & Bluetooth

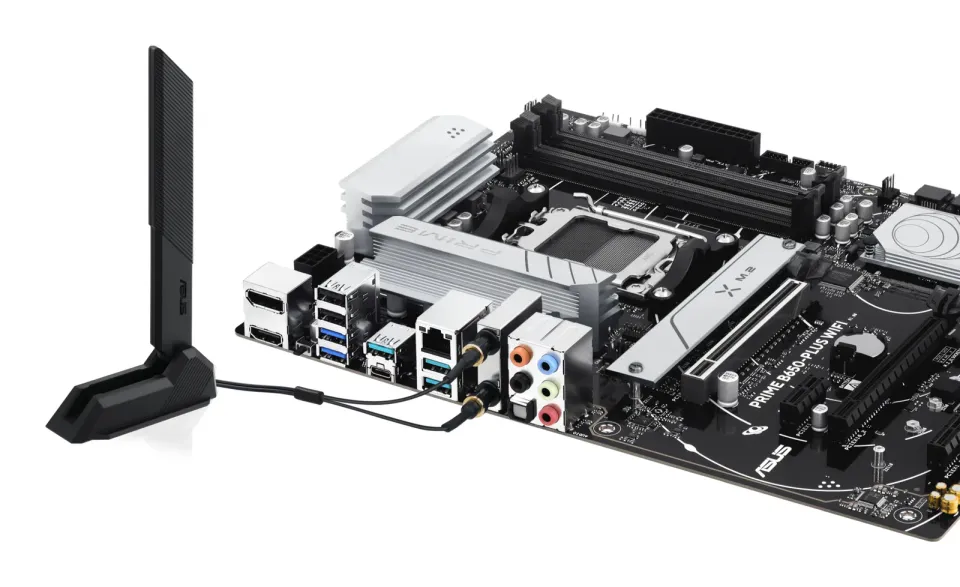

  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3**
• Wi-Fi 6GHz frequency band regulatory may vary between countries.
  ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 8 ports)
  4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C)
  2 x USB 5Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 5Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

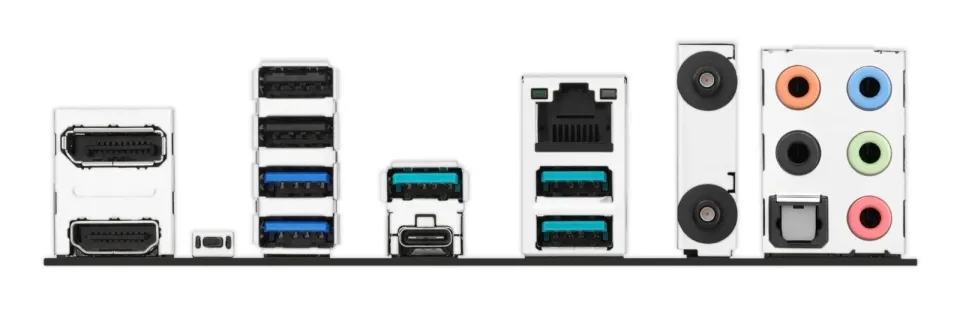

  Back Panel I/O Ports
  4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C)
  2 x USB 5Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMITM port
  1 xWi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ (USB4) header
  Special Features
  ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• Safeslot Core+
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
  ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
  Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
  AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
  ASUS CPU-Z
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

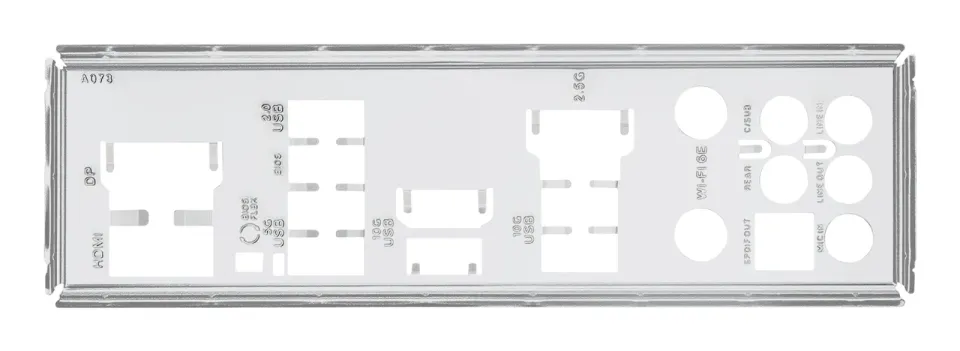

  1 x I/O Shield
  1 x Wi-Fi moving antenna
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  Documentation
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Formát základní desky: ATX
Chipset: AMD B650
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 3
