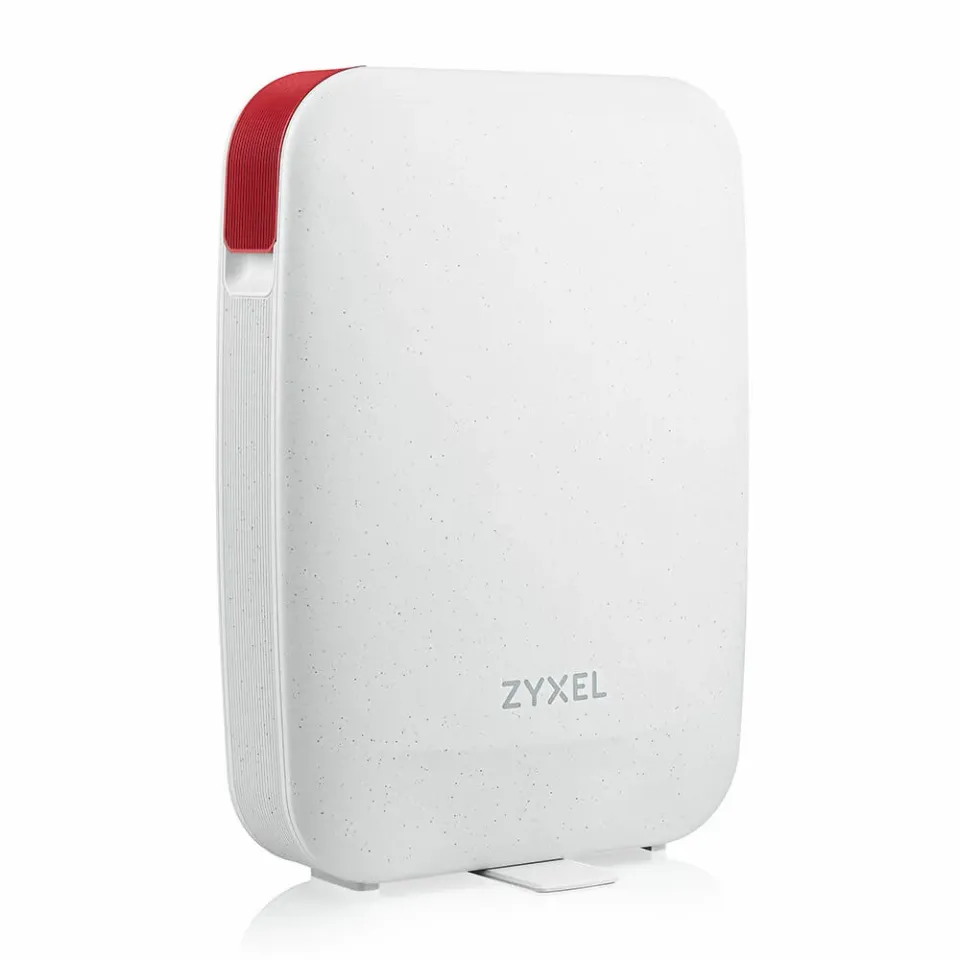

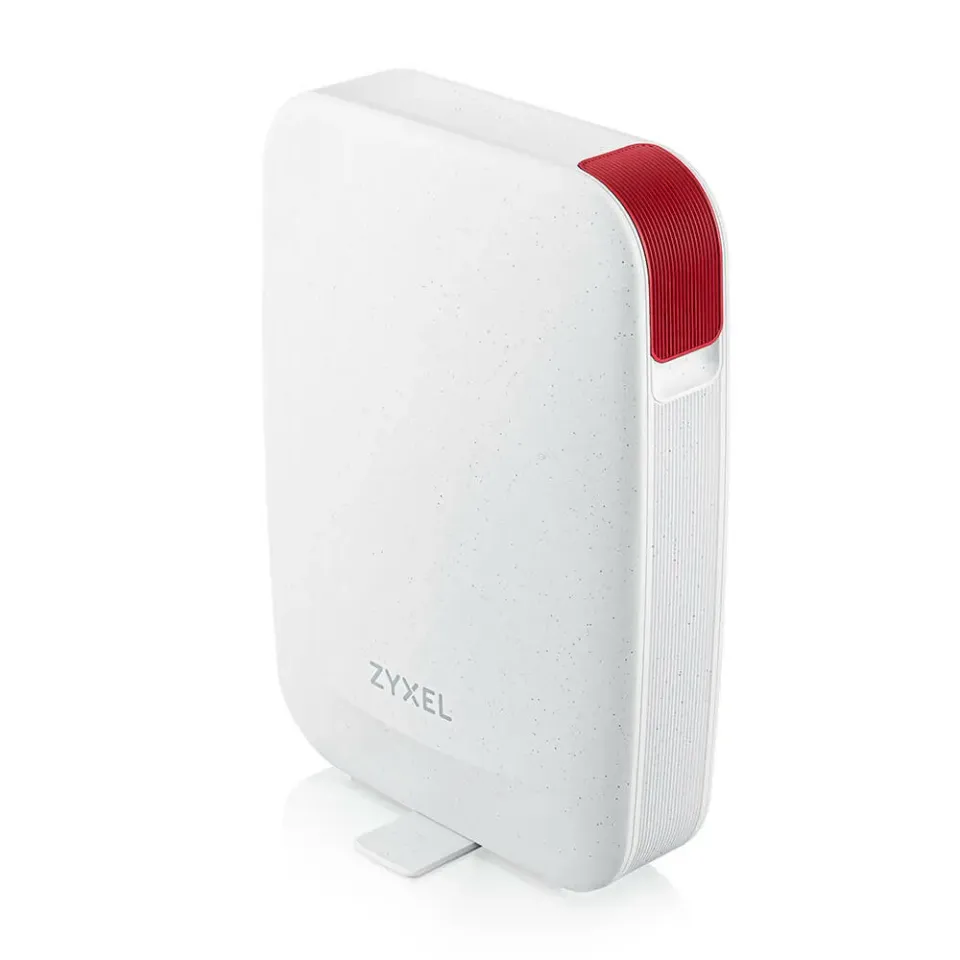

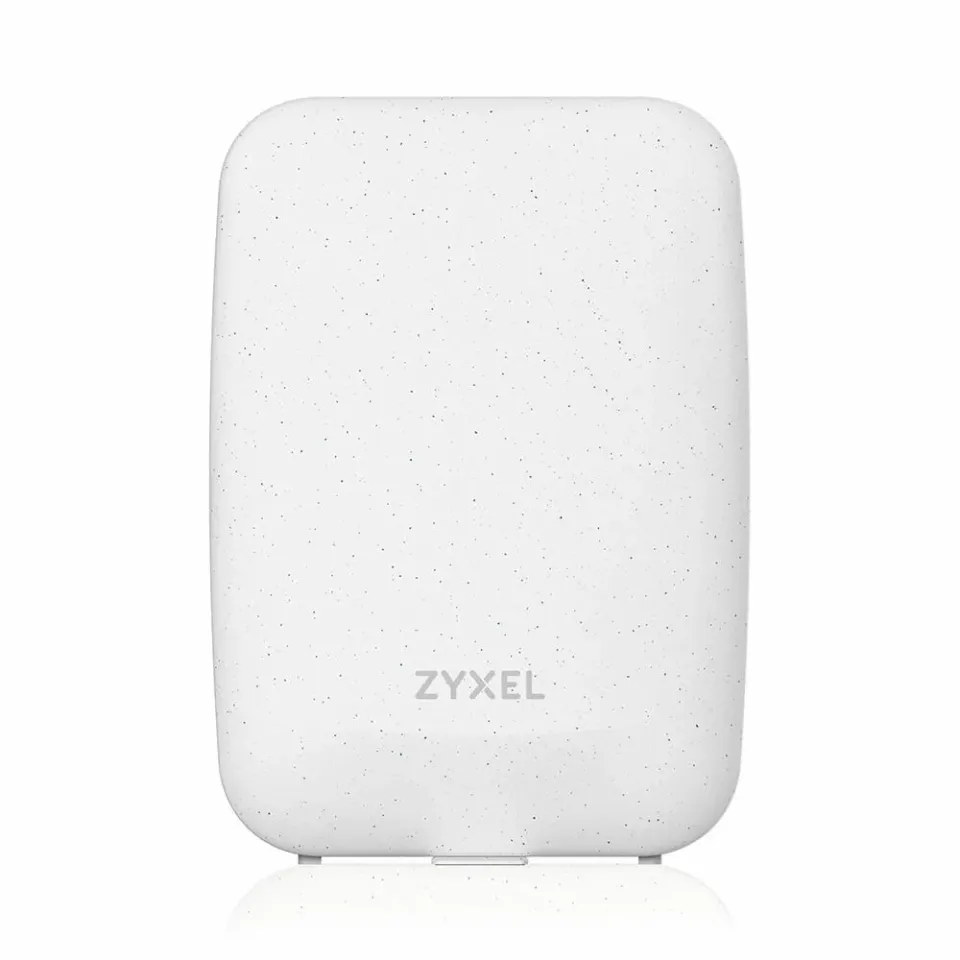

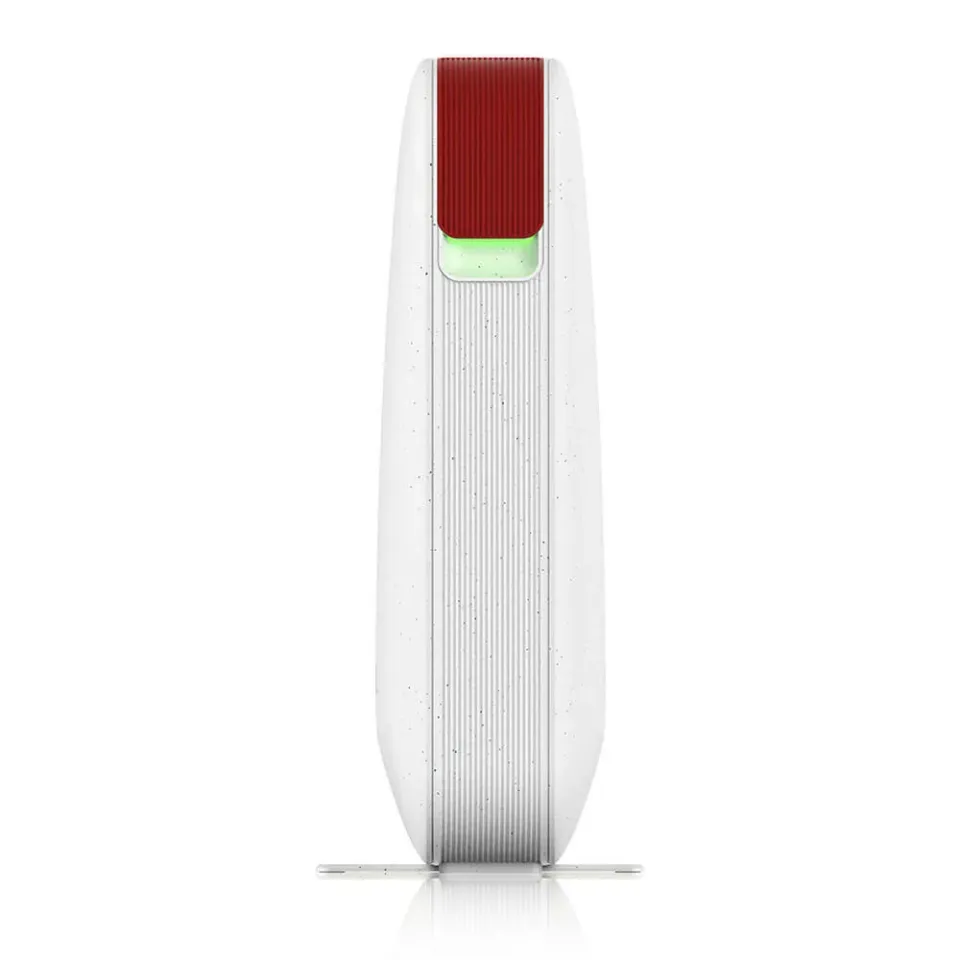

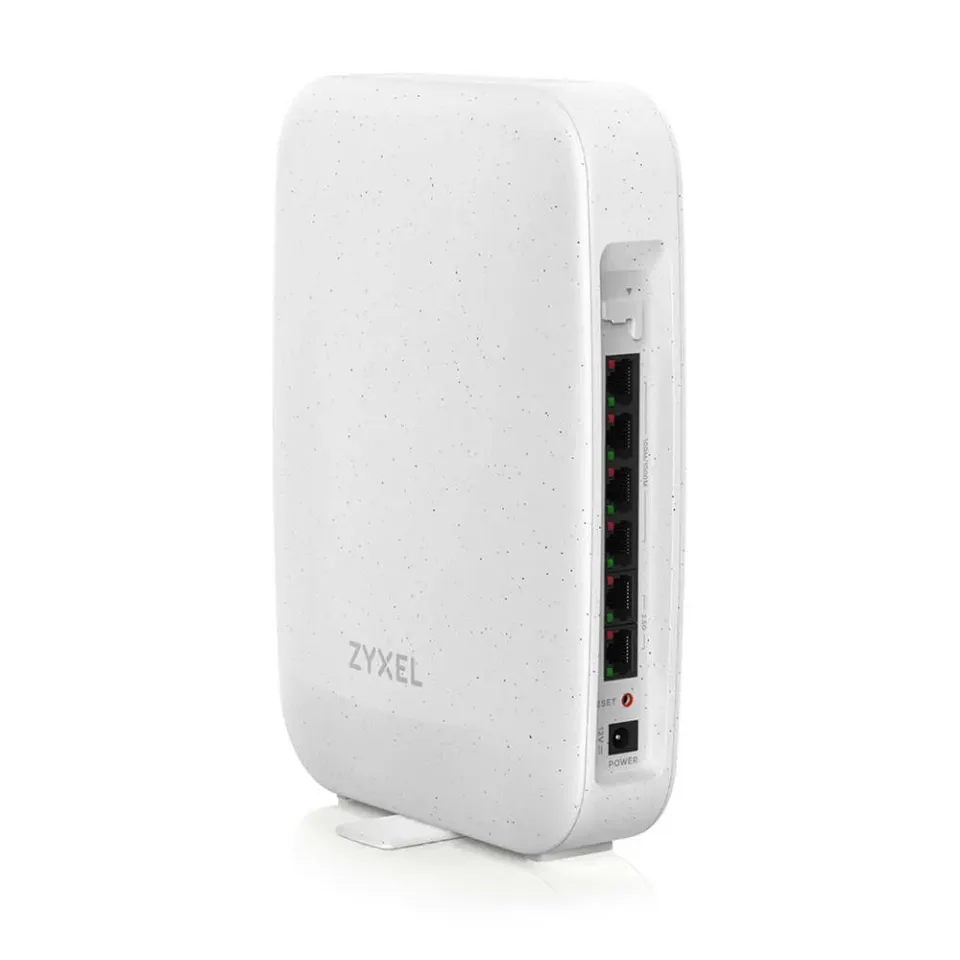

Zyxel USGLITE60AX Security Router - USG LITE 60

Hardware Specifications

---

CPU
Quad-core, 2.00 GHz
RAM/FLASH
1 GB/512 MB
Ethernet ports
WAN: 1 x 100/1000/2500 Mbps
LAN: 1 x 100/1000/2500 Mbps
4 x 100/1000 Mbps
Wireless Specifications

---

Standard
IEEE802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4 GHz: 1150 Mbps
5 GHz: 4800 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40- ,80-, and, 160-MHz
Conducted typical transmit output power1
US (2.4GHz/5GHz):
29/29 dBm
EU (2.4GHz/5GHz):
20/29 dBm
Wireless security
Open, WPA2-PSK, WPA3-Personal
SSID number
8
Fast roaming
802.11r/k/v
MESH Networking
Smart Mesh
Antenna type
4 (internal)
Antenna gain
2.4Ghz: 3.65 dBi, 4x4: 4SS
5Ghz: 4.63 dBi, 4x4: 4SS
System Capacity & Performance2

---

SPI firewall throughput LAN to WAN (Mbps)*3
2,000
Throughput with Application management on (Mbps)
2,000
Throughput with Threat management on (Mbps)
2,000
VPN Throughput (Mbps)4
300
Max. TCP concurrent sessions5
20,000
Max. gateway-to-gateway IPsec VPN tunnels
3
Max. remote VPN tunnels
5
VLAN interface
4
Security Features

---

Ransomware / malware prevention
Yes
Intrusion blocker
Yes
Dark Web Blocker
Yes
Stop mail fraud & phishing
Yes
Block Ads
Yes
Block VPN proxy
Yes
Firewall
Yes
Country Restriction (Geo IP blocking)
Yes
Exception list
Yes
Custom allowed / blocked domain
Yes
Traffic Management (applications & clients)
Yes
Security event analytics
Nebula Threat Report
Real-time threat intelligence*6
Yes
Web Filtering (Content Filter)*6
Yes
VPN Features

---

Site2site VPN
IPSec
Remote access VPN
Yes
Networking Features

---

WAN Type
DHCP/Static IP/PPPoE
Reserve IP (static DHCP)
Yes
Block clients
Yes
NAT - Virtual server
Yes
DHCP server and DHCP relay
Yes
Dynamic DNS (DDNS)
Yes
Static route
Yes
Guest Network
Yes
VLAN Segmentation
Yes
Management

---

Onboarding WAN setting method
Yes
Site-wide SSID management
Yes
Multi-site management
Yes
Client report
Yes
Remote support and diagnostics
Yes
Keep device settings in the Nebula
Yes
Live tools
Yes
Event Log
Yes
Nebula Pro Pack - Advance feature set*6
Yes
Power Requirements

---

Power input
12 V DC, 3.0 A
Max. power consumption (Watt Max.)
31W
Physical Specifications

---

Item
Dimensions (WxDxH)(mm/in.)
161.7 x 65 x 229 mm (6.37” x 2.56” x 9.02”)
Weight (g/lb.)
707/1.56
Environmental Specifications

---

Operating
Temperature
0°C to 40°C (32°F to 104°F)
Humidity
5% to 95% (Non-condensing)
Storage
Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
5% to 95% (Non-condensing)
Certifications

---

CE
Yes
FCC
Yes
BSMI
Yes
