Zebra ZT231 – 4" industrial label printer
thermal transfer, 300 dpi, touch display, Ethernet
Kompaktní průmyslová tiskárna štítků s kovovým rámem: 300 dpi, tisk až 203 mm/s, barevný dotykový displej 4,3", role do průměru 203 mm a pásky 450 m, Ethernet a USB.
VAT included
The price includes a recycling fee of CZK 10
This item is in stock at our distributor and ships as soon as we receive it.
With you:
- Manufacturer
- Zebra
- Model
- ZT23143-T0E000FZ
- SKU
- IDS-177194
Description
Compact industrial label printer at a reasonable price

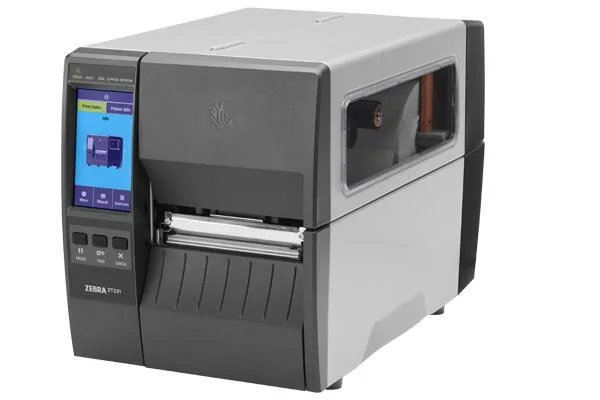

The Zebra ZT231 is a 4" industrial label printer with a metal frame, designed for light industry, warehouses and shipping. This version prints by thermal transfer at 300 dpi at speeds of up to 203 mm/s and is operated via a colour 4.3" touch display that also responds to a finger in a glove.
What the printer can do
- Thermal transfer printing at 300 dpi, print width up to 104 mm
- Print speed up to 203 mm/s
- Colour resistive touch display 4.3" with wizards and instructions directly on the printer
- Metal frame and covers, two-leaf door with a large transparent window
- Rolls up to 203 mm in diameter (76 mm core), ribbons 450 m
- USB 2.0, RS-232, Ethernet 10/100, USB Host, Bluetooth Low Energy interfaces
- Real-time clock, NFC Print Touch tag for quick pairing with a phone
- ZPL and ZPL II programming languages, optionally ZBI 2.0
Maintenance without tools

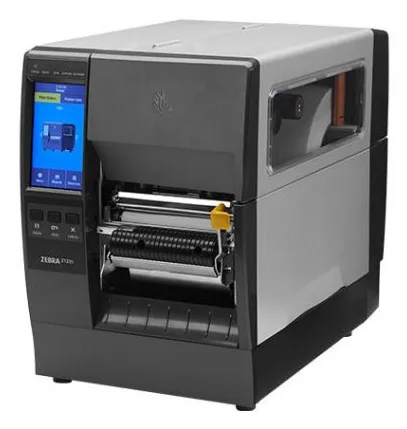

The print head and the platen roller can be removed without tools. The printer itself monitors for failed print head dots, so you can schedule maintenance before it affects label quality. Media is loaded from the side according to colour-coded markings.
Media and operation
The ZT231 works with media 19.4–114 mm wide and 0.076–0.25 mm thick (continuous, die-cut labels, with a notch or black mark). The ribbon is 450 m long and 51–110 mm wide on a 25.4 mm core. The printer can later be expanded with a cutter, peel-off unit, second Ethernet, Wi-Fi or UHF RFID.
Technical specifications
| Type | industrial label printer, 4" width |
| Print technology | thermal transfer |
| Resolution | 300 dpi (12 dots/mm) |
| Max. print speed | 203 mm/s |
| Max. print width | 104 mm |
| Max. print length | 1 854 mm |
| Media width | 19.4–114 mm |
| Media thickness | 0.076–0.25 mm |
| Media rolls | up to 203 mm on a 76 mm core, up to 152 mm on a 25 mm core |
| Ribbon | 450 m, width 51–110 mm, 25.4 mm core |
| Display | colour resistive touch 4.3" |
| Interfaces | USB 2.0, RS-232, Ethernet 10/100, USB Host, Bluetooth Low Energy |
| Memory | 256 MB SDRAM, 256 MB Flash |
| Languages | ZPL, ZPL II |
| Power supply | 100–240 V AC, 50–60 Hz, ENERGY STAR |
| Operating temperature | thermal transfer 5–40 °C |
| Dimensions (D × W × H) | 432 × 241 × 279 mm (base model) |
| Weight | 9.1 kg |
| Manufacturer code | ZT23143-T0E000FZ |
| Warranty | 12 months |
Data based on official manufacturer documentation (Zebra ZT231 specification, product sheet).
Specifications
- Dimensions
- 432 × 241 × 279 mm
- Weight
- 9.1 kg
- Print technology
- Termální
- Warranty (months)
- 12
