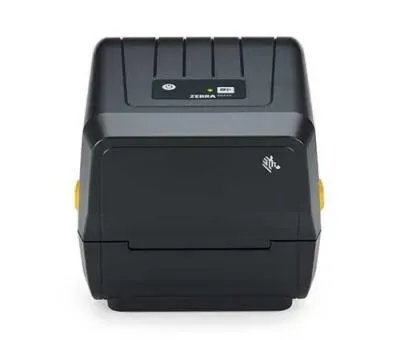

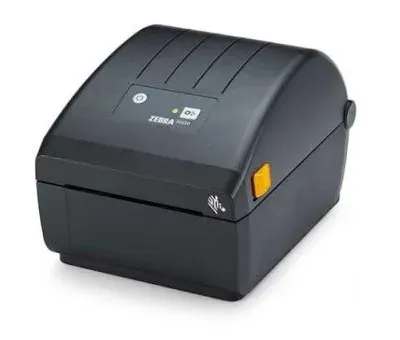

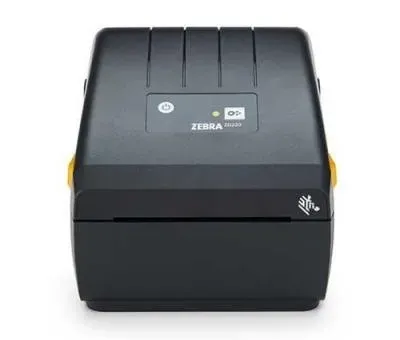

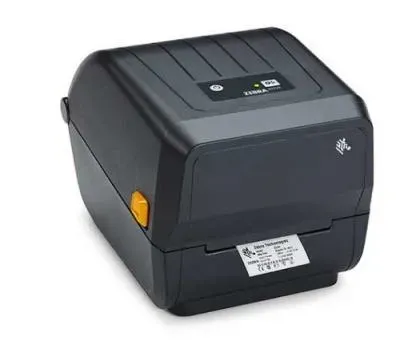

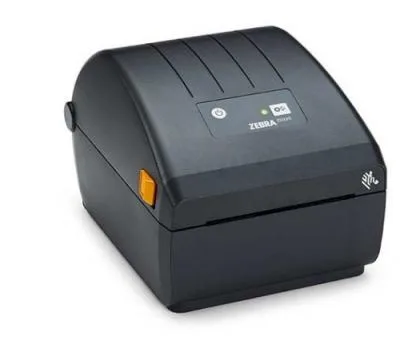

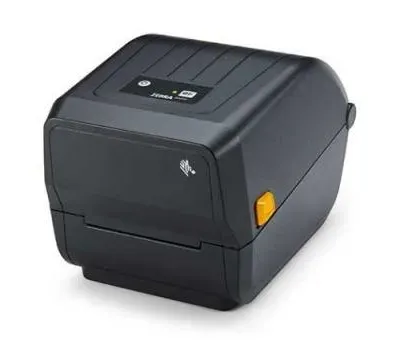

Zebra ZD230d – desktop label printer
direct thermal 203 dpi, 104 mm print width, USB and Ethernet
Stolní 4palcová tiskárna etiket Zebra ZD230d: přímý termotisk bez pásky, 203 dpi, až 152 mm/s, šířka tisku 104 mm, USB a Ethernet, jazyky ZPL II a EPL.
VAT included
The price includes a recycling fee of CZK 15
This item is in stock at our distributor and ships as soon as we receive it.
With you:
- Manufacturer
- Zebra
- Model
- ZD23042-D0EC00EZ
- SKU
- IDS-ZBR00036
- EAN
- 8596375234383
Description
Desktop label printer with Ethernet for direct thermal printing
The Zebra ZD230d is a 4-inch desktop printer for direct thermal printing – it needs no ribbon, only heat-sensitive labels or receipt paper. It prints at 203 dpi at speeds of up to 152 mm/s over a width of 104 mm, and connects to a computer or network via USB and Ethernet. The manufacturer intends it for transport and logistics, light manufacturing, retail and healthcare – for labels, tags, tickets and receipts.
What the printer can do
- Direct thermal printing, 203 dpi (8 dots/mm), up to 152 mm/s
- Print width up to 104 mm, media width 25.4–112 mm, label length up to 991 mm
- Roll outer diameter up to 127 mm on a 12.7 mm core
- USB 2.0 and Ethernet for network sharing
- ZPL II, EPL and XML languages – easy replacement of older printers
- 128 MB RAM and 256 MB flash memory for fonts, graphics and formats
- One status LED and one button for feed/pause
- Dual-wall construction, ENERGY STAR certification
Easy media loading

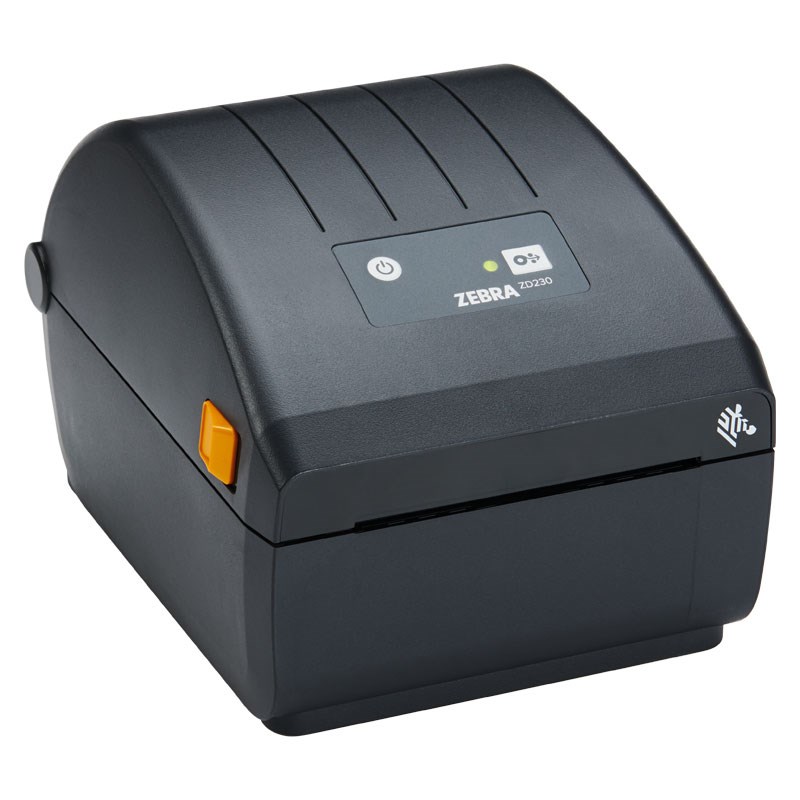

The OpenACCESS hinged cover opens like a clamshell, so you can load a new label roll in moments. The dual-wall construction gives the printer strength for years of operation.
Simple operation
The printer has one status LED and one button for feed and pause – you can see the printer's status at a glance. The Print DNA software on the Link-OS Basic platform makes setup and management easier.
Media and accessories
The printer uses heat-sensitive labels on rolls or fanfold, die-cut and continuous, with or without black mark, and receipt thermal paper 25.4–112 mm wide. From spare parts we offer a platen roller for the ZD220/ZD230. The thermal transfer version (printing via ribbon) is available as the Zebra ZD230t.
Technical specifications
| Type | desktop label printer, 4" |
| Print technology | direct thermal (no ribbon) |
| Resolution | 203 dpi (8 dots/mm) |
| Print speed | up to 152 mm/s |
| Print width | up to 104 mm |
| Media width | 25.4–112 mm |
| Label length | up to 991 mm |
| Roll diameter | up to 127 mm, core 12.7 mm |
| Media thickness | 0.08–0.19 mm |
| Memory | 128 MB RAM, 256 MB flash |
| Printer languages | ZPL II, EPL, XML |
| Fonts | 23 built-in |
| Barcodes | 1D and 2D, incl. Code 128, Code 39, EAN-13, EAN-8, UPC-A, QR, Data Matrix, PDF417, MaxiCode, Aztec |
| Interfaces | USB 2.0, Ethernet |
| Bluetooth / Wi-Fi | no / no |
| Controls | 1 status LED, 1 button |
| Power | 100–240 V, 50–60 Hz, ENERGY STAR |
| Operating temperature | 4.4–41 °C, humidity 10–90 % |
| Dimensions (W × D × H) | 176 × 220 × 151 mm |
| Weight | 1.1 kg |
| Colour | black |
| Package contents | printer, power supply, power cables (EU, UK), USB cable |
| Warranty | 12 months |
| Manufacturer code | ZD23042-D0EC00EZ |
Data according to the manufacturer's official documentation (Zebra ZD230 product sheet).
Specifications
- Dimensions
- 176 × 220 × 151 mm
- Print technology
- Termální
- Color
- black
- Weight
- 1.1 kg
- Warranty (months)
- 12
