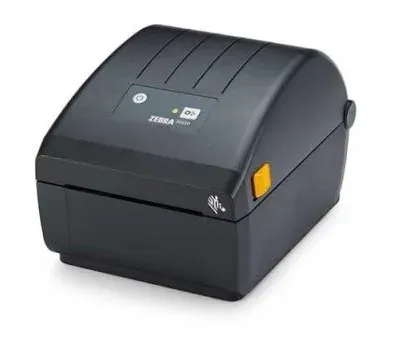

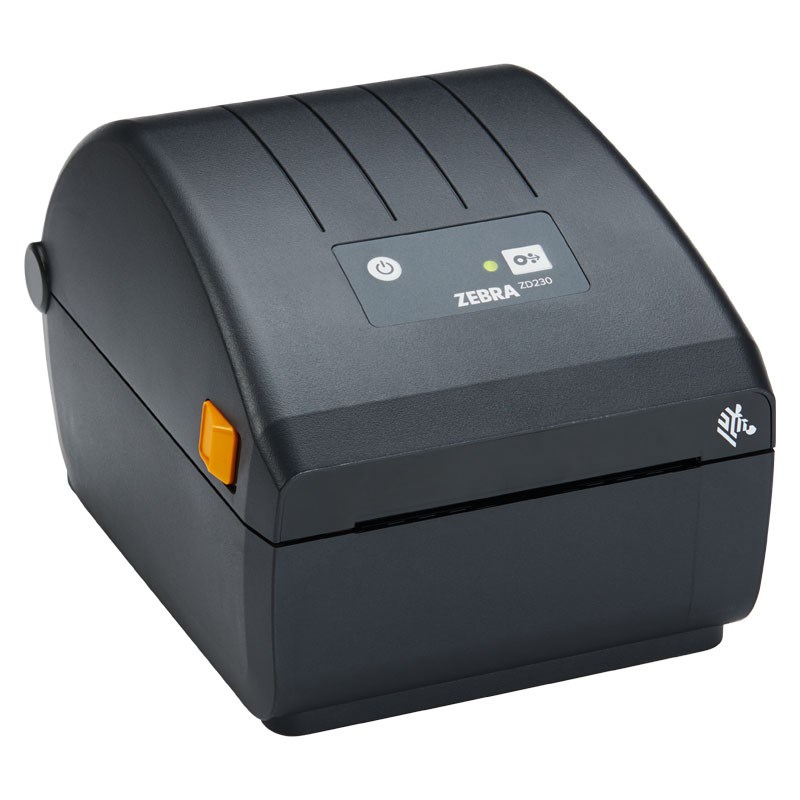

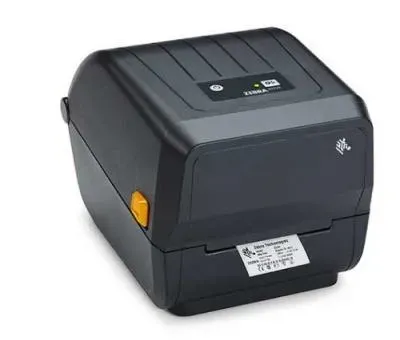

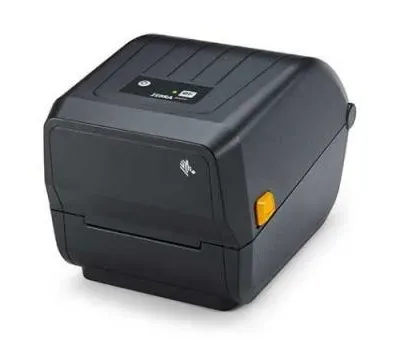

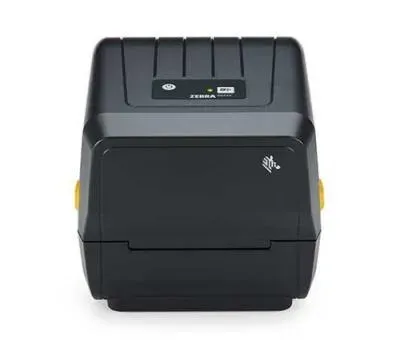

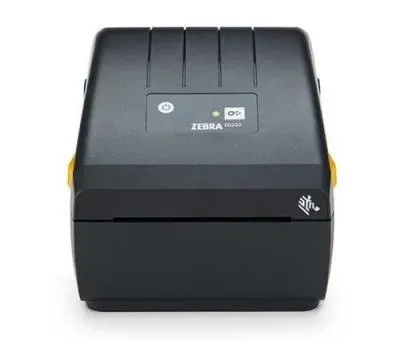

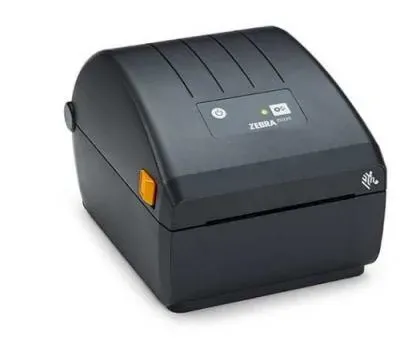

Zebra ZD230d – 4" desktop label printer
direct thermal, 203 dpi, USB, Wi-Fi, Bluetooth 4.1
Cenově dostupná 4" tiskárna štítků Zebra s přímým termotiskem: 203 dpi, až 152 mm/s, šířka tisku 104 mm, USB, Wi-Fi 802.11ac a Bluetooth 4.1. Nástupce oblíbené GC420d.
VAT included
The price includes a recycling fee of CZK 15
This item is in stock at our distributor and ships as soon as we receive it.
With you:
- Manufacturer
- Zebra
- Model
- ZD23042-D0ED02EZ
- SKU
- IDS-177060
- EAN
- 5704174200666
Description
Reliable basic label printer with Wi-Fi
The Zebra ZD230d is a 4" desktop label printer that, according to the manufacturer, replaces the GC420 series. It prints direct thermal without ribbon at 203 dpi, at speeds of up to 152 mm/s and a print width of up to 104 mm. Connect it via USB, Wi-Fi 802.11ac or Bluetooth 4.1.
What the printer can do
- Direct thermal printing, 203 dpi (8 dots/mm), up to 152 mm/s
- Print width up to 104 mm, media width 25.4–112 mm
- Rolls up to 127 mm in diameter on a 12.7 mm core
- One LED and one button (feed/pause) – simple operation
- Double-wall construction and hinged OpenACCESS lid for quick media replacement
- 128 MB memory / 256 MB Flash for fonts and graphics, ENERGY STAR certified
- Optional factory-fitted peel-off module or cutter
Parts and operation
The printer is supported by the basic Zebra Print DNA (Link-OS Basic) application suite. For maintenance we offer a platen roller for the ZD220 / ZD230. The manufacturer recommends original Zebra consumables, which protect the print head.
Technical specifications
| Type | desktop label printer, 4" width |
| Print technology | direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Max. print speed | 152 mm/s |
| Max. print width | 104 mm |
| Media width | 25.4–112 mm |
| Max. label length | 991 mm |
| Media thickness | 0.08–0.19 mm |
| Media roll | outer diameter up to 127 mm, core 12.7 mm |
| Interfaces | USB 2.0, Wi-Fi 802.11ac, Bluetooth 4.1 |
| Memory | 128 MB, Flash 256 MB |
| Languages | ZPL II, EPL, XML |
| Controls | 1 LED, 1 button |
| Power | 100–240 V AC, 50–60 Hz, ENERGY STAR |
| Operating temperature | 4.4–41 °C |
| Dimensions (W × D × H) | 176 × 220 × 151 mm |
| Weight | 1.1 kg |
| Colour | black |
| Manufacturer code | ZD23042-D0ED02EZ |
| Warranty | 12 months |
Data according to the manufacturer's official documentation (Zebra ZD230 product sheet).
Specifications
- Dimensions
- 176 × 220 × 151 mm
- Print technology
- Termální
- Color
- black
- Weight
- 1.1 kg
- Warranty (months)
- 12
