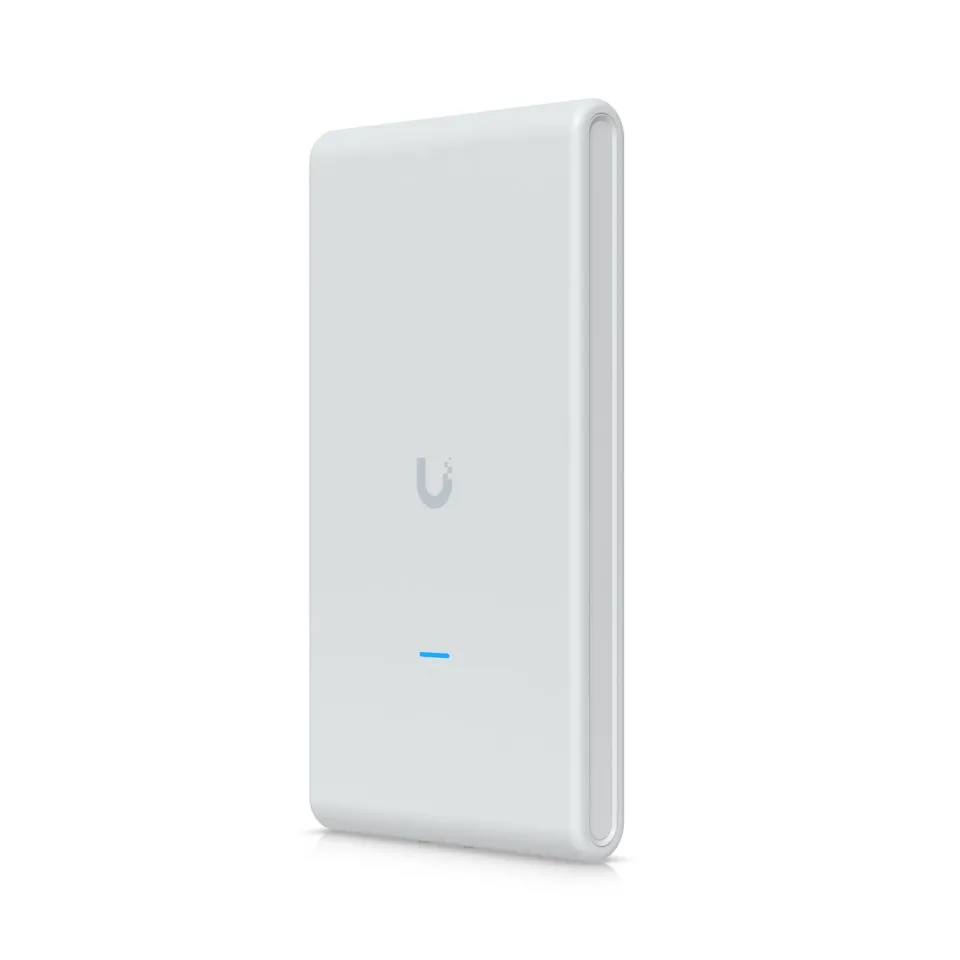

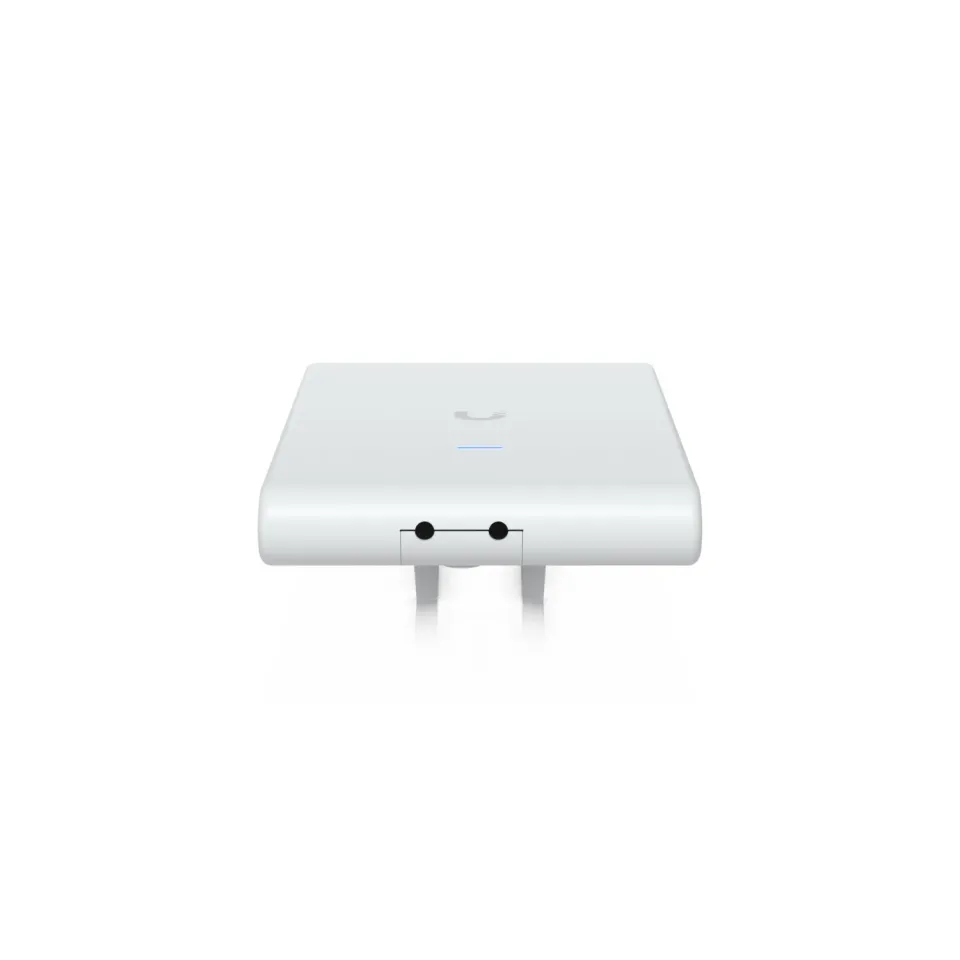

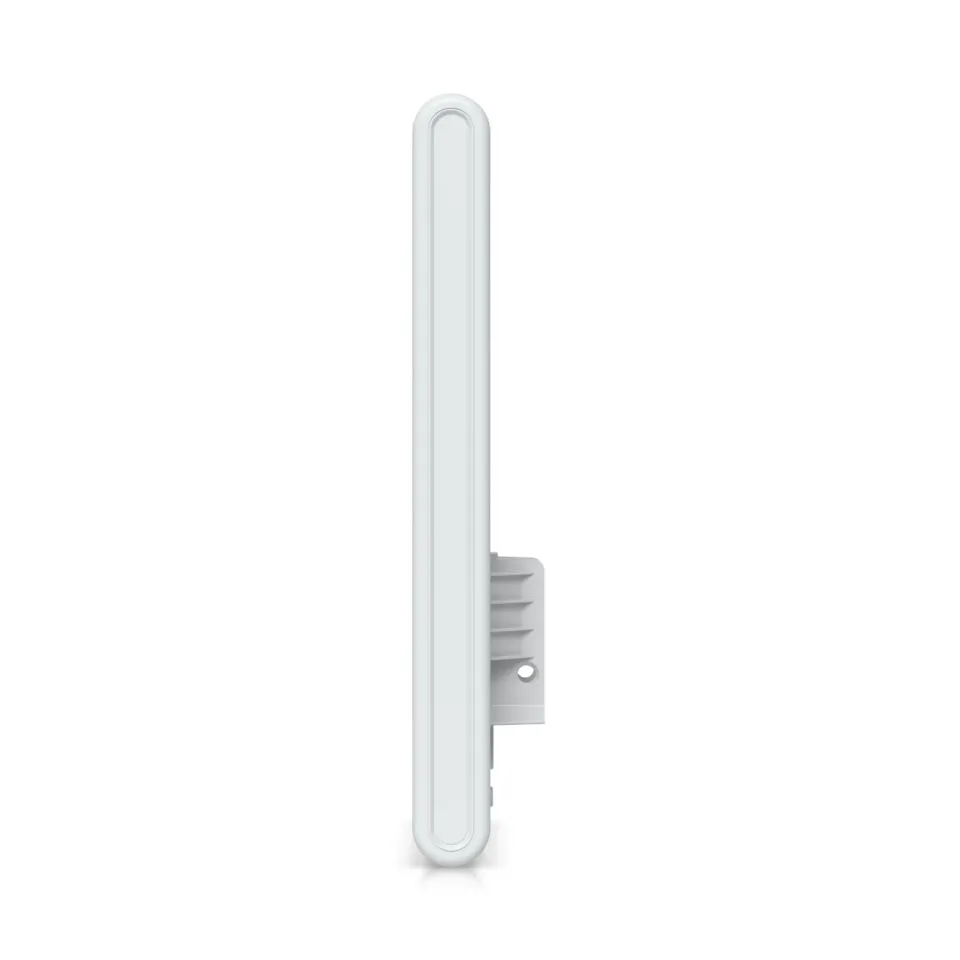

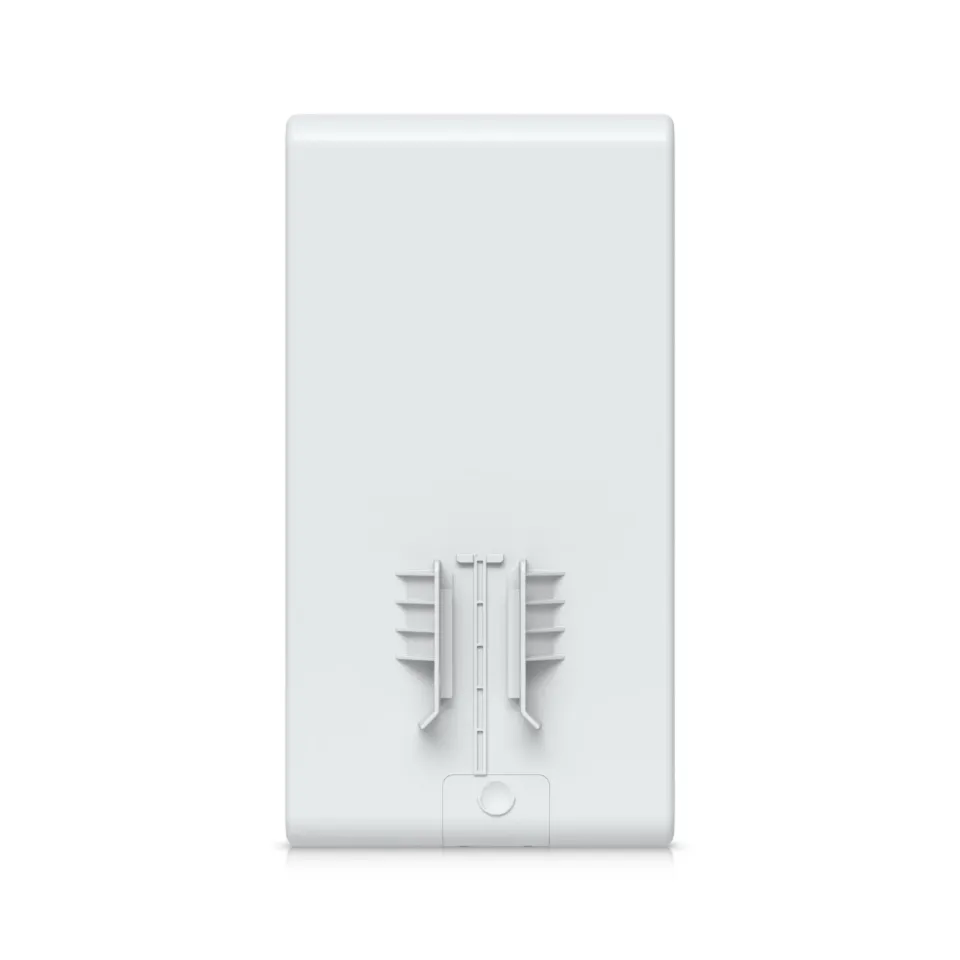

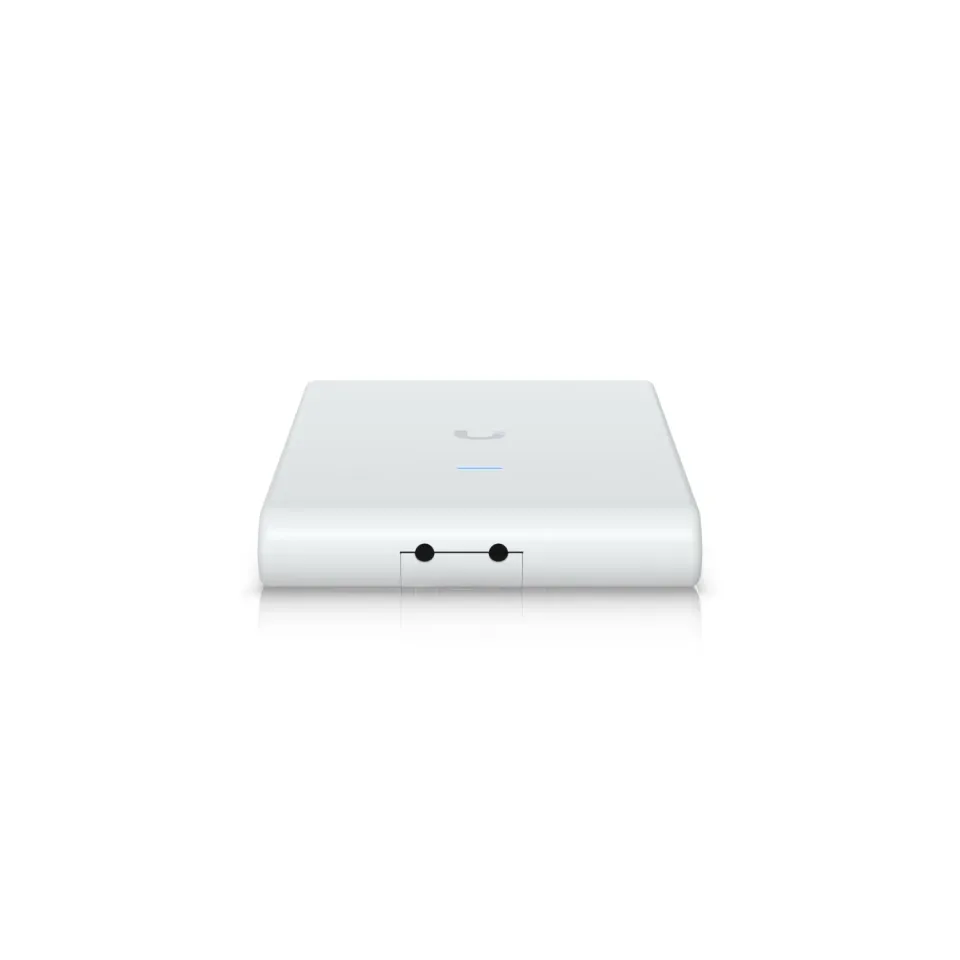

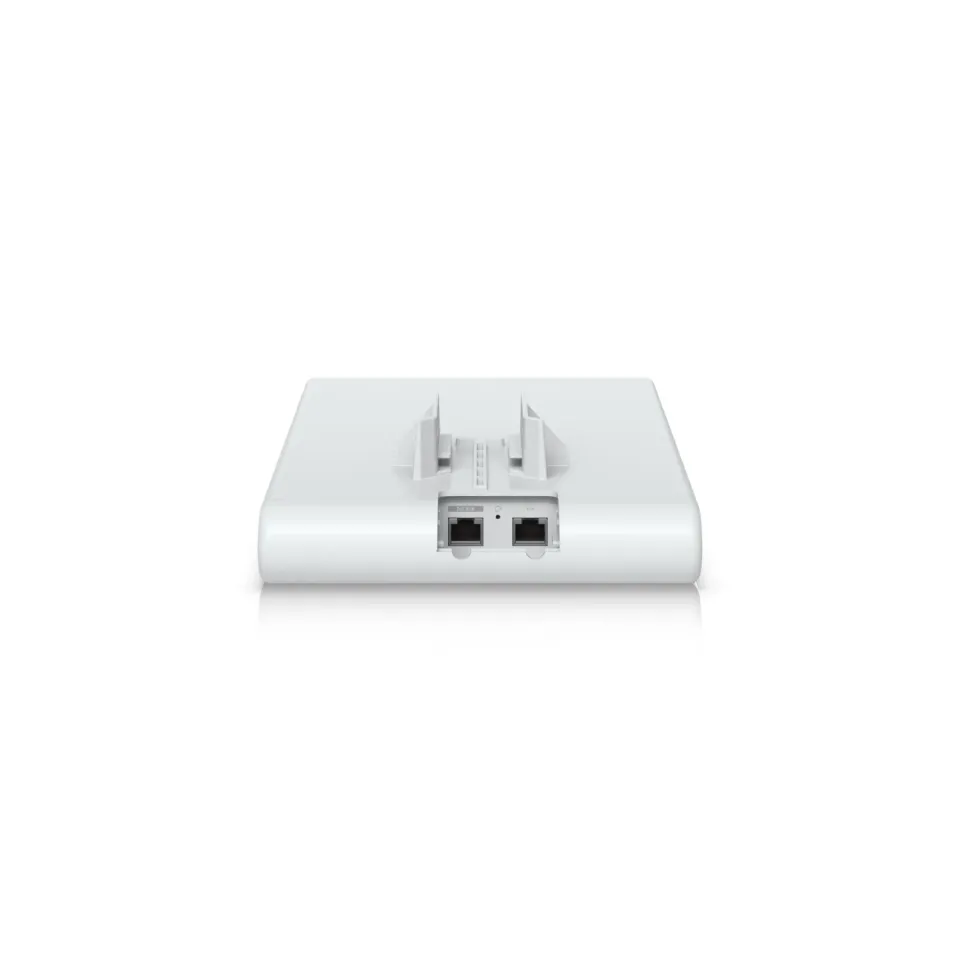

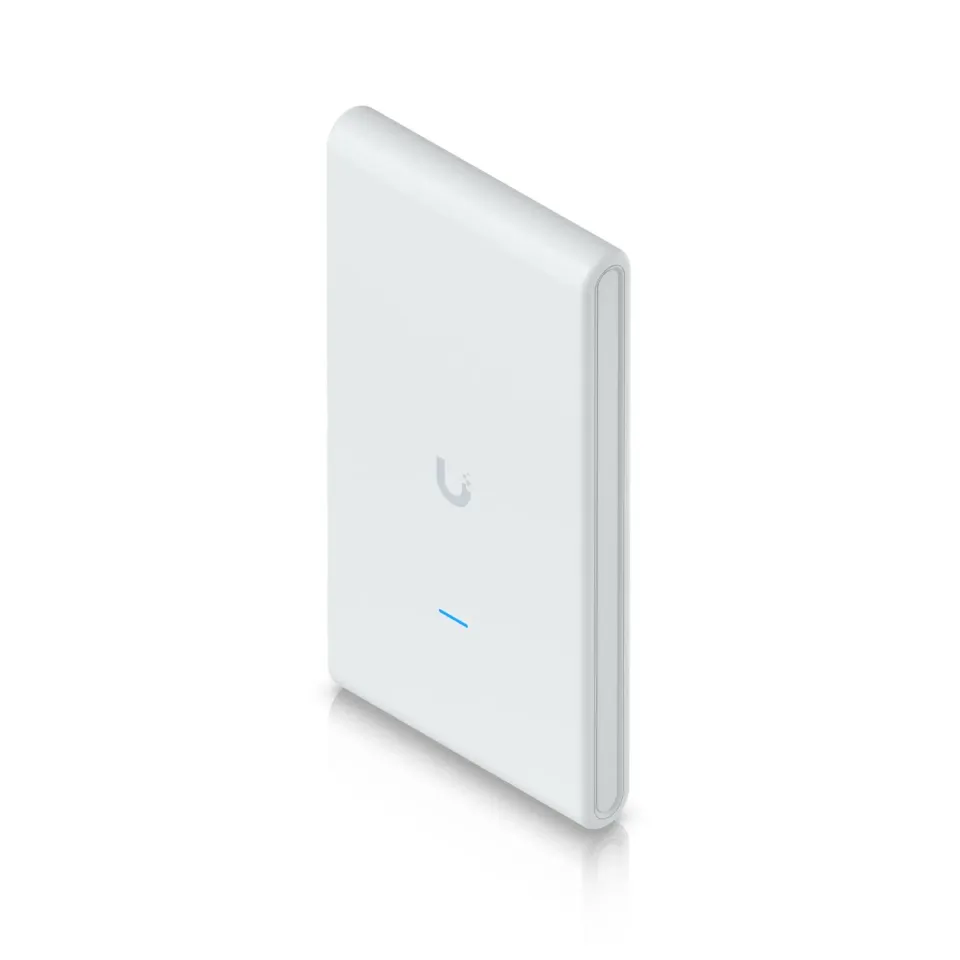

UBNT U6-Mesh-Pro

Product description
Ubiquiti 6 Mesh Pro is an outdoor high-performance access point. It provides 2x LAN ports at 1 Gb/s for connecting devices to the network, one of which is intended for connection and the other for extending the network. The access point transmits in the 2.4 GHz band at up to 574 Mb/s and in the 5 GHz band at up to 2.4 Gb/s. The access point can be powered by a PoE switch or by the 48 V adapter included in the package. High resistance to adverse conditions is ensured by IPX6 certification. It can be mounted either on a wall or on a pole with a diameter of up to 6.4 cm.
Central management of units
To manage the devices, you need to download the original software called UniFi Network Controller from the official website, which allows you to control the entire network. The undeniable advantage of UniFi Controller is that it is completely free with no restrictions whatsoever! This central management makes it possible to upload maps and set basic parameters as well as advanced functions, such as SSID, guest account, landing page, traffic statistics, and the list and status of associated clients, always easily and quickly.
Advantages of UniFi
• Guest network
• Load balancing – maintaining even load / client switching
• Speed limiting for each SSID
• Clear network monitoring
Package contents
• Device
• Brackets for pole, wall
• Gigabit PoE power adapter 48V / 0.32A
• Screws
Technical parameters
Wireless properties
Wireless frequencies: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO: Yes
Transmission rate – 5GHz [Mb/s]: 2402
Transmission rate – 2.4GHz [Mb/s]: 574
Transmission power 2.4GHz [dBm]: 22
Transmission power 5GHz [dBm]: 27
Encryption: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2
Antenna type: Built-in
Number of fixed antennas: 8
Antenna gain [dBi]: 8
Connectors and interfaces
LAN speed: (2) 10/100/1000 Mbps
Gigabit LAN: Yes
Power supply
Power over PoE: Yes, 48V DC
Max. power consumption [W]: 9
Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -30 to 60
Weight [g]: 819
Width [mm]: 181
Height [mm]: 342
Depth [mm]: 60
Software
Operating mode: Access Point
IPv6 support: Transparent (bridge mode)
Default IP address: Dynamic from DHCP
Default username and password: ubnt / ubnt
