Ubiquiti UACC-Cable-Patch-Outdoor-C6A-15M-BK

Ubiquiti UniFi Premium Patch Cable Outdoor Cat6A, 15 m, black
Premium line of ultra-thin UniFi Premium Patch Cable Outdoor cables in various lengths
The Ubiquiti UniFi Rugged Patch Cable Outdoor network cable is designed for reliable connections in demanding outdoor conditions.
As a CAT6A standard patch cable, it ensures high data transmission speed. The shielded construction protects the signal from external interference, which is key to a stable network connection and optimal performance (especially for 10GbE networks).

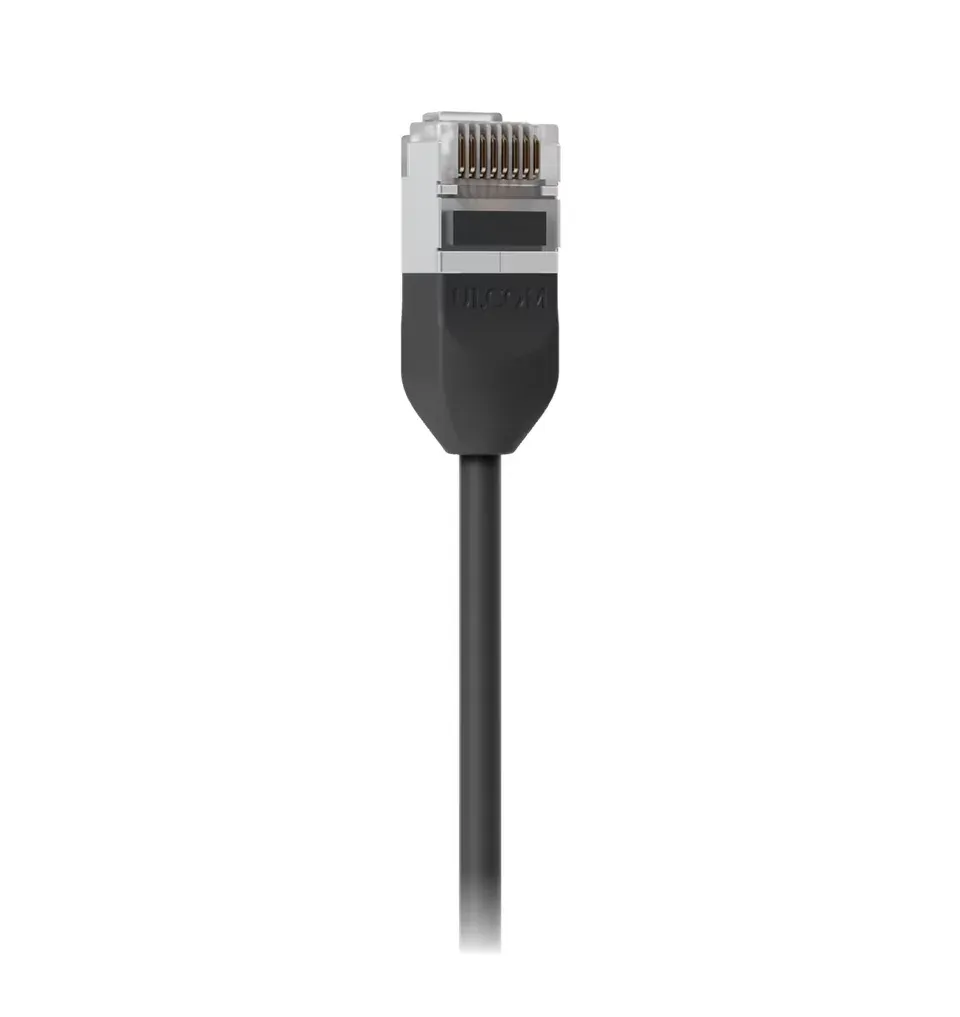

The cable is terminated with two RJ-45 connectors for easy connection to network devices.
Ideal solution for outdoor installations of high-speed networks.

Key features:

• ultra-thin patch cable intended for outdoor use in demanding conditions
• supports the CAT6A standard for high-speed data transmission
• shielded construction protects the signal from electromagnetic interference
• terminated with two RJ-45 connectors with straight termination (straight/straight connector)
• cable length 15 m

Connectivity
Supported data rate: 10 GbE
Supported PoE type: up to PoE+++ (max. 60-100 W max. supported power) - the cables carry both power and data over a single conductor pair to the device

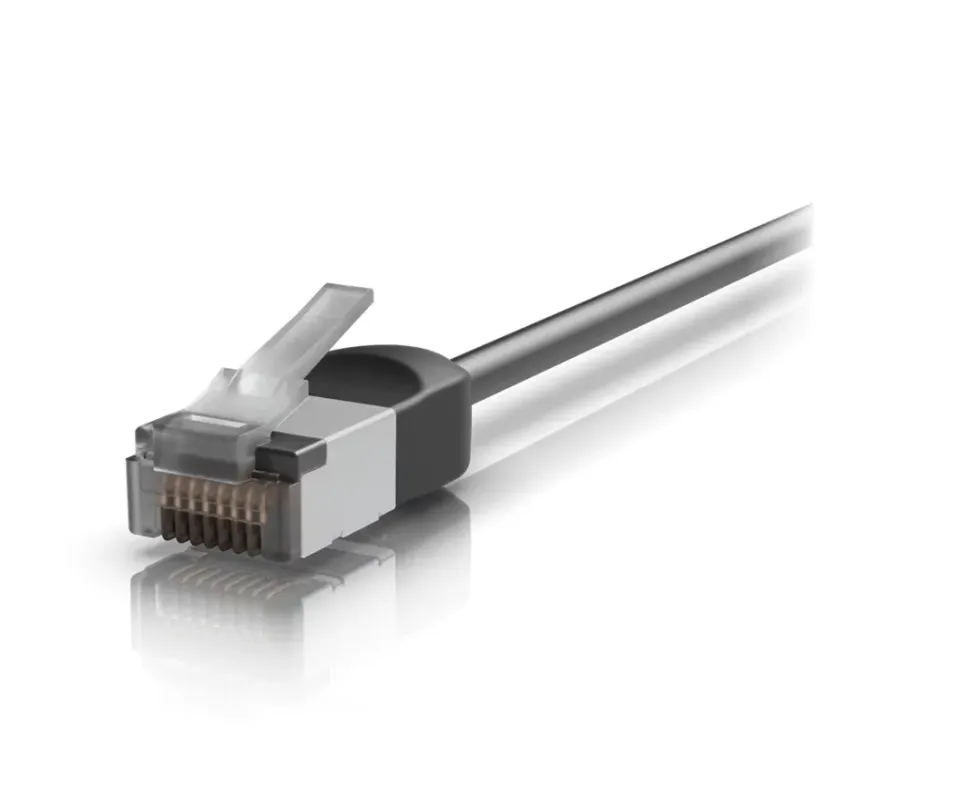

Connectors: 2x matte RJ45 connectors on both ends (male), in a shielded and rugged design with a protective straight plastic boot

Cable - construction features
Cable type: patch (interconnect) network cable
Standard/cable category: Cat6A (Category 6 Augmented) - support for high-speed 10 GbE networks and a bandwidth of 500 MHz
Outer jacket diameter: 3.9 mm (the cable is extremely thin and flexible for an outdoor shielded variant)
Shielding type: F/UTP (inner aluminum foil around the entire bundle + grounding conductor for high resistance to ESD damage and electromagnetic interference)
Conductor type: copper stranded conductor (braided copper, litz)
Conductor cross-section: 32 AWG
Bend radius: min. 31 mm (1.22 in)
Jacket material: thermoplastic elastomer (TPE), insulated jacket resistant to weather influences - ensures high flexibility and durability

Jacket color: black
Cable length (m): 15
Package variant: 1 pc (single unit)
Location - operating environment: outdoor

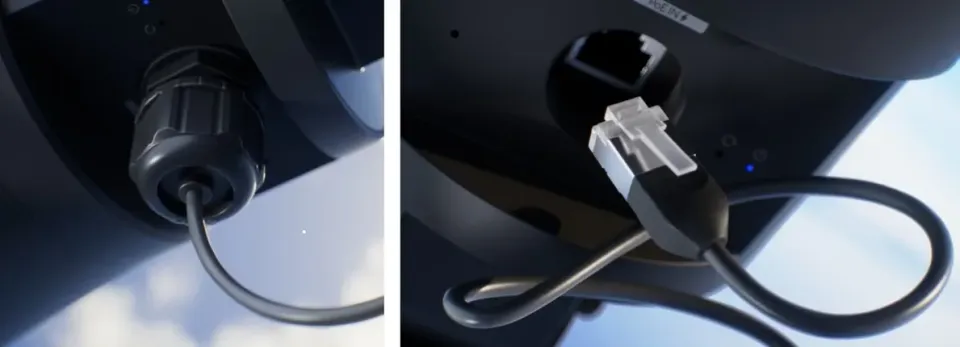

Use: for direct connection of network devices in outdoor environments and immediate use (connectors on both ends already fitted at the factory)

• connection of outdoor access points (Wi-Fi AP), outdoor camera systems (CCTV), building-to-building links (PtP / PtMP links), camera and technology poles, industrial environments and workshops, etc.

UV resistance: ISO4892-2
Flame rating - flammability class: VW-1 (UL1581)
Installation temperature: -20 to 60 °C
Storage ambient temperature: -40 to 85 °C
Operating ambient temperature: -20 to 60 °C

Standards and norms: TIA/EIA-568-B.2, ISO/IEC 11801

Warranty: 24 months

Manufacturer's website link: https://techspecs.ui.com/unifi/accessories/uacc-cable-patch-outdoor-c6a
