UBIQUITI PowerBeam PBE-2AC-400, 2.4GHz MIMO, 18dBi

The PowerBeam 2AC 400 is a high-end unit designed for demanding outdoor applications. It combines the high 18dBi gain of a 400mm parabolic dish with modern integrated radio architecture. This design achieves exceptional noise immunity and resistance to interference. This unit is an ideal choice for building stable P2P links on building roofs, towers, or masts where reliability and long-distance range are required.

The 400mm parabola with 18dBi gain is designed to concentrate energy into a narrow directional pattern. This means the signal from the unit travels along a concentrated path with minimal losses in the surrounding space. The high gain allows you to overcome greater distances and partial environmental obstacles. For comparison: a standard omnidirectional antenna would achieve significantly weaker signal over the same distance.

The flexibility of the PowerBeam 2AC 400 lies in the fact that it can be deployed in both roles: as a main unit in a P2P configuration (where two units see each other and communicate) or as a client unit connected to a central access point. In both cases, the high gain ensures a stable and fast connection. The unit integrates seamlessly into Ubiquiti networks, where it works with the UniFi management system and other professional management tools.

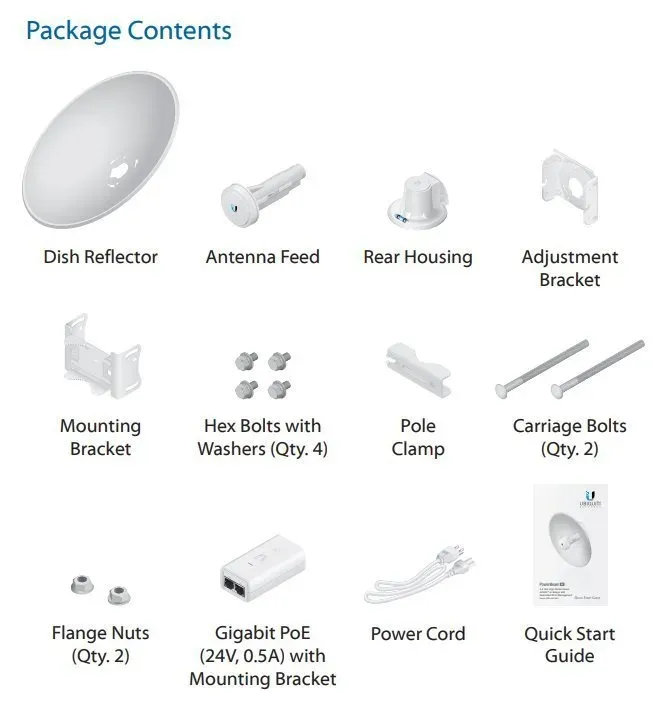

Installation of the PowerBeam is straightforward. The unit comes with a mounting kit including waterproof cabling and connectors. After mechanical installation on a mast or roof, the unit can be configured via the web interface or through the Ubiquiti application. Physical direction adjustment can be performed using the "signal strength" feature in management, which helps align the dish precisely to the target point. For professional deployment, we recommend proper alignment of the unit during installation.
