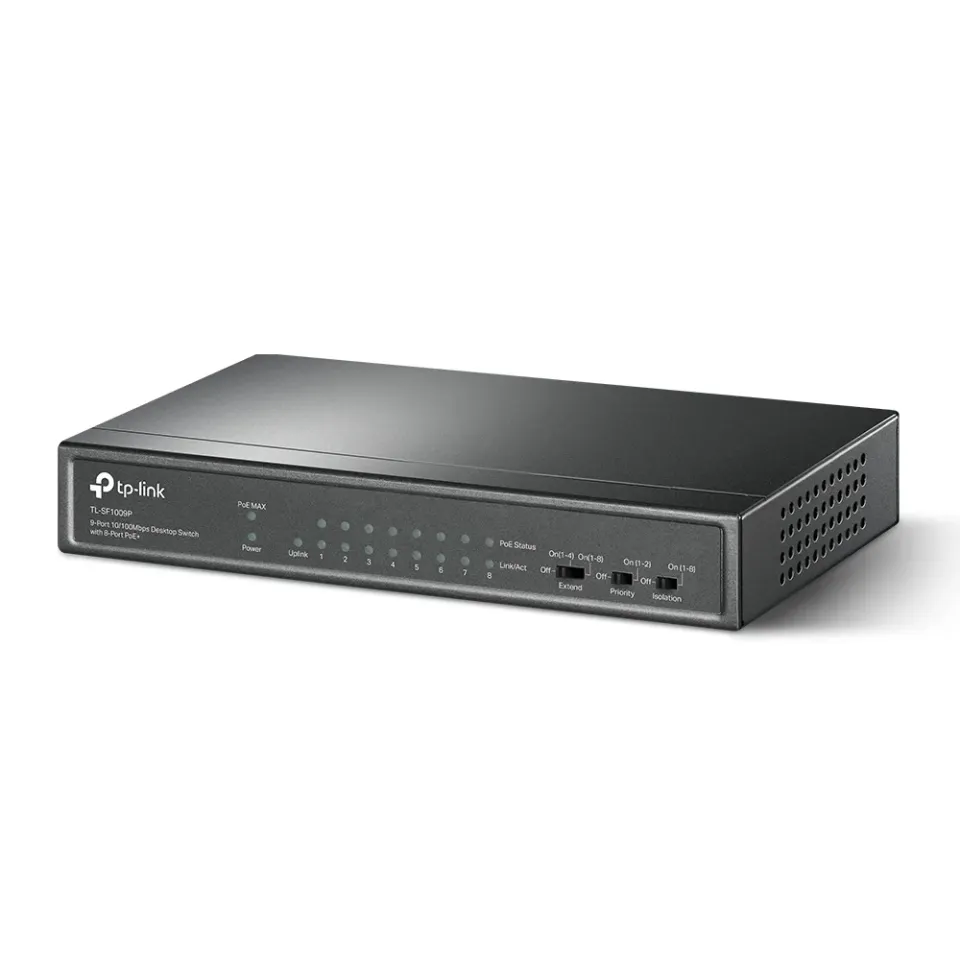

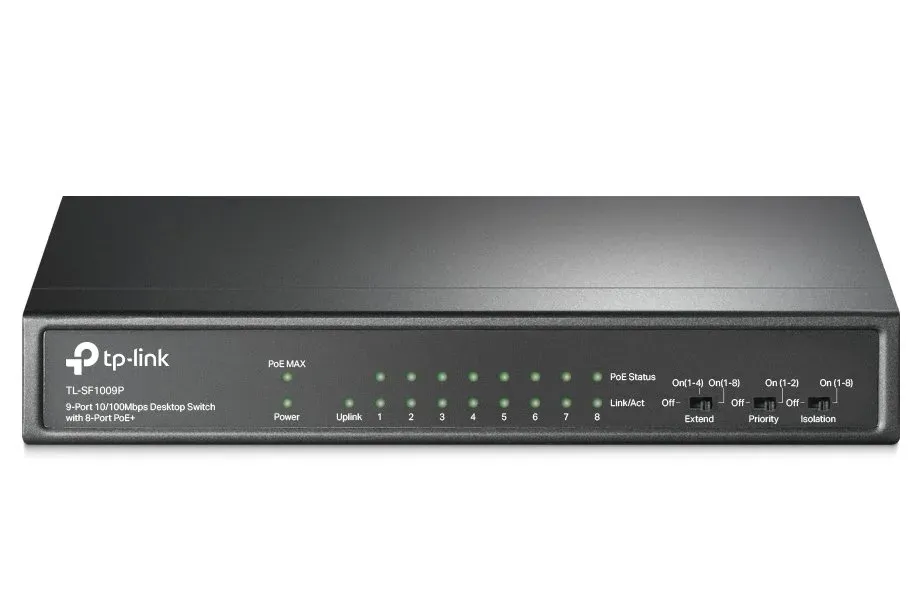

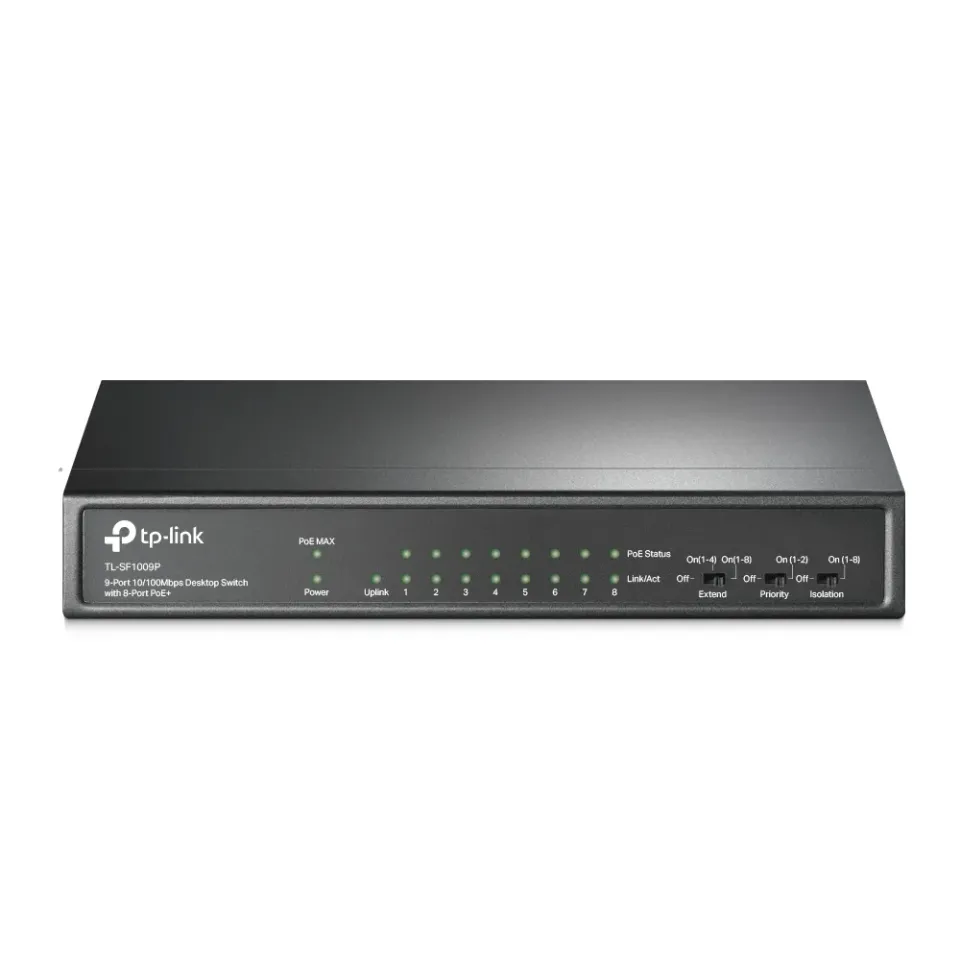

TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

TP-Link switch TL-SF1009P
9-port 10/100Mbit/s desktop switch with 8 PoE+ ports
Compliant with the 802.3af/at PoE+ standards and supporting up to 30 W of power on each PoE port. A total output of up to 65 W for power over PoE* across the 8 PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more.

• 9x 10/100Mb/s RJ45 ports
• 8 PoE+ ports transmit data and power over a single cable
• Works with IEEE 802.3af/at-compliant PDs
• Supports PoE power of up to 30 W per port
• Supports PoE power of up to 65 W across all 8 ports
• Range of up to 250 m for data and power transmission in extend mode
• Priority mode gives high priority to ports 1–2 and guarantees the quality of sensitive applications
• Isolation mode separates client traffic with one click for greater security and performance
• Plug and play, no configuration required
  Find out more about TP-Link PoE technology >
  Product page: https://www.tp-link.com/cz/business-networking/unmanaged-switch/tl-sf1009p/
  Technical specifications
  HARDWARE FEATURES
  Interface
  • 9× 10/100 Mbps RJ45 ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
  Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  Fan Quantity
  Fanless
  Physical Security Lock
  Yes
  External Power Supply
  External Power Adapter (Output: 53.5VDC / 1.31A)
  Packet Forwarding Rate
  1.3392 Mpps
  PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–8
  • Power Supply: 65 W
  Mac Address Table
  2K
  Jumbo Frame
  2 KB
  Switching Capacity
  1.8 Gbps
  Dimensions ( W x D x H )
  6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
  Max Power Consumption
  • 3.6 (220/50 Hz. no PD connected)
  • 77.08 (220/50 Hz. with 65 W PD connected)
  Max Heat Dissipation
  • 12.28 BTU/h (no PD connected)
  • 262.84 BTU/h (with 65 W PD connected)
  SOFTWARE FEATURES
  Transmission Method
  Store-And-Forward
  Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
  OTHERS
  Certification
  FCC, CE, RoHS
  Package Contents
  • TL-SF1009P
  • Power Adapter
  • Installation Guide
  Environment
  • Operating Temperature: 0–40 °C (32–104 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

Type: Desktop
Function: PoE (Power over Ethernet)
Technology: Fast Ethernet 10/100Mbps
Number of LAN ports: 8
Supported PoE standards: 802.3af, 802.3at
PoE budget (W): 65
LAN transmission speed (Mb/s): 100
Maximum number of ports: 9
Number of PoE+ ports: 8
Switch features: PoE function per port
