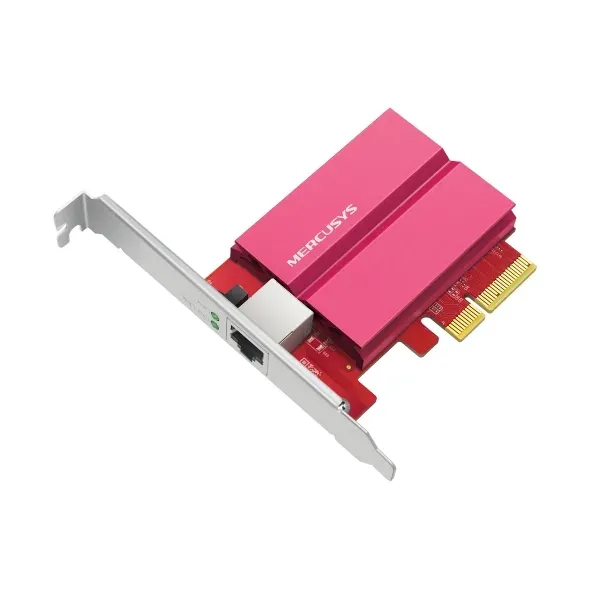

TP-Link MERCUSYS MA510E 10 Gigabit Network Adapter PCIe

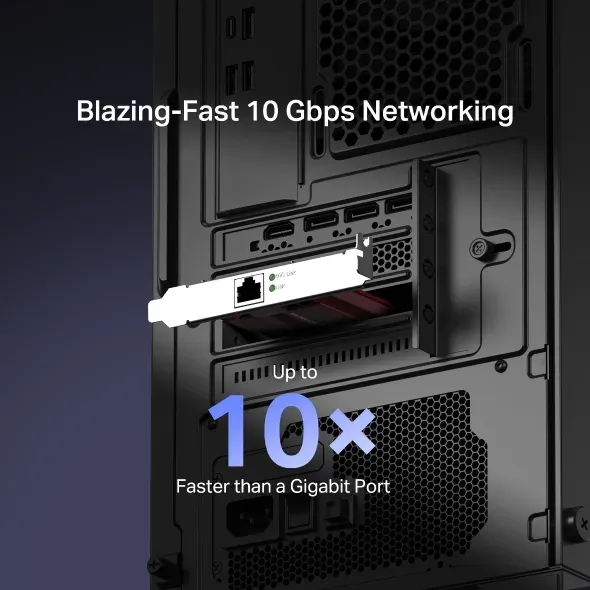

Lightning-fast 10 Gb/s network connection — the MA510E delivers extreme speeds of up to 10 Gb/s, which is 10× faster than typical gigabit adapters.
Multi-speed compatible (Multi-Speed) — Automatically negotiates between higher and lower connection speeds to ensure smooth data transfer for all your bandwidth-intensive tasks.

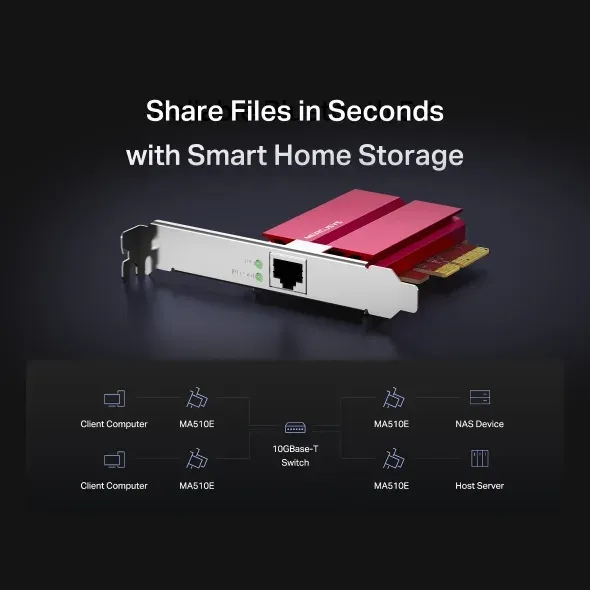

File sharing in seconds — The MA510E fully utilizes your 10 Gb/s internet access and can connect to NAS devices without problems for high-speed local data transfer.
Flow control — A dynamic point-to-point credit management mechanism ensures high-speed data transfer with zero packet loss, delivering a multi-gigabit experience with low latency.
Wake-on-LAN — Remotely power your PC on or off via a dedicated network signal, making it an ideal companion for remote work.
Energy-efficient Ethernet (EEE) — The MA510E, equipped with EEE technology, can reduce power consumption, shrink your carbon footprint and guarantee error-free performance.

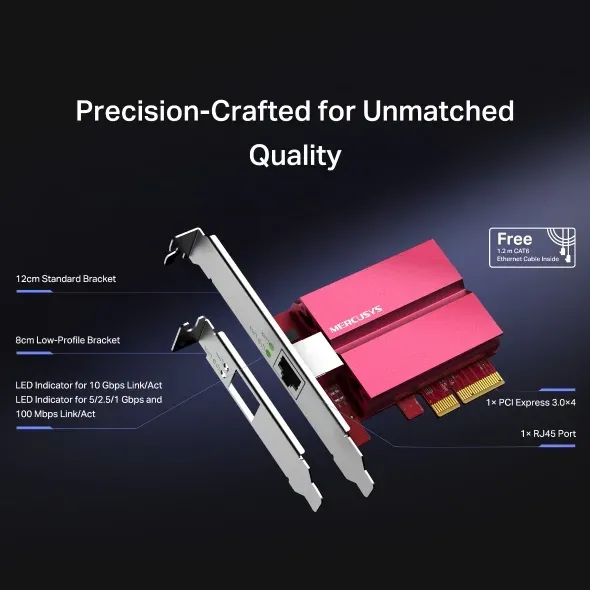

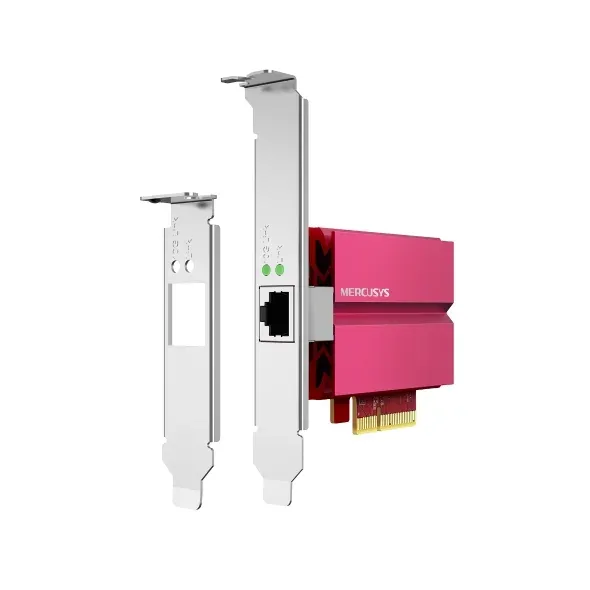

Flexible installation — Includes a standard and a low-profile bracket for compatibility with various motherboard designs.
System compatibility — Supported operating systems include Windows 11/10/8.1/8, Windows Server 2022/2019/2016/2012 R2 and Linux.

Technical specifications

Dimensions (W × D × H)
" 120.8 × 98.2 × 21.5 mm
" (4.76 × 3.87 × 0.85 in)
Interfaces
" 1× PCI Express 3.0 ×4
" 1× RJ45 port
Network media
" 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-TX
Standards and protocols
" 802.3x Flow Control
" 802.3az Energy Saving
" 802.3i 10BASE-T
" 802.3u 100BASE-T
" 802.3ab 1000BASE-T
" 802.3bz 2.5GBASE-T and 5GBASE-T
" 802.3an 10GBASE-T
Transfer rates
" Auto-negotiation between 10 Mb/s, 100 Mb/s, 1 Gb/s, 2.5 Gb/s and 10 Gb/s
LED indicators
" 10 Gb/s Link/Act
" 5/2.5/1 Gb/s and 100 Mb/s Link/Act

---

Other
Certifications:
" CE, RoHS
Package contents:
" 10 Gigabit PCIe network adapter (MA510E)
" Standard / low-profile brackets
" Quick installation guide
" Installation CD
" 1.2 m CAT6 Ethernet cable
Operating environment:
" Temperature: 0 ? ~ 40 ? (32 ? ~ 104 ?)
" Operating humidity: 10% ~ 90% non-condensing
" Storage humidity: 5% ~ 90% non-condensing
System requirements:
" Supported operating systems:
o Windows 11/10/8.1/8
o Windows Server 2022/2019/2016/2012R2
o Linux

Interface: PCI Express
Transfer rate: 10/100/1000/10000
Manufacturer: TP-Link
