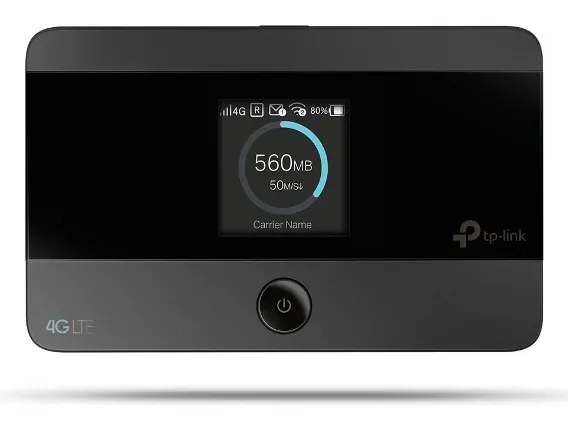

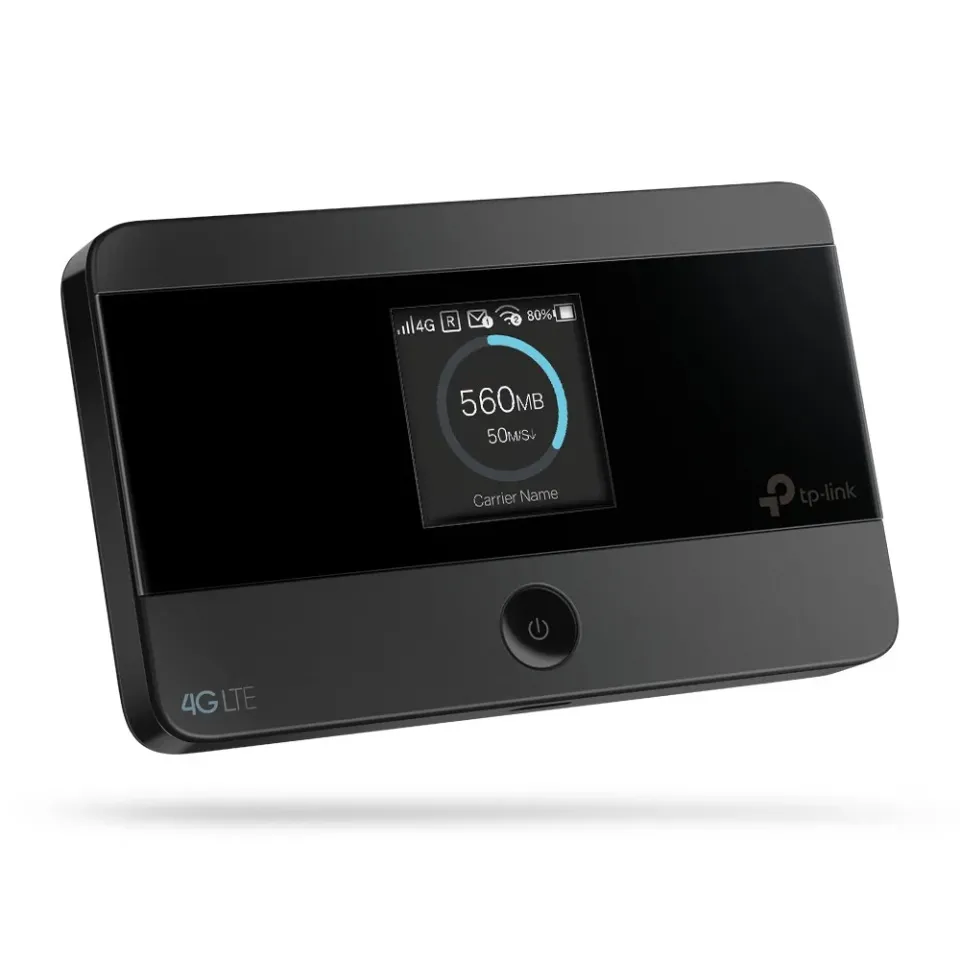

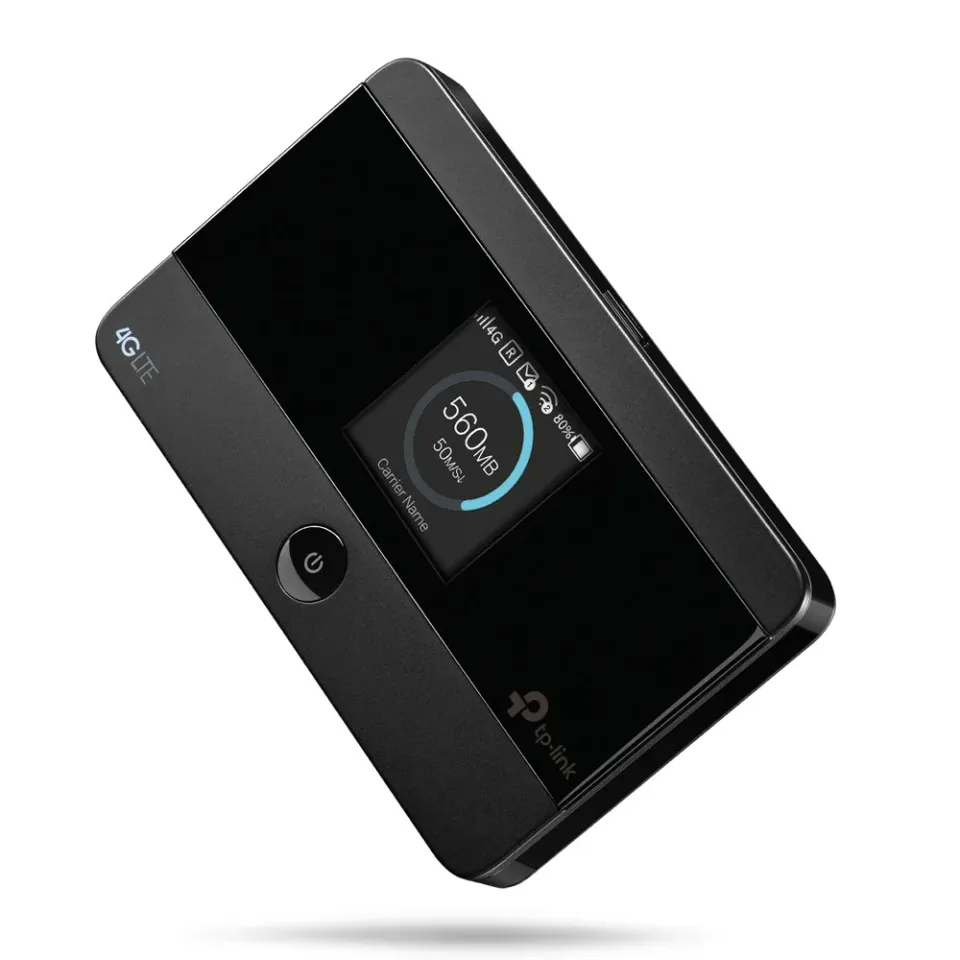

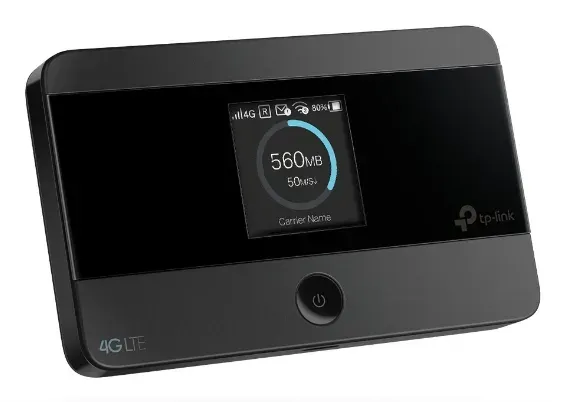

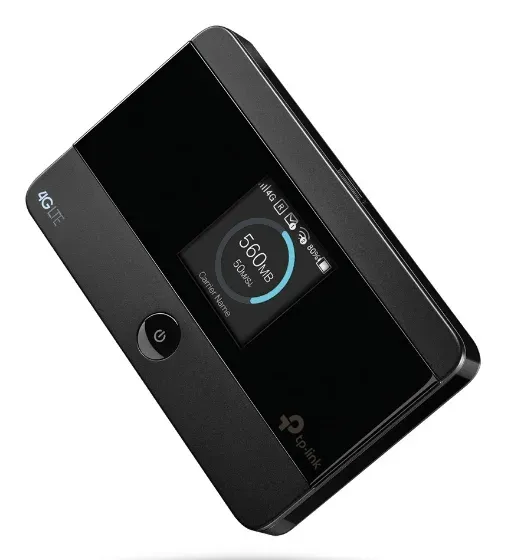

TP-LINK M7350 4G LTE modem/router Wireless N

Overview

Thanks to support for the latest generation 4G LTE network, the M7350 router can reach download speeds of up to 150 Mbit/s, so you can, for example, watch HD movies without interruption, download files within seconds and use video chat without dropouts.

*Supports 4G LTE - download speeds up to 150 Mbit/s and upload 50 Mbit/s
*Supports up to 10 devices simultaneously
*All useful information is displayed in an overview on the screen
*Battery with 2550 mAh capacity lasts up to 10 hours of operation
*Option to choose the Wi-Fi band 2.4 GHz or 5 GHz
*Equipped with a micro SD card slot with optional capacity up to 32 GB

Technical Specifications

HARDWARE FEATURES

Interface

• 1 micro USB port for power supply

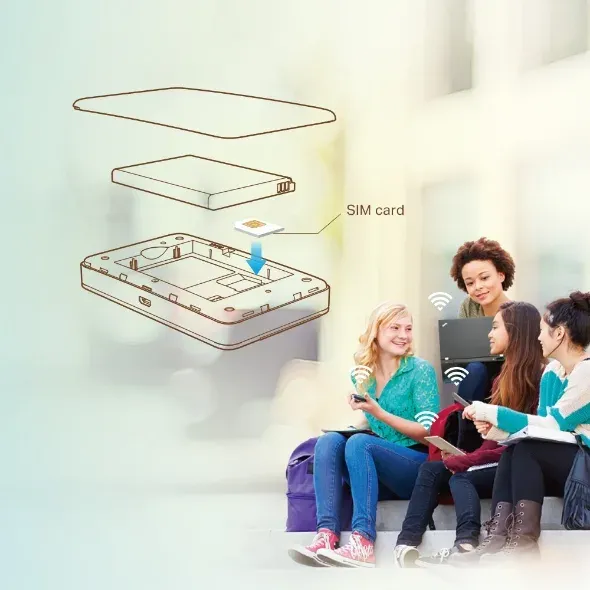

• SIM card slot
• Micro SD card slot

Buttons

• Power On/Off Button
• Menu Button

Power Source

• Internal 2550mAh rechargeable battery

Antenna

• Internal antenna

The M7350 v5 has the following parameters:
Main antenna - 2.51 dBi
Auxiliary antenna - 1.83 dBi
Wi-Fi antenna - 3.00 dBi

Network Type

• 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
• 3G: DC-HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
• 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900 MHz)

Data Rates

• DL: 150 Mbps, UL: 50 Mbps

Dimensions

• 106 × 66 × 16 mm

SD Card Reader

• Up to 32 GB

Display

• Data traffic statistics, Wi-Fi status, user numbers, network type (2G/3G/4G), signal strength, internet connection status, messages, battery status

WIRELESS FEATURES
Wireless Standards

• IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Frequency

• 2.4 GHz & 5 GHz

Transmit Power

• <20 dBm

Wireless Security

• WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast

DHCP

• DHCP server, DHCP Client List

OTHERS

Certification

• CE, RoHS

Package Contents

• LTE-Advanced Mobile Wi-Fi M7350
• Micro USB cable
• Micro to Standard SIM Card Adapter
• Nano to Standard SIM Card Adapter
• Power supply
• Quick installation guide
• 2550mAh battery

System Requirements

• Windows 8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone

Warranty: 24 months
