TP-LINK LS109P 9-port 10/100Mbit/s desktop switch with 8 PoE+ ports

TP-Link switch LS109P
9-Port Desktop Switch with 8 PoE+ Ports
PoE Budget 63 W: Eight 10/100 Mbps PoE-compatible ports with 802.3af/at easily connect and power fixed devices, such as IP cameras, access points and IP phones, through a single cable. Each PoE port supports output of up to 30 W PoE.
PoE Transmission up to 250 m: With Extend mode, the PoE transmission distance reaches up to 250 m, which is ideal for deploying camera systems over large areas.
PoE Auto Recovery: Automatically restarts your PoE-powered devices that have crashed or stopped responding.
Traffic Isolation for Higher Security: Isolation mode lets you separate client traffic with one click, preventing eavesdropping and unauthorized manipulation, and isolates broadcast storms.
Plug and Play: Instant connection without configuration.
Quiet Operation: The fanless design reduces power consumption and ensures quiet operation, ideal for homes or businesses sensitive to noise.
Reliable Hardware Design: The durable metal housing and desktop/wall-mount design suit various environments.
Learn more about TP-Link PoE technology >
Product page: https://www.tp-link.com/au/business-networking/soho-switch-poe/ls109p/
Technical Specifications
HARDWARE FEATURES

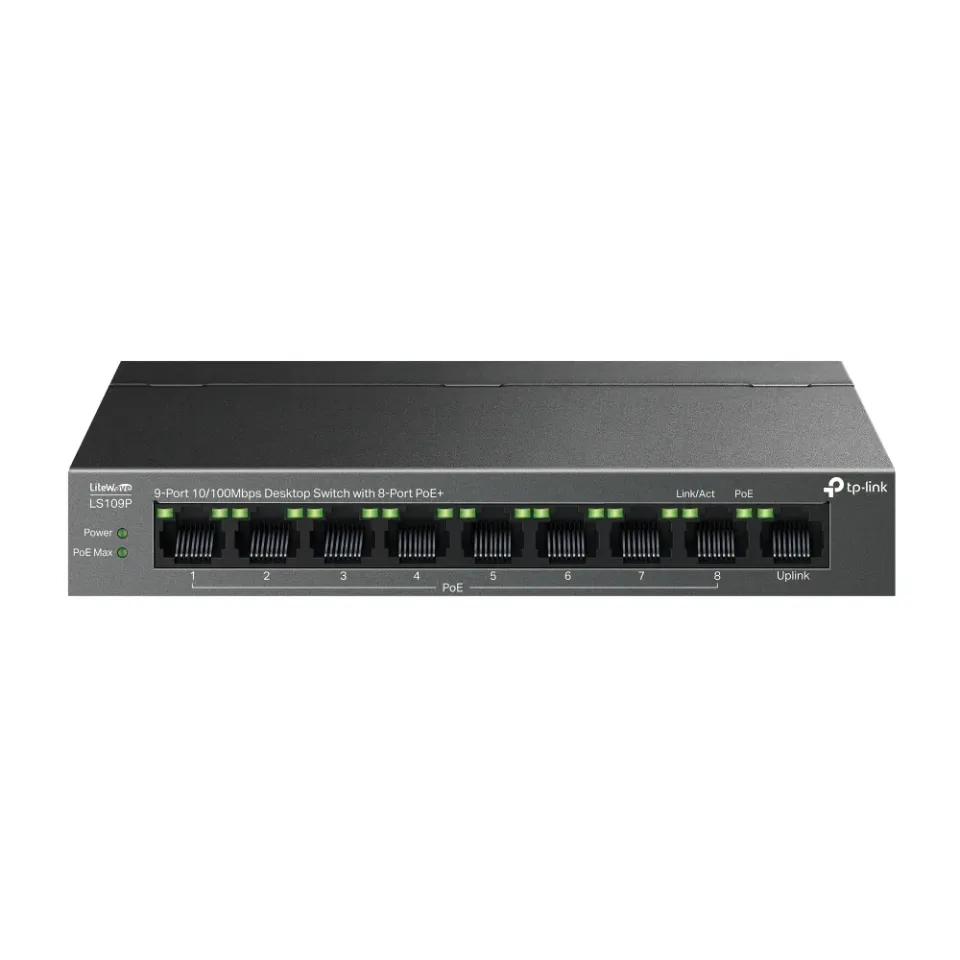

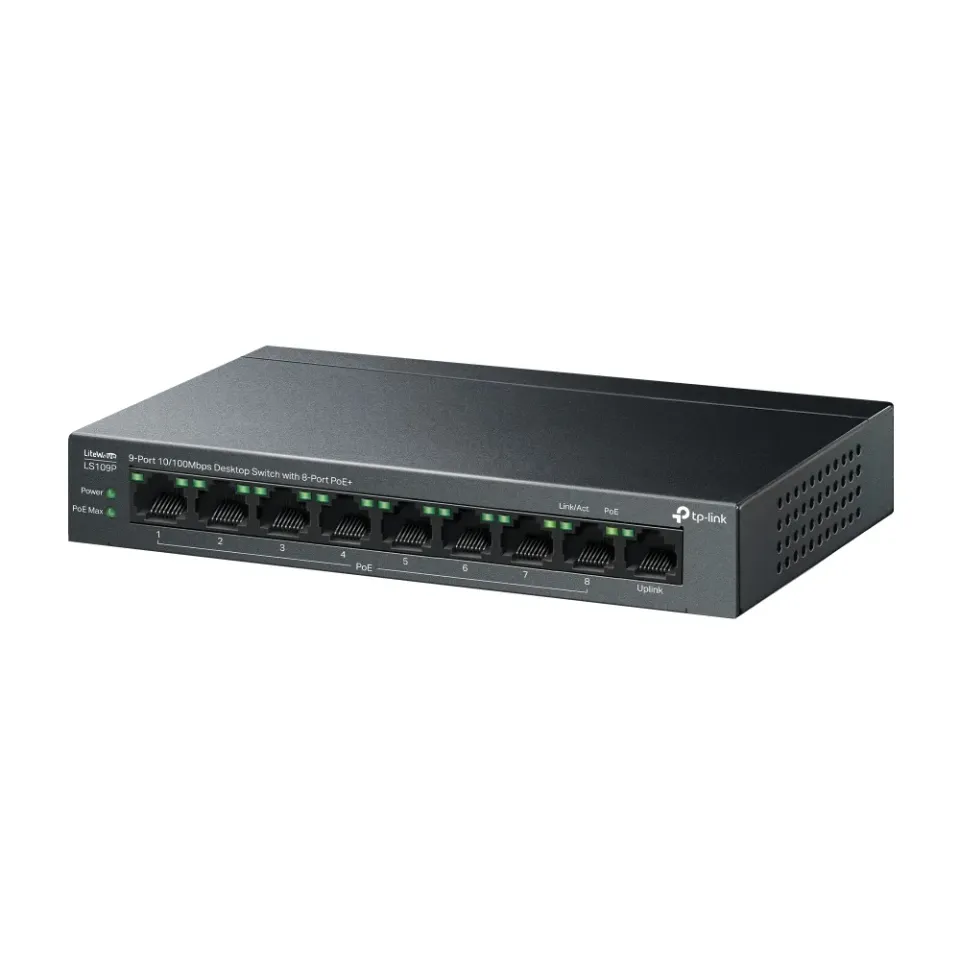

Interface
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity
Fanless
Installation
• Desktop
• Wall Mounting
Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• Power Supply: 63 W
LED Indicator
• Power
• Link/Act
• PoE Status
• PoE MAX
Dimensions ( W x D x H )
6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption
• 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation
• 12.48 BTU/h (220 V/50 Hz no PD connected)
• 249 BTU/h (220 V/50 Hz with 63 W PD connected)
PERFORMANCE
Switching Capacity
1.8 Gbps
Packet Forwarding Rate
1.3392 Mpps
MAC Address Table
2K
Jumbo Frame
1.5 KB
SOFTWARE FEATURES
Advanced Features

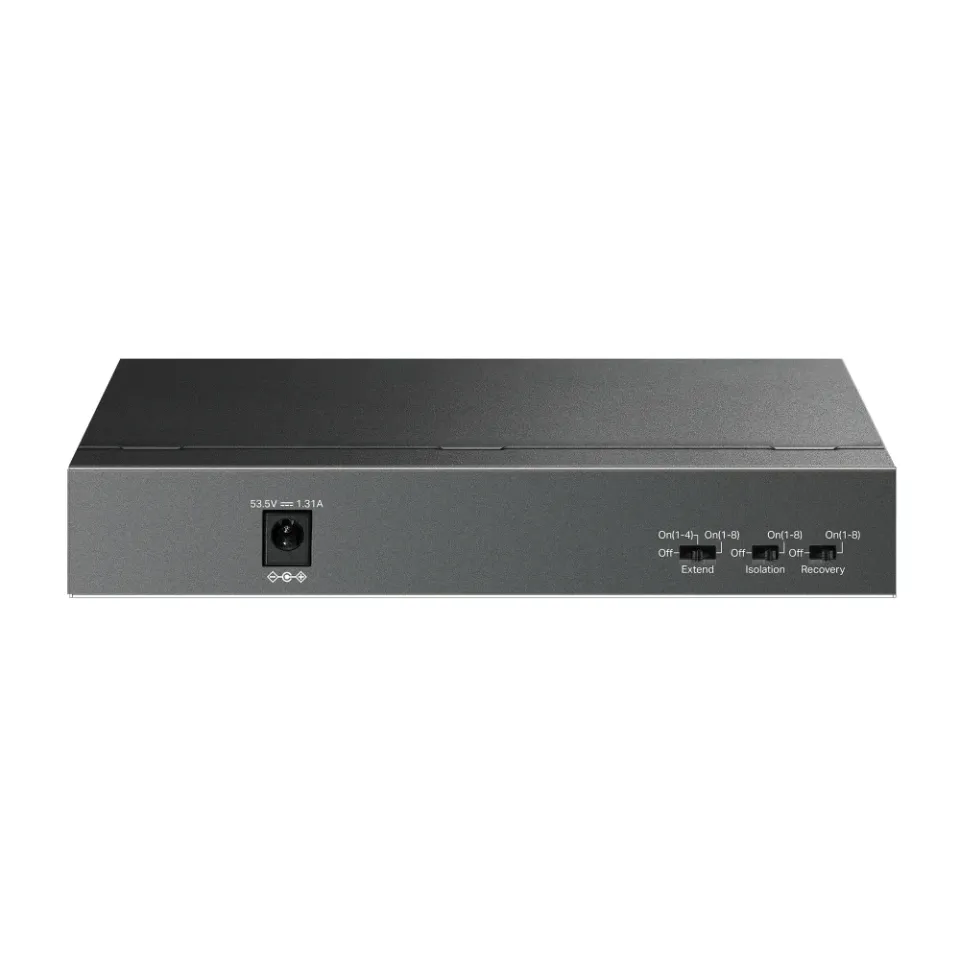

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• LS109P
• Power Adapter
• Installation Guide
• Rubber Feet
Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Design: Desktop
Function: PoE (Power over Ethernet)
Technology: Fast Ethernet 10/100Mbps
Number of LAN ports: 9
Number of LAN ports: 9
Supported PoE standards: 802.3af, 802.3at
PoE budget (W): 60
Maximum number of ports: 9
Number of PoE+ ports: 8
PoE budget (W): 60
LAN transmission speed (Mb/s): 100
Maximum number of ports: 9
Number of PoE+ ports: 8
