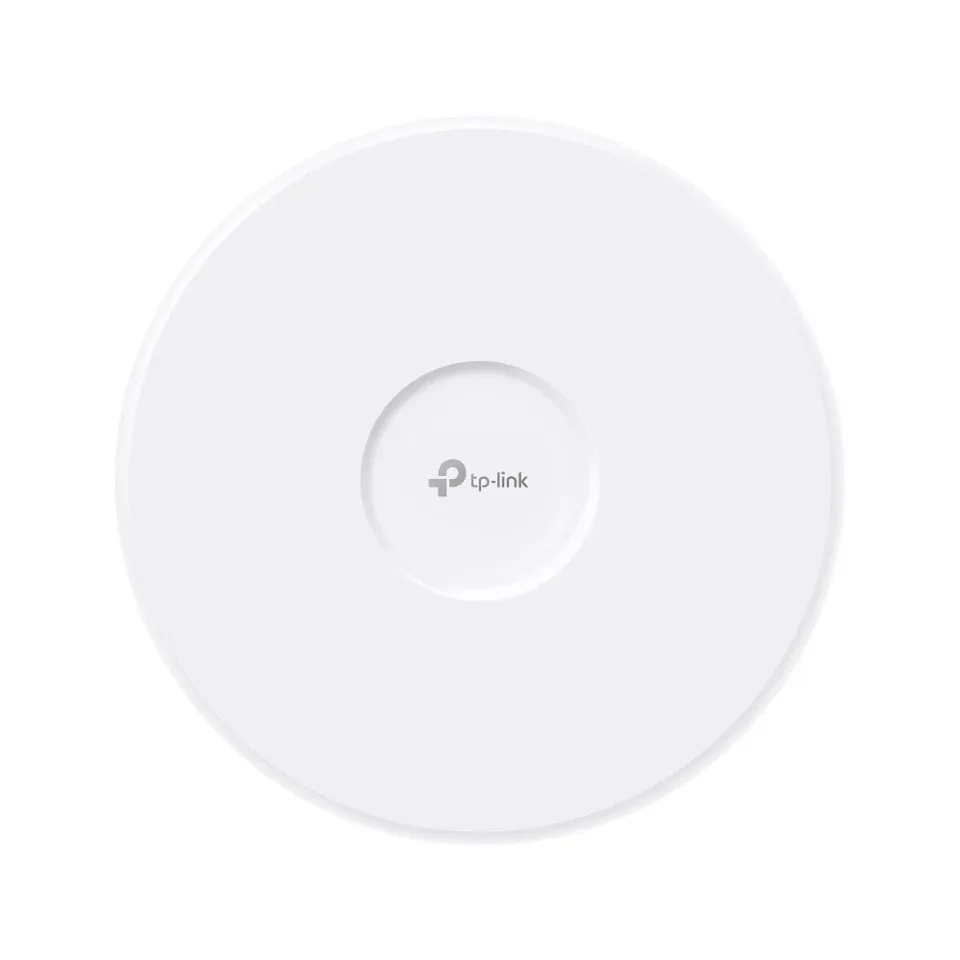

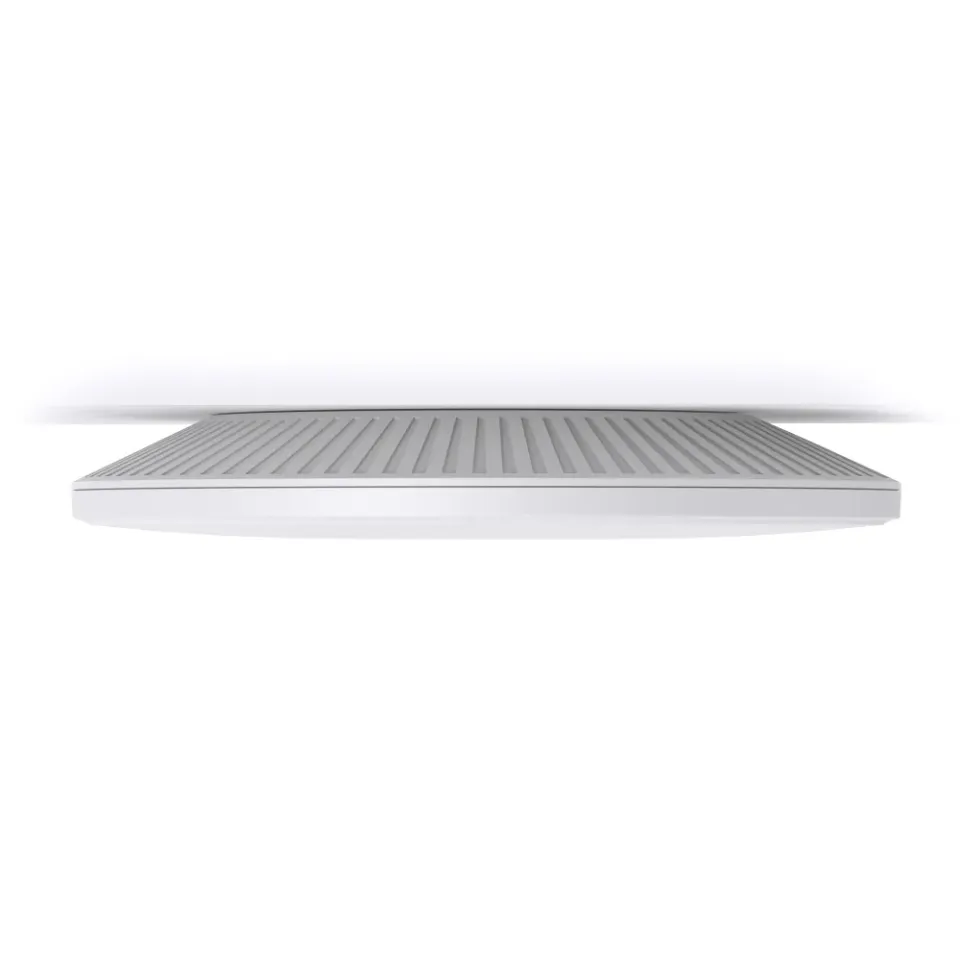

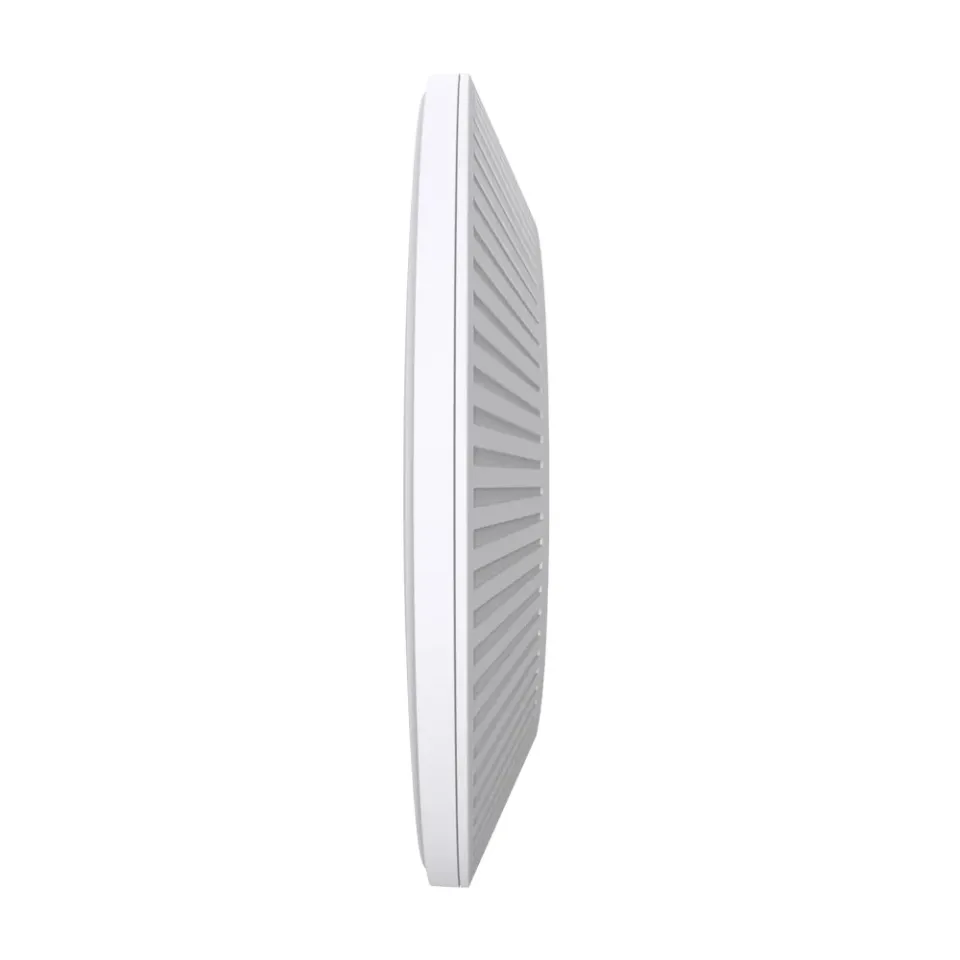

TP-LINK EAP773 Tri-band access point with Wi-Fi 7 BE9300 for ceiling mounting

TP-Link EAP773
BE9300 Tri-Band WiFi 7 Ceiling Mount Access Point

• BE9300 tri-band Wi-Fi 7 – up to 5765 Mb/s on the 6 GHz band (2×2, 320 MHz) + 2882 Mb/s on the 5 GHz band (2×2, 160 MHz) + 574 Mb/s on the 2.4 GHz band (2×2, 40 MHz). Say goodbye to buffering problems.
• 1× 10G RJ-45 port – Unlock the full potential of Wi-Fi 7.
• 6 Spatial Streams for higher capacity and performance.
• Uncongested 6 GHz band – Provides a more open and wider band for connecting your Wi-Fi devices.
• 320 MHz bandwidth – Enables far more concurrent data transmissions at the highest possible speed.
• Low latency and interference – Multi-Link Operation and Multi-RU technologies ensure high network performance.
• Advanced features – Support centralized management, Mesh technology and AI roaming.
  Product page: https://www.tp-link.com/sg/business-networking/omada-sdn-access-point/eap773/
  Technical Specifications
  HARDWARE FEATURES
  Interface 1× 10G Ethernet Port
  Button Reset
  Power Supply 802.3at PoE or 12V/2.5A DC
  Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
  Note: Power adapter is not included.
  Max. Power Consumption • 24.05 W (For PoE);
  • 20.92 W (For DC)
  Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  Antenna • 2.4 GHz: 2× 4.0 dBi
  • 5 GHz: 2× 5.0 dBi
  • 6 GHz: 2× 5.0 dBi
  Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
  Firmware update may be required.

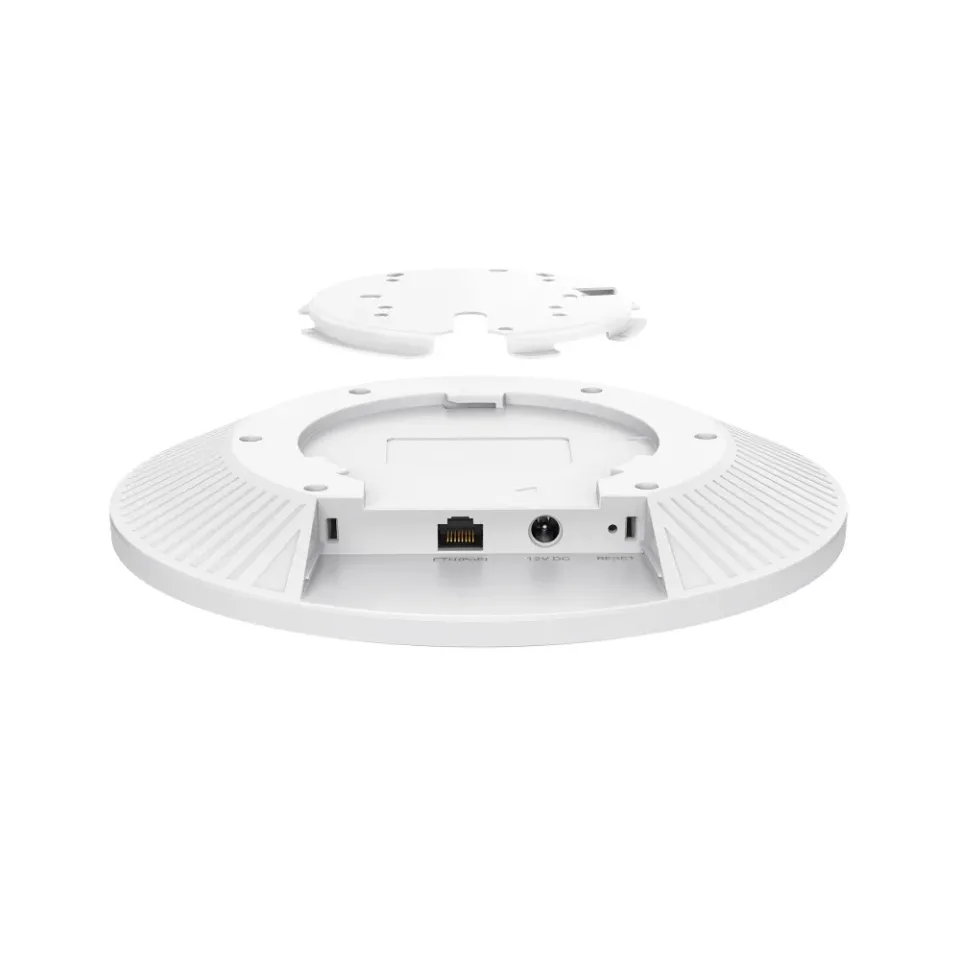

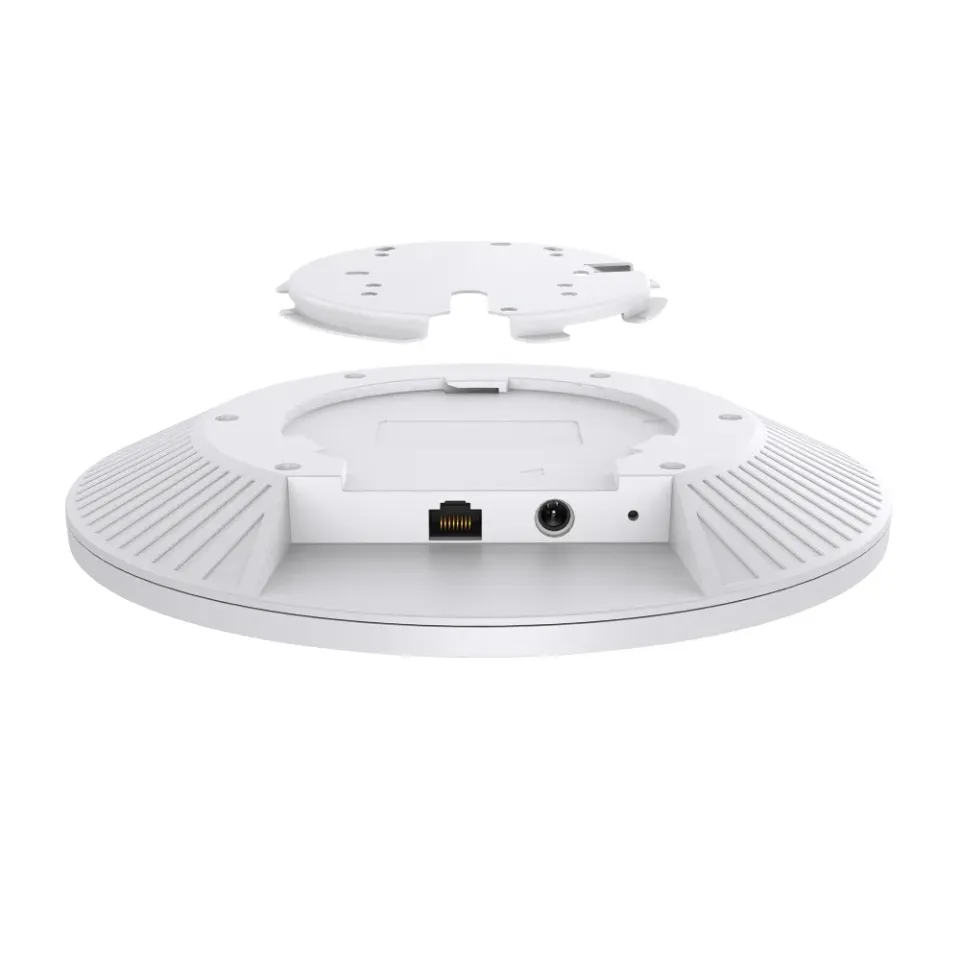

  Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)
  WIRELESS FEATURES
  Coverage 140?(1500 ft2)§
  Concurrent Clients 380+*
  Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
  Frequency 6 GHz, 5 GHz, and 2.4 GHz
  Signal Rate 574 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
  Wireless Functions • MLO‡
  • 4K-QAM‡
  • Seamless Roaming(802.11k/v/r)?
  • MU-MIMO (2*2 DL/UL MU-MIMO)‡
  • EHT320 (320 MHz Bandwidth)‡
  • Mesh?
  • BSS Coloring‡
  • OFDMA‡
  • Load Balance
  • Band Steering
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDS:24(8 on each band)
  • Wireless Schedule
  • Reboot Schedule
  • QoS(WMM)
  • Rate Limit
  • Static IP/Dynamic IP
  • RADIUS Accounting
  • MAC Authentication
  Wireless Security • Captive Portal Authentication?
  • Access Control
  • Maximum number of MAC Filter: 4,000
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  Transmission Power
  Management Features
  Omada App Yes
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Require the use of an Omada controller.
  Email Alerts Yes
  LED ON/OFF Control Yes
  Management MAC Access Control Yes
  SNMP v1, v2c, v3
  System Logging Local/Remote Syslog Yes
  Web-based Management Yes
  OTHERS
  Certification CE, FCC, RoHS, IC
  Package Content • EAP773
  • Installation Guide
  • Ceiling/Wall Mounting Kits
  Note: Power Adapter is NOT included.
  Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
  • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
  • Operating Humidity: 10%–90% non-condensing;
  • Storage Humidity: 5%–90% non-condensing;

Active device type: AP (Access Point), MU-MIMO
Frequency band (GHz): 2.4, 5, 2.4 + 5 (Dual Band), 6
Supported standards: 802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11g, 802.11a/n, 802.11n, 802.11ac, 802.11be
Security: WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3
Antenna type: Integrated
Use: Indoor
PoE types: PoE - In
