TP-LINK EAP772 Tri-Band access point with Wi-Fi 7 BE9300 for ceiling mount

TP-Link EAP772
BE9300 Tri-Band WiFi 7 Access Point for Ceiling Mounting

• BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
• The clean 6 GHz band delivers cleaner and wider resources.
• 1× 2.5G port unlocks the full potential of Wi-Fi 7.
• 320 MHz bandwidth enables far more simultaneous transmissions.
• Multi-link and multi-unit operation ensures high performance for your network.
• Advanced features: Centralized management, mesh and AI roaming.
  Product page: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap772/
  Technical specifications
  HARDWARE FEATURES
  Interface 1× 2.5G Ethernet Port
  Button Reset
  Power Supply 802.3at PoE or 12V/2.5A DC
  Power Consumption • 24.05 W (For PoE);
  • 20.92 W (For DC)
  Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  Antenna Type • 2.4 GHz: 2× 4.0 dBi
  • 5 GHz: 2× 5.0 dBi
  • 6 GHz: 2× 5.0 dBi
  Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
  *Firmware update may be required.
  Mounting Ceiling / Wall Mounting (Kits Included)
  WIRELESS FEATURES
  Wireless Client Capacity 380+
  Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
  Frequency 6 GHz, 5 GHz, and 2.4 GHz
  Signal Rate 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
  Wireless Functions • MLO‡
  • 4K-QAM‡
  • Seamless Roaming(802.11k/v/r)
  • MU-MIMO‡
  • EHT320‡
  • Mesh?
  • BSS Coloring‡
  • OFDMA‡
  • Load Balance
  • Band Steering
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDS:24(8 on each band)
  • Wireless Schedule
  • Reboot Schedule
  • QoS(WMM)
  • Rate Limit
  • Static IP/Dynamic IP
  • RADIUS Accounting
  • MAC Authentication
  Wireless Security • Captive Portal Authentication?
  • Access Control
  • Maximum number of MAC Filter: 4,000
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  Transmission Power
  MANAGEMENT
  Omada App Yes
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
  Email Alerts Yes
  LED ON/OFF Control Yes
  Management MAC Access Control Yes
  SNMP v1, v2c, v3
  System Logging Local/Remote Syslog Yes
  Web-based Management Yes
  OTHERS
  Certification CE, FCC, RoHS, IC

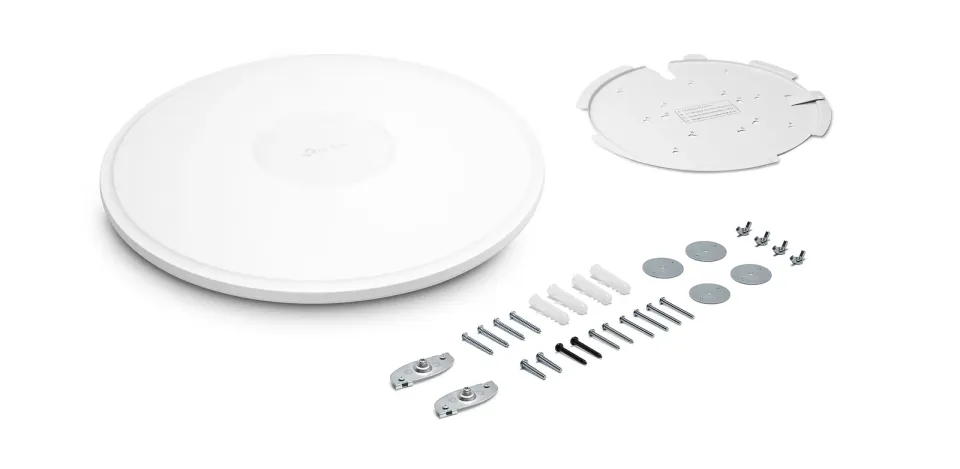

  Package Contents • EAP772
  • Installation Guide
  • Ceiling/Wall Mounting Kits
  Note: Power Adapter is NOT included.
  Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
  • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
  • Operating Humidity: 10%–90% non-condensing;
  • Storage Humidity: 5%–90% non-condensing;

Active device type: AP (Access Point), MU-MIMO
Frequency band (GHz): 2.4, 5, 2.4 + 5 (Dual Band), 6
Supported standards: 802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11g, 802.11a/n, 802.11n, 802.11ac, 802.11be
Security: WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3
Antenna type: Integrated
Use: Indoor
PoE types: PoE - In
