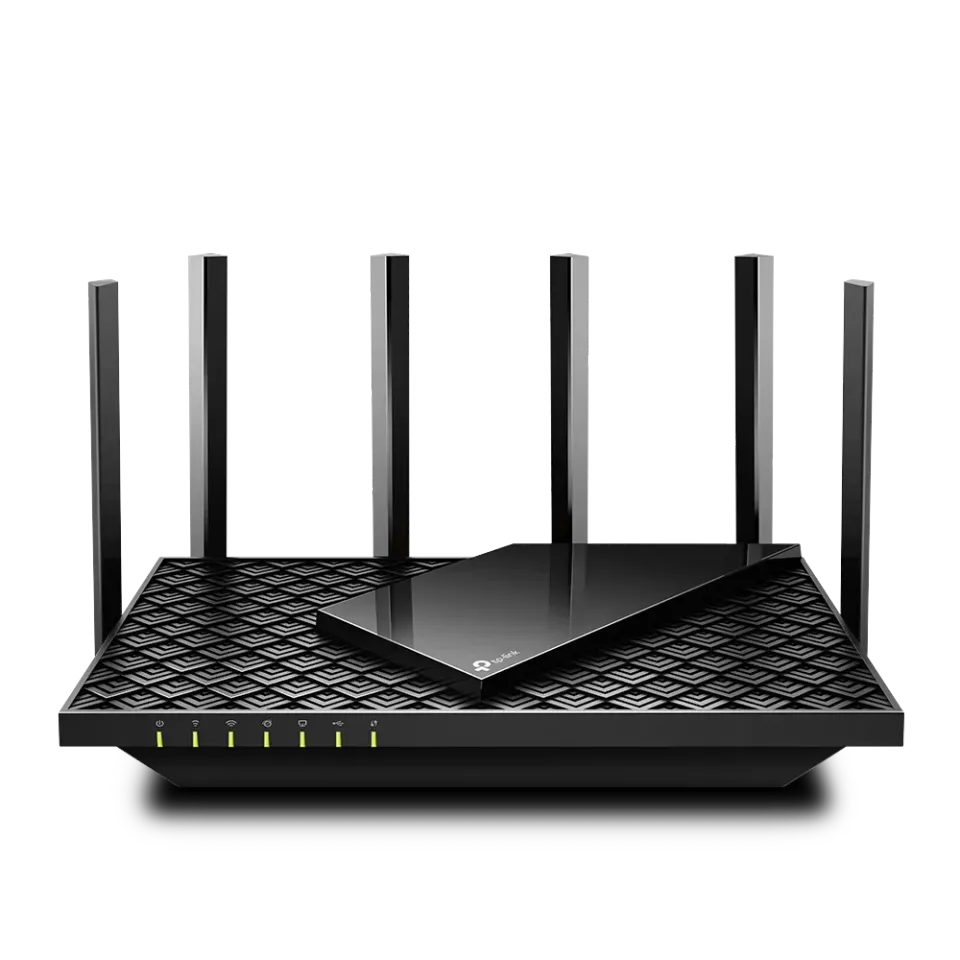

TP-Link Archer AX72 - AX5400, USB 3.0 Port, Wi-Fi 6 Router, HomeShield - OneMesh

Archer AX72 - Dual-Band Gigabit WiFi 6 Router AX5400

Gigabit WiFi network for 8K streaming – 5,400Mbit/s WiFi network for faster web browsing, streaming and downloading, all at the same time.†
WiFi 6 fully equipped – with cutting-edge 4T4R and HE160 technology in the 5 GHz band, it provides ultra-fast connections at 4.8 Gbit/s.
Connection for more than 100 devices§ – the router supports MU-MIMO and OFDMA technologies, which reduce network congestion and increase average throughput fourfold.‡**
Wide coverage – 6 antennas and Beamforming technology ensure extensive coverage.
HomeShield – TP-Link's premium security services protect your home network with advanced network and IoT device protection features.*
Better ventilation, less heat – thanks to improved ventilation openings, the entire router can operate at full performance.
USB port for sharing – 1 USB 3.0 port enables easy media sharing and creation of a private cloud.
Easy setup – set up the router in a few minutes with the Tether app.
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server SECURITY // VPN Server:
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1 GHz Dual-Core CPU

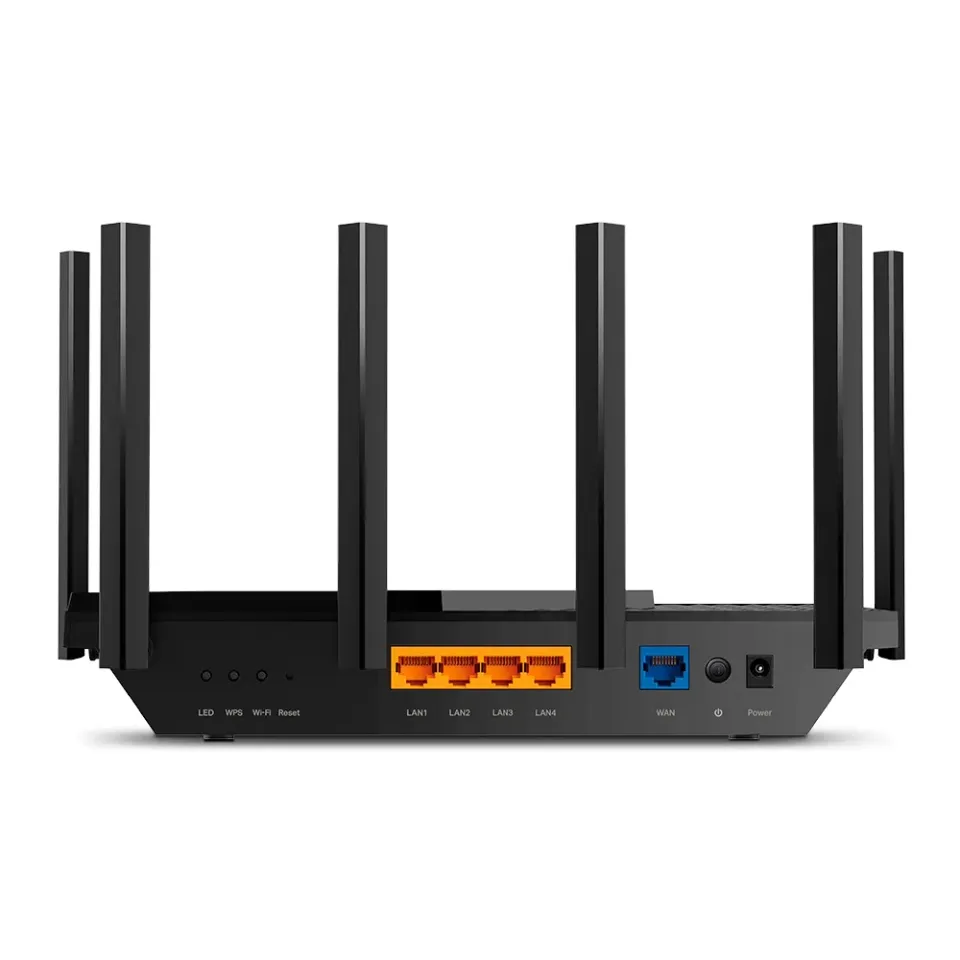

Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports

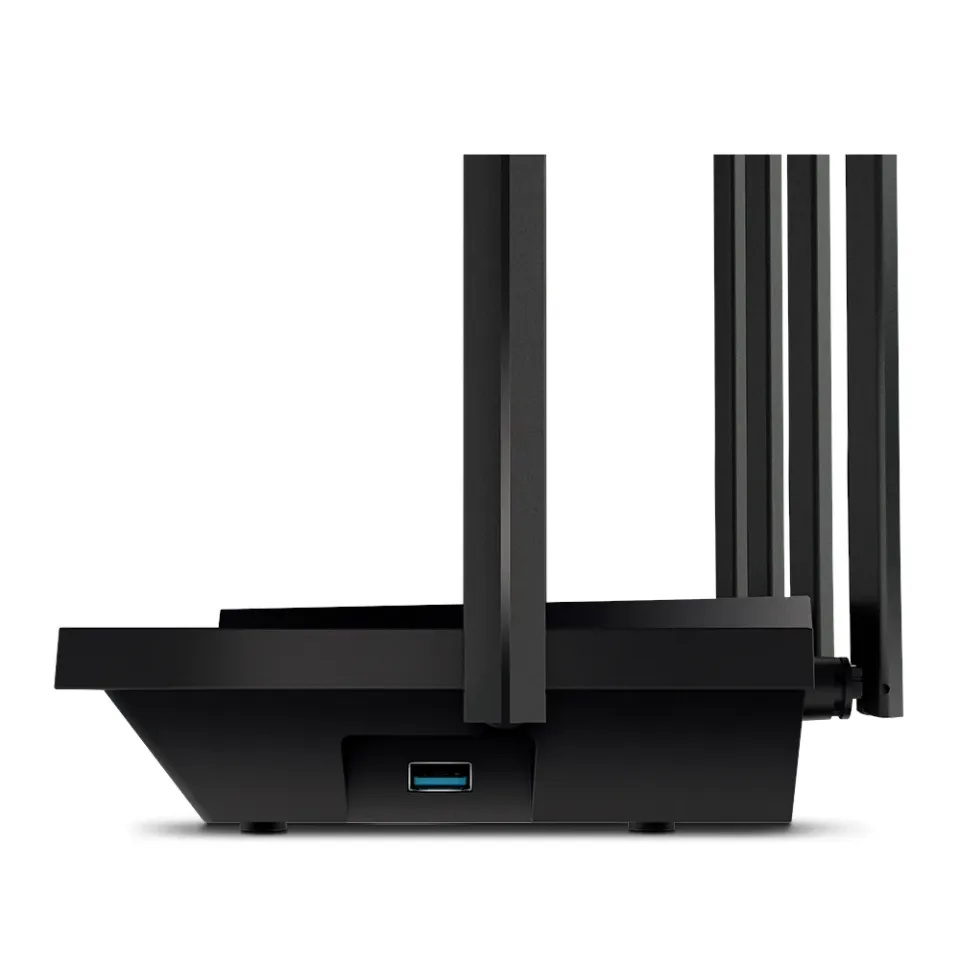

USB Support 1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ? 2.5 A
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?40? (32? ~104?)
Storage Temperature: -40?70? (-40? 158?)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz5.35GHz}
<30dBm{5.47GHz5.725GHz}
FCC:
<24dBm{5.25GHz5.35GHz&5.47GHz5.725GHz }
<30dBm{2.4GHz &5.15GHz5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
PHYSICAL
Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package Contents Wi-Fi Router Archer AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Pásmo: 2,4 GHz + 5 GHz dual
Podpora PoE: Ne
Rychlost ethernetu: 10/100 Mbit
Rychlost přenosu Wi-Fi: AX5400
Typ: Není
VPN: Ano
Výrobce: TP-Link
Wi-Fi: Ano
