MSI MB Sc LGA1851 PRO B860M-P WIFI6E, Intel B860, 4xDDR5, WiFi, 2xDP, 1xHDMI, 1xVGA, mATX

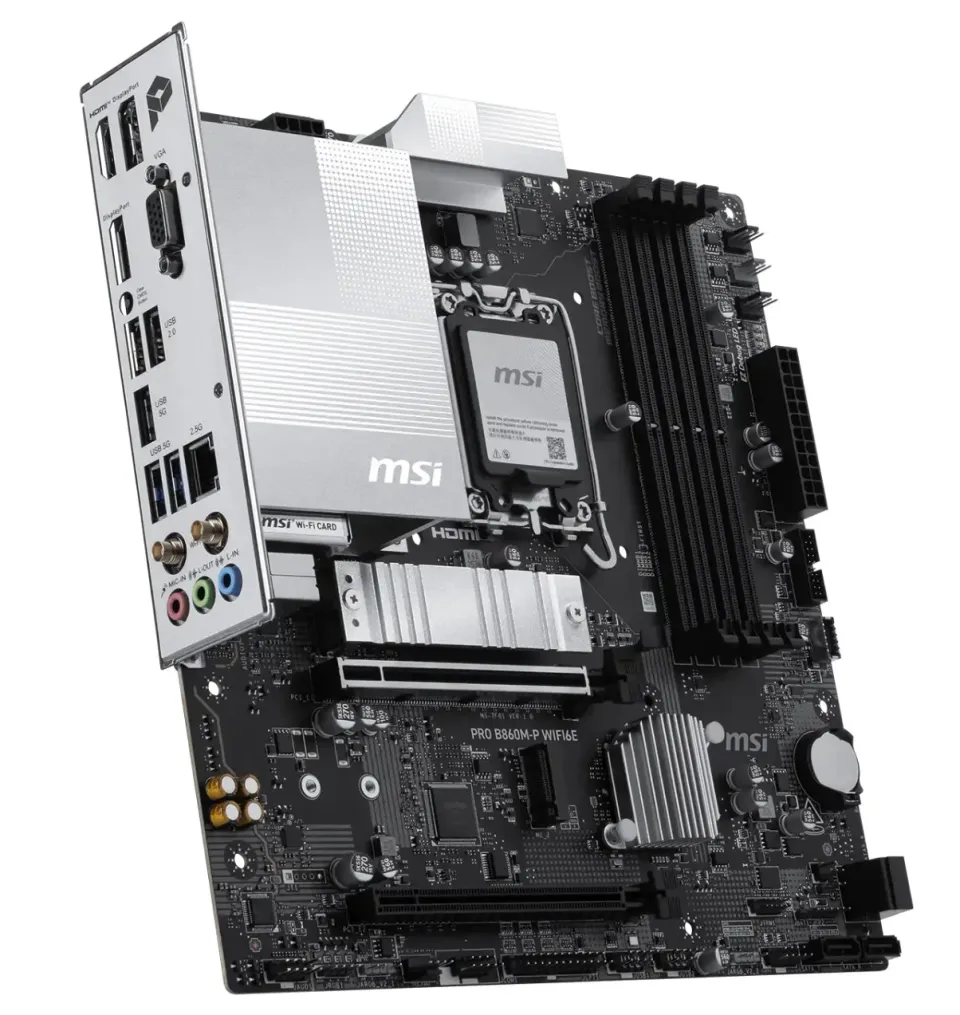

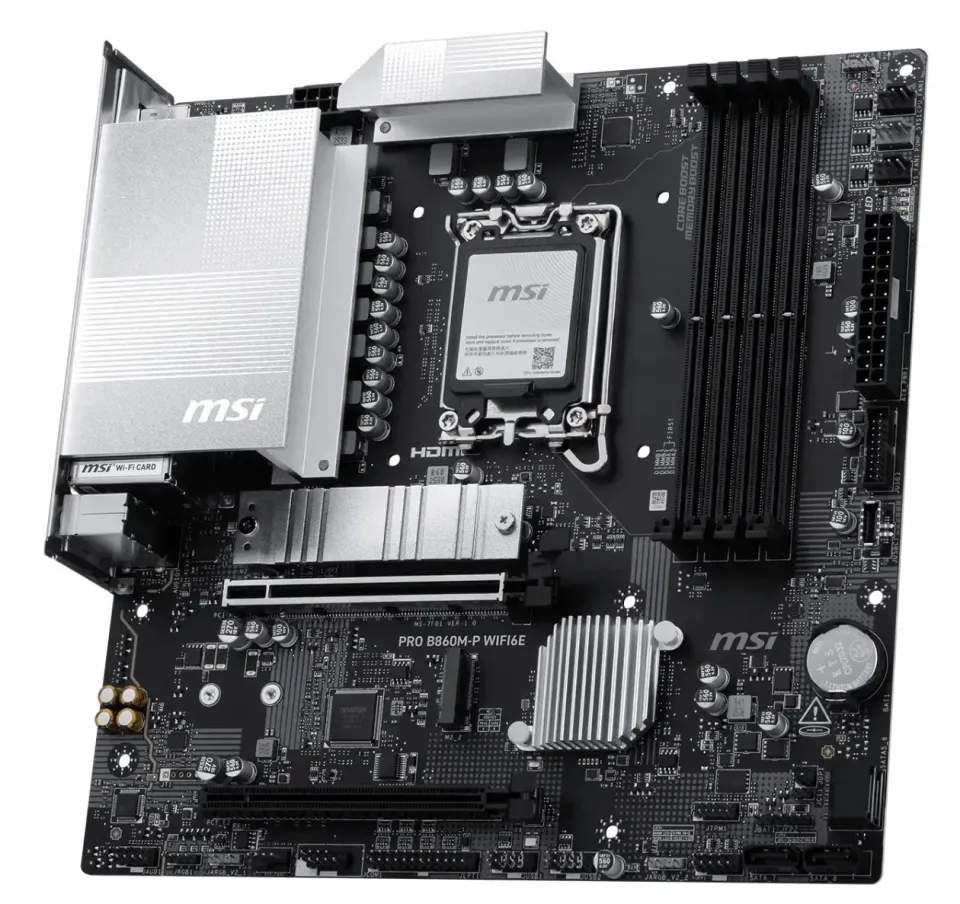

MSI PRO B860M-P WIFI6E
PRO B860M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2, ready for the Intel Core™ Ultra processors.
Chipset
INTEL B860
CPU
Supports Intel Core™ Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

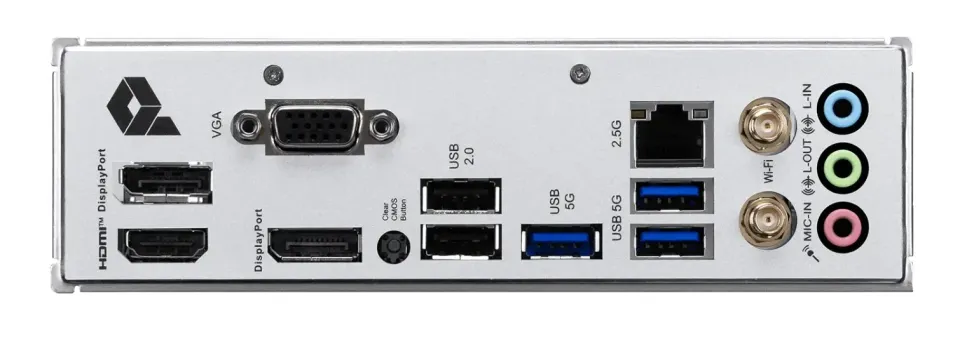

Graphics
1x HDMI™
Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
2x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN
Realtek 8125 2.5Gbps LAN
Internal I/O Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Wireless Communication module
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3*, FIPS, FISMA

• The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
  LED FEATURE
  4x EZ Debug LED
  1x EZ Memory Detection LED
  Operating System
  Support for Windows 11 64-bit
  Form Factor
  mATX
  243.84mmx243.84mm

Formát základní desky: micro ATX
Chipset: Intel B860
Socket (patice): Socket 1851
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 2
VGA: 1
DVI: 0
DisplayPort Type-C: 0
