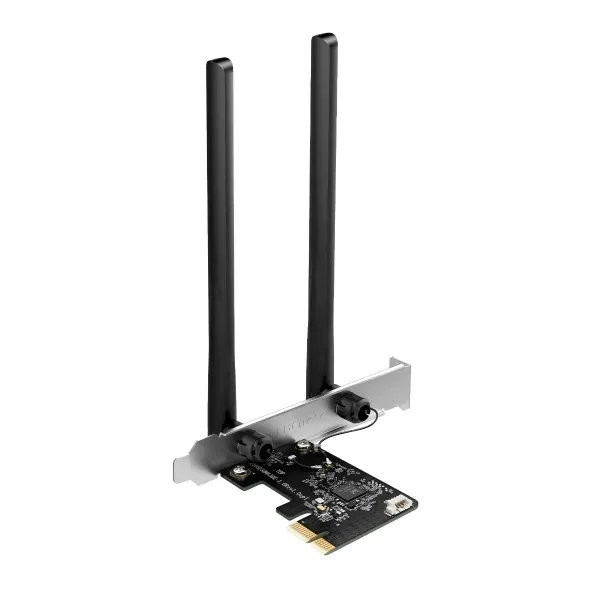

MERCUSYS MA30E - PCI Express Adapter, Wireless WiFi5 and Bluetooth 5.0

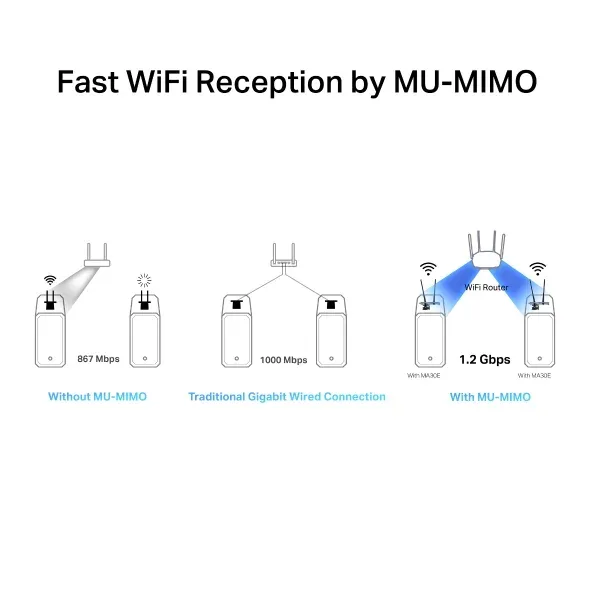

The Mercusys MA30E is an internal PCIe dual-band Wi-Fi and Bluetooth 5.0 adapter equipped with WiFi5 technology, with speeds of up to 867 Mb/s in the 5 GHz band and 300 Mb/s in the 2.4 GHz band, with MU-MIMO support. The security of transmitted data is ensured by WPA-PSK/WPA2-PSK/WPA3-SAE technology. The adapter is fully compatible with Windows 10, 11 (64-bit).

Equip your computer with Bluetooth technology

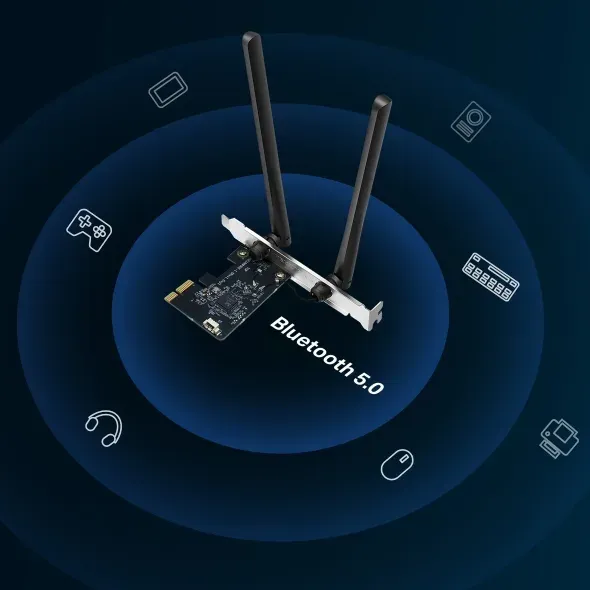

The Mercusys MA30E adapter is fully compatible with Bluetooth 5.0 technology and offers up to 2x higher transfer speed than Bluetooth 4.2. Thanks to this internal card, your personal computer will instantly be compatible with a wide range of Bluetooth devices.

Technical parameters

Wireless characteristics
Wireless frequencies: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g
Transfer rate - 5 GHz [Mb/s]: 866
Transfer rate - 2.4 GHz [Mb/s]: 300
Transmit power 2.4 GHz [dBm]: 20
Transmit power 5 GHz [dBm]: 23

Encryption: WPA, WPA2, WPA3
2.4 GHz MIMO: 2 x 2
5 GHz MIMO: 2 x 2
Antenna type: Fixed

Connectors and interfaces
Interface: PCI Express

Physical characteristics
Operating temperature [°C]: 0 to 40
Width [mm]: 226
Height [mm]: 22
Depth [mm]: 121

General
Network card type: WLAN

Package contents
Device
Bluetooth USB cable
Quick installation guide

Band: 2.4 GHz + 5 GHz dual
PoE support: No
Use: PCI/PCI-e adapter
Wi-Fi transfer speed: AC1200
Manufacturer: Mercusys
