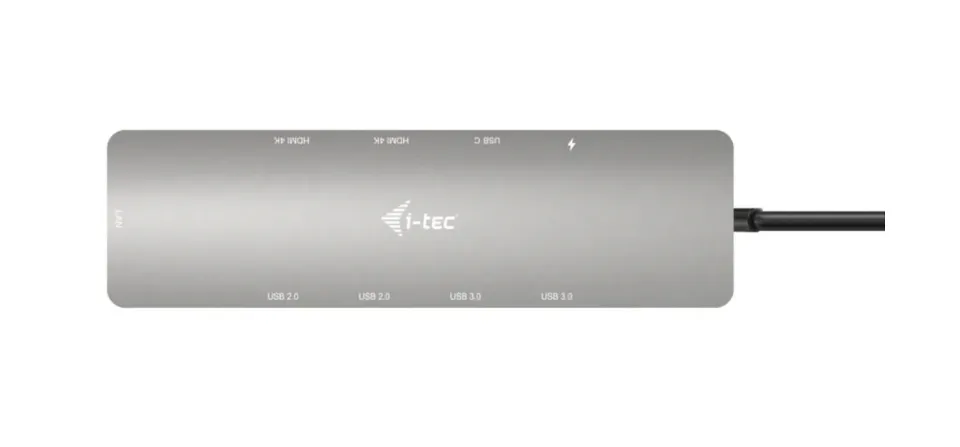

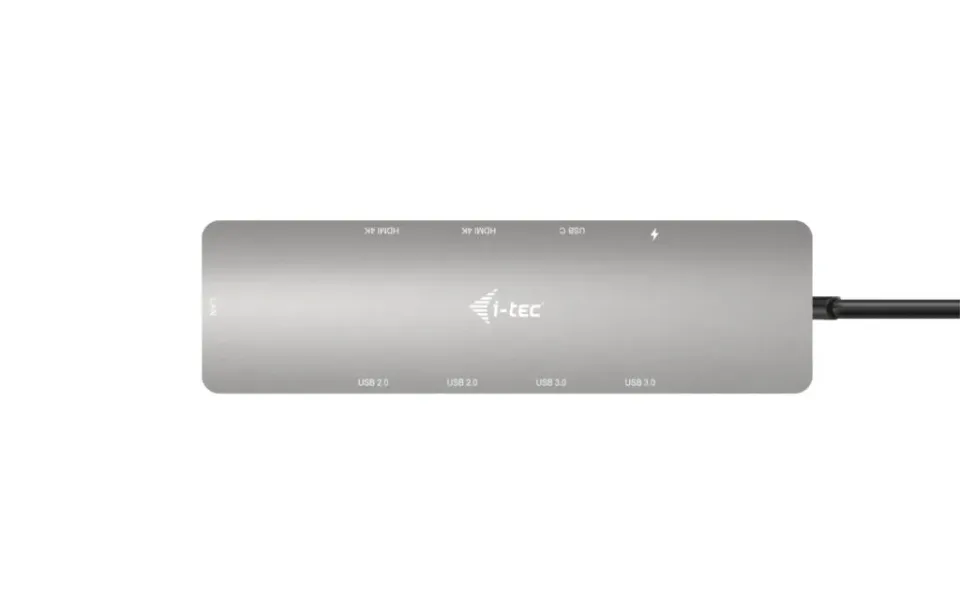

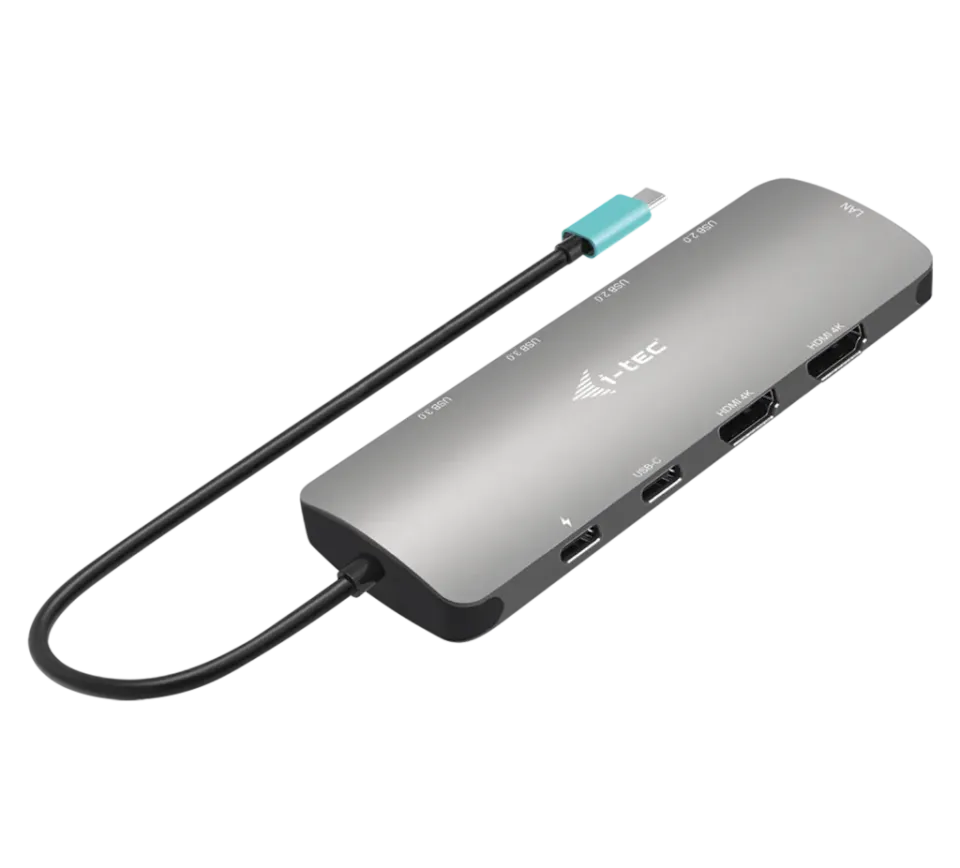

i-tec USB-C Metal Nano 2x HDMI Docking Station, PD 100W

Description

A small metal USB-C dock to which up to two external monitors can be connected.
The brushed aluminum construction ensures that the docking station is sufficiently durable to withstand frequent travel.
2x HDMI with support for up to two extended monitors with a resolution of 4K/60Hz
2x USB 3.2 (5Gb/s), 2x USB 2.0 and 1x USB-C port allow easy connection of USB devices and peripherals.
GLAN Ethernet supports network speeds of 10/100/1000 Mb/s and provides a robust, high-speed internet connection.
The docking station supports up to 100W power for the connected notebook or tablet (USB-C charger not included)

Specifications

Integrated 30cm USB-C cable for connection to the device
Docking station technology: USB-C (MST)
Power Delivery: 100W

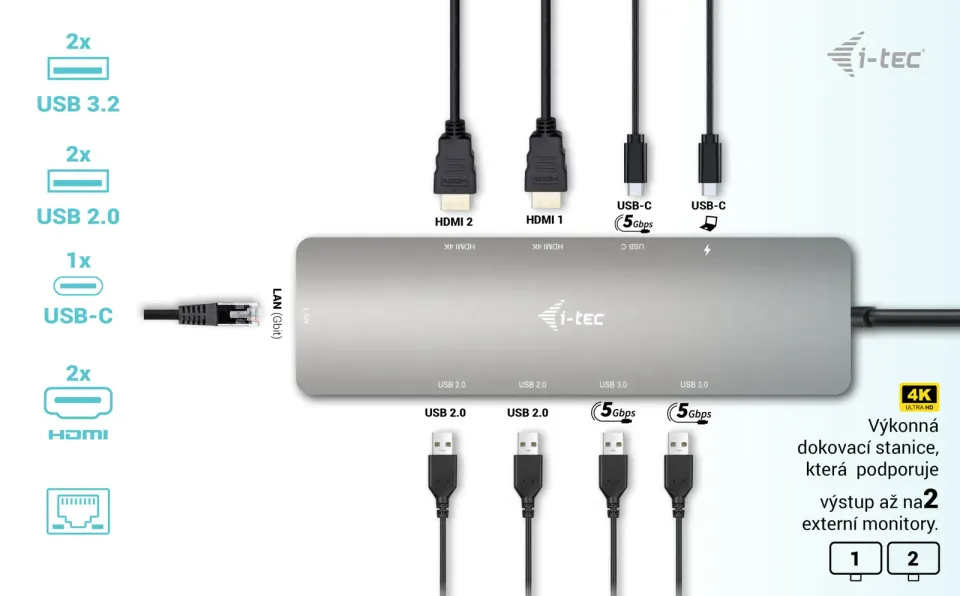

Video ports:
2x HDMI
Resolution:
Host device with DisplayPort 1.2 support:
1 monitor – 1x HDMI › up to 4K/30Hz
1 monitor – 1x HDMI › up to 1080p/120Hz
2 monitors – 2x HDMI › up to 2x 1080p/60Hz*
Host device with DisplayPort 1.4 support:
1 monitor – 1x HDMI › up to 4K/60Hz
2 monitors – 2x HDMI › up to 2x 1440p/60Hz*
Host device with DisplayPort 1.4 with DSC support:
1 monitor – 1x HDMI › up to 4K/60Hz
2 monitors – 2x HDMI › up to 2x 4K/60Hz*
2 monitors – 2x HDMI › up to 2x 1440p/144Hz*

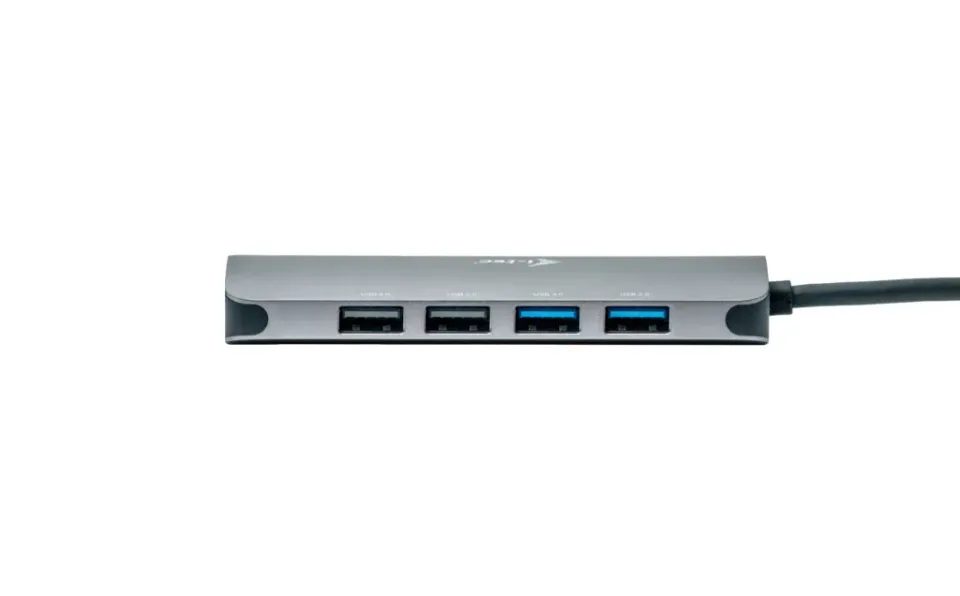

2x USB 3.2 Gen1 port
2x USB 2.0 port
1x USB-C 3.2 Gen1
1x USB-C PD port (power delivery only)
1x Ethernet GLAN RJ-45 port (RTL8153B)
MAC address cloning: yes (using i-tec Docker Pro software)
WOL: S1, S2, S3
Product dimensions: 152.5 x 43 x 15 mm
Product weight: 92 g
Package dimensions: 112 x 233 x 23 mm
Package weight: 115 g
Hardware requirements:

Device with a free USB-C, USB4 or Thunderbolt™ 3/4 port
Power Delivery requirements:

Device with a free USB-C, USB4 or Thunderbolt™ 3/4 port with Power Delivery support
Video output requirements:

Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4 port
Operating system:

Windows 10 / 11, macOS*, iPadOS**, Android**, Chrome OS and Linux with the latest updates

• macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will cause both monitors to display the same image.

** iPadOS and Android do not support multi-display video transmission or extended display mode. This means that when connected to an external monitor, only a mirrored screen will be displayed. (Does not apply to Android devices with DEX and Easy Projection extension).

USB version: 2.0
