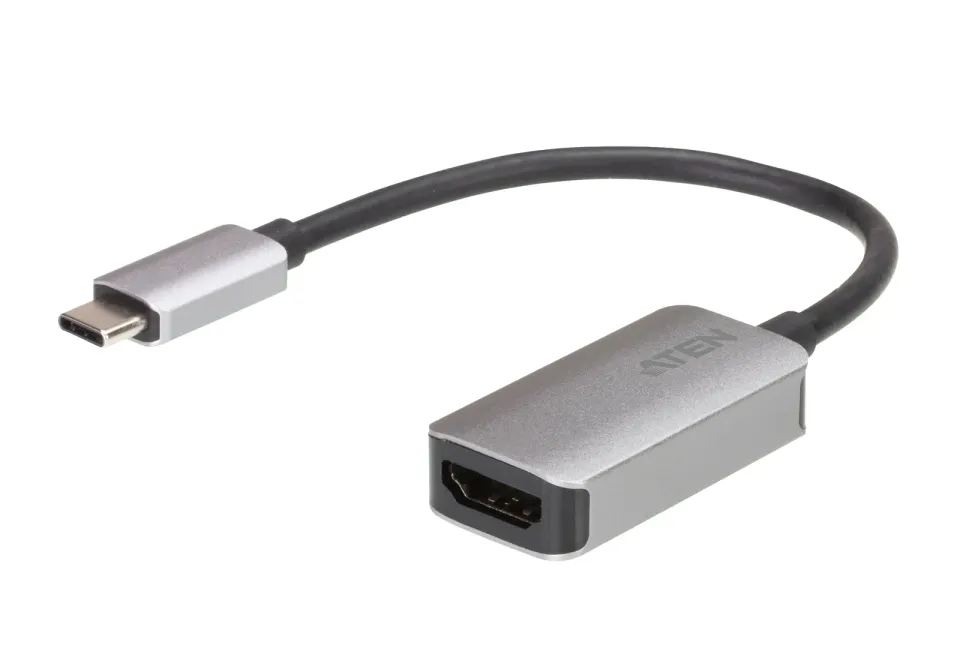

ATEN USB-C to HDMI 4K Adapter

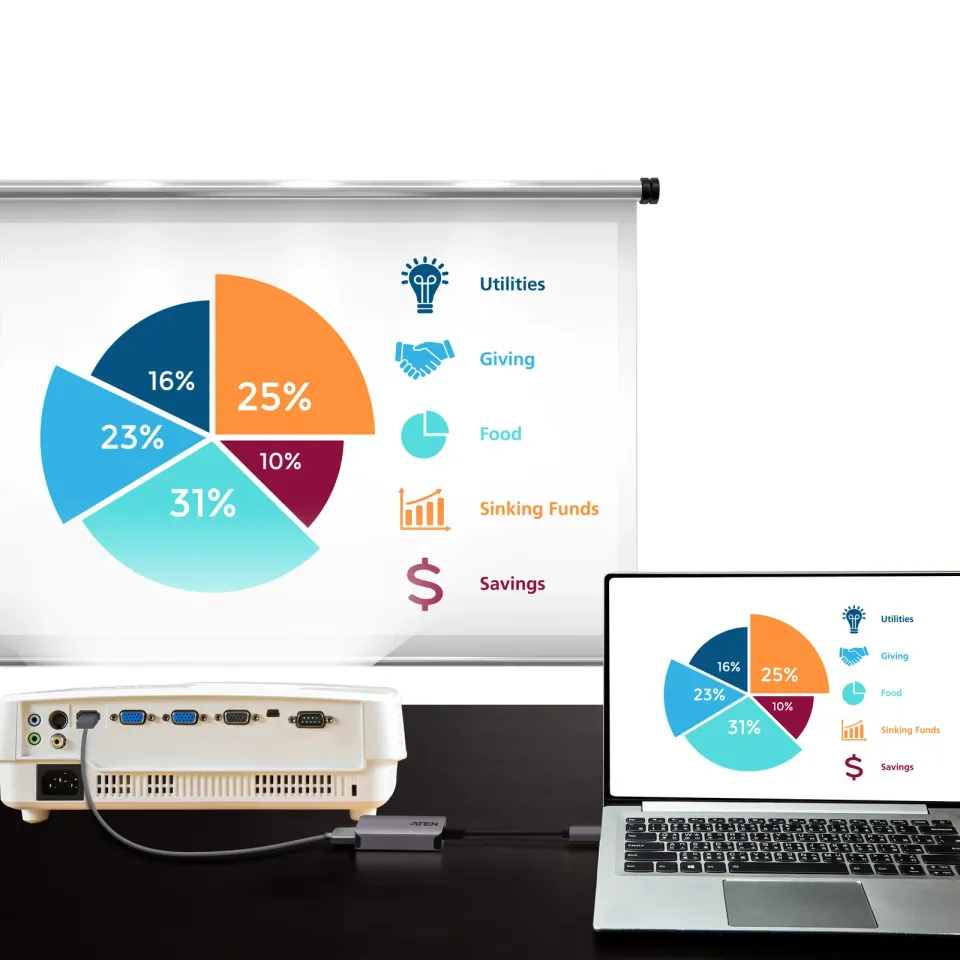

The UC3008A1 is a USB-C to HDMI 4K adapter that allows you to transfer the video of your USB-C equipped laptop, tablet or smartphones to a monitor, TV or projector. The UC3008A1 supports high video resolutions up to 4096 x 2160@60Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector. In addition, it’s does not require external drivers or additional power. It works with USB-C port computers and smartphones with DP Alt mode, compatible with iPad Pro, Android, Mac OS X and Windows operating systems, and is convenient to use and carry around.

Video Input
Interfaces 15.4 cm USB 3.2 Gen1 Type-C Cable
Video Output
Interfaces 1 x HDMI Female
Video
Max. Pixel Clock 594MHZ
Max. Resolution 4096 x 2160@60Hz
Compliance USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible)
HDMI 2.0
HDCP 2.2
USB Billboard Device Class
Audio
Output 1 x HDMI Female
Power Consumption 5V:1WBTU
System Requirements Windows 10 and above, USB-C enabled computer with DP Alt Mode*

• With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and above, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode

iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Aluminum
Weight 0.02 kg ( 0.04 lb )
Dimensions (L x W x H) 4.32 x 1.10 x 2.20 cm
(1.7 x 0.43 x 0.87 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

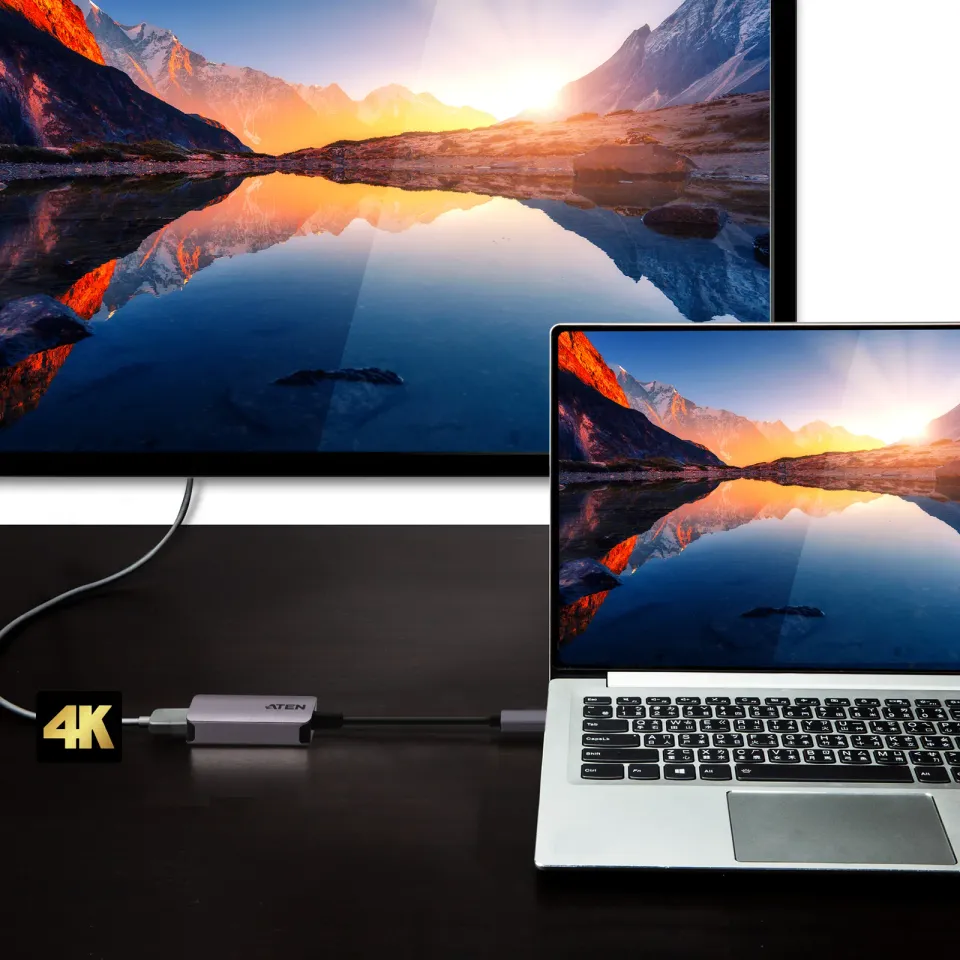

Transfers high-quality video from a USB-C enabled laptop or smartphone to a HDMI 4K@60Hz (4096 x 2160@60Hz) display, TV or projector*
Premium casing can resists signal interference during video transmission and heat insulation

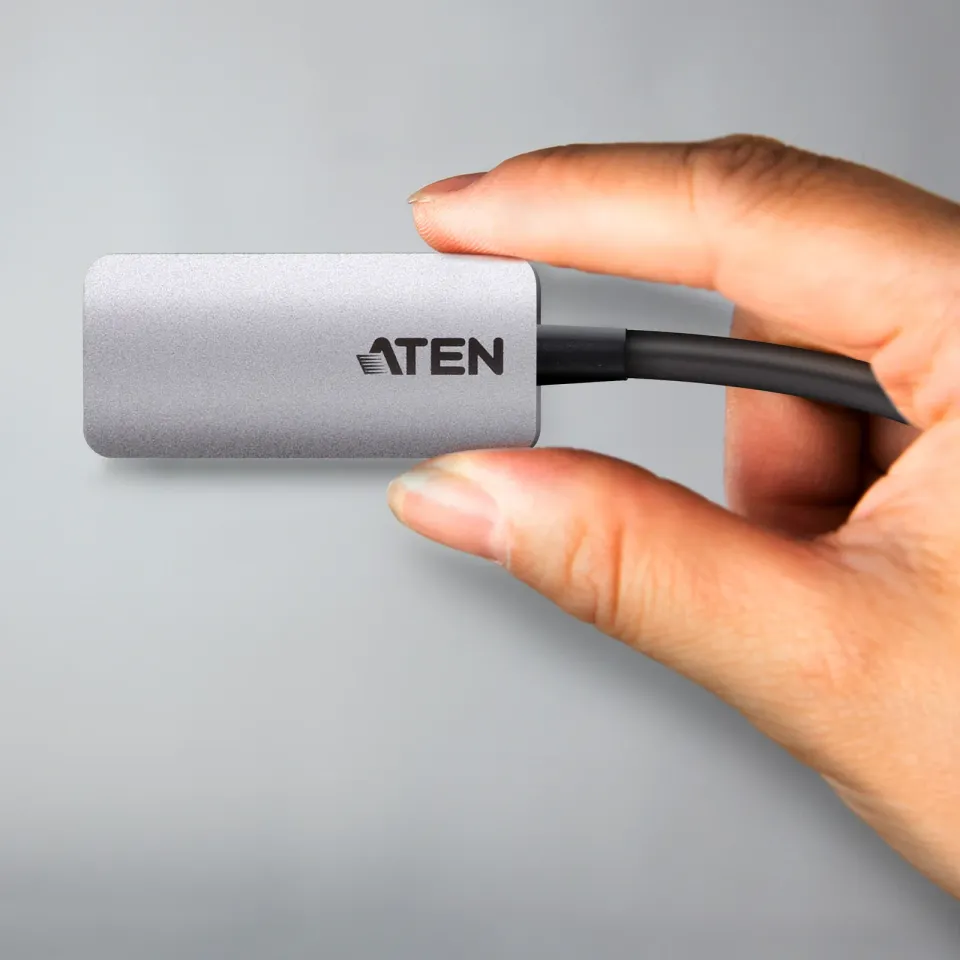

Compact and lightweight design
Works with all major operating systems: Windows®, OS X®, iPad Pro and Android
Plug and Play – no software required

• With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.

Package Contents
1x UC3008A1 USB-C to 4K HDMI Adapter

Barva: Černá
Délka: 10cm - 50cm
Konektor 1: USB-C
Konektor 2: HDMI
Opletení: Ne
Provedení konektoru: Rovný
Určení: Redukce
Výrobce: Aten
