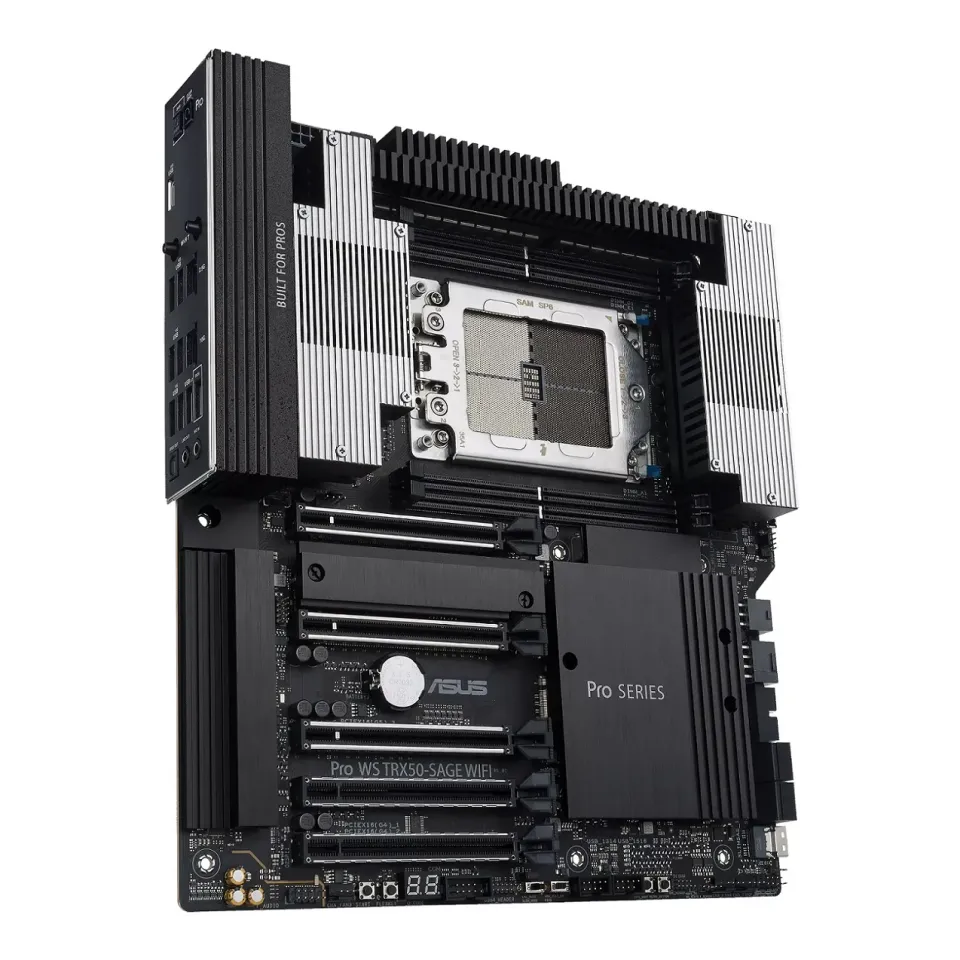

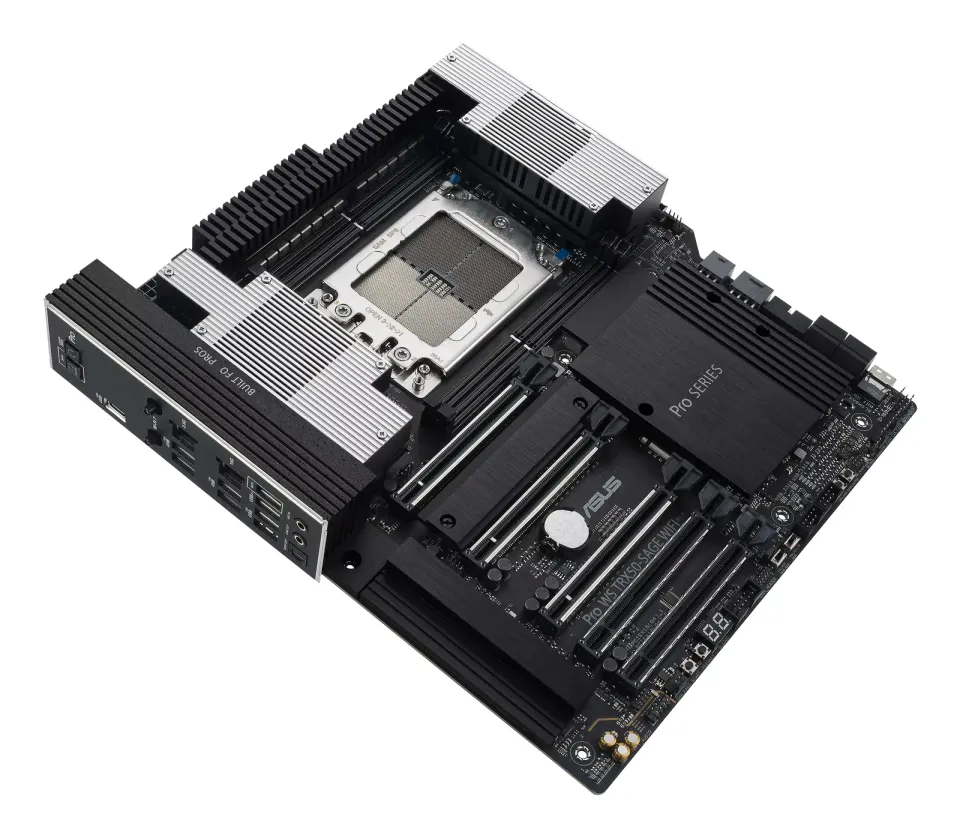

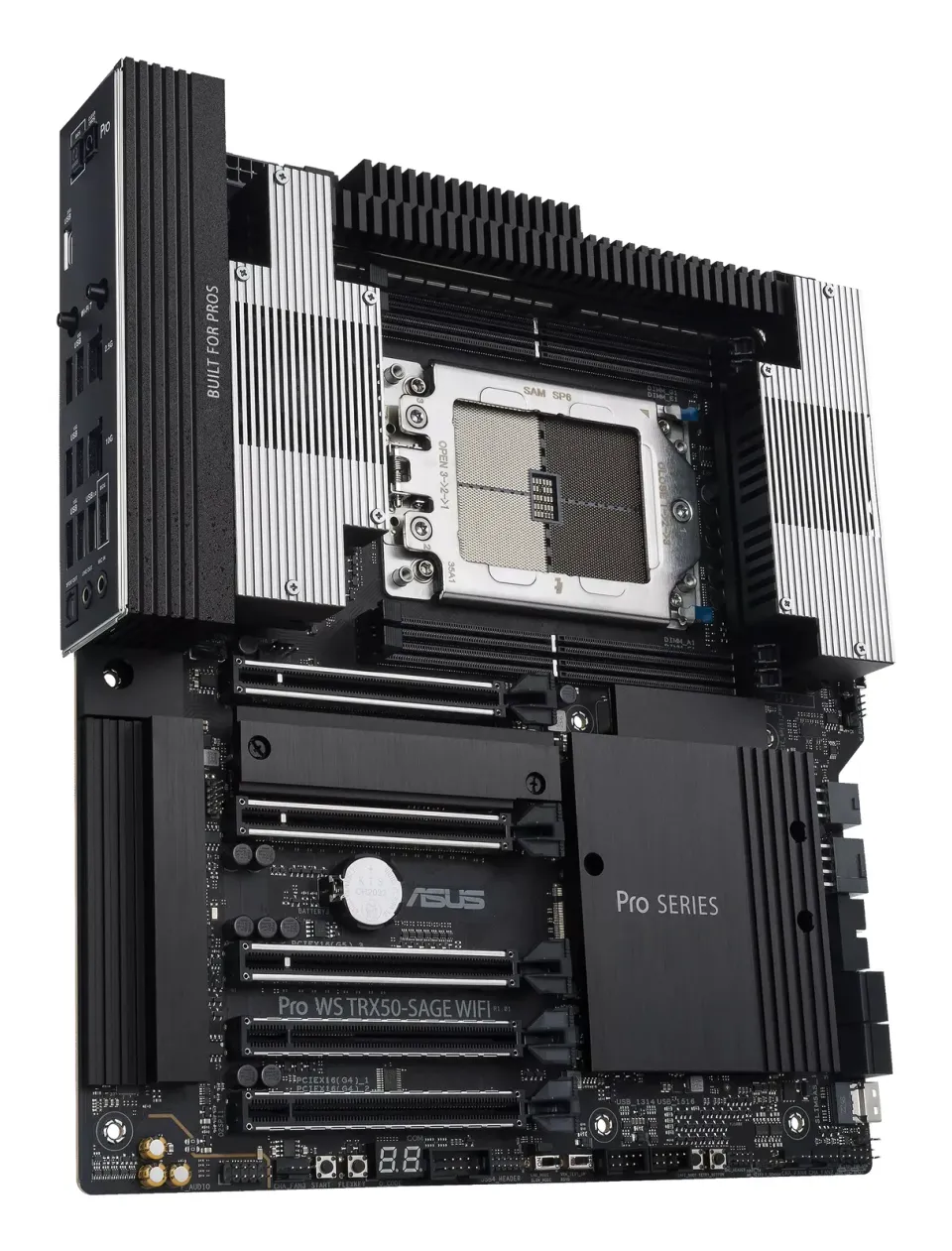

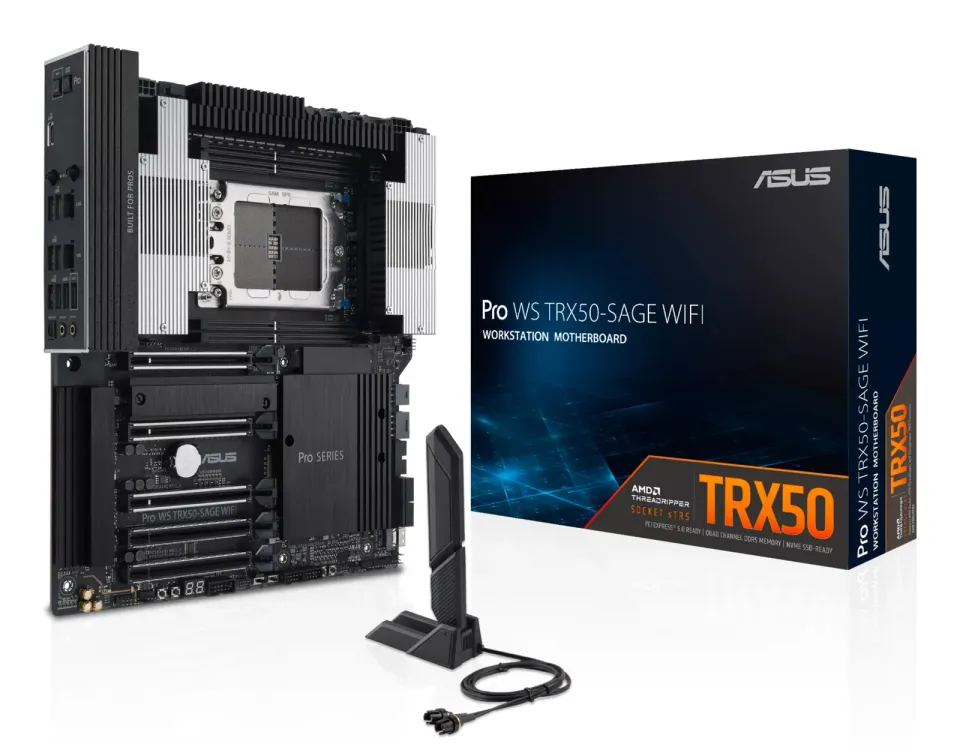

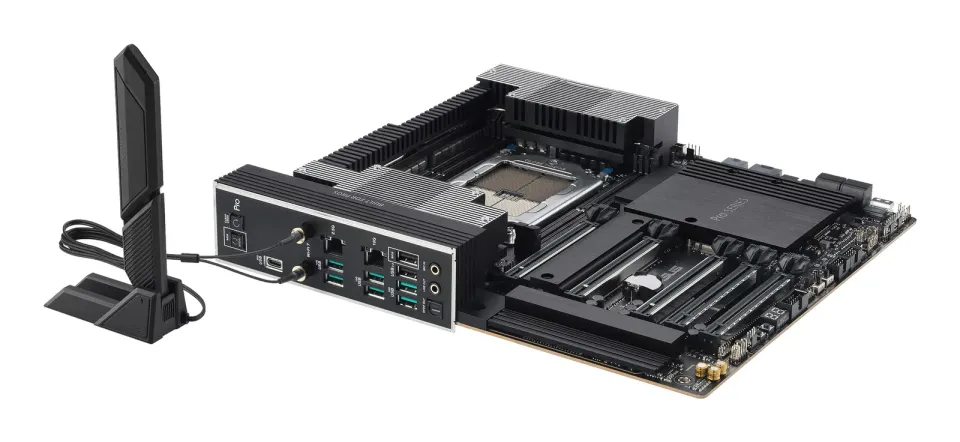

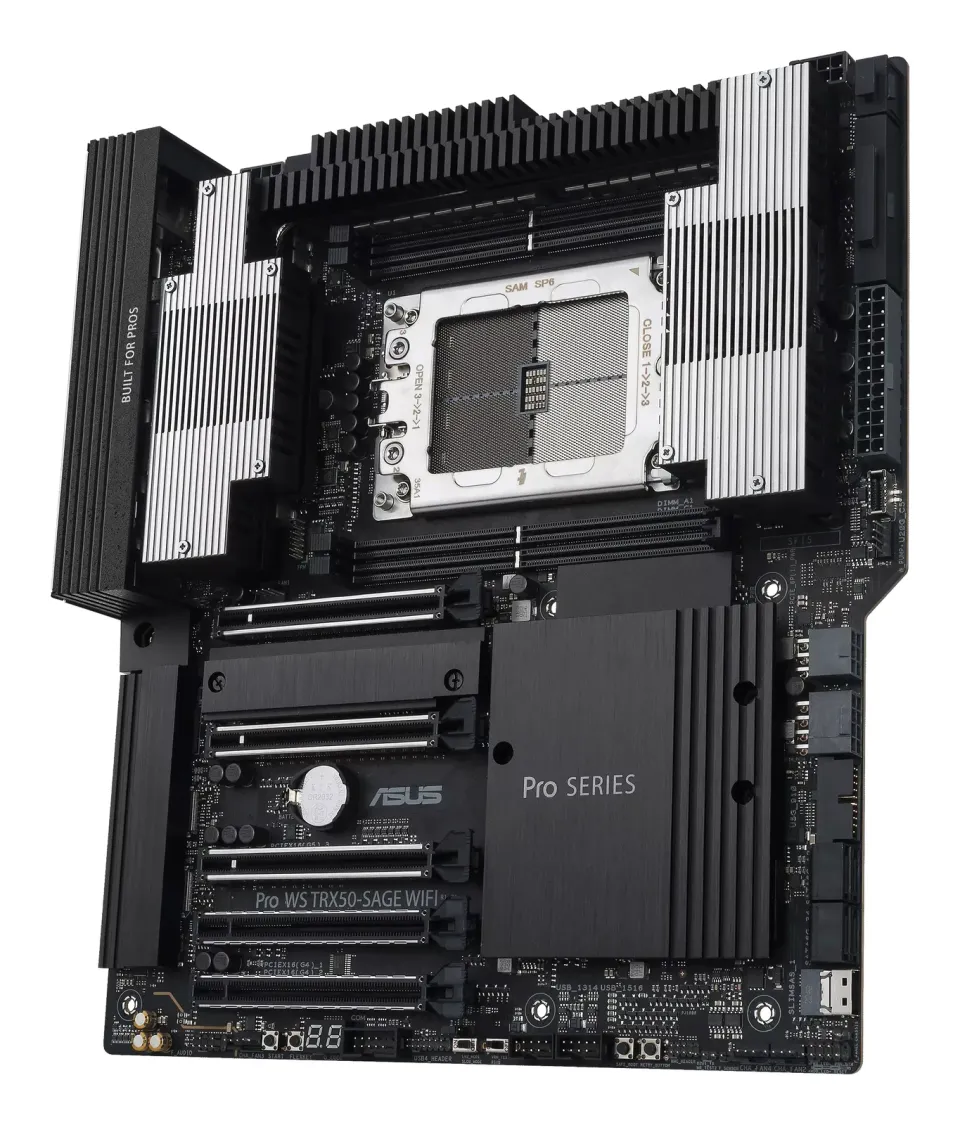

ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI, AMD TRX50, 4xDDR5, WiFi, CEB

ASUS Pro WS TRX50-SAGE WiFi
AMD TRX50 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

• AMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
• CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
• Ultrafast connectivity: three PCIe 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.
• Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
  CPU
  AMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors *

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD TRX50 Chipset
  Memory
  4 x DIMM slots, DDR5, ECC Registered Memory*
  4 Channel Memory Architecture
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
  Expansion Slots
  AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
  2 x PCIe 5.0 x16 slots
  1 x PCIe 5.0 x16 slot(x8 mode)
  1 x PCIe 4.0 x16 slot
  1 x PCIe 4.0 x16 slot(x4 mode)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
  Storage
  Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
  AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  AMD TRX50 Chipset
  M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
  LAN
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel I226-LM 2.5Gb Ethernet
  WiFi & Bluetooth
  ---Místo pro Wifi a BT---
  USB
  Rear USB (Total 9 ports)
  1 x USB 20Gbps port (1 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A )
  2 x USB 2.0 ports (2 x Type-A )
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C with up to 27W PD/QC4+)
  1 x USB 5Gbps header supports 2 additional USB 5G ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  "Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*"
  Audio Features
• Audio Shielding
• Rear optical S/PDIF out port
• Dedicated audio PCB layers
• Unique de-pop circuit

• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

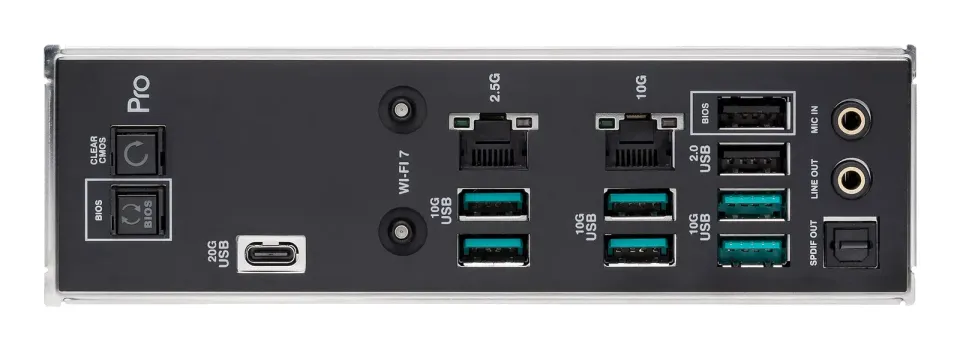

  Back Panel I/O Ports
  1 x USB 20Gbps port (1 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A)
  2 x USB 2.0 port (2 x Type-A)
  1 x Wi-Fi Module
  1 x Marvell AQtion 10Gb Ethernet port
  1 x Intel 2.5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  Internal I/O Ports
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x W_PUMP+ header
  4 x 4-pin Chassis Fan headers
  2 x 4-pin VRM Fan header (with VRM FAN onboard)
  Power related
  2 x 24-pin Main Power connectors
  2 x 8-pin +12V Power connectors
  2 x 8-pin PCIe to CPU power connectors
  1 x 6-pin PCIe Power connector
  1 x 8-pin PCIe Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  1 x SlimSAS port
  USB
  1 x USB 20Gbps connector supports USB Type-C
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  1 x BMC header
  1 x COM Port header
  1 x USB4 header
  1 x FlexKey button
  1 x Front panel audio header (F_AUDIO)
  1 x Start button
  1 x Safe boot button
  1 x ReTry button
  1 x LN2 mode jumper
  1 x Slow mode switch
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin system panel header
  1 x Chassis intrusion header
  1 x Thermal Sensor header
  Special Features
  ASUS Q-Design

• Q-Code
• M.2 Q-Latch
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink and onboard thermal pads
• VRM heatsink design with active fans
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
  Bespoke Motherboard Design & Business Focused Features
• 24/7 Reliability
• Overcurrent Protection
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Fan Xpert 4
  ASUS CPU-Z
  IT Management software supported
• ASUS Control Center Express(ACCE)
  Adobe Creative Cloud (Free Trial)
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUSTeK. EzFlash Utility
  FlexKey
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE (UEFI mode)
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  1 x CPU 8-pin to PCIe 8-pin adapter cable package
  1 x Thermistor cable pack
  Miscellaneous
  1 x ASUS 2x2 Dual…
