ASUS MB Sc LGA1851 ROG STRIX B860-A GAMING WIFI

ASUS ROG STRIX B860-A GAMING WIFI
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4 (20Gbps) port, PCIe 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
CPU
Support Intel Core™ Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B860 Chipset
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
  1 x USB4 (20Gbps) ports support USB
  Type-C display outputs****
• Graphics specifications may vary between
  CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 8K@30Hz as specified in
  DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI
  2.1.
  **** Supports max. 4K@60Hz as specified in
  DisplayPort 1.4a.
  **** In USB4 mode, supports up to 4K@60Hz,
  maximum total bandwidth up to 23.8Gbps, for resolution support please check
  DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10.
  ***** VGA resolution support depends on
  processors' or graphic cards' resolution.
  *****While installing the operating
  system, please ensure that your monitor is connected to the HDMI port on the
  back I/O panel or to a discrete graphics card.
  Expansion Slots
  Intel Core™ Ultra Processors (Series 2)
  1 x PCIe 5.0 x16 slot
  Intel B860 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
• M.2_4 slot shares bandwidth with
  PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

• To ensure compatibility of the device
  installed, please refer to https://www.asus.com/support/download-center/ for
  the list of supported peripherals.
  Storage
  Total supports 4 x M.2 slots and 4 x SATA
  6Gb/s ports*
  Intel Core™ Ultra Processors (Series 2)
  M.2_1 slot (Key M), type 2242/2260/2280
  (supports PCIe 5.0 x4 mode)
  Intel B860 Chipset
  M.2_2 slot (Key M), type 2280 (supports
  PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2280/22110
  (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports
  PCIe 4.0 x4 mode)**
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports
  SATA RAID 0/1/5/10.
  ** M.2_4 slot shares bandwidth with
  PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 10 ports)
  1 x USB4 (20Gbps) port (1 x USB Type-C)
  3 x USB 10Gbps ports (2 x Type-A + 1 x USB
  Type-C)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 10Gbps connector (supports USB
  Type-C)
  1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional
  USB 2.0 ports
• USB Type-C power delivery output: max.
  5V/3A
  Audio
  Realtek ALC1220P 7.1 Surround Sound
  High Definition Audio CODEC*

• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz
  playback*
  Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover

• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

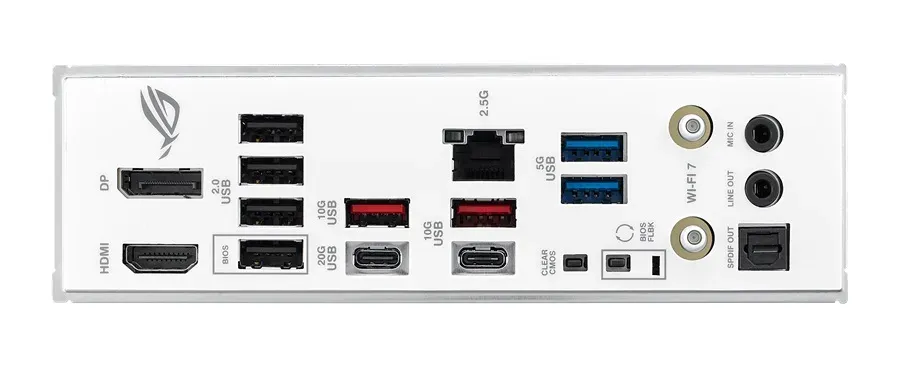

  Back Panel I/O Ports
  1 x USB4 (20Gbps) port (1 x USB Type-C)
  3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel 2.5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
  Storage Related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 header(s)
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4) header
