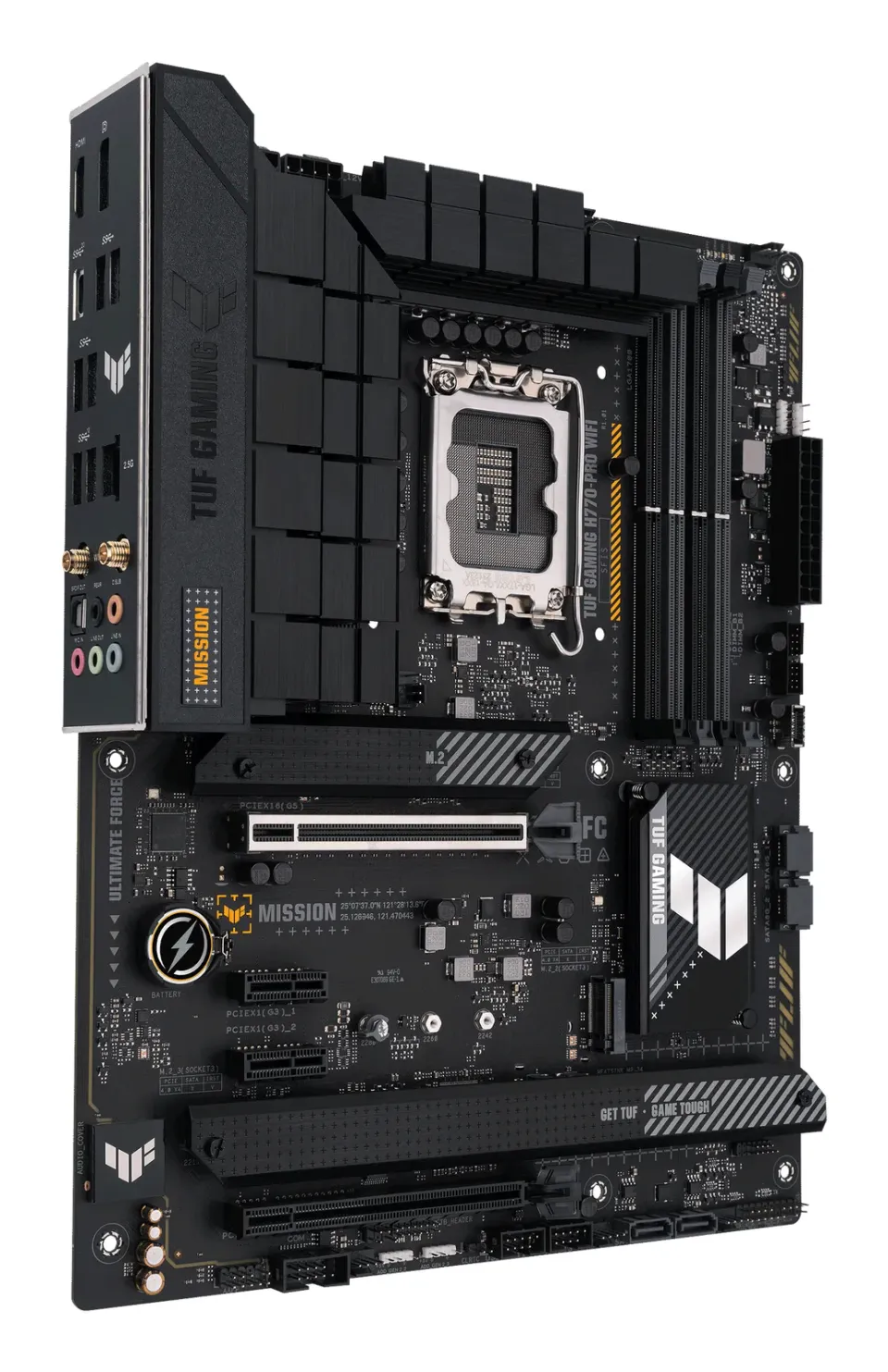

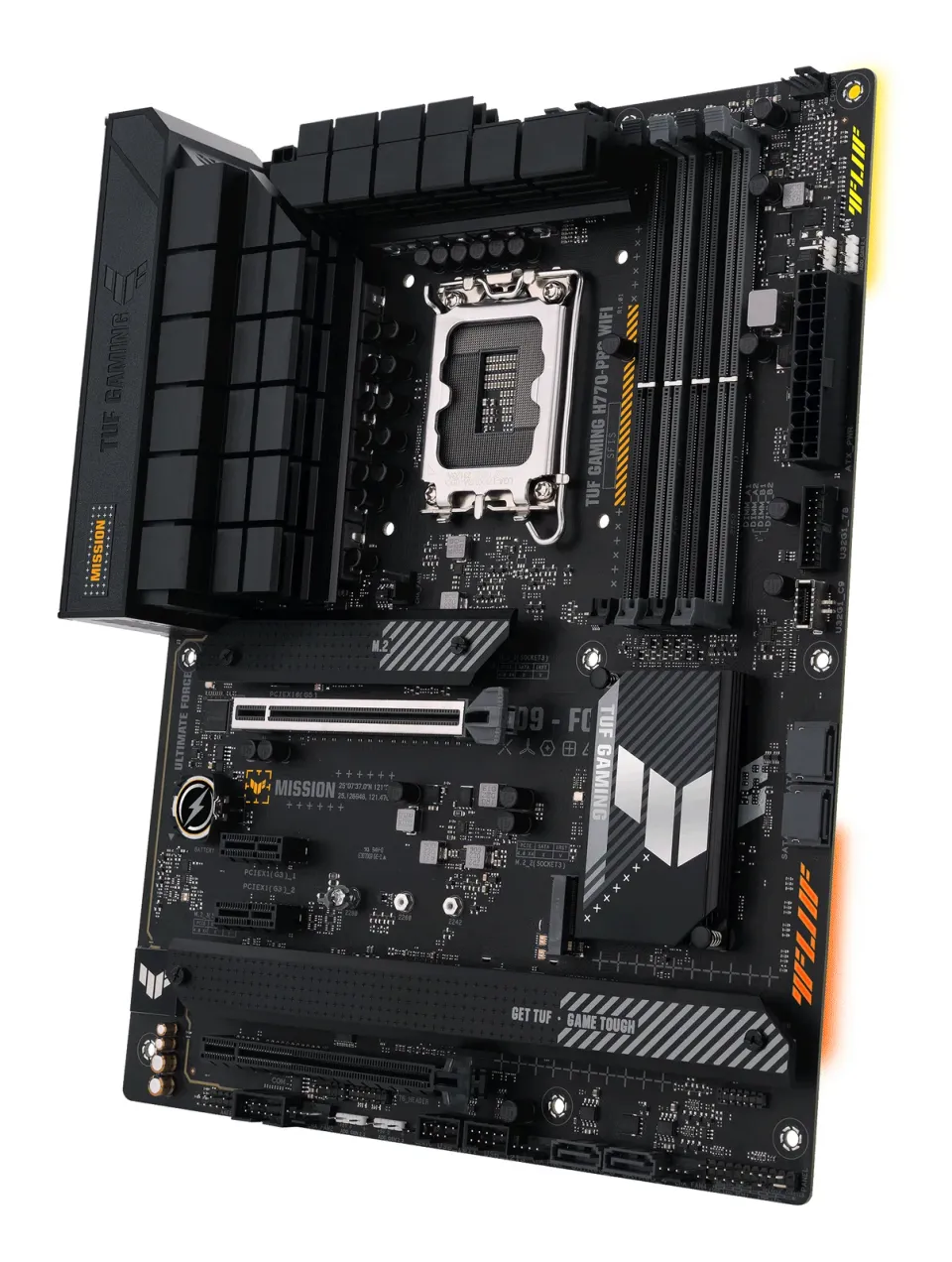

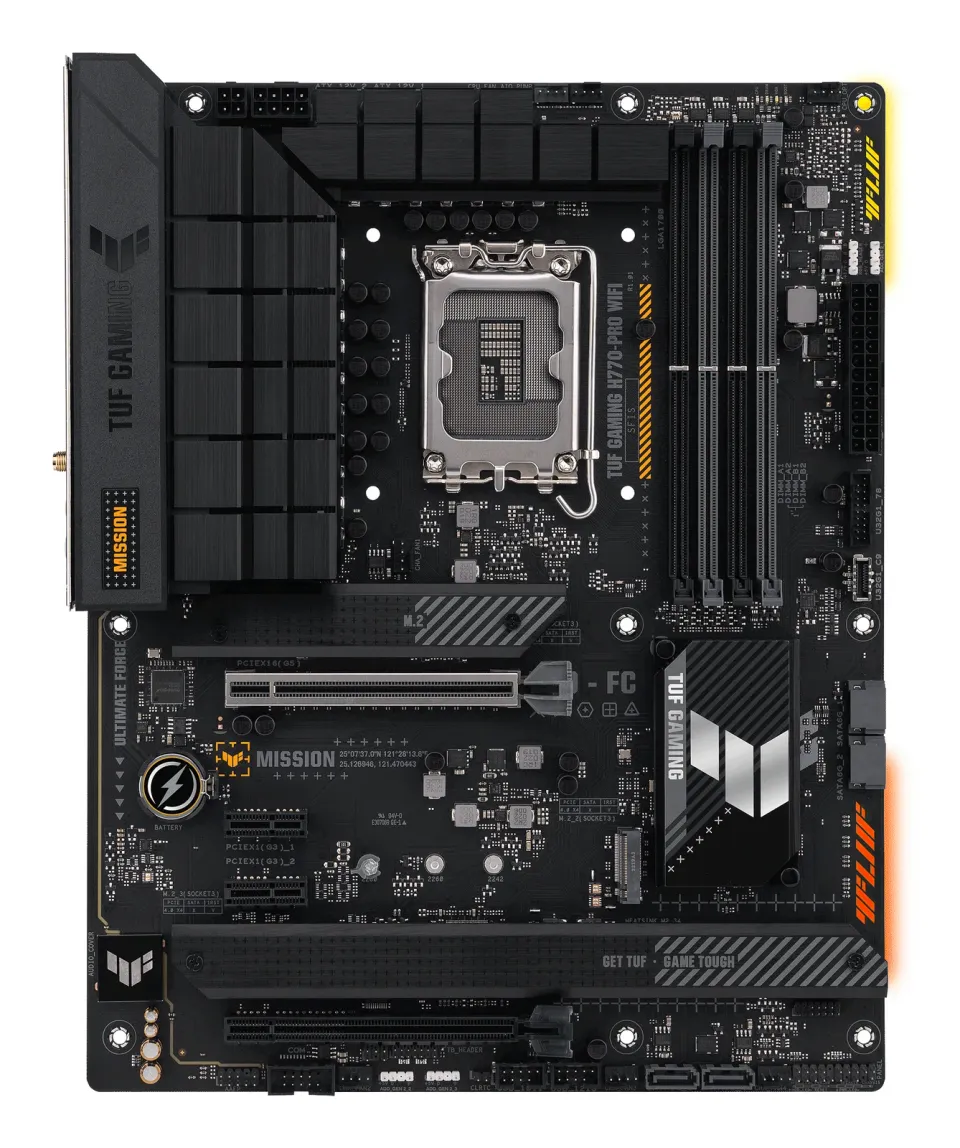

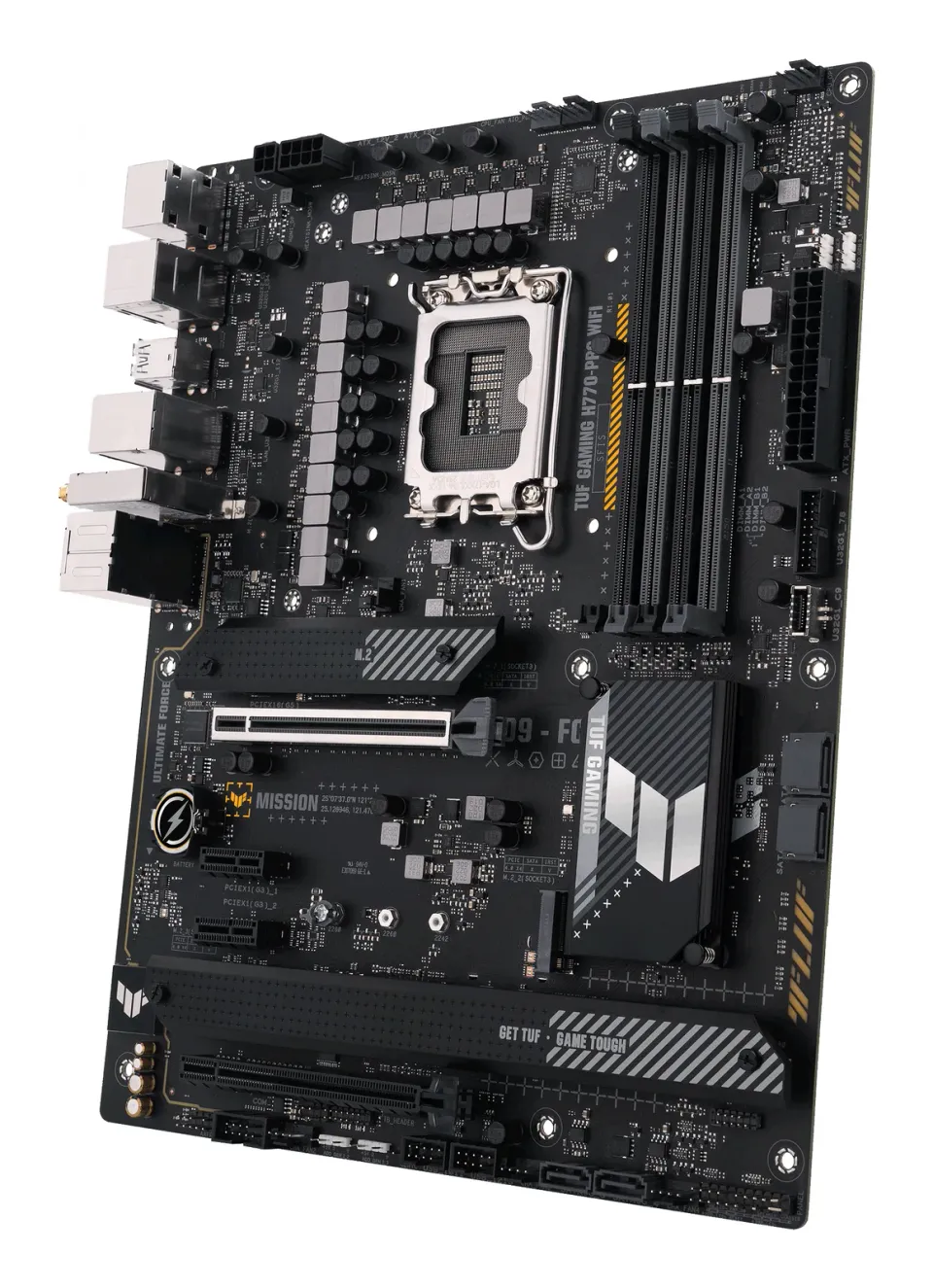

ASUS MB Sc LGA1700 TUF GAMING H770-PRO WIFI, Intel H770, 4xDDR5, 1xDP, 1xHDMI, WI-FI

TUF GAMING H770-PRO WIFI
TUF GAMING H770-PRO WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Supports 14th Gen Intel Core™ Processors
CPU
Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel H770 Chipset
  Memory
  4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x HDMI port***
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel Core™ Processors (14th & 13th & 12th Gen)*
  1 x PCIe 5.0 x16 slot
  Intel H770 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  2 x PCIe 3.0 x1 slots
• Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel Core™ Processors (14th & 13th & 12th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  Intel H770 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  TUF LANGuard
  Wireless & Bluetooth
  Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2*
  *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 7 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio Cover
  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI port
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ (USB4) header
  Special Features
  ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• Safeslot Core+
• Stainless-Steel Back I/O
  ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeSlot Core+
• SafeDIMM
  AURA Sync
• Aura RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4
• Two-Way AI Noise Cancelation
• Power Saving
  AI Suite 3
• DIGI+ VRM
• PC Cleaner
  TUF GAMING CPU-Z
  DTS Audio Processing
  MyAsus
  Norton 360 for Gamers
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antenna
  1 x TUF GAMING sticker
  2 x M.2 Rubber Packages
  2 x Screw package for M.2 SSD
  Documentation
  1 x TUF Certification card
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  ATX Form F…
