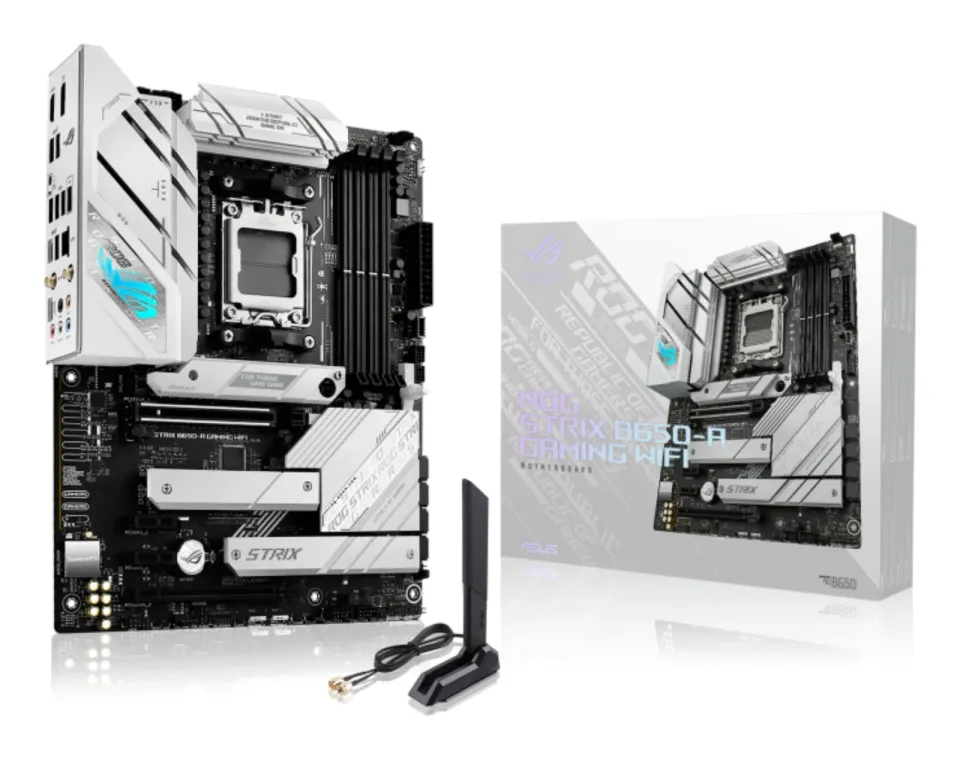

ASUS MB ROG STRIX B650-A GAMING WIFI soc AM5 DDR5 B650 ATX

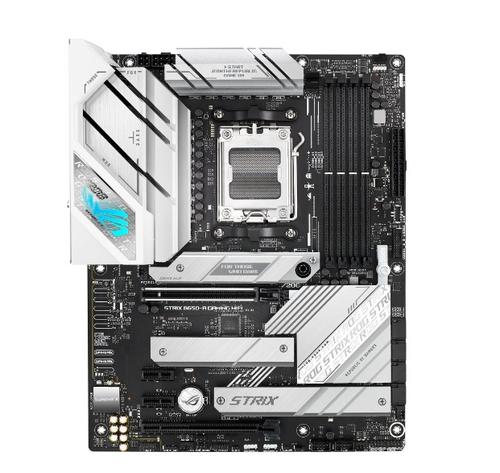

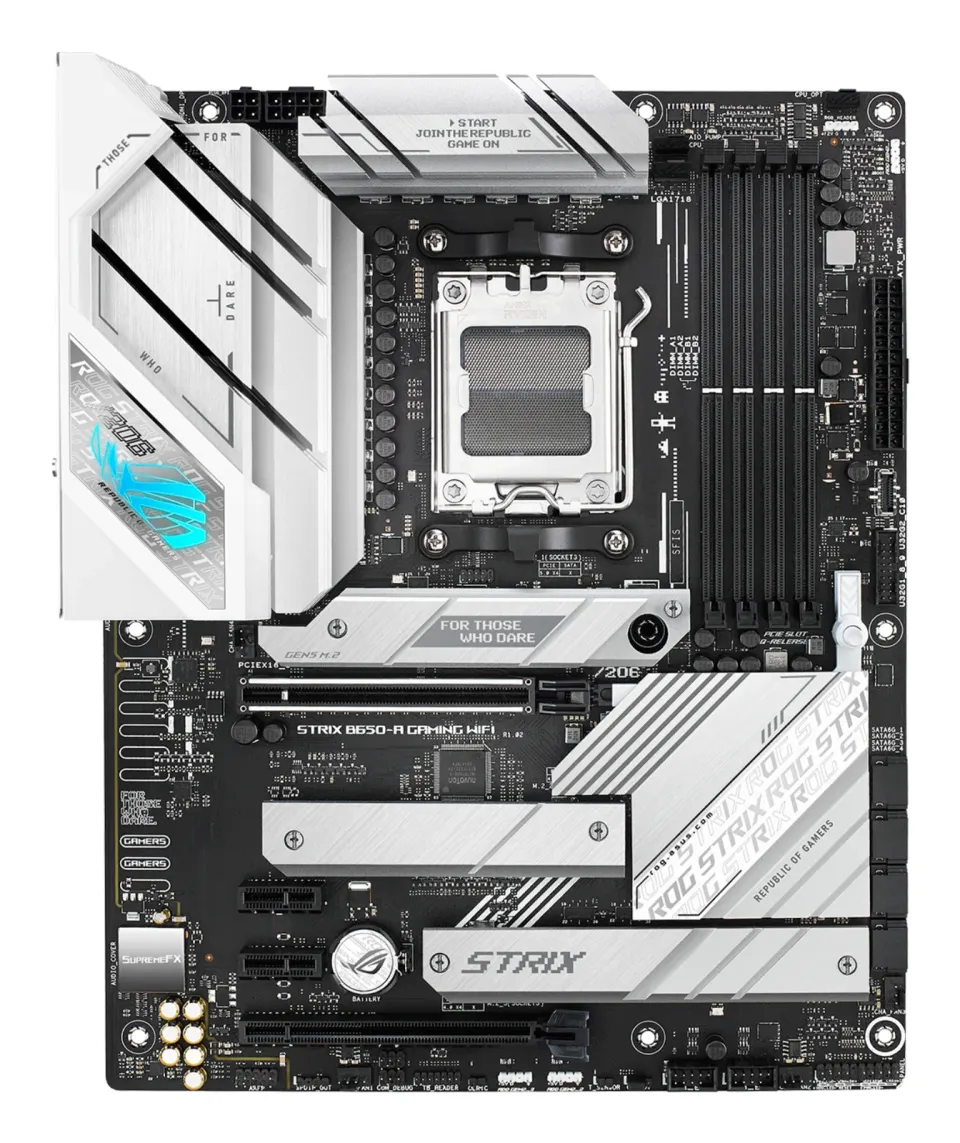

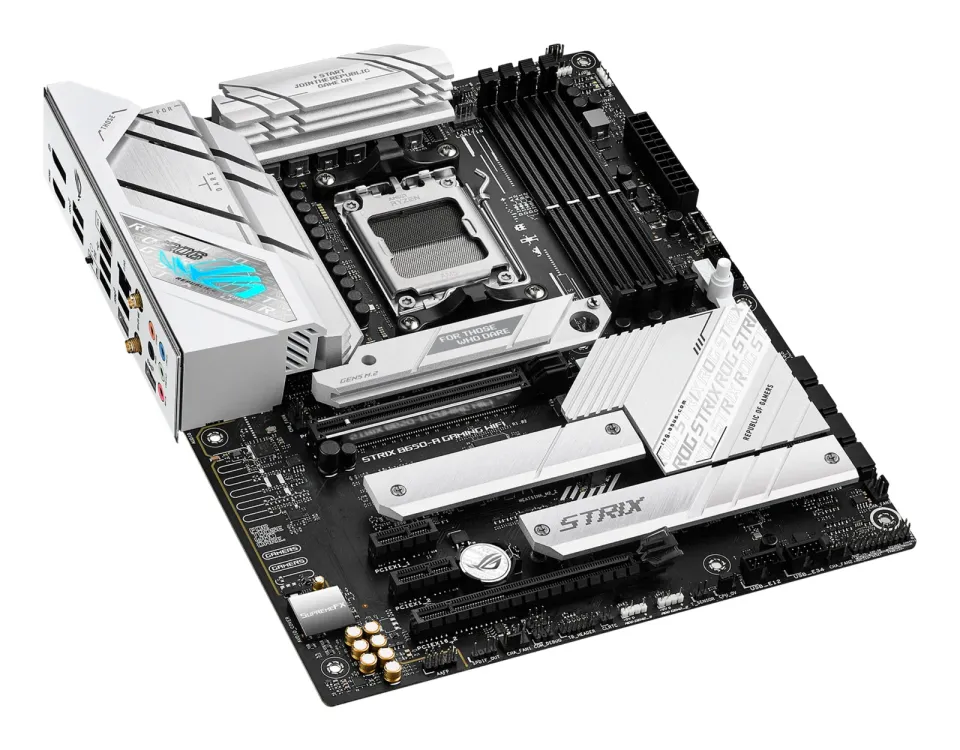

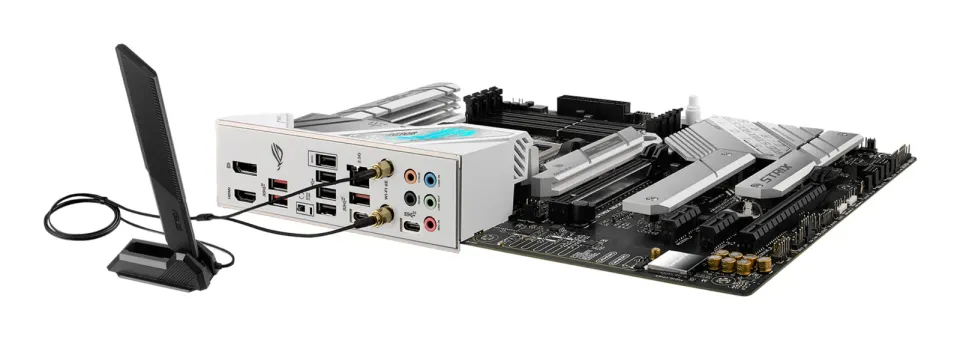

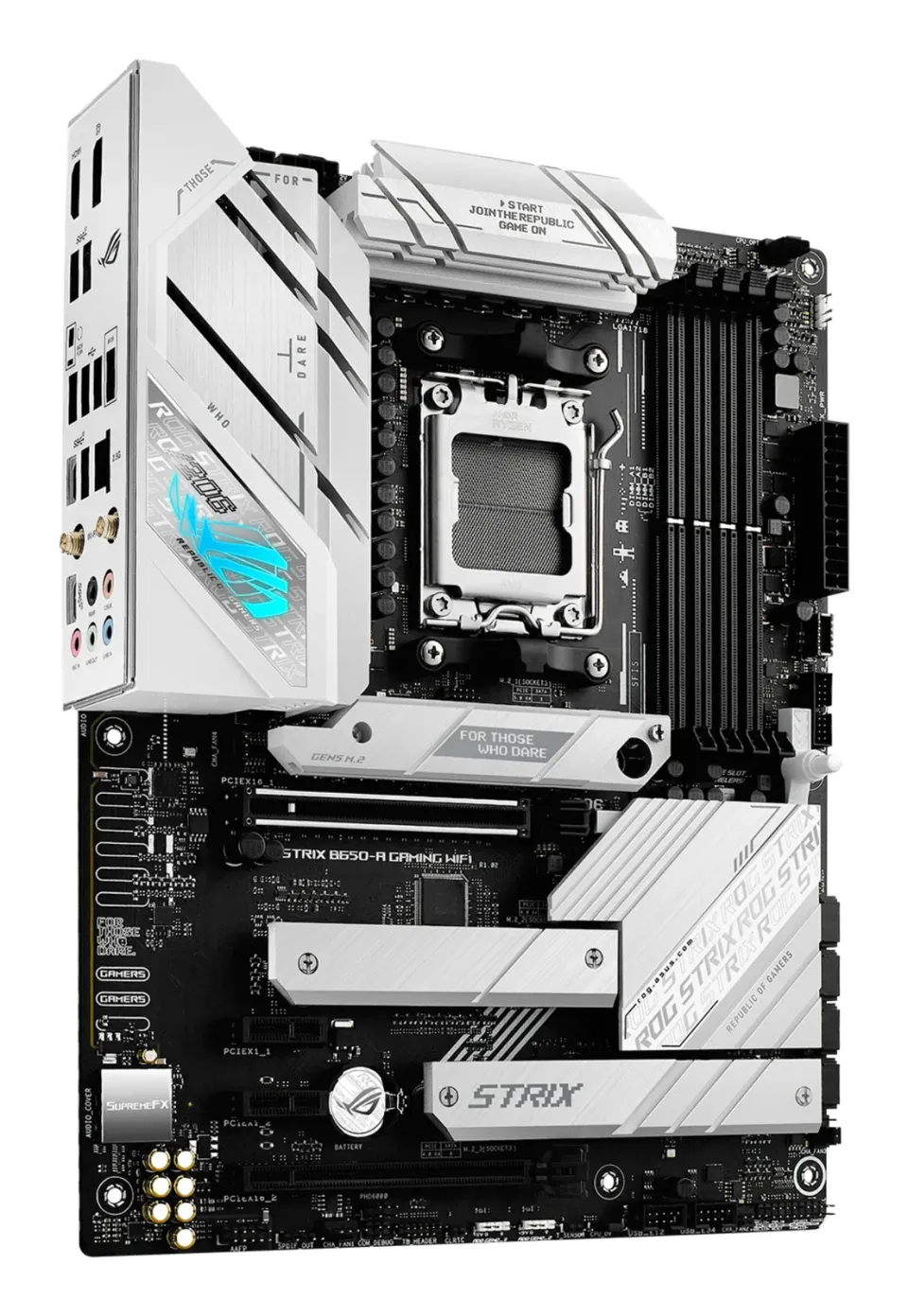

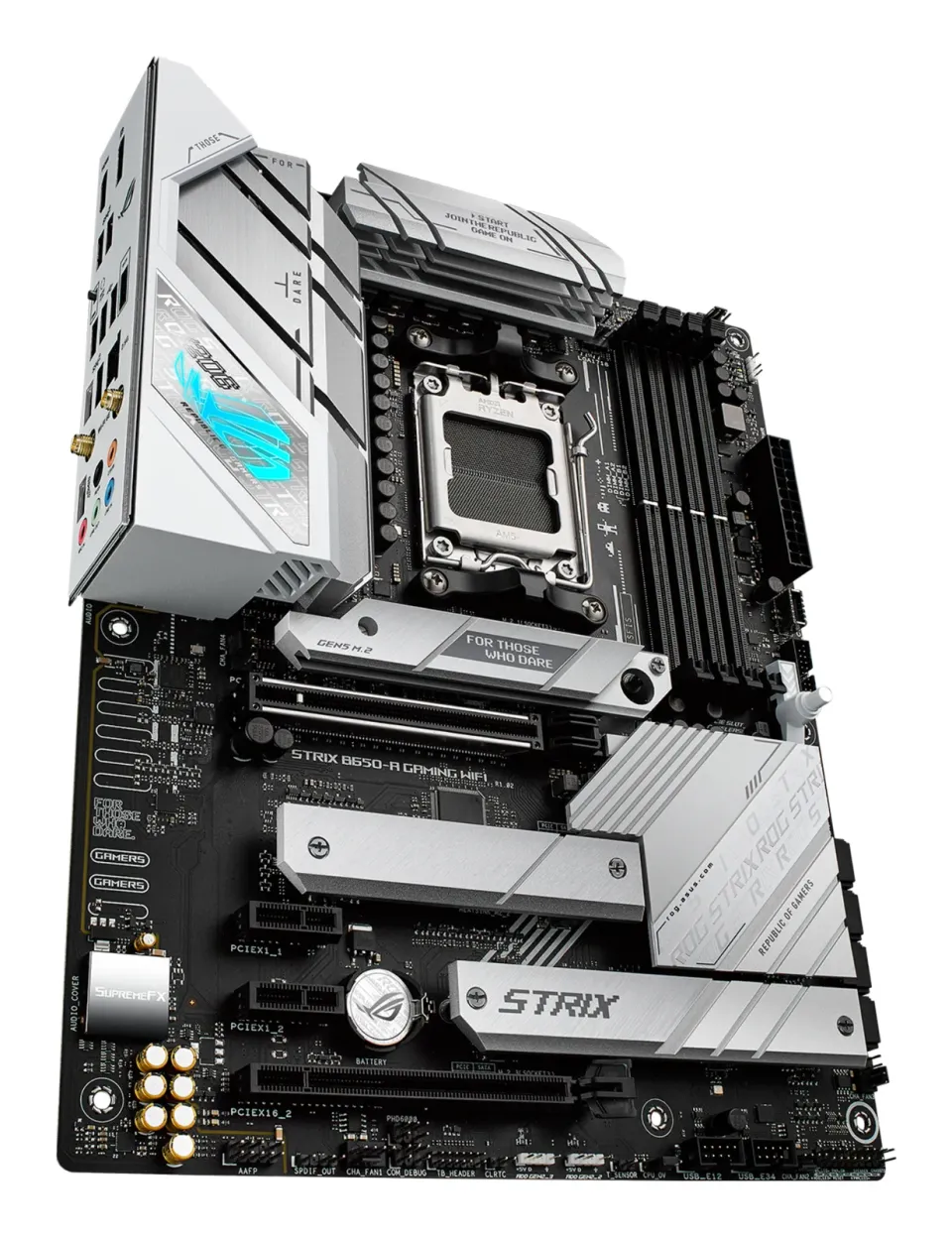

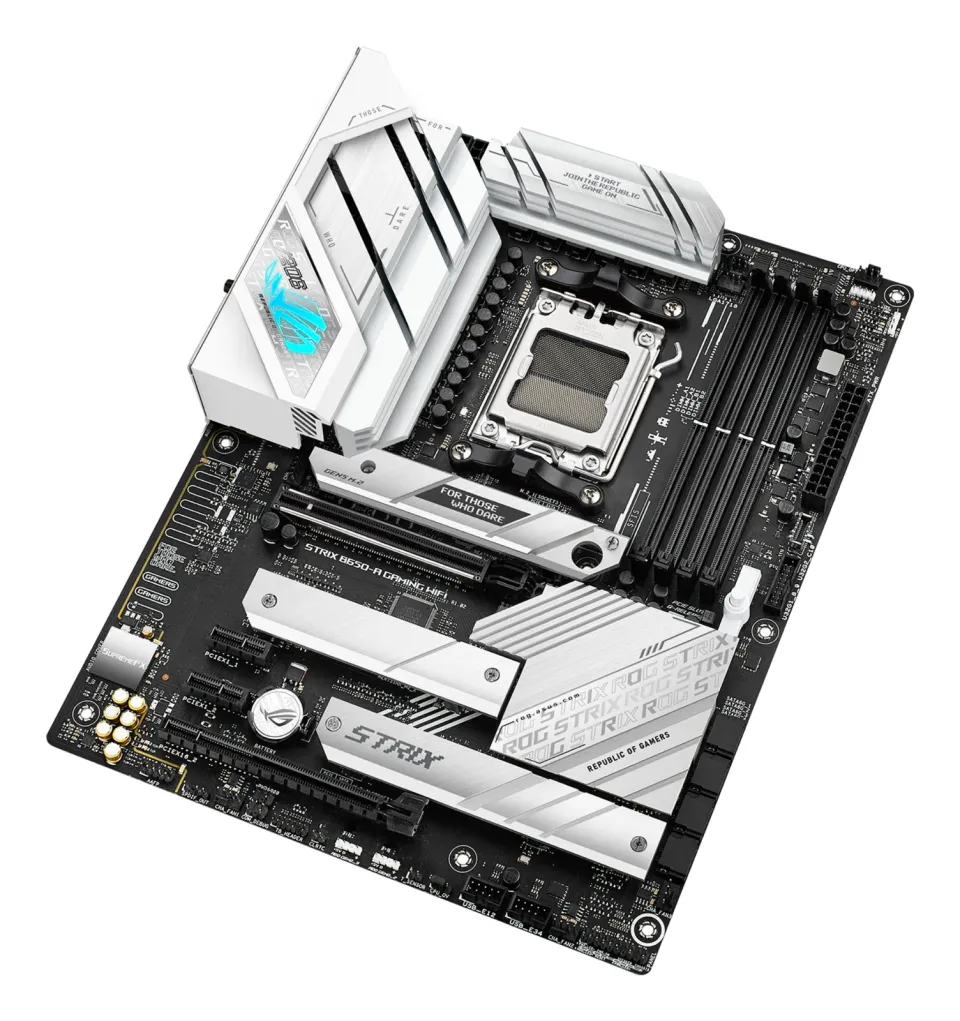

ROG STRIX B650-A GAMING WIFI
The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD B650
  Memory
  4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD EXTended Profiles for Overclocking (EXPO™)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  Graphics
  1 x DisplayPort*
  1 x HDMI port**
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot
  AMD B650 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  2 x PCIe 4.0/3.0 x1 slots
• PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
  Storage
  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  AMD B650 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
  4 x SATA 6Gb/s port
  *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  ** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2
• Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
  ready in Windows 11 or later.
  USB
  Rear USB (Total 12 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers supports additional 4 USB 2.0 ports
  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
  Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

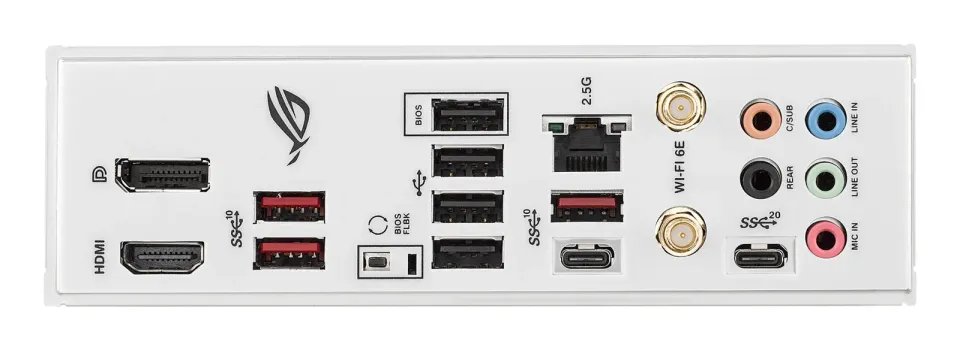

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI port
  1 x Wi-Fi Module
  1 x Intel I225-V 2.5Gb Ethernet port
  5 x Audio jacks
  1 x BIOS FlashBack™ button
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers supports additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header
  1 x Thunderbolt™header
  1 x COM_DEBUGheader
  Special Features
  Extreme Engine Digi+
• 5K Black Metallic Capacitors
  ASUS Q-Design
• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-LED
• Q-DIMM
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
  AURA Sync
• AURA RGB header
• Addressable Gen 2 headers
  Software Features
  ROG Exclusive Software
• GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS Sound Unbound
• Anti-virus software
  ASUS Exclusive Software
  Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4
• Power Saving
• Two-Way AI Noise Cancellation
  AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleaner
  MyAsus
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  FlexKey
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x M.2 Q-Latch package
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
  2 x M.2 Rubber Packages
  Documentation
  1 x User guide
  Operating System
  Windows 11 64-bit
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Formát základní desky: ATX
Chipset: AMD B650
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 3
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 2
PCI Express x1: 2
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
USB 2: 8
USB 3: 5
