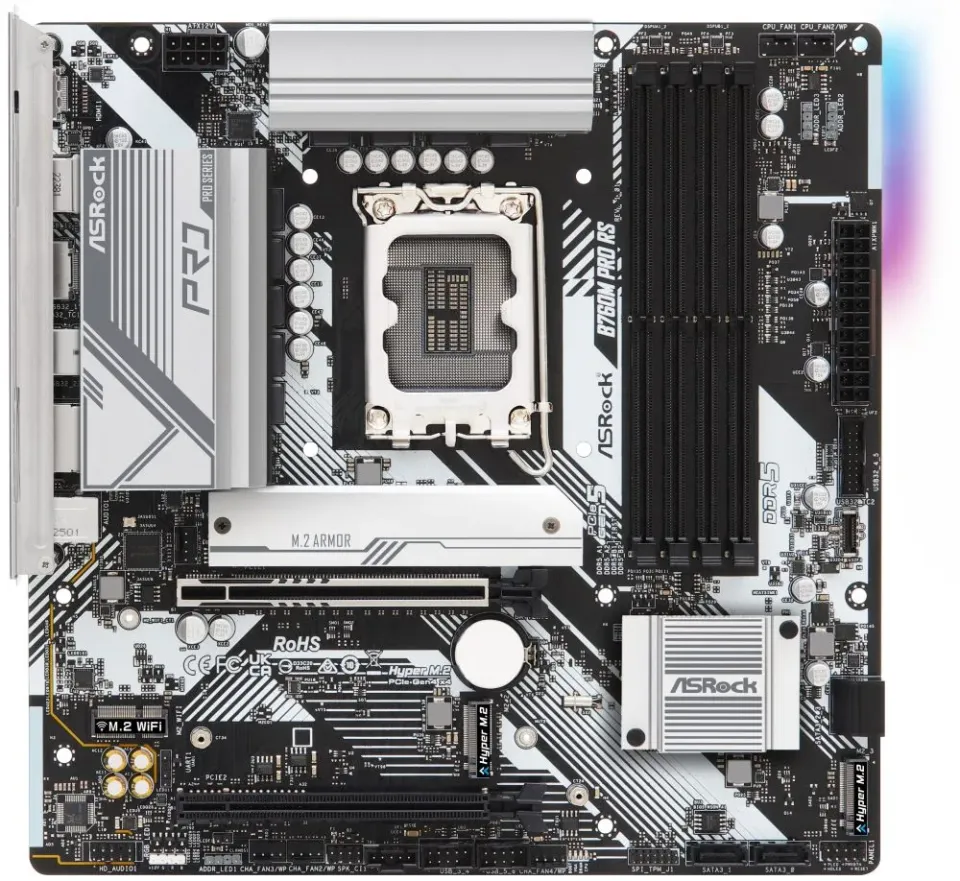

ASRock MB Sc LGA1700 B760M PRO RS, Intel B760, 4xDDR5, 1xDP, 1xHDMI, mATX

ASRock B760M Pro RS

• Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)
• 7+1+1 Power Phase, Dr.MOS for VCore+GT
• Supports DDR5 7200MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec,Nahimic Audio
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer
  CPU
• Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)
  Chipset
• Intel B760
  Memory
• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• Max. capacity of system memory: 192GB
• Supports Intel Extreme Memory Profile (XMP) 3.0
  *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
  1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
  2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
  2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
  BIOS
• 128Mb AMI UEFI Legal BIOS with GUI support
  Graphics
• Intel Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  Audio
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
  LAN
• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control
  Slots
  CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
• 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Supports AMD CrossFire™
  *Supports NVMe SSD as boot disks
  Storage
  CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
  *Supports Intel Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  USB
• 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

• All USB ports support ESD Protection
  Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
  *Supports in total up to 12V/3A, 36W LED Strip
  **Support in total up to 5V/3A, 15W LED Strip
  ***CPU_FAN1 supports the fan power up to 1A (12W).
  ****CPU_FAN2/WP supports the fan power up to 2A (24W).
  *****CHA_FAN14/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN14/WP can auto detect if 3-pin or 4-pin fan is in use.

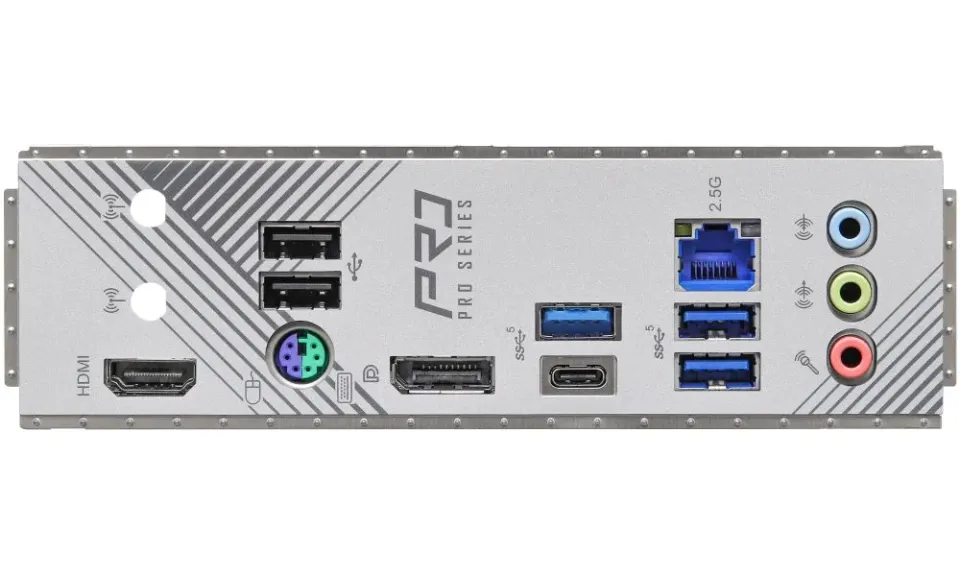

  Rear Panel I/O
• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
  Software and UEFI
  Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*
  UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
  *These utilities can be downloaded from ASRock Live Update & APP Shop.
  Unique Feature
  Superb Productivity
• PCIe Gen5 (Graphics)
• Dual Channel DDR5
  Rock-Solid Durability
• 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
• Pre-Installed I/O Shield
  Ultrafast Connectivity
• 2.5G LAN EZ Update
• ASRock Auto Driver Installer
  EZ Troubleshooter
• ASRock Post Status Checker
  Operating System
  Windows 11, Windows 10 64-bit
  Accessories
• 1 x User Manual
• 2 x SATA Data Cables
• 4 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket
  Form Factor
• Micro ATX Form Factor: 24.4 cm x 24.4 cm

Formát základní desky: micro ATX
Chipset: Intel B760
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 3
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x1: 0
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
USB 2: 6
USB 3: 5
USB C: 2
Led Header
TPM
