TP-LINK IES206GPP Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+

TP-Link OMADA průmyslový switch IES206GPP
Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+ a 1 portem PoE++

• 4× gigabitové RJ45 porty (1× PoE++, 3× PoE+)
• 1× gigabitový kombinovaný RJ45/SFP slot, 1× gigabitový SFP slot
• Napájecí rozpočet 120 W* s až 60 W pro PoE++ port
• Profesionální průmyslový design: provozní teplota -40~75°C, ochrana proti přepětí 6 kV a duální napájení 1+1
• Bohaté funkce: PoE až do vzdálenosti 250 m (820 ft)**, VLAN, QoS a STP/RSTP
• Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
• Odolné hliníkové pouzdro s krytím IP40 a možnost montáže na DIN lištu nebo na stěnu
  Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies206gpp
  Technické specifikace
  HARDWARE FEATURES
  Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports
  • 3× 10/100/1000 Mbps PoE+ RJ45 Ports
  • 1× Gigabit SFP/RJ45 Combo Slot
  • 1× Gigabit SFP Slot
  • Auto-Negotiation/Auto MDI/MDIX
  Fan Quantity Fanless
  Installation • DIN-rail mounting
  • Wall mounting
  Physical Security Lock ?

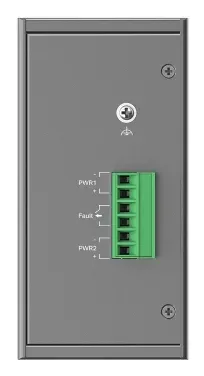

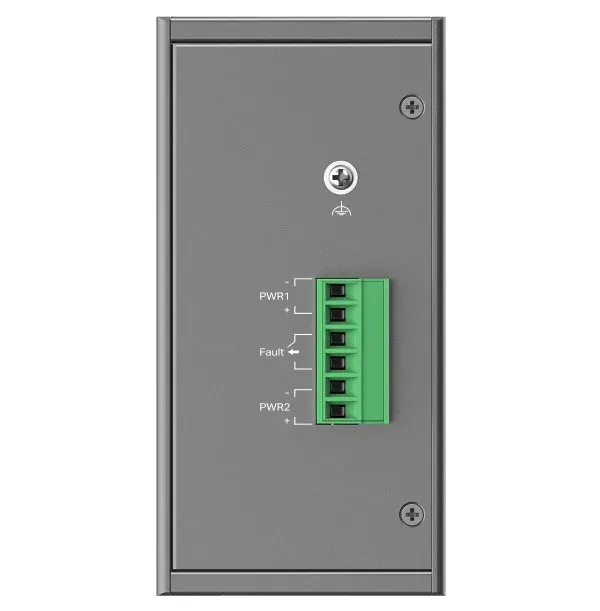

  Power Supply 12-57V 1+1 Redundant DC Power Input
  PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant
  • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
  • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
  • PoE Budget:
• 60W (Input: 12V / 7.0A - 21V / 3.5A))
• 120W (Input: 21V / 6.5A - 57V / 2.3A)
  Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
  Surge Protection • ±6 kV in common mode for Ethernet ports
  • ±4 kV in common mode for DC power input ports
  PERFORMANCE
  Switching Capacity 12 Gbps
  Packet Forwarding Rate 8.93 Mpps
  MAC Address Table 8K
  Packet Buffer Memory 4 Mbit
  Jumbo Frame 15 KB
  SOFTWARE FEATURES
  Quality of Service • 802.1p DSCP Priority
  • 8 Priority Queues
  • Priority Schedule Mode
• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
• Port-Based Rate Limit
  • Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control
  L2 Features • Link Aggregation
• Static Link Aggregation
• Up to 2 aggregation groups and up to 4 ports per group
  • Loopback Detection
  • Flow Control
• 802.3x Flow Control
  • Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
  • Port Statistics
• Port Mirror Status
• Traffic Statistics
  • 802.1ab LLDP
  • Spanning Tree
• STP (802.1d)
• RSTP (802.1w)
  L2 Multicast • IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
  Transmission Method Store-And-Forward
  Management Features
  Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Digital Diagnostic Monitoring (DDM)
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†
  OTHERS
  Certification FCC, CE, RoHS
  Package Content • IES206GPP
  • DIN-Rail Mounting Bracket
  • Wall-Mounting Plates
  • Installation Guide
  Environment • Operating Temperature: -40?75? (-40?167?)
  • Storage Temperature: -40?85? (-40?185?)
  • Operating Humidity: 5%95% non-condensing
  • Storage Humidity: 5%95% non-condensing

Provedení: DIN Rail
Funkce: QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch
Technologie: Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika
Počet portů LAN: 6
Přenosová rychlost LAN (Mb/s): 1000
Podporované standardy PoE: 802.3af, 802.3at, 802.3bt
