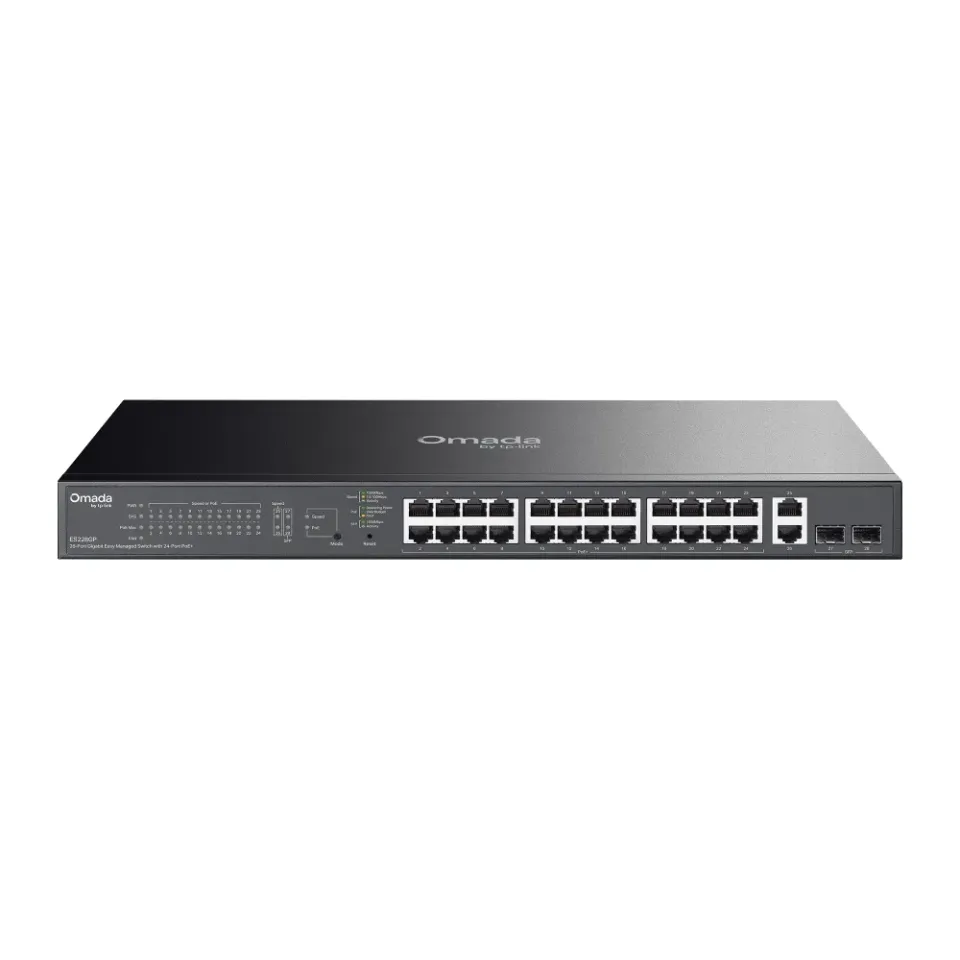

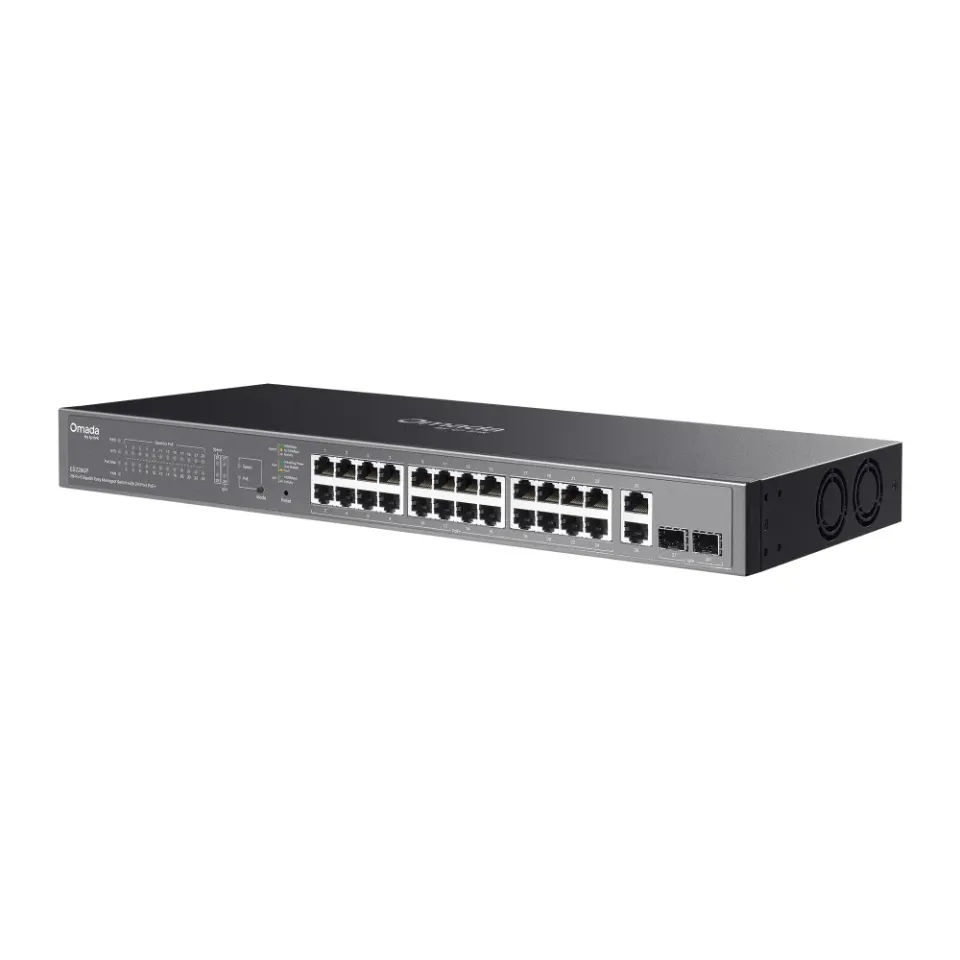

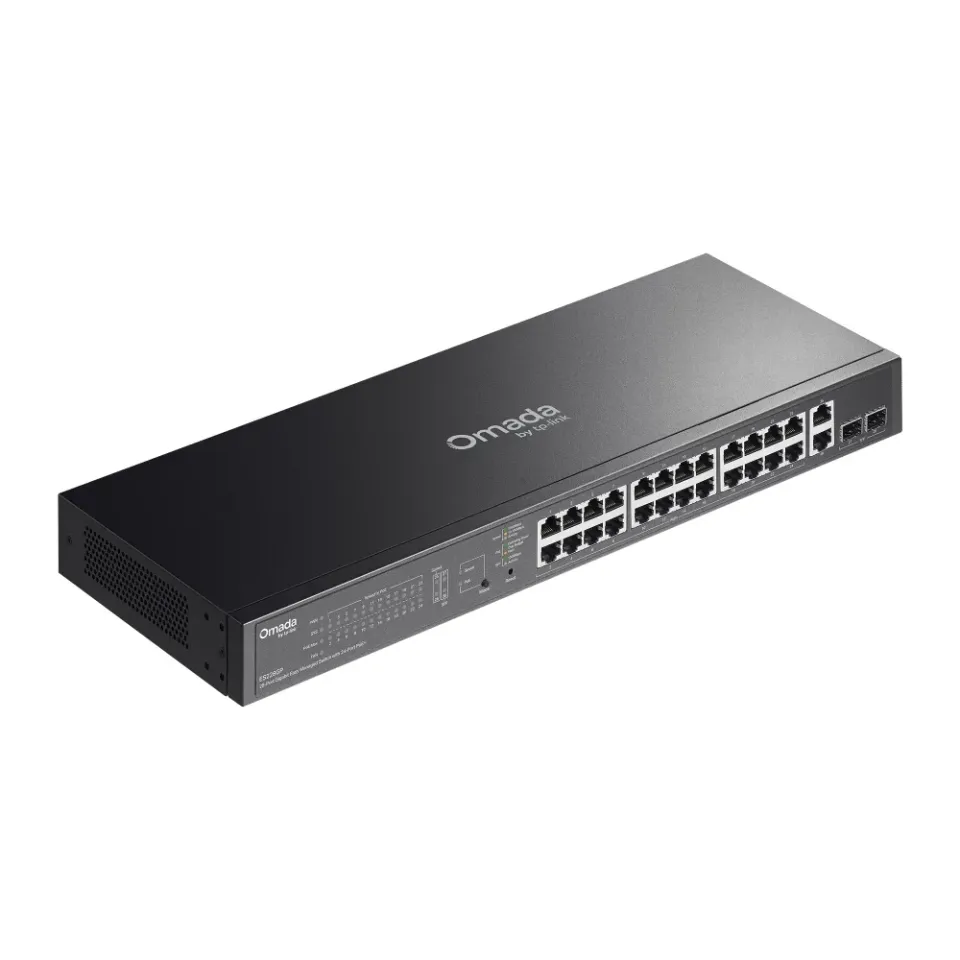

TP-LINK ES228GP Omada 28-Port Gigabit Easy Managed Switch s 24-Porty PoE+

TP-Link OMADA switch ES228GP
Omada 28portový gigabitový easy managed switch s 24 porty PoE+

• 26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilních se standardy 802.3af/at)
• 2× gigabitový SFP port
• Napájecí rozpočet 250 W, až 30 W pro každý PoE port*
• Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pokročilých funkcí
• Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
• Až 250 m (820 ft) PoE**, vzdálený restart kamery†, QoS a izolace portů pro spolehlivé sítě dohledu
• Automatická prevence smyček, VLAN a IGMP Snooping
• Odolné kovové pouzdro a možnost umístění na stůl nebo montáže na stěnu
  Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gp
  Technické specifikace
  HARDWARE FEATURES
  Interface • 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
  • 2× Gigabit SFP Slots
  • Auto-Negotiation/Auto MDI/MDIX
  Fan Quantity 2
  Installation Rackmount
  Physical Security Lock ?
  Power Supply 100–240V AC, 50/60Hz 4.0A
  PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
  • PoE Ports: 24 ports
  • PoE Budget: 250W available for all PoE+ ports, 30W max per port
  • Fast PoE & Perpetual PoE
  • PoE Auto Recovery‡
  • Up to 250m PoE transmission distance**
  Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  Surge Protection ±6kV
  PERFORMANCE
  Switching Capacity 56 Gbps
  Packet Forwarding Rate 41.67 Mpps
  MAC Address Table 8K
  Packet Buffer Memory 4 Mbit
  Jumbo Frame 15 KB
  SOFTWARE FEATURES
  Quality of Service • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
• Port-Based Rating Limit
  • Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control?
  L2 Features • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
• 802.3x Flow Control
  • Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
  • Port Statistics
• Port Mirror Status
• Traffic Statistics
  • 802.1ab LLDP
  L2 Multicast • IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
  Transmission Method Store-And-Forward
  Management Features
  Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†
  OTHERS
  Certification FCC, CE, RoHS
  Package Content • ES228GP
  • Power Cord
  • Mounting Brackets
  • Rubber Feet
  • Screws
  • Installation Guide
  Environment • Operating Temperature: -5?45? (23?113?)
  • Storage Temperature: -40?70? (-40?158?)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

Provedení: Rack mounted 19"
Funkce: QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch
Technologie: Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika
Počet portů LAN: 26
Podporované standardy PoE: 802.3af, 802.3at
PoE budget (W): 250
Počet SFP portů: 2
Ventilátor
