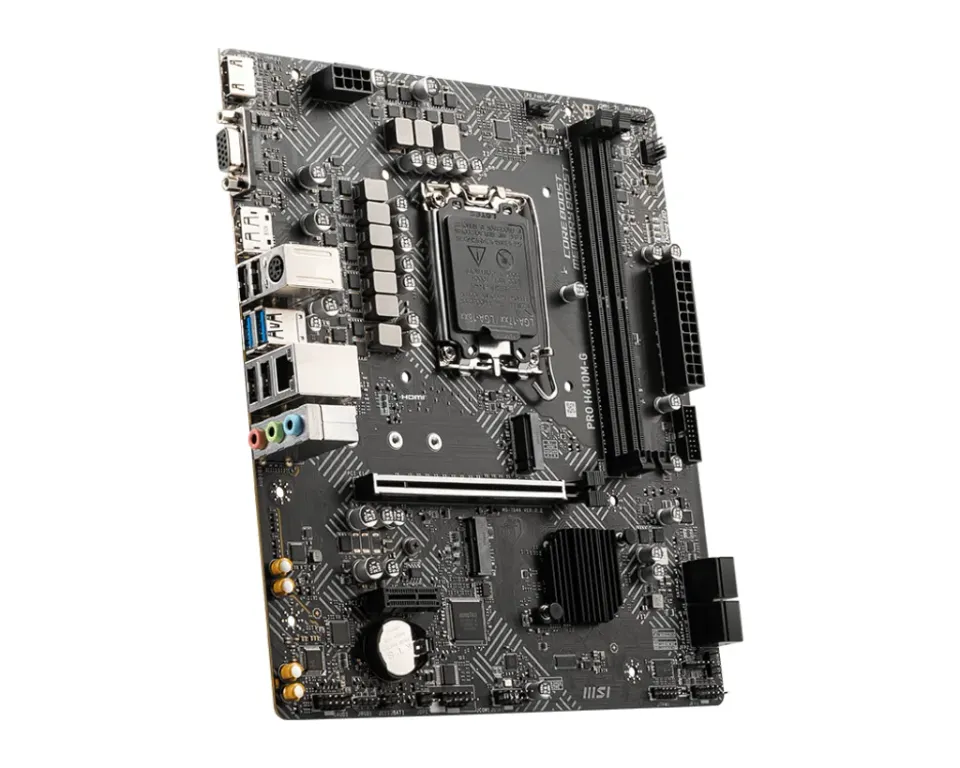

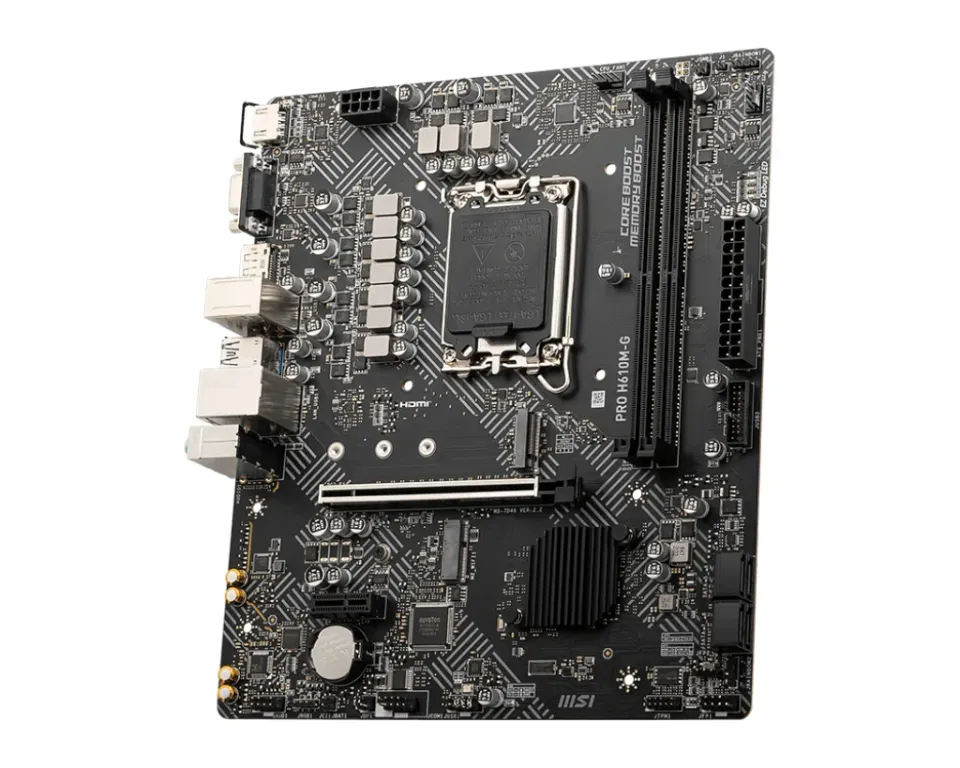

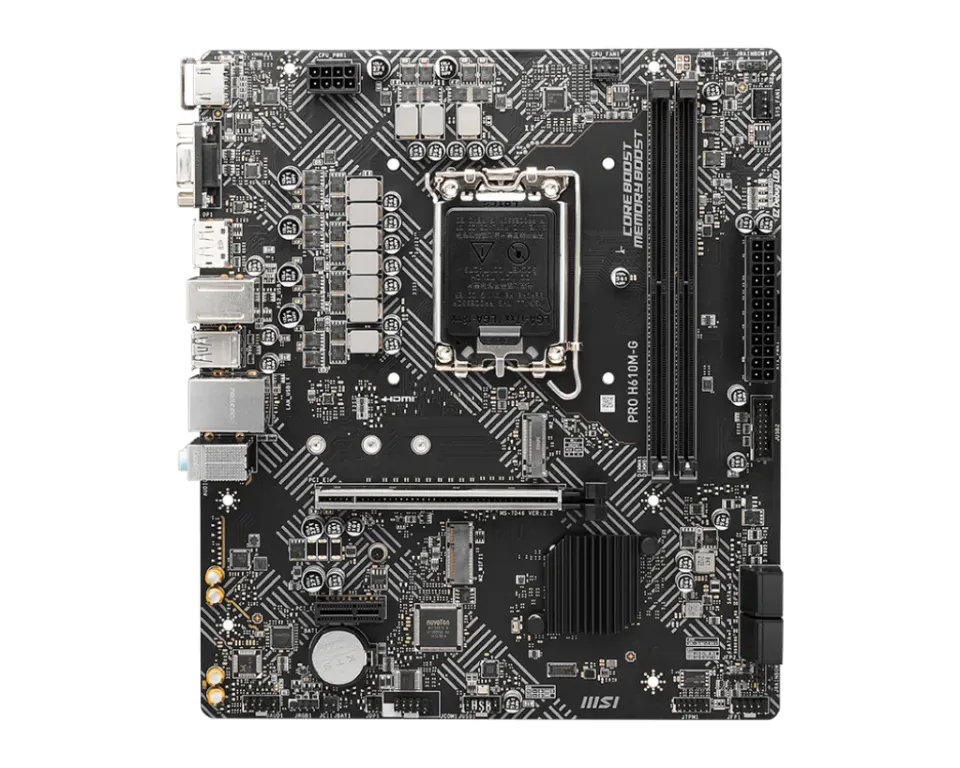

MSI MB Sc LGA1700 PRO H610M-G, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

MSI PRO H610M-G
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
LGA 1700
Chipset
INTEL H610
Memory
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
LAN
Intel I219V 1Gbps LAN controller
Expansion Slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only
Storage Interface
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

• SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  USB
  4x USB 2.0 (Rear)
  2x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
  INTERNAL I/O
  1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  2x Addressable RGB LED connector(JRAINBOW)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  2x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports

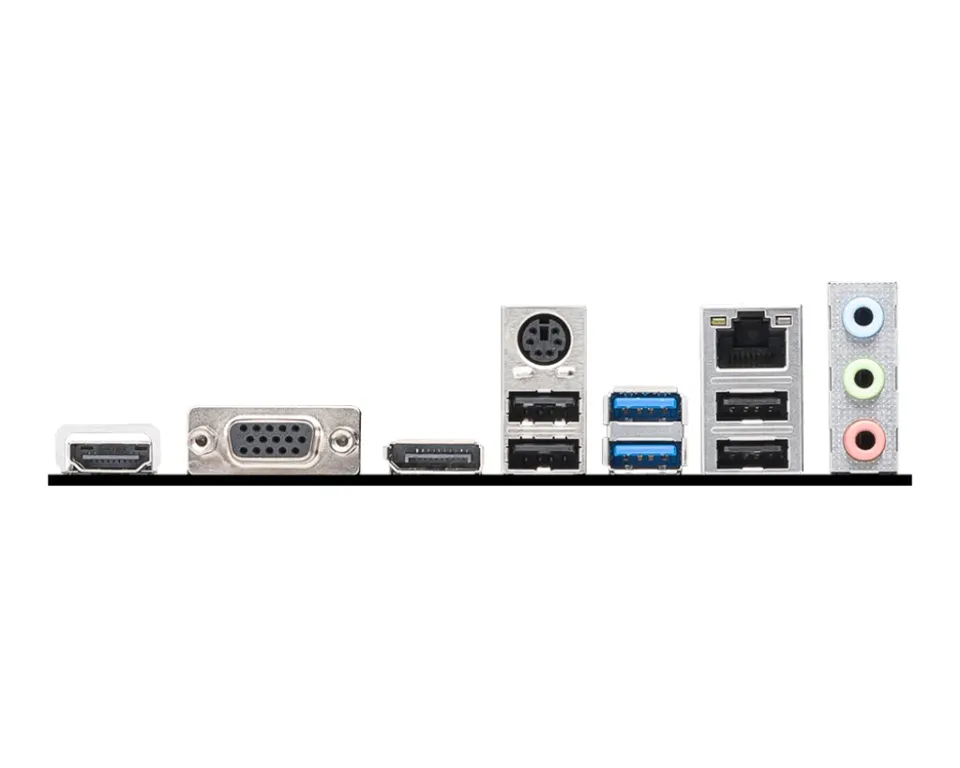

  Back Panel Connectors
  1x HDMI™
  1x VGA
  1x DisplayPort
  1x Keyboard / Mouse
  2x USB 3.2 Gen 1 5Gbps (Type-A)
  1x LAN port
  3x Audio Connectors
  4x USB 2.0
  LED FEATURE
  4x EZ Debug LED
  OPERATING SYSTEM
  Support for Windows 11 64-bit, Windows 10 64-bit
  Form Factor
  mATX
  211mmx243.84mm

Formát základní desky: micro ATX
Chipset: Intel H610
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 1
DVI: 0
DisplayPort Type-C: 0
USB 2: 6
USB 3: 4
USB C: 0
COM port
