MSI MB Sc AM5 MPG X870I EDGE TI EVO WIFI, AMD B870, 2xDDR5, WiFi,1xHDMI, mini-ITX

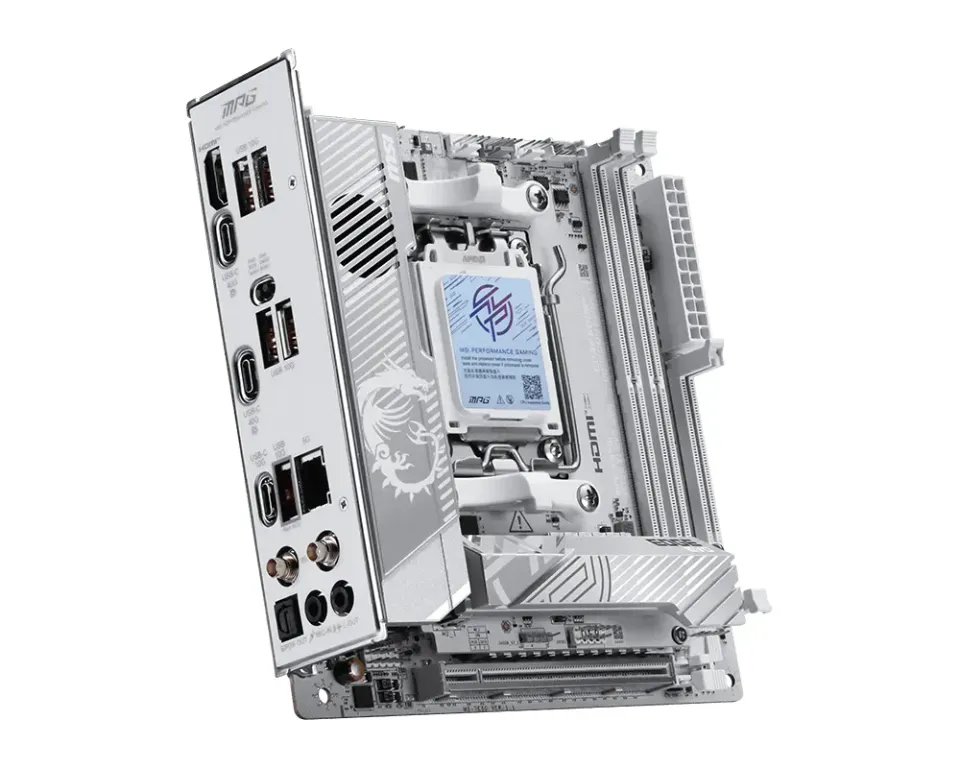

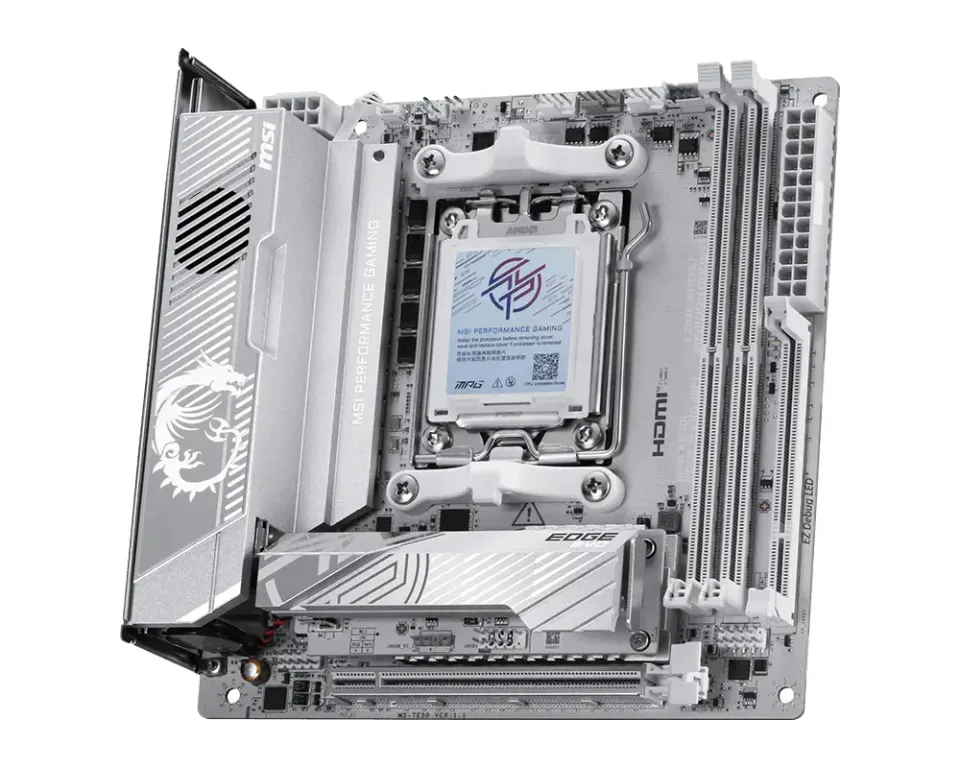

MSI MPG X870I EDGE TI EVO WIFI
MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.
Chipset
AMD X870
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

• The DIMM slots on this motherboard only have single-sided latches.
  ** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  *** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
  Graphics
  1x HDMI™
  Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz*
  2x Type-C DisplayPort
  Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  Expansion Slots
  1x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E1 slot (From CPU)
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
  1x FP card slot
  • Supports the installation of MSI 5-in-1 XPANDER card only.
  Audio
  Realtek ALC4080 Codec
  7.1-Channel USB High-Performance Audio
  Supports up to 32-Bit/384 kHz playback on front panel
  Supports S/PDIF output
  Storage
  1x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
  2x SATA 6G
  M.2_1 slot (From CPU)
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  M.2_2 slot (From X870 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports 2260/2280 storage devices
  • Supports single sieded M.2 SSD only
  5-in-1 XPANDER Card
  M.2_3 slot (From X870 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports 2260/2280 storage devices
  • Supports single sided M.2 SSD only
  RAID
  • Supports RAID 0, and RAID 1 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
• RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
  USB
  2x USB 2.0 (Front)
  2x USB 5Gbps Type A (Front)
  5x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
  1x USB 20Gbps Type C (Front)
  2x USB 40Gbps Type C (Rear)
  LAN
  1x Realtek 8126 5G LAN
  Internal I/O Connectors
  1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  1x System Fan
  1x EZ Conn-header (JAF_2)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Addressable V2 RGB LED connector (JARGB_V2)
  2x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 20Gbps Type C ports
  Wireless Communication module
  Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth 5.4**, MLO, 4KQAM
• 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
  LED FEATURE
  4x EZ Debug LED

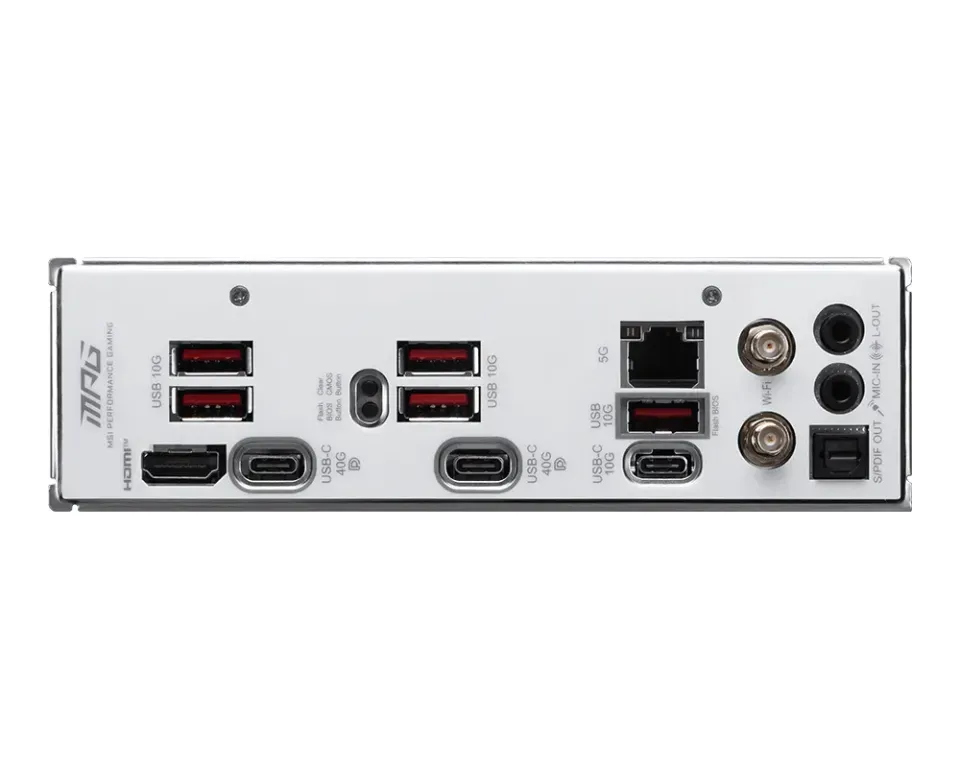

  Back Panel I/O Ports
  USB 10Gbps Type-A
  Clear CMOS Button
  USB 10Gbps Type-A
  5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  HDMI™
  USB 40Gbps Type-C
  Flash BIOS Button
  USB 10Gbps Type-C
  Optical S/PDIF Out
  Operating System
  Support for Windows 11 64-bit

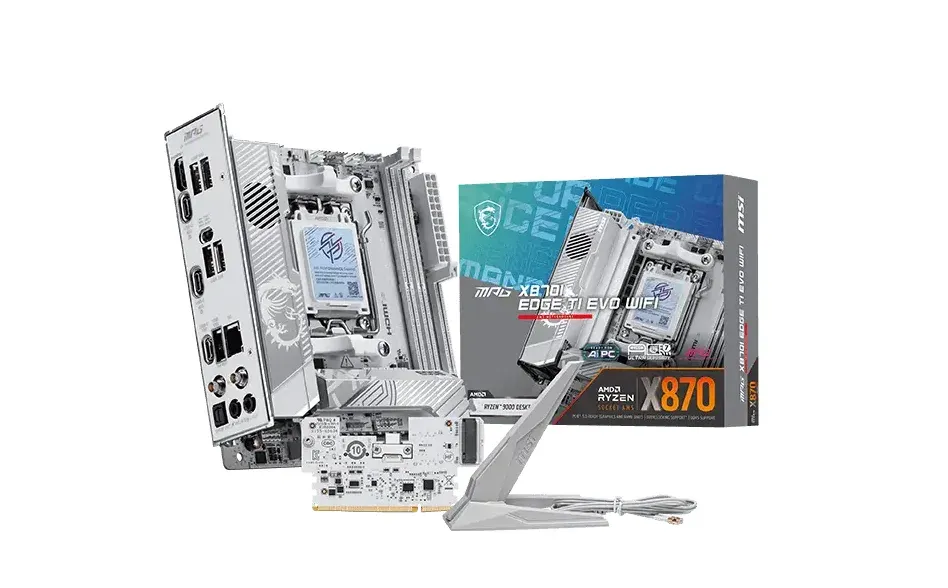

  BOX CONTENT
  Form Factor
  Mini-ITX
  170mmx170mm

Formát základní desky: ATX
Chipset: AMD X870
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 3
SATA 3: 2
Podpora RAID: 0, 1
PCI Express x16: 1
PCI: 1
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 0
HDMI: 1
VGA: 0
DVI: 0
DisplayPort Type-C: 2
Počet Thunderbolt: 0
