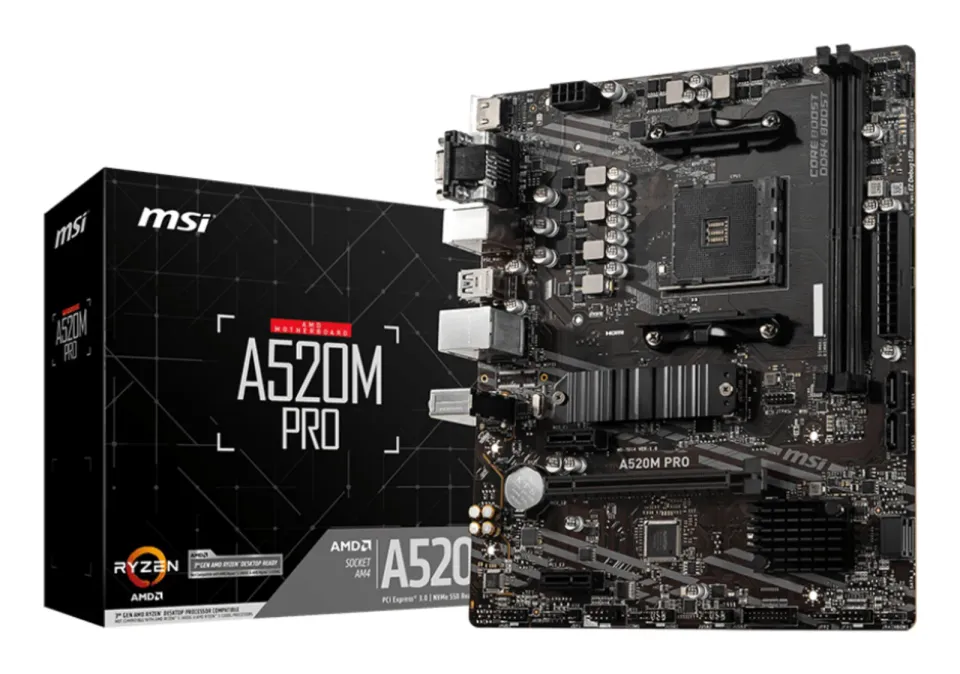

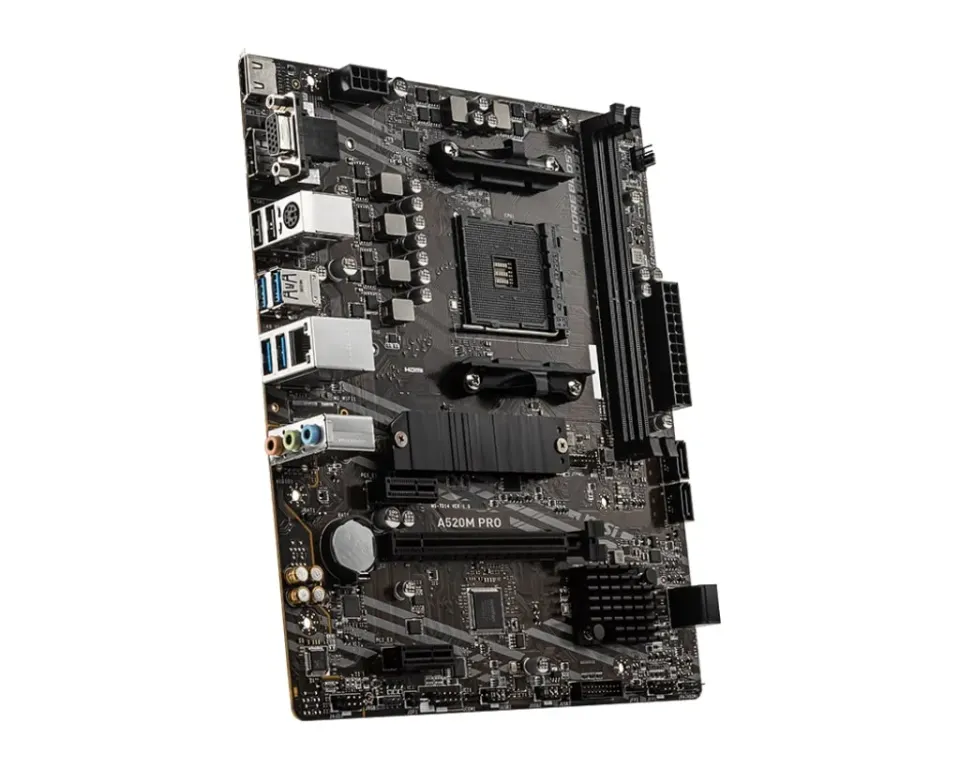

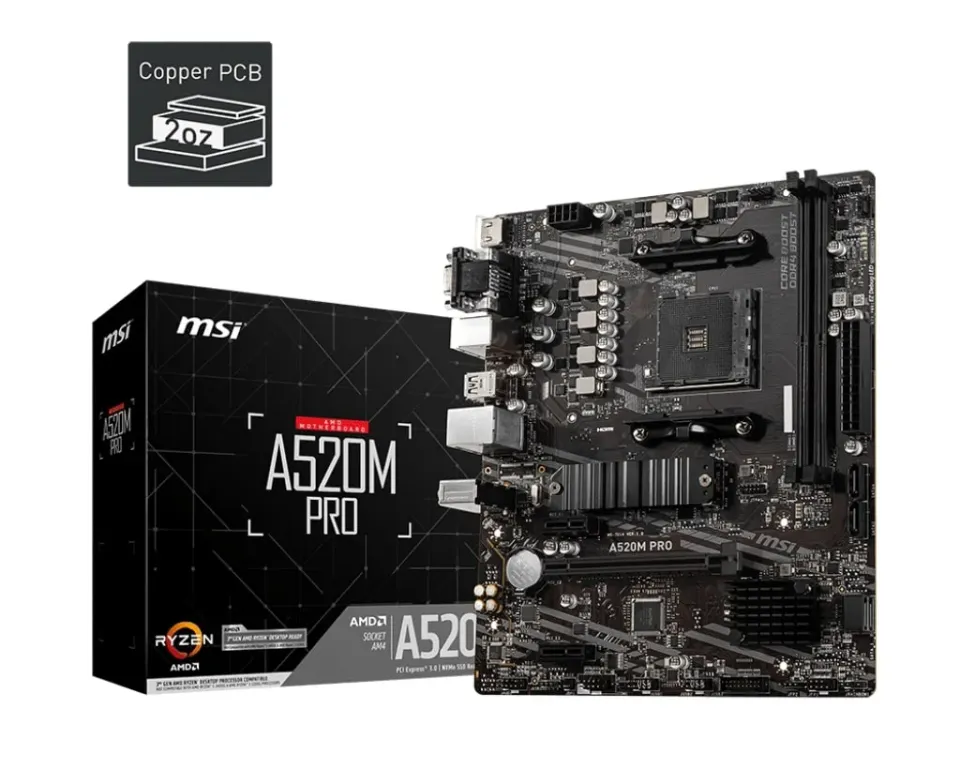

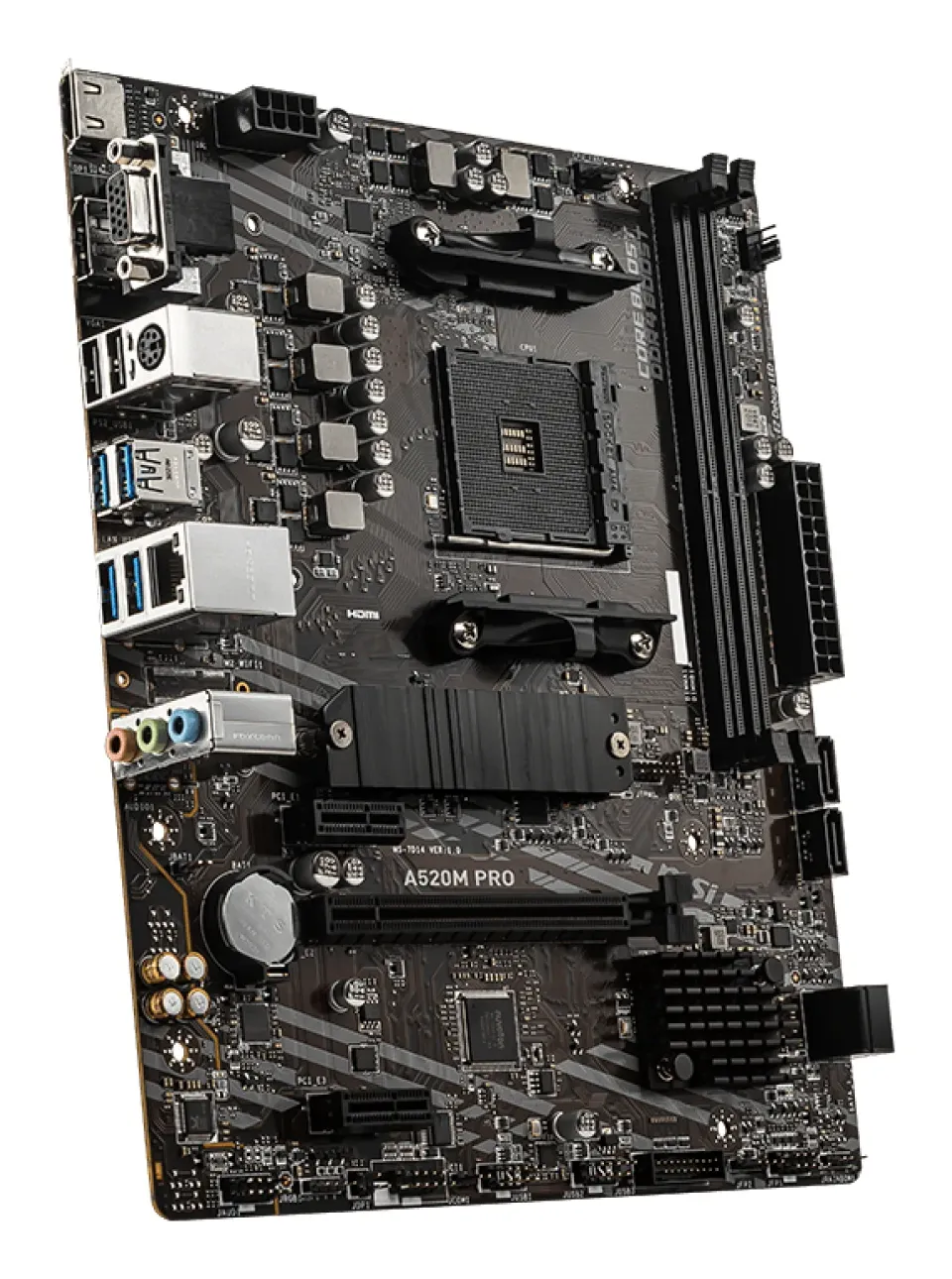

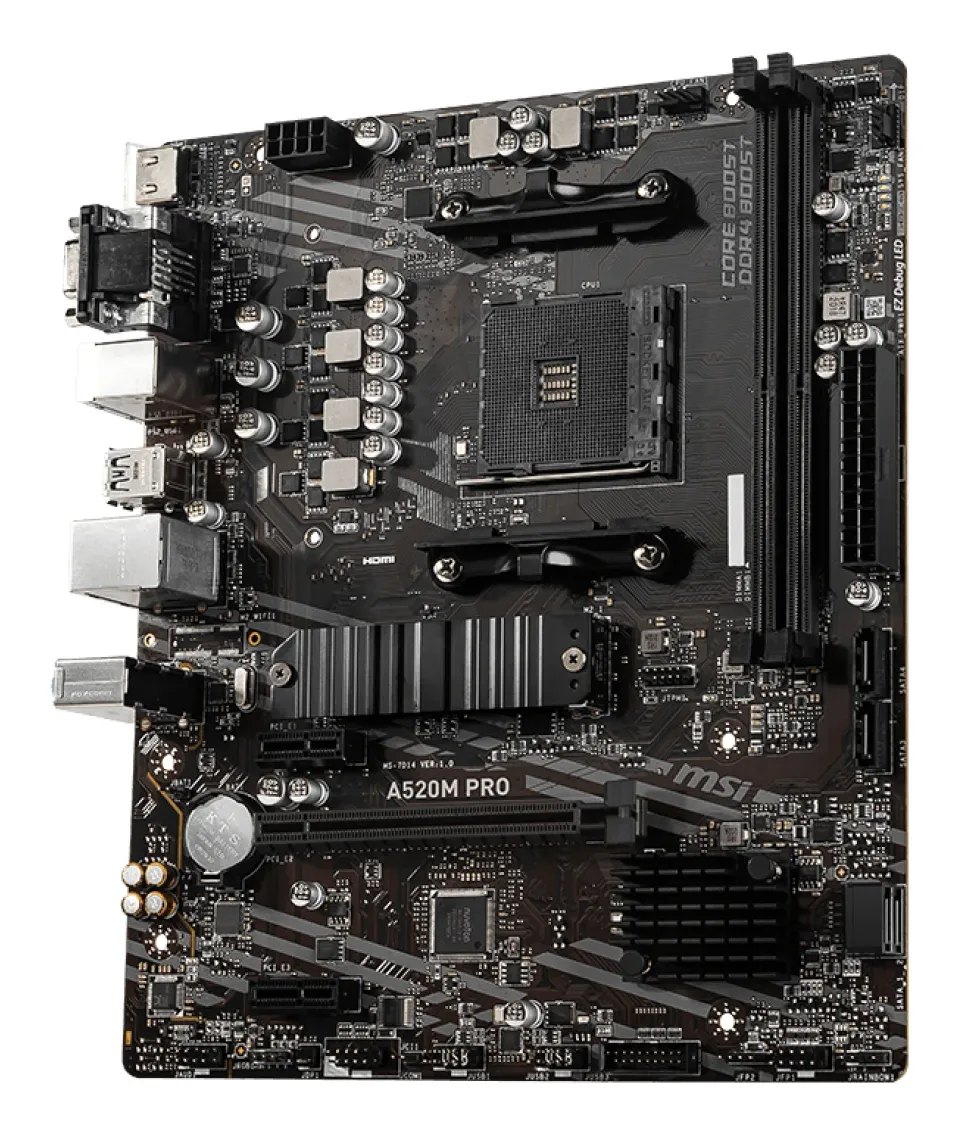

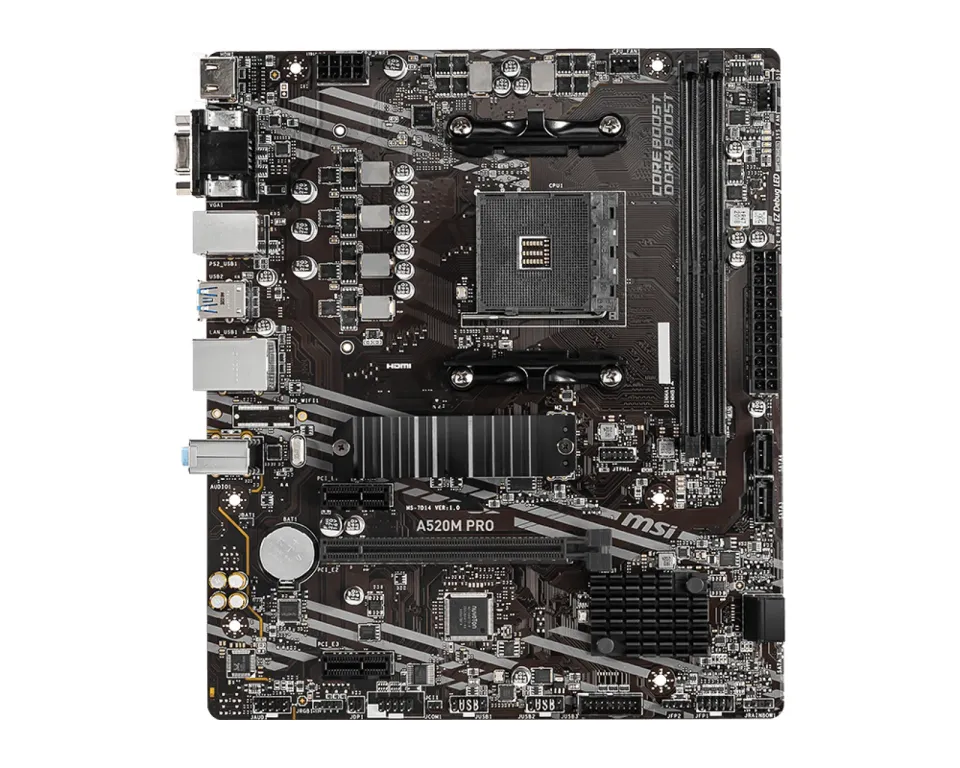

MSI A520M PRO

Chipset: AMD A520

Rozměrový formát: M-ATX Form Factor (244 mm x 210 mm)
Podpora pro procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Patice procesoru: AM4

Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti:
*1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
*2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4
*Dual channel memory architecture
*Supports non-ECC UDIMM memory
*Supports ECC UDIMM memory (non-ECC mode)
*Supports un-buffered memory

Grafická karta: Integrated Graphics Processor (na základě procesoru)

Zvuková karta:
*Realtek® ALC892/ALC897 Codec

Síťová karta:
*Realtek® RTL8111H LAN controller

Rozšiřující sloty:
*1x PCIe x16 slot (PCI_E2)
*2x PCIe 3.0 x1 slots

RAID řadič: 0, 1, 10

SATA:
*4x SATA 6Gb/s ports

M.2:
*1x M.2 slot (Key M) (from AMD Processor)

USB:
*zadní USB porty ( celkem 6 )
*2x USB 2.0 ports
*4x USB 3.2 Gen 1 5Gbps Type-A ports
*přední USB porty ( celkem 6 )
*2x USB 3.2 Gen 1 5Gbps ports
*4x USB 2.0 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s connectors
*1x Serial port connector
*1x M.2 slot (M-Key)
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin system fan connector
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*1x 4-pin RGB LED connector
*1x 3-pin RAINBOW LED connector
*1x TPM module connector
*1x Clear CMOS jumper

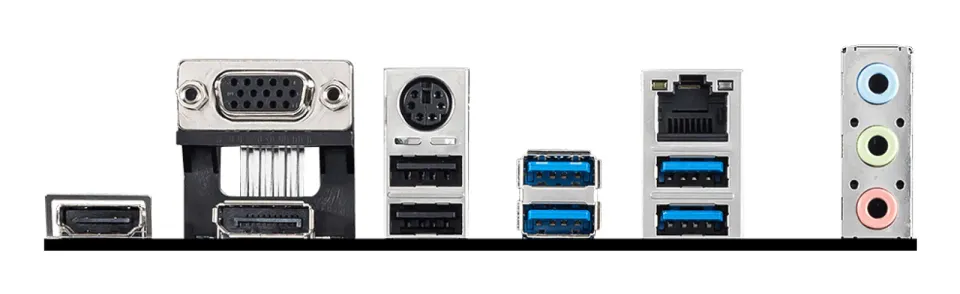

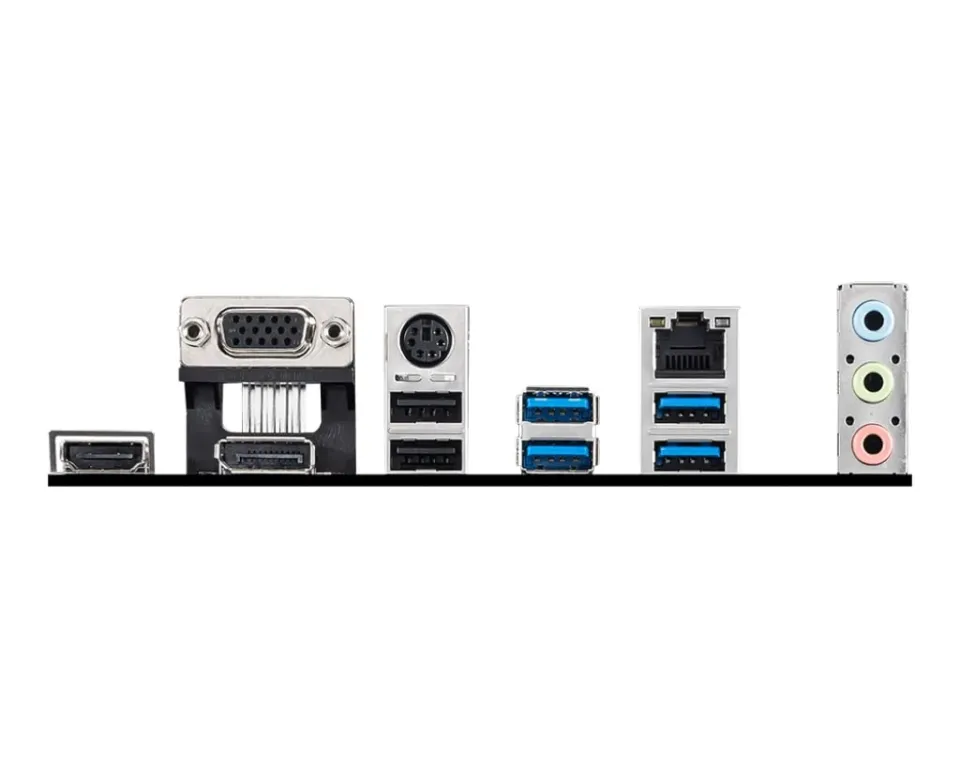

Externí porty:
*VGA
*Keyboard / Mouse
*1x LAN port
*HDMI
*DisplayPort
*2x USB 2.0 Ports
*4x USB 3.2 Gen 1 5Gbps Type-A
*Audio Connectors

Stránka výrobce: https://www.msi.com/Motherboard/A520M-PRO
