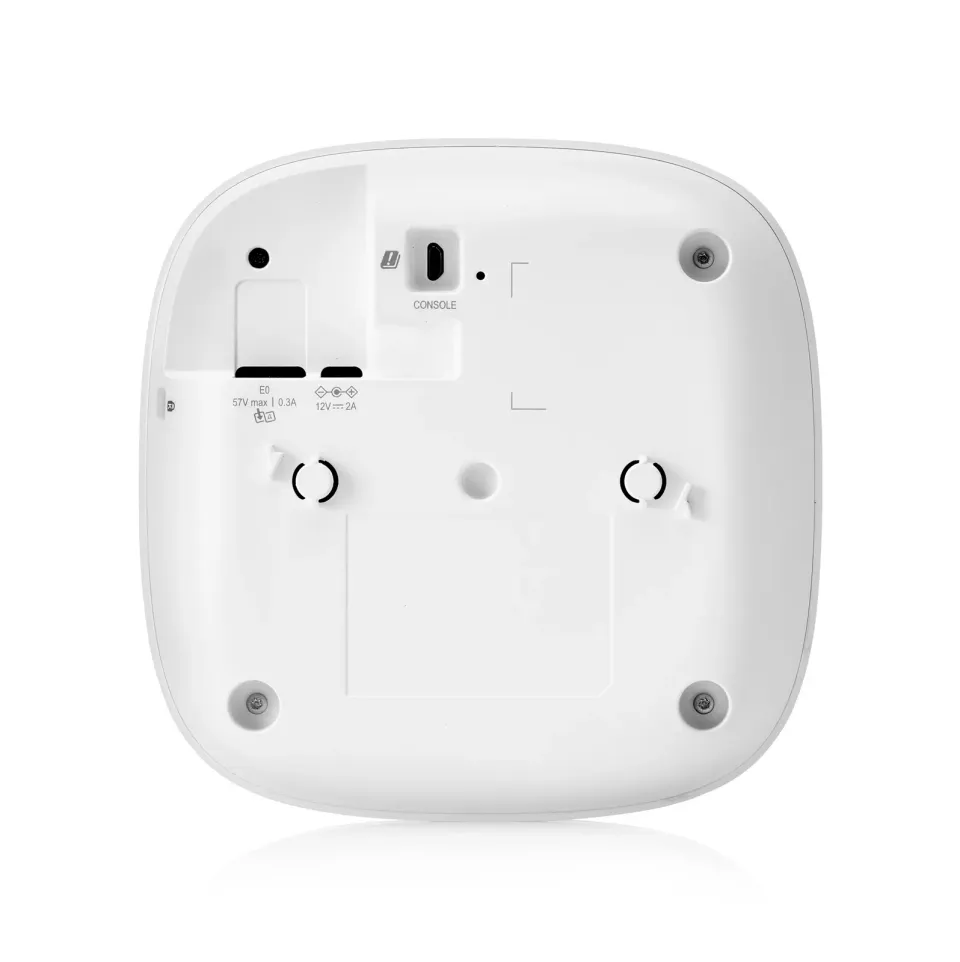

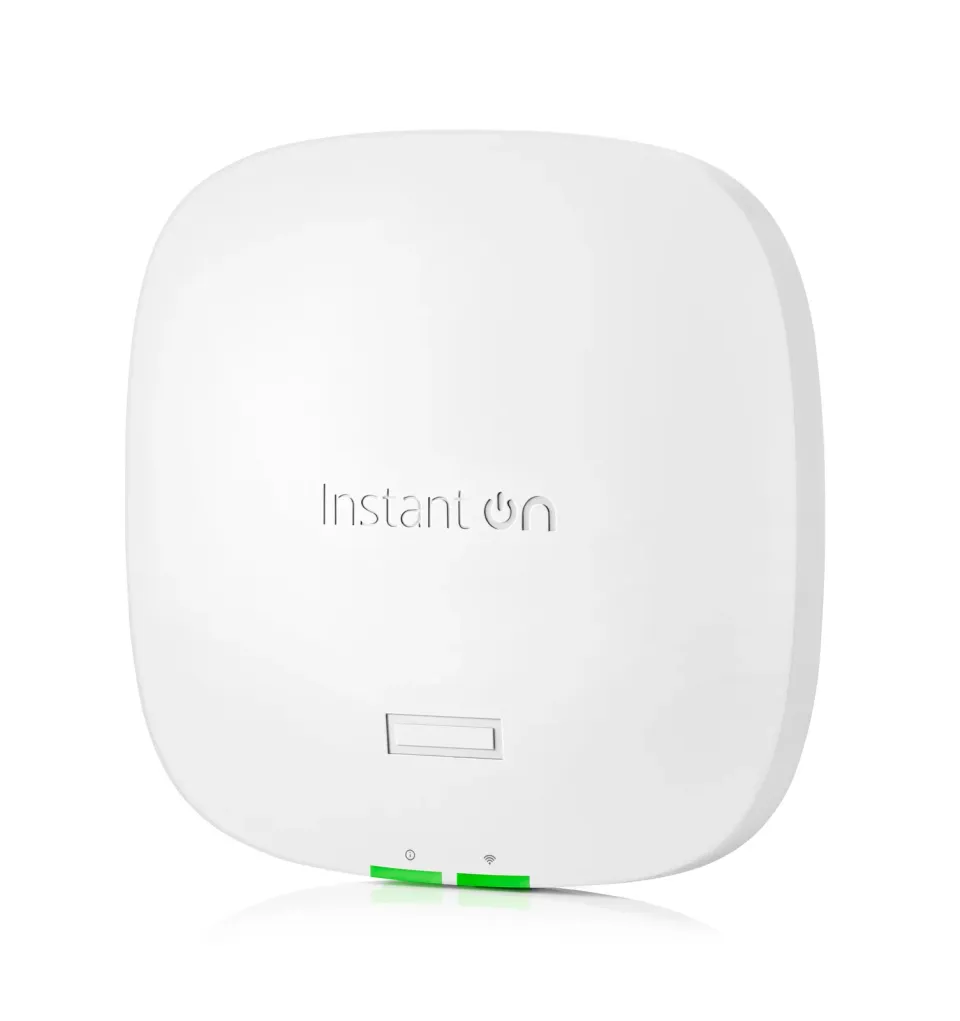

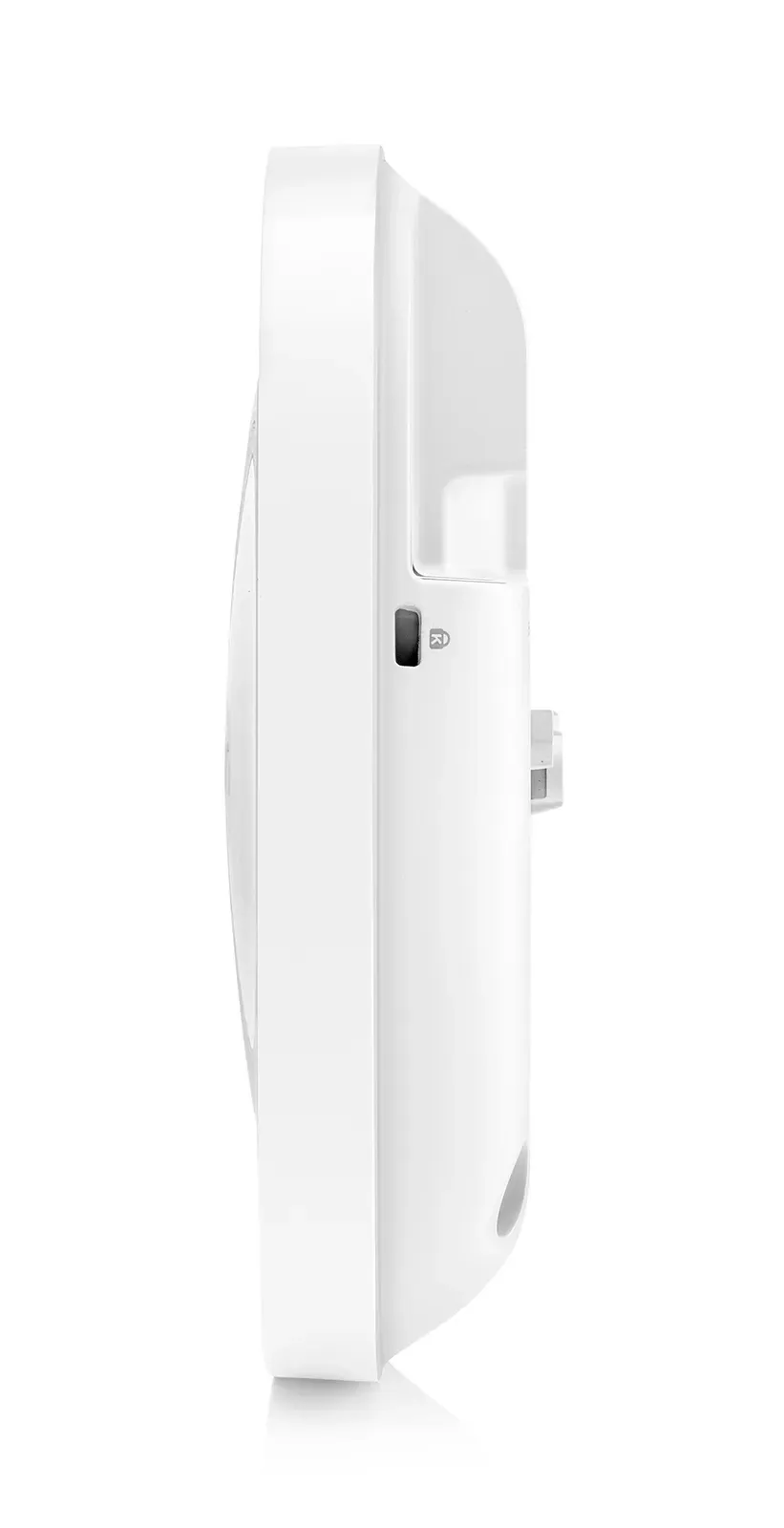

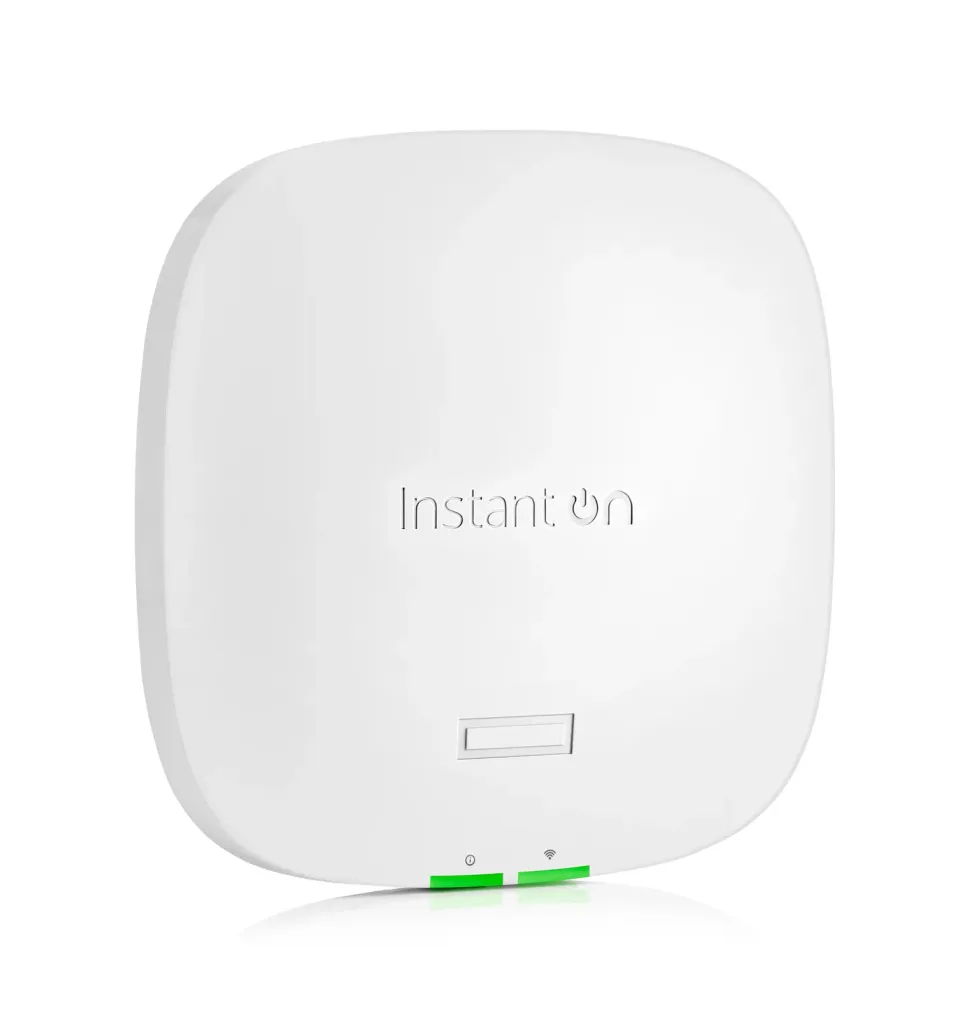

HPE NW ION AP (RW) AP32

Product Overview

Model: HPE Networking Instant On AP32

Product Number: S1T23A

Differentiator: Dual Radio, Tri-Band 2x2 MIMO Wi-Fi 6E Access Point

Usage: For regions with no specific regulatory domain requirements
Wi-Fi & Wireless Features

Wi-Fi Standard: 802.11ax (Wi-Fi 6E), backward compatible

Certifications:

Wi-Fi Alliance (WFA) certified

WPA2, WPA3 security protocols

Radios:

Dual-Radio, Tri-Band (2.4 GHz, 5 GHz, 6 GHz)

Note: Only two active bands selectable at a time

Antenna:

2x2 MIMO

Omni-directional antennas (integrated)

Gain:

2.4 GHz: 2.8 dBi

5 GHz / 6 GHz: 4.5 dBi

Max Transmit Power:

2.4 GHz: +21 dBm (+18 dBm/chain + 3 dB MIMO gain)

5 GHz / 6 GHz: +21 dBm (+18 dBm/chain + 3 dB MIMO gain)
Power & Consumption

Input Voltage:

PoE: 802.3at (Class 4)

DC: 12V input (via optional adapter)

Power Source Not Included (sold separately unless bundled)

Power Consumption:

Max (PoE): 12.9W

Max (DC): 11.0W
Physical Interfaces

1x 2.5 GbE Base-T uplink port

1x DC Power Connector

LED Indicators for status

Reset/LED Control Button

Kensington Security Slot
Mounting Options

Ceiling/wall mount via included combined rail mount clip
In the Box

HPE Instant On AP32 Access Point

Quick Start Guide

Ceiling/wall rail mount clip

Ethernet cable

Note: Power source (PoE injector or DC adapter) not included unless part of a bundle
Warranty & Support

2-Year Warranty

24/7 phone support for first 90 days

Chat support throughout warranty

Lifetime access to community support
HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32 ( S1T23A)
In the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable
Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.
Certifications
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage
PoE: 802.3at (class 4) DC power (12V)
Note: Power sources are sold separately unless you purchase the bundle SKU
Wi-Fi antenna
Antennas: Dual omni-directional 2x2 MIMO
Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz
Maximum transmit power:
5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
Connectivity, standard
Ultra-fast 802.11ax
Ports
1x 2.5 GbE Base-T uplink port
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot
Mounting
Ceiling/Wall-mount clip
Power consumption
Max power consumption: 12.9W (PoE) 11.0W (DC)
Radio coverage
Dual-Radio, tri-band 802.11ax 2x2 6 GHz/5 GHz/2.4 GHz* MIMO Note: * Only two active bands are selectable.
Warranty
Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.

Typ aktivního prvku: AP (Access Point)
Frekvenční pásmo (GHz): 2,4 + 5 (Dual Band)
Podporované standardy: 802.11ax
Zabezpečení: WPA2, WPA3
Typ antény: Integrovaná
USB port
Slot na SIM kartu
Použití: Vnitřní
Typy PoE: PoE - In
Počet portů LAN: 0
Počet portů LAN: 0
Počet WAN portů: 1
Počet WAN portů: 1
