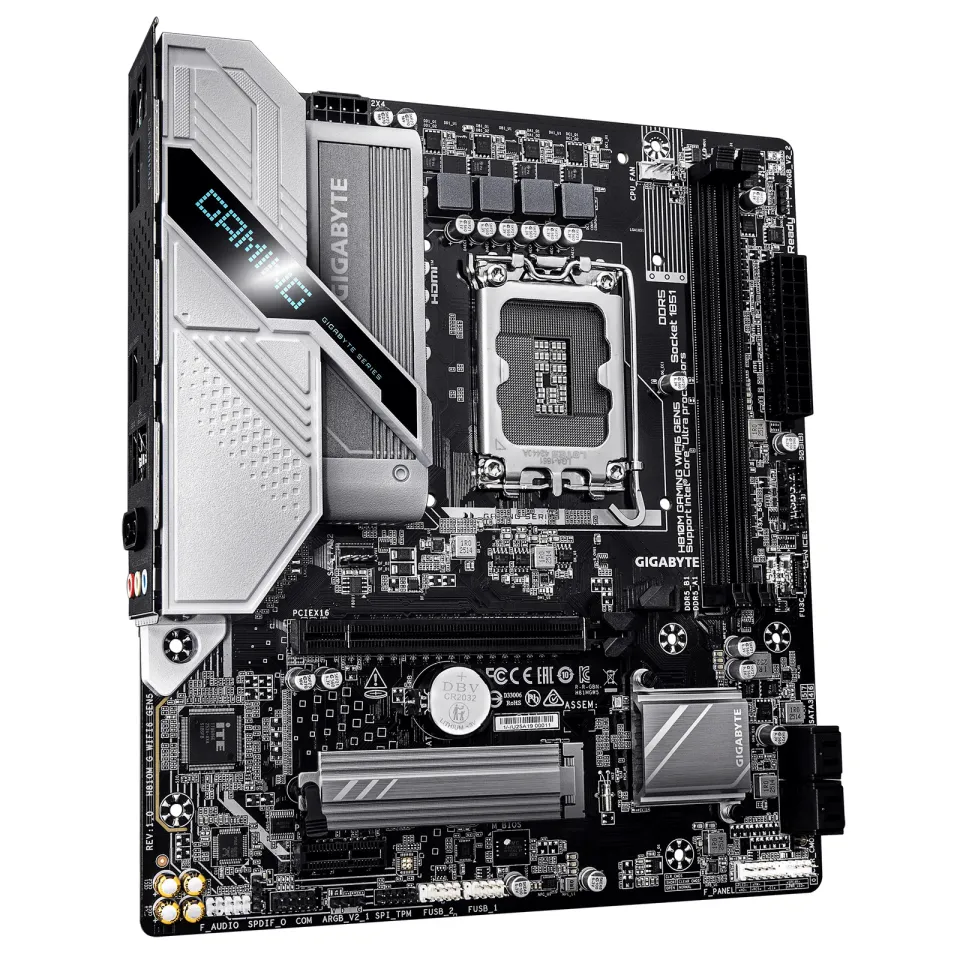

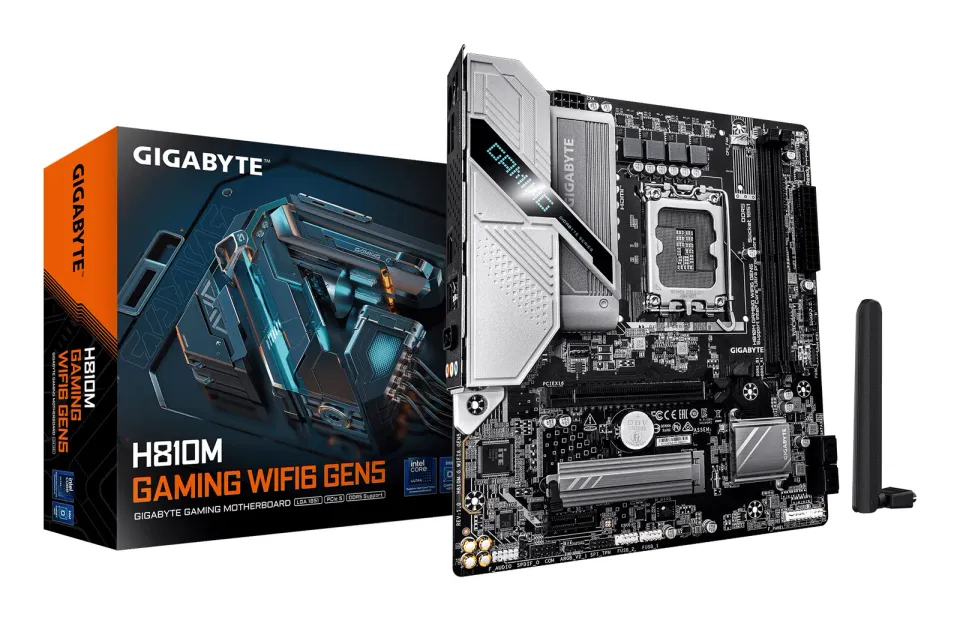

GIGABYTE MB Sc LGA1851 H810M GAMING WIFI6 Gen5

GIGABYTE H810M GAMING WIFI6 Gen5
Build a powerful and compact gaming rig with the GIGABYTE H810M GAMING WIFI6 GEN5. Designed for the latest Intel processors, this micro-ATX motherboard proves that you don't need a massive budget to enjoy next-gen features. It proudly features ultra-fast PCIe 5.0 support for maximum graphics performance and integrated Wi-Fi 6 for smooth, lag-free online gaming. With its reliable power design, user-friendly features, and compact footprint, it is the perfect foundation for mainstream gamers looking for a smart balance of price, performance, and modern connectivity.
CPU
LGA1851 socket: Support for Intel Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel H810 Express Chipset
Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

• Support for DisplayPort 2.1 version.
  (Graphics specifications may vary depending on CPU support.)
  Audio
  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  Support for S/PDIF Out
  LAN
  Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  Wireless Communication module
  Realtek Wi-Fi 6 RTL8851BE

• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11ax 80MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

• Bluetooth version may change with updates. See the Wi-Fi chip vendors website for details.
  Expansion Slots
  CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

• The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  Storage Interface
  Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
  USB
  Chipset:
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
  Chipset+2 USB 2.0 Hubs:
• 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

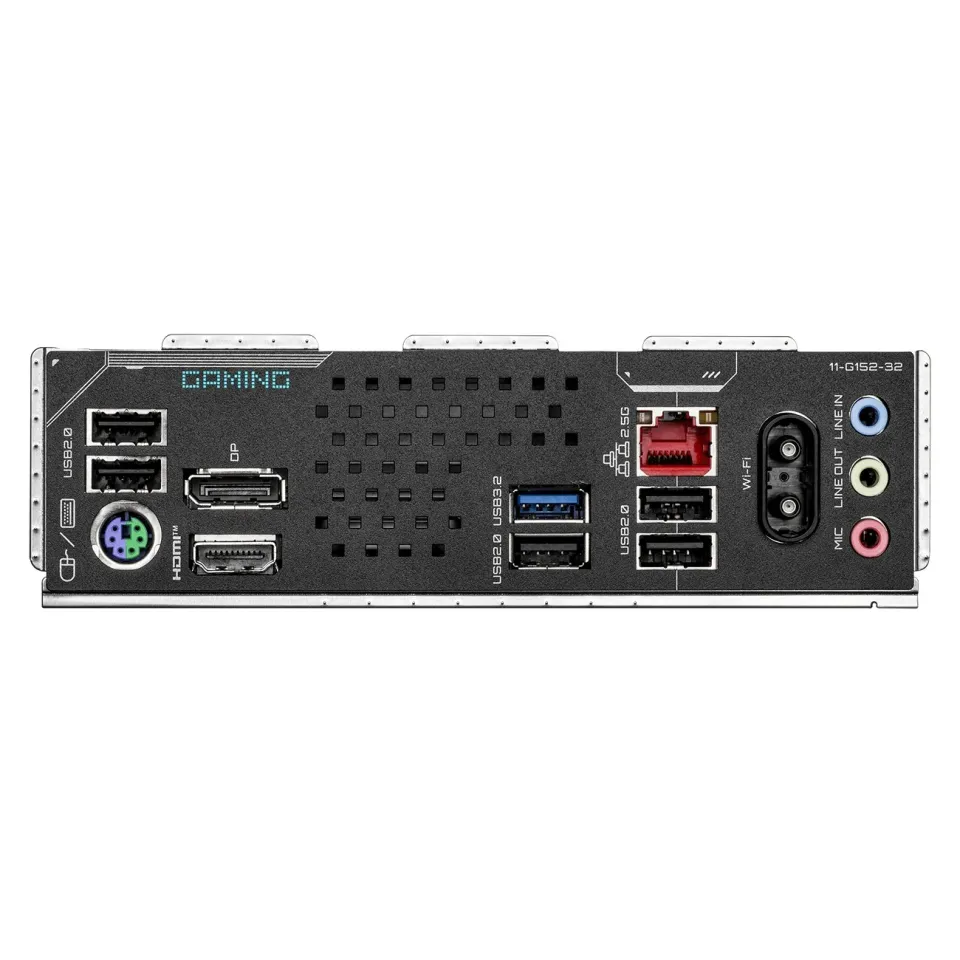

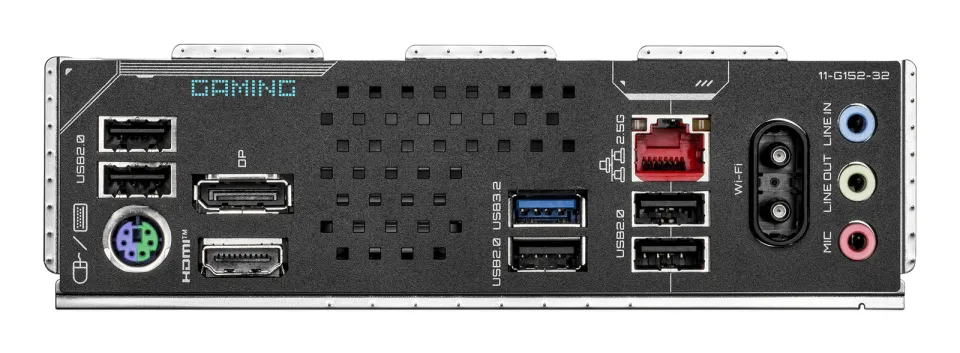

  Back Panel Connectors
  1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  1 x USB 3.2 Gen 1 port
  5 x USB 2.0/1.1 ports
  1 x RJ-45 port
  2 x antenna connectors (1T1R)
  3 x audio jacks
  (Note) Actual support may vary by CPU.
  I/O Controller
  iTEI/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

• Whether the fan speed control function is supported will depend on the fan you install
  BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Smart Backup
  Bundled Software
  NortonInternet Security (OEM version)
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11.
  Form Factor
  Micro ATX Form Factor; 24.4cm x 21.5cm

Formát základní desky: micro ATX
Chipset: Intel H810, Intel
Socket (patice): Socket 1851
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: Bez RAID podpory
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
