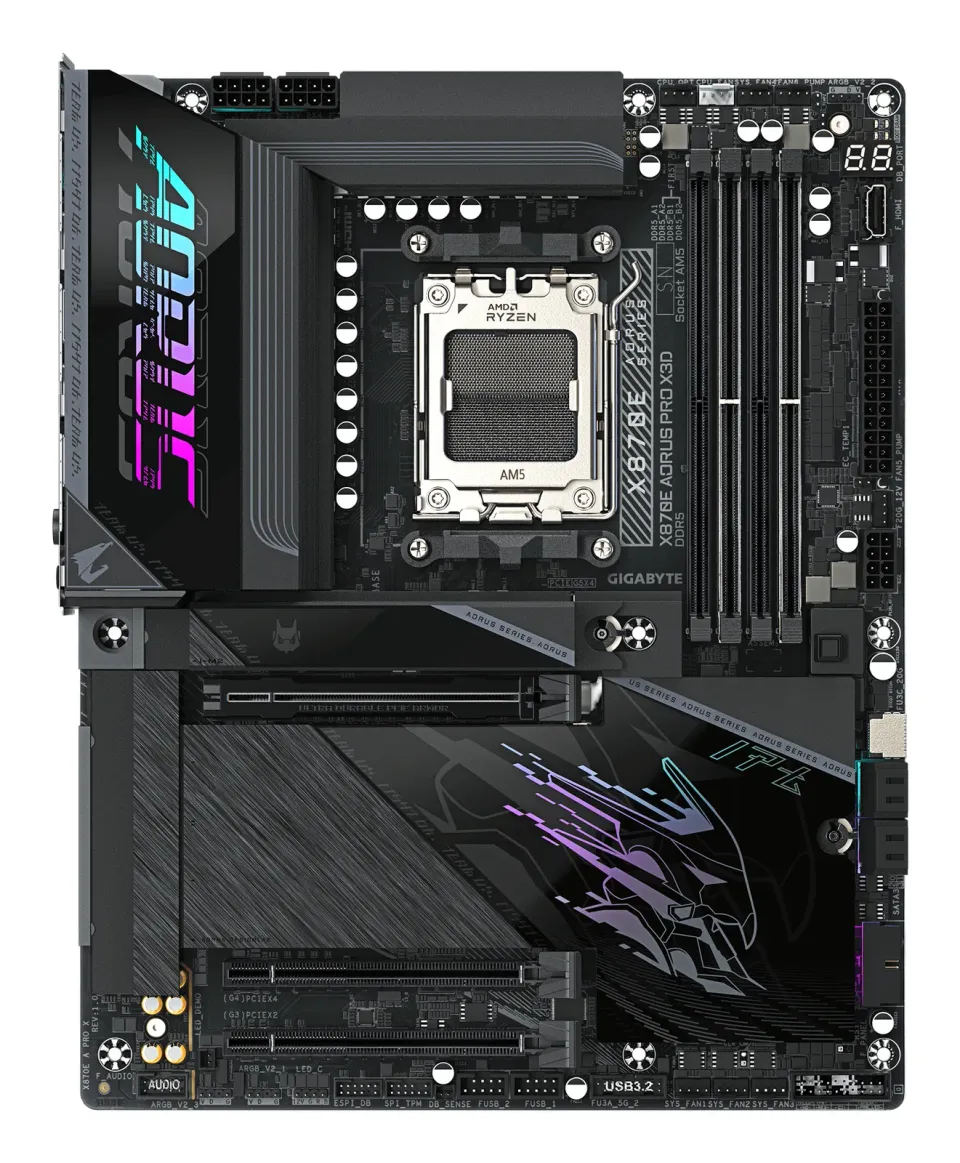

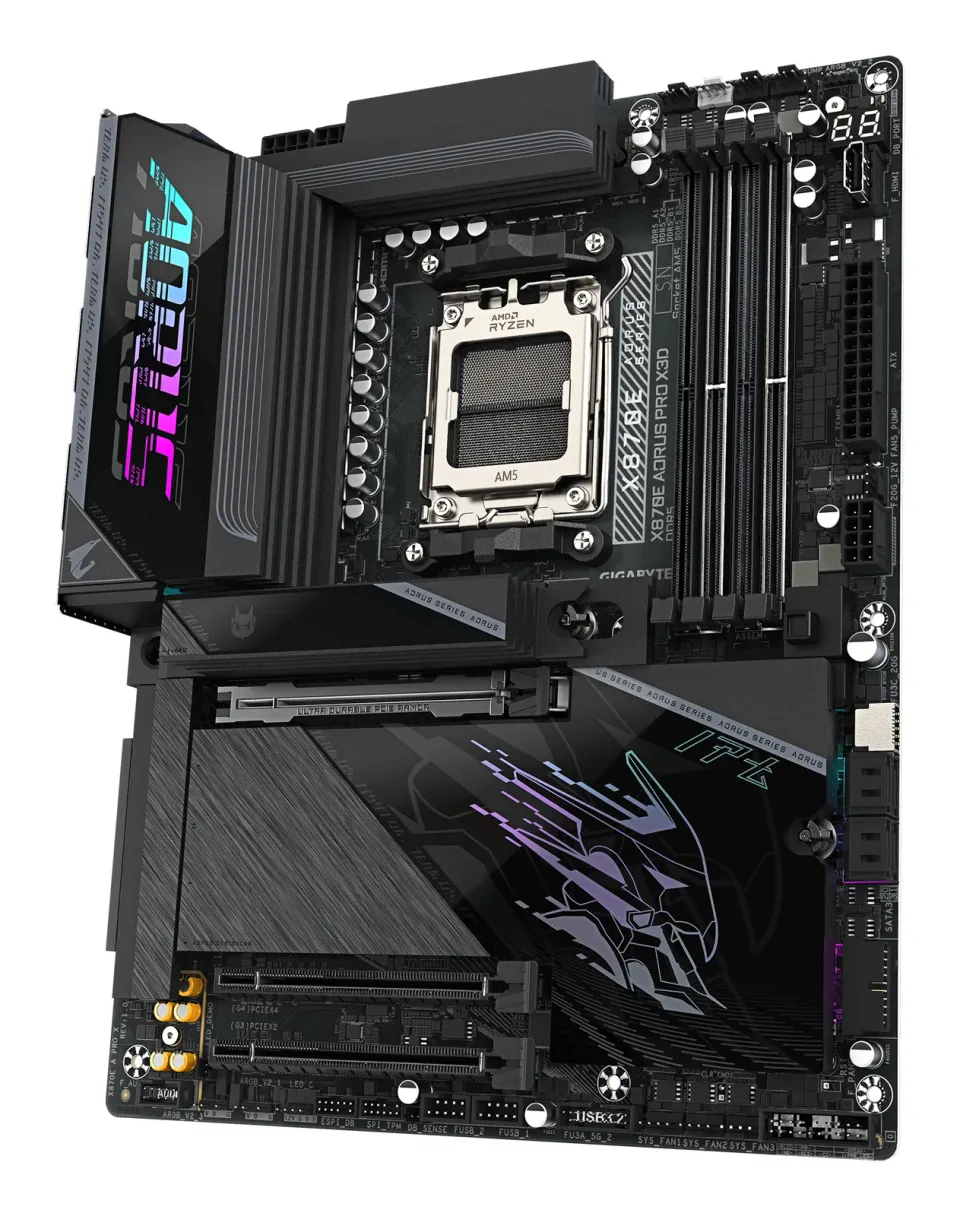

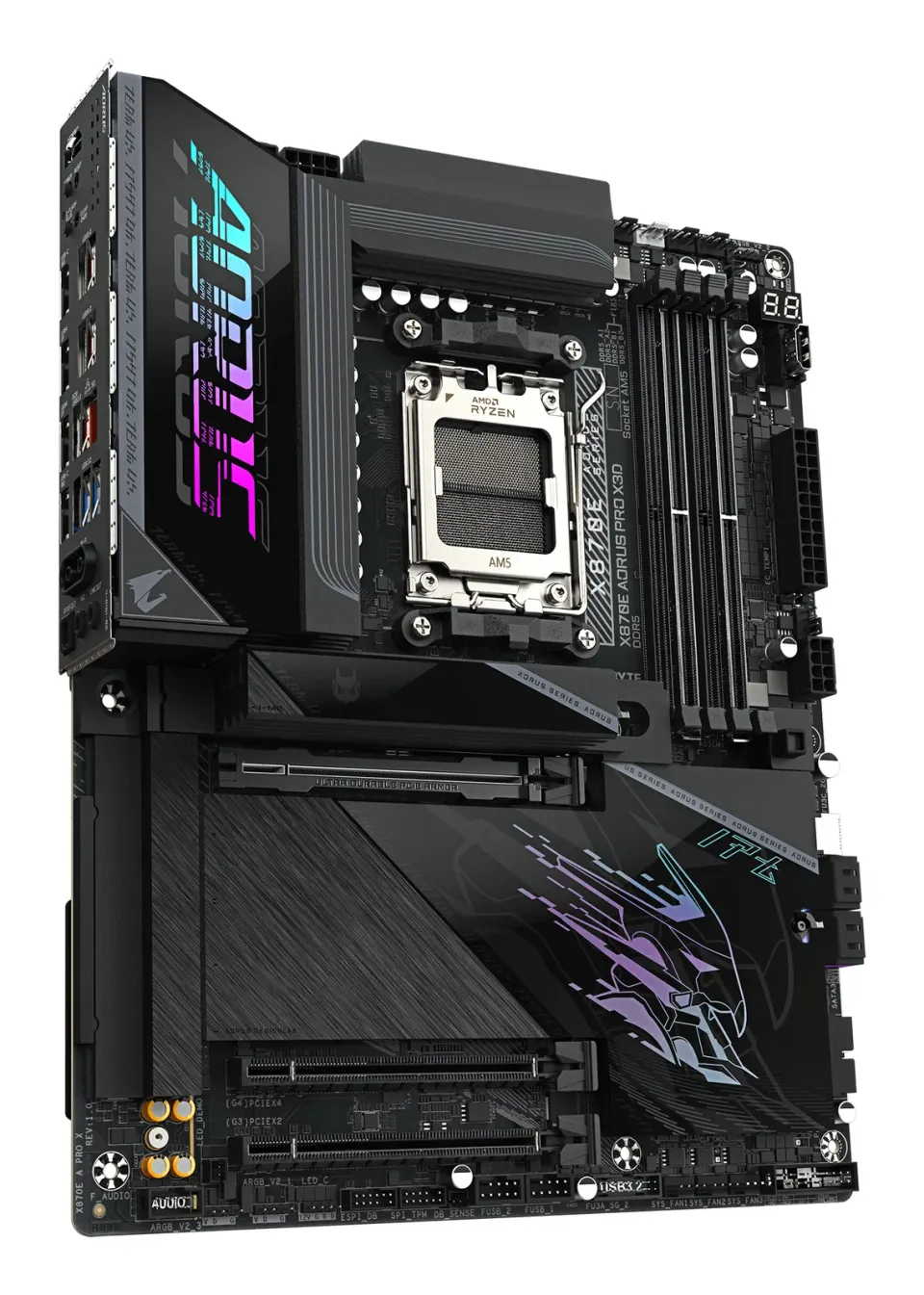

GIGABYTE MB Sc AM5 X870E A PRO X, AMD X870E, 4xDDR5, 2xUSB-C, 2xHDMI, Wifi, ATX

GIGABYTE AM5 X870E AORUS PRO X3D
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Memory
Support for DDR5:
9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C)
7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C)
6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s
4 x DDR5 DIMM sockets supporting up to 256 GB
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM
Support for AMD EXPO™ and XMP memory modules
(Memory support may vary depending on CPU configuration.)
Onboard Graphics
Integrated AMD Radeon™ Graphics support + ASMedia USB4 Controller:
2 x USB4 Type-C ports (DisplayPort, max 3840x2160@240 Hz)
Support for DisplayPort 1.4 and HDR
1 x HDMI port (max 4096x2160@60 Hz)
Support for HDMI 2.1, HDCP 2.3, HDR
1 x front HDMI port (max 1920x1080@30 Hz)
(Graphics specs vary by CPU)
Audio
Realtek ALC1220 CODEC
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out
Back panel line out supports DSD audio
LAN
Realtek 5GbE LAN chip
Wireless Communication
Qualcomm Wi-Fi 7 QCNCM865
Supports 2.4/5/6 GHz bands
Bluetooth 5.4
Support for 802.11be (Wi-Fi 7)
(Requires Windows 11 for full functionality)
Expansion Slots
1 x PCIe x16 (CPU):
PCIe 5.0 x16 (Ryzen 9000/7000)
PCIe 4.0 x8 (Ryzen 8000 Phoenix 1)
PCIe 4.0 x4 (Ryzen 8000 Phoenix 2)
Chipset:
1 x PCIe 4.0 x4
1 x PCIe 3.0 x2
Storage Interface
1 x M.2 (CPU, PCIe 5.0/4.0 depending on CPU)
1 x M.2 (shared with USB4 controller)
2 x M.2 (Chipset, PCIe 4.0)
4 x SATA 6Gb/s
RAID 0/1/5/10 support (NVMe)
RAID 0/1/10 support (SATA)
USB
2 x USB4 Type-C (rear)
1 x USB-C (USB 3.2 Gen 2)
1 x USB-C (USB 3.2 Gen 2x2, internal, fast charging)
5 x USB 3.2 Gen 2 Type-A (rear)
3 x USB 3.2 Gen 1 (rear)
Multiple internal USB headers
Internal I/O Connectors
24-pin ATX power connector
2 x 8-pin ATX 12V power
PCIe power connector
CPU & system fan headers
RGB headers
M.2 & SATA connectors
USB headers
Front panel & audio headers
TPM header
Temperature sensors
Clear CMOS jumper

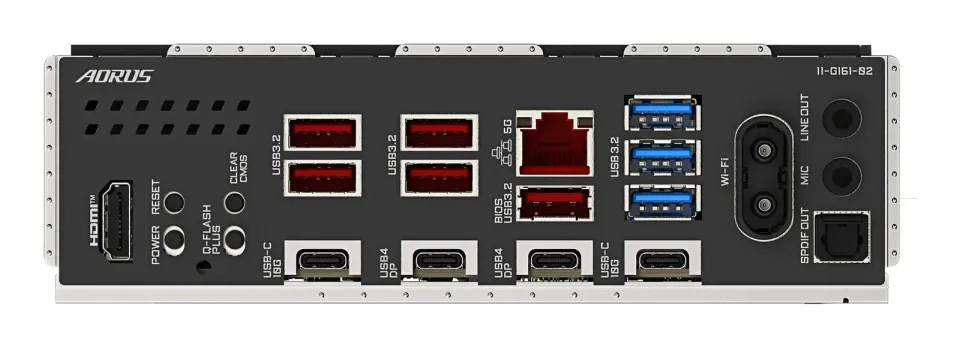

Back Panel Connectors
1 x HDMI
Reset, Power, Clear CMOS buttons
Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A
2 x USB-C (Gen 2)
2 x USB4 Type-C
1 x RJ-45
3 x USB 3.2 Gen 1

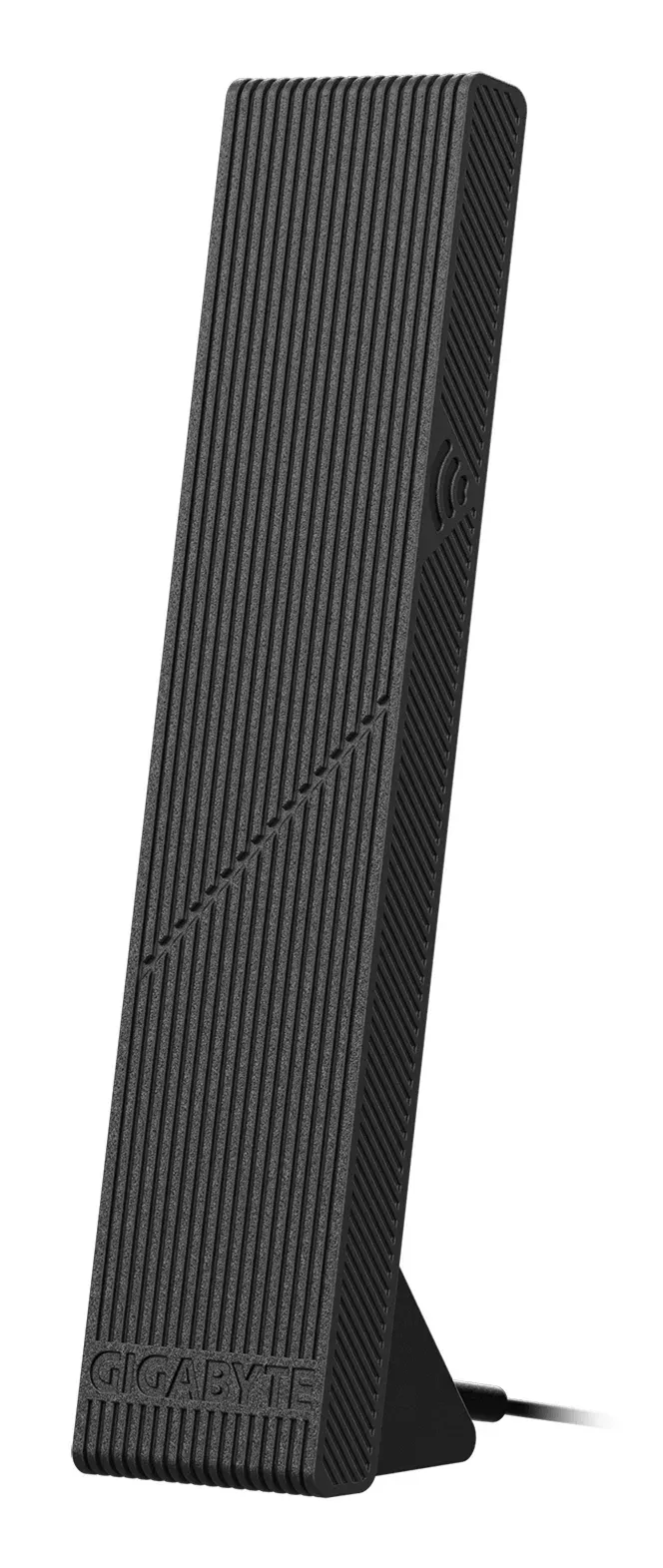

2 x antenna connectors
Audio jacks + S/PDIF Out
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed detection
Water cooling flow detection
Fan fail warning
Noise detection
BIOS
512 Mbit flash
AMI UEFI BIOS
Unique Features
GIGABYTE Control Center (GCC)
Q-Flash / Q-Flash Plus
Smart Backup
Bundled Software
Norton Internet Security (OEM)
Operating System
Windows 11 64-bit
Form Factor
ATX Form Factor
30.5 cm x 24.4 cm

Formát základní desky: ATX
Chipset: AMD X870
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 4
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 3
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 0
HDMI: 2
VGA: 0
DVI: 0
