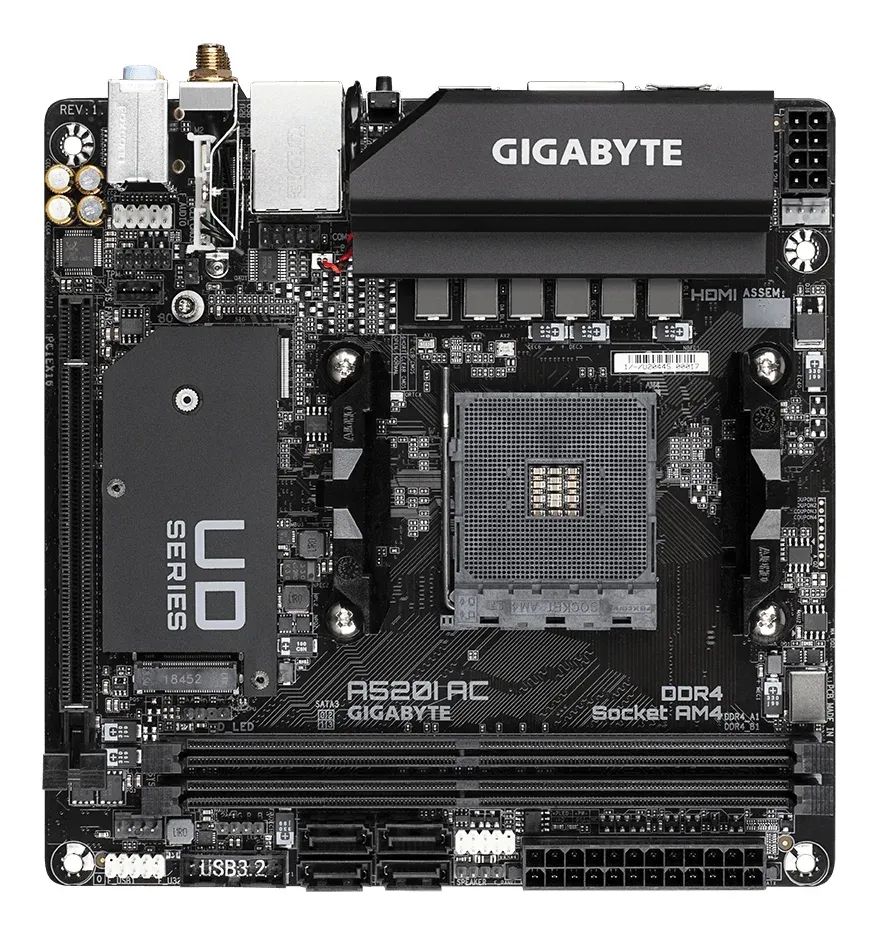

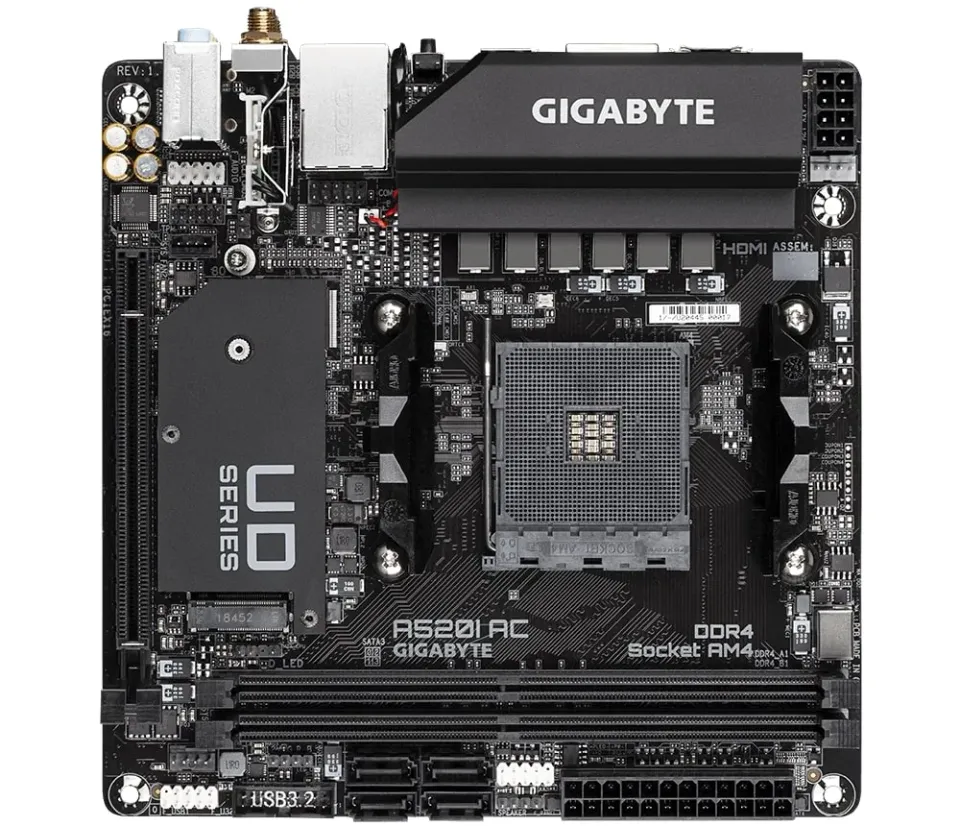

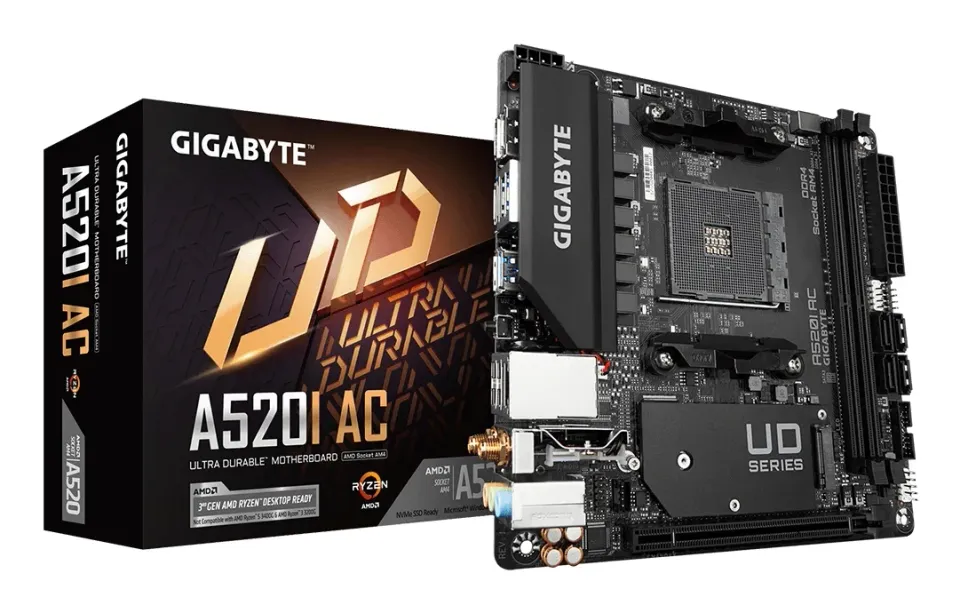

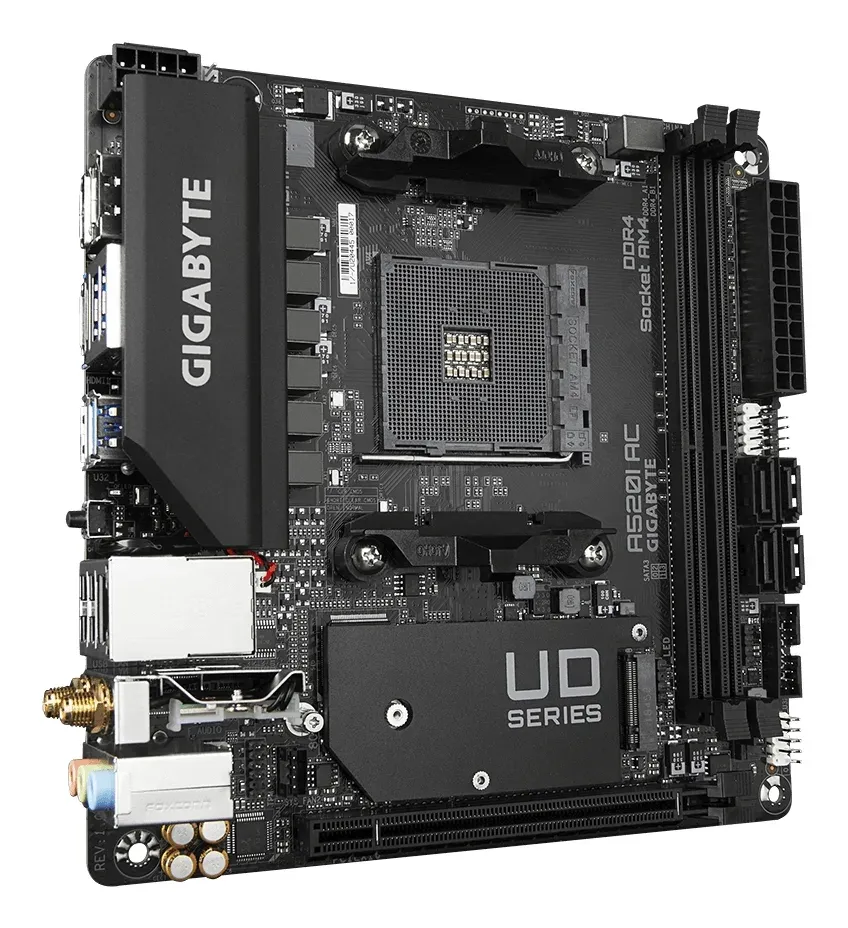

GIGABYTE MB Sc AM4 A520I AC, AMD A520, 2xDDR4, 1xDP, 2xHDMI, WI-FI, Mini-ITX

A520I AC
AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• Direct 6 Phases Digital VRM Solution with 55A DrMOS
• Ultra-Fast NVMe PCIe 3.0 x4 M.2
• Onboard Intel Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
• Realtek GbE LAN with Bandwidth Managementt
• DisplayPort, Dual HDMI for for Multiple Display
• RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design
  CPU
  AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  (Please refer "CPU Support List" for more information.)
  Chipset
  AMD A520
  Memory
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
  Onboard Graphics
  Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz

• Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  Support for up to 3 displays at the same time
  Maximum shared memory of 16 GB
  Audio
  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  LAN
  Realtek GbE LAN chip (1000 Mbit/100 Mbit)
  Wireless Communication module
  Intel Wi-Fi AC 3168
  WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  BLUETOOTH 4.2
  Support for 11ac wireless standard and up to 433 Mbps data rate
• Actual data rate may vary depending on environment and equipment.
  Expansion Slots
  Integrated in the CPU:
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  Storage Interface
  Integrated in the CPU:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
  Chipset:
  4 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, and RAID 10
  USB
  Integrated in the CPU:
  4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  2 x USB 3.2 Gen 1 ports available through the internal USB header
  4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  1 x serial port header
  1 x Clear CMOS jumper
  *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

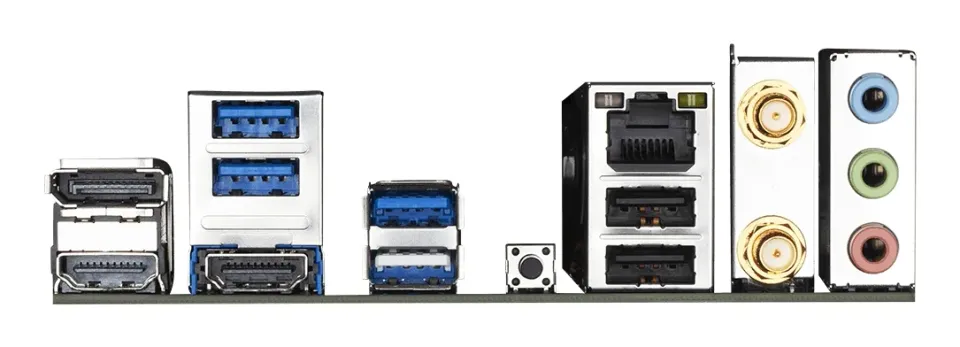

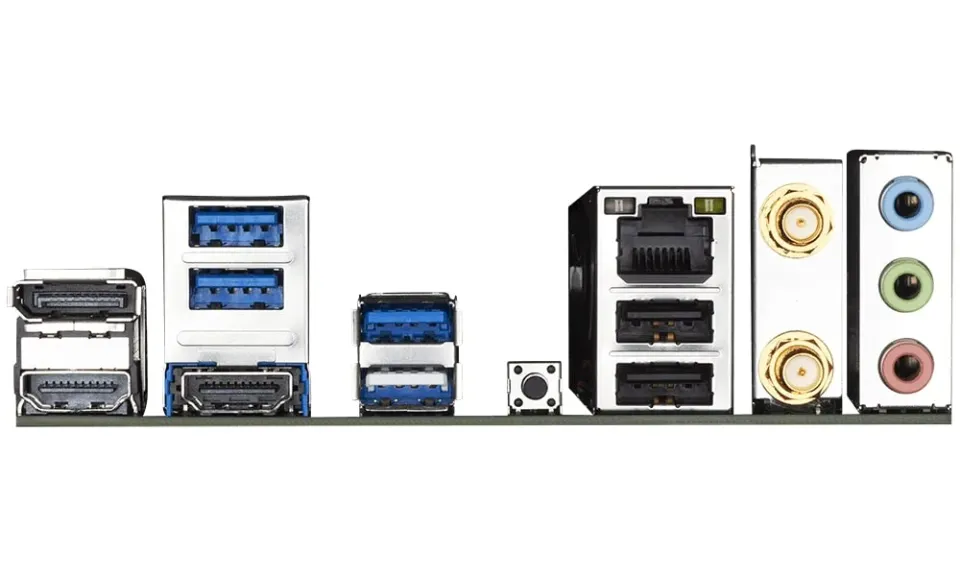

  Back Panel Connectors
  1 x DisplayPort
  2 x HDMI ports
  4 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x Q-Flash Plus button
  1 x RJ-45 ports
  2 x SMA antenna connectors (1T1R)
  3 x audio jacks
  I/O Controller
  iTE I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Overheating warning
  Fan fail warning
  Fan speed control
• Whether the fan speed control function is supported will depend on the cooler you install.
  BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
  Support for Q-Flash Plus
  Support for Q-Flash
  Support for Xpress Install
  Bundled Software
  Norton Internet Security (OEM version)
  LAN bandwidth management software
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Form Factor
  Mini-ITX Form Factor; 17.0cm x 17.0cm
  Remark
  Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Formát základní desky: Mini-ITX
Chipset: AMD A520
Socket (patice): Socket AM4
Pro procesory: AMD
Technologie paměti RAM: DDR4
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 0
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 2
VGA: 0
DVI: 0
DisplayPort Type-C: 0
