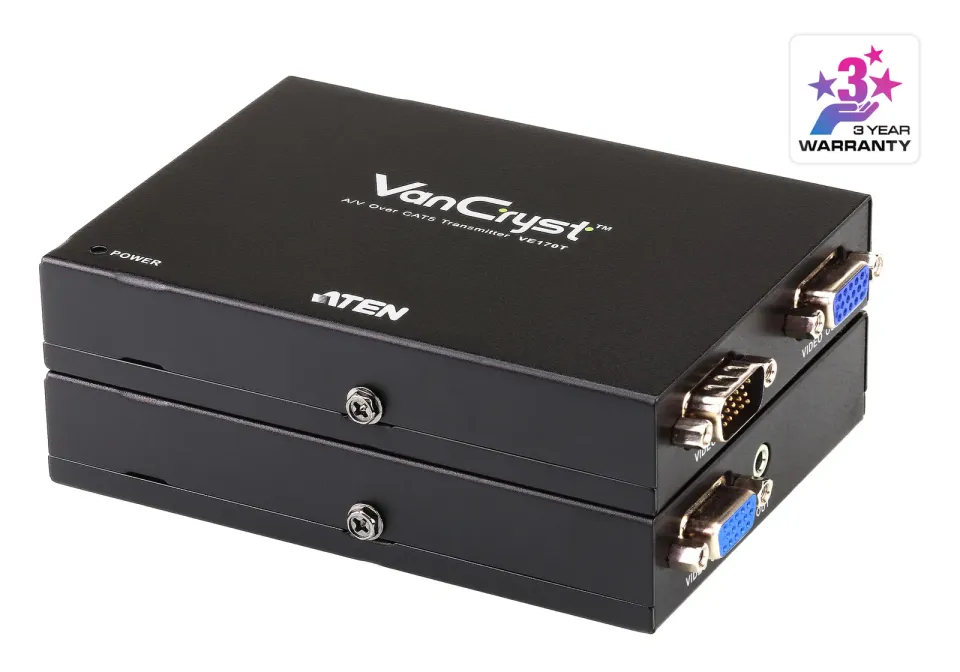

ATEN VE-170Q VGA video extender 300m

receiver - vzdálená jednotka pro zařízení ATEN VS-1204T a VS-1208T, funkce Deskew (automatické nastavení RGB signálů)

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.

The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.

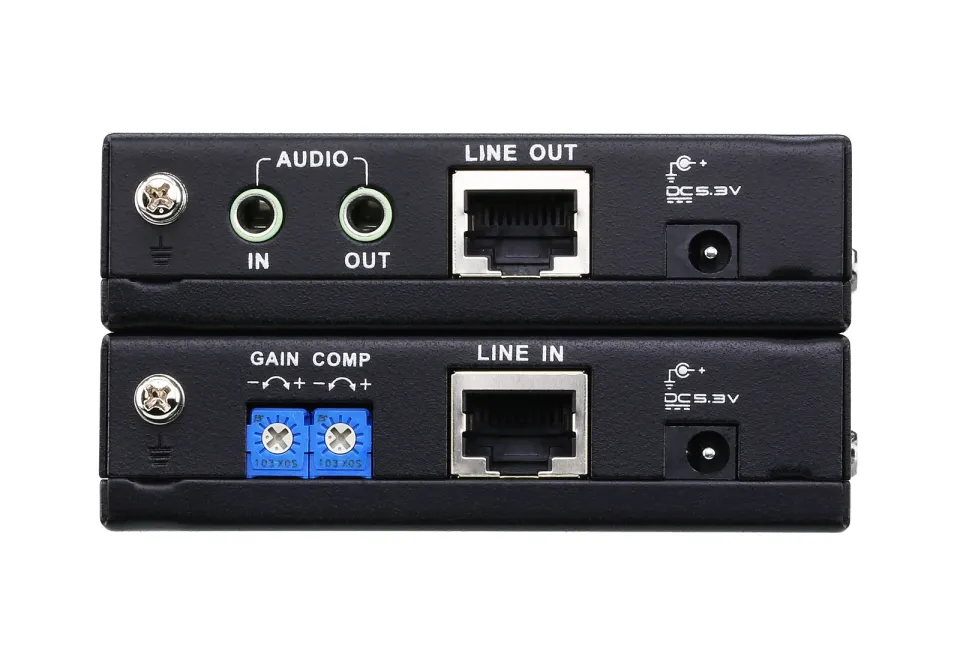

Uses Cat 5e cable to connect the transmitter and receiver uints

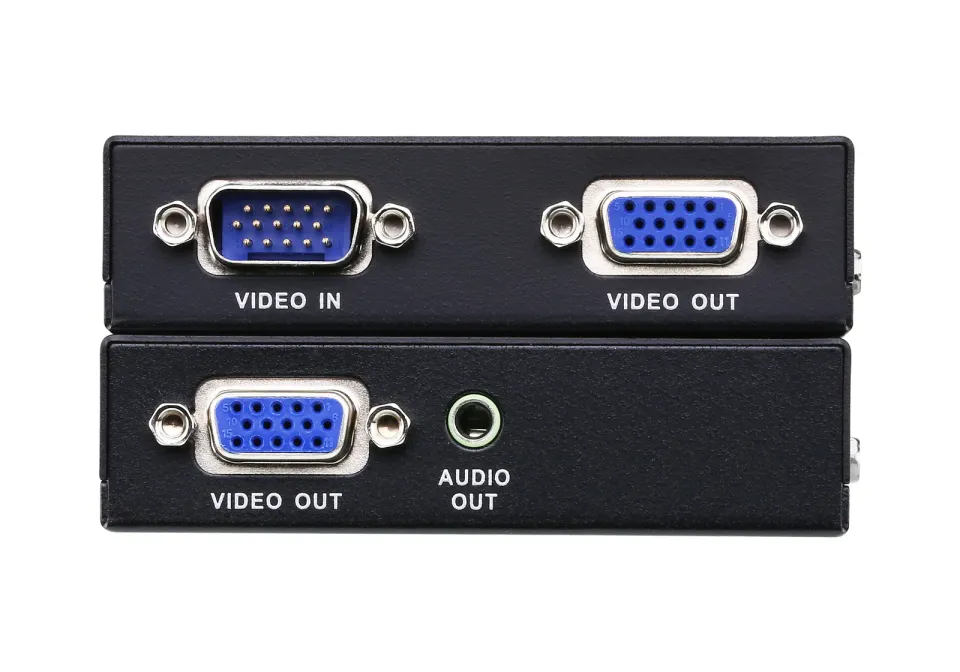

Supports one local and one remote display
Long distance transmission up to 300 m
Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance
Superior video quality -
VE170R: 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
Audio enabled (mono)
Adjustable gain/compensation control
BBuilt-in 8KV/15KV ESD protection
Rack-mountable
Complies with VESA FDMI mount standard

Transmitter Unit:
VE170T A/V Over Cat 5 Transmitter

Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew

Package Contents
Package Option 4: VE170RQ
1x VE170RQ
1x Power Adapter
1x Rack Mount Kit (1 pc)
1x Grounding Wire
1x User Guide

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
