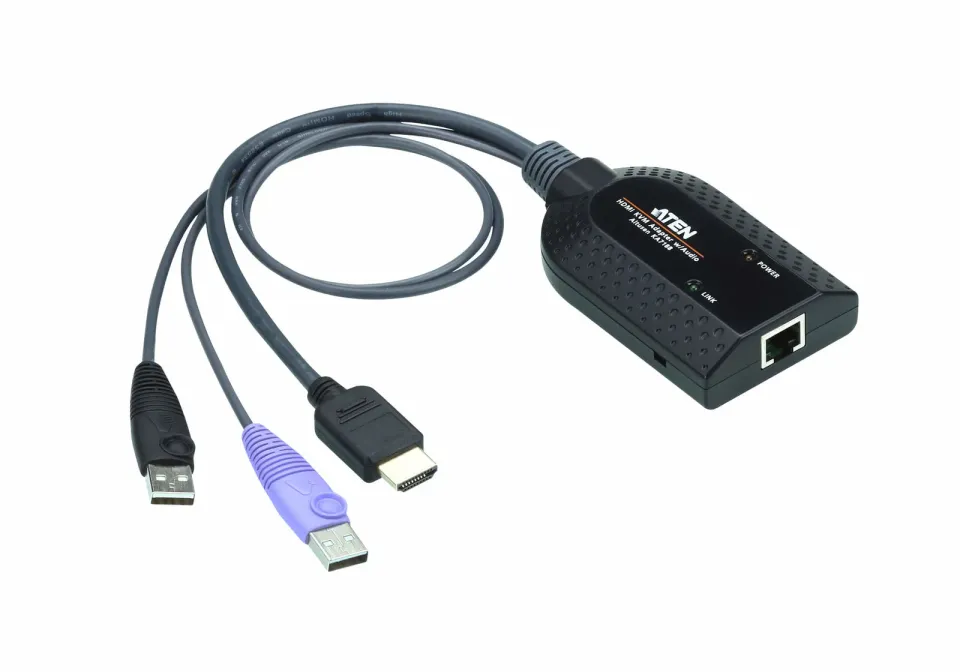

ATEN USB HDMI Virtual Media KVM Adapter Cable

The KA7188 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer.* The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**

The KA7188 supports Audio De-Embedder, which extracts the audio from an HDMI signal. More advanced features of KA7188 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.

Connects a KVM switch to the HDMI video and USB ports of a target computer*
Supports Audio De-Embedder
Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Virtual Media Support**
Smart Card / CAC Reader Support**
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)***
Built in ASIC for greater reliability and compatibility
Compact size
Firmware upgradeable
Note:
*Both USB connectors must be plugged into USB ports on the target computer for the KA7188 to receive sufficient power.
**Please refer to the webpage of KVM Adapter Cable Compatibility List (http://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.
***This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

Note:
*Both USB connectors must be plugged into USB ports on the target computer for the KA7188 to receive sufficient power.
**Please refer to the webpage of KVM Adapter Cable Compatibility List (http://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.

Package Contents
1x KA7188 KVM Adapter Cable

Compatible Products
KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN4116VA, KN4124VA, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, KM0032
