ASUS MB Sc LGA1700 PRIME B760M-F WIFI, Intel B760, 2xDDR5, WiFi, 1xDP, 1xHDMI, mATX

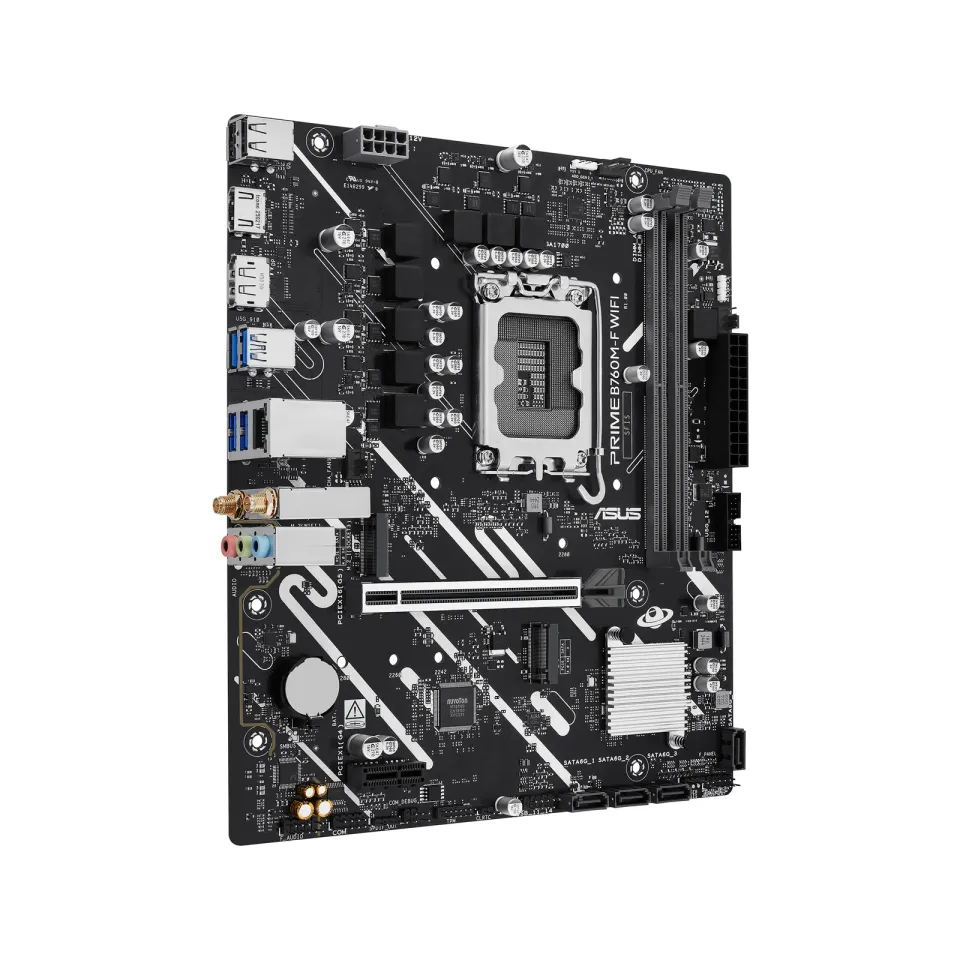

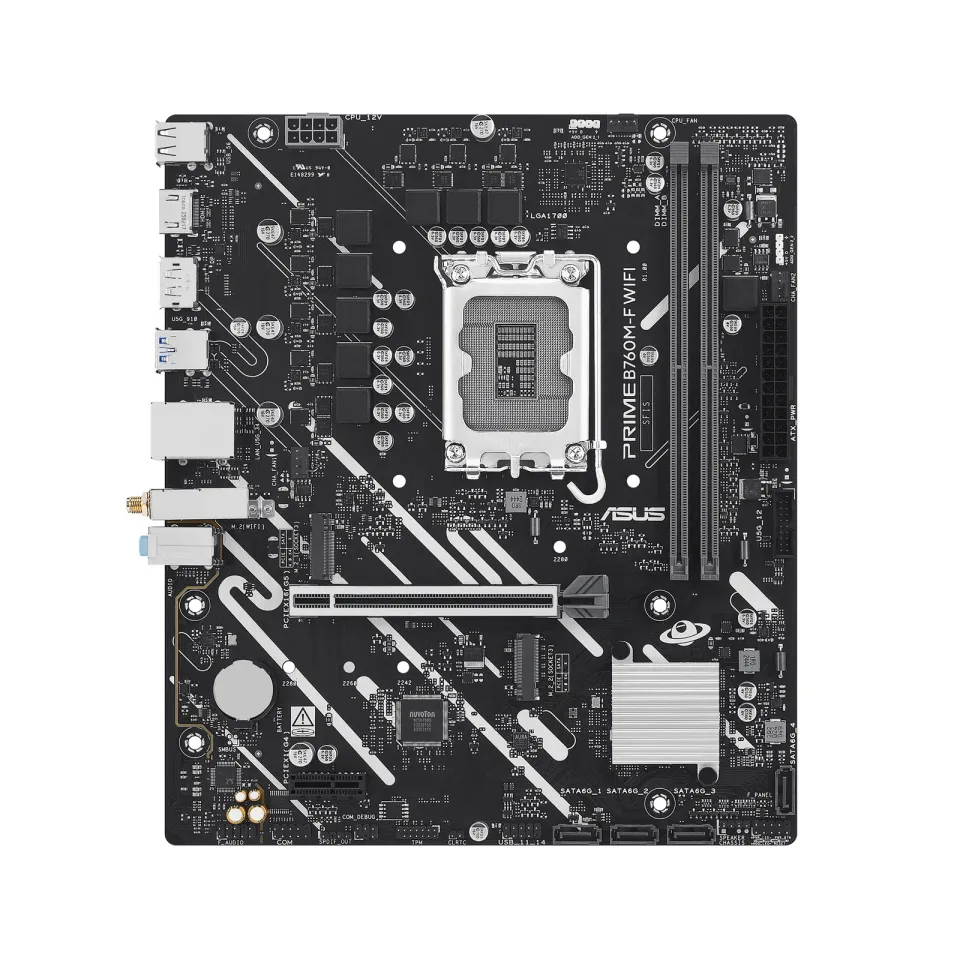

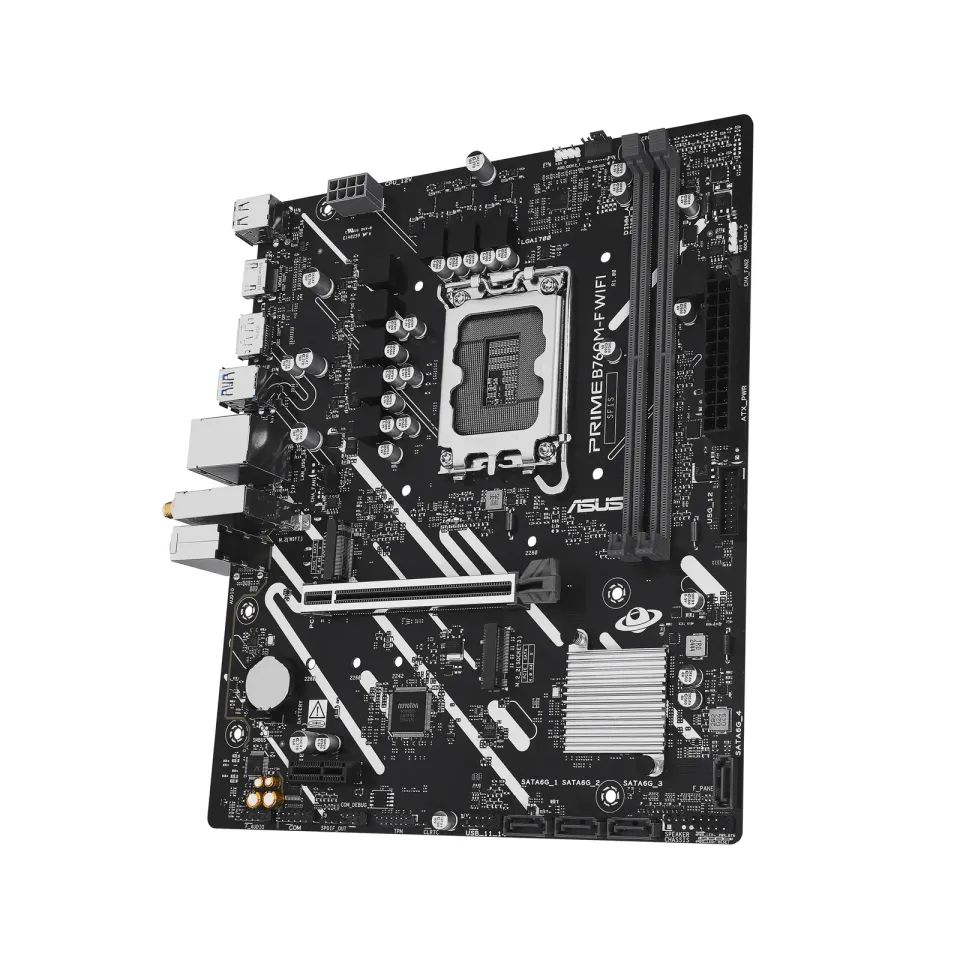

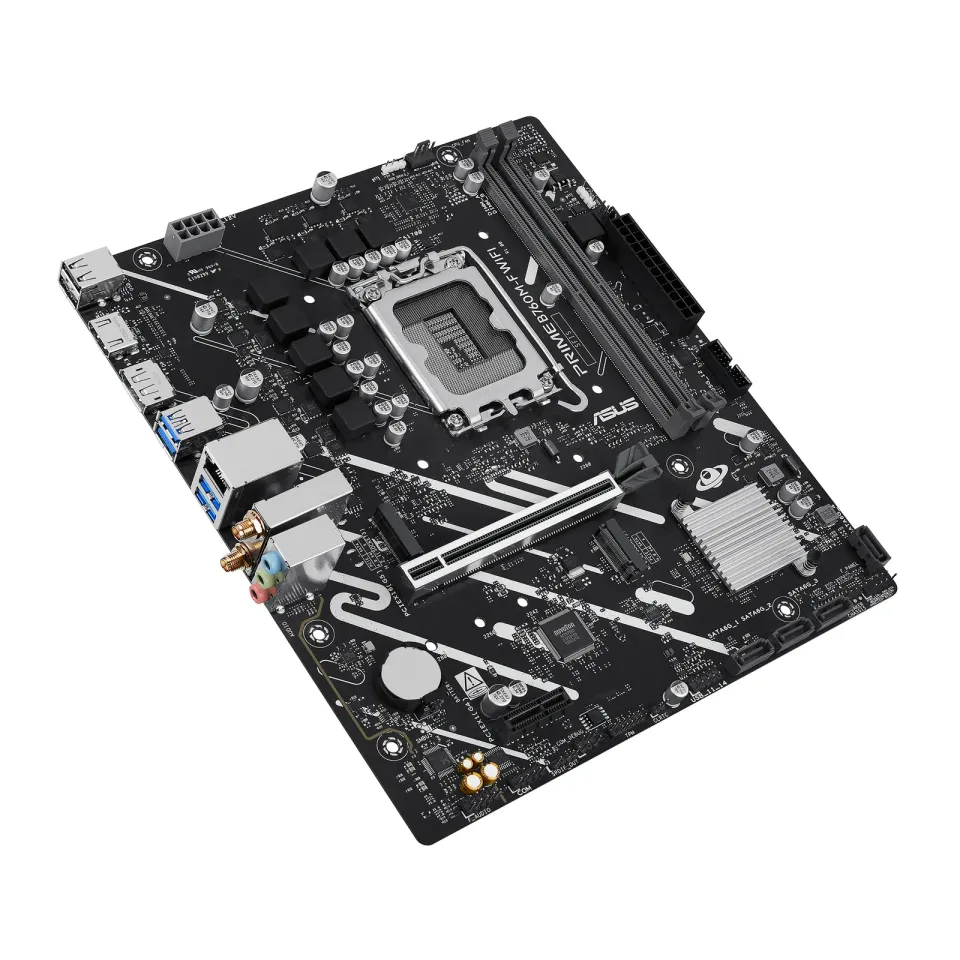

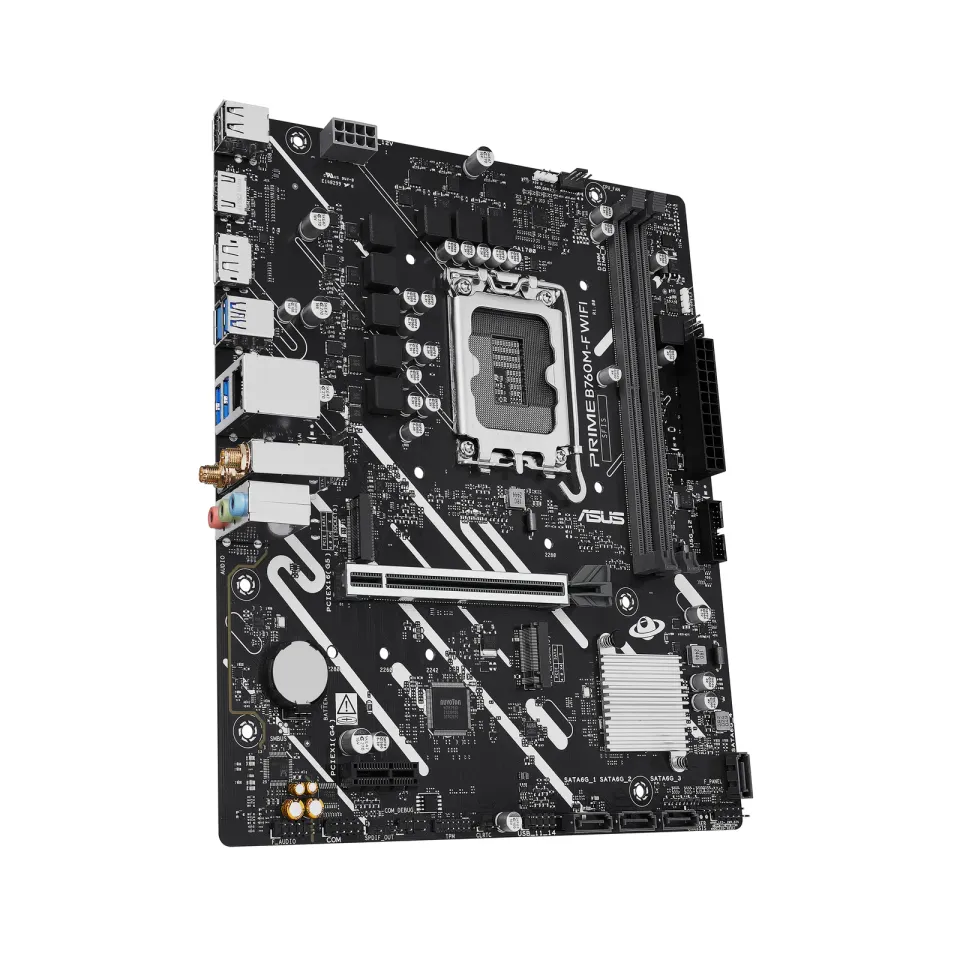

ASUS PRIME B760M-F WIFI
The ASUS PRIME B760M-F WiFi motherboard is designed for users who seek reliable performance, modern connectivity, and future-ready features. It supports 12th, 13th, and 14th Gen Intel processors thanks to the LGA 1700 socket and the Intel B760 chipset.
CPU
Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B760 Chipset
  Memory
  2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports Intel Extreme Memory Profile (XMP) memory module
• Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration.
  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
• Graphics specifications may vary between CPU types.
  ** Max. 4K@60Hz (DisplayPort 1.4)
  *** 4K@30Hz (HDMI 1.4)
  Expansion Slots
  Intel Core™ Processors (14th & 13th & 12th Gen)
  1 x PCIe 5.0 x16 slot
  Intel B760 Chipset
  1 x PCIe 4.0 x1 slot
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  M.2_1: type 2280, PCIe 4.0 x4
  M.2_2: type 2242/2260/2280, PCIe 4.0 x4
  4 x SATA 6Gb/s ports
• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6 (1x1)
  Supports 2.4/5GHz band
  Bluetooth v5.3*
  USB
  Rear:
  4 x USB 5Gbps (Type-A)
  2 x USB 2.0 (Type-A)
  Front:
  1 x USB 5Gbps header (2 ports)
  1 x USB 2.0 header (2 ports)
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  Jack detection, Multi-streaming, Front panel jack-retasking
  Up to 24-bit/192 kHz playback
  Back Panel I/O Ports
  4 x USB 5Gbps (Type-A)
  2 x USB 2.0 (Type-A)
  1 x HDMI™
  1 x DisplayPort
  1 x Wi-Fi module
  1 x Realtek 1Gb Ethernet
  3 x audio jacks
  Internal I/O
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  1 x 24-pin Main Power
  1 x 8-pin +12V CPU Power
  2 x M.2 slots
  4 x SATA 6Gb/s ports
  1 x USB 5Gbps header
  1 x USB 2.0 header
  2 x ARGB Gen 2 headers
  1 x Clear CMOS header
  1 x COM port header
  1 x Front Panel Audio
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header
  1 x Front Panel System header
  Special Features
  ASUS 5X PROTECTION III
  ASUS Q-Design
  ASUS EZ DIY
  ASUS Thermal Solution
  Aura Sync (ARGB Gen 2)
  Software Features
  Armoury Crate (Aura Sync, Fan Xpert 2+, AI Noise Cancelation)
  AI Suite 3
  ASUS DriverHub
  ASUS CPU-Z
  Norton 360 Deluxe (60 days)
  WinRAR (40 days)
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

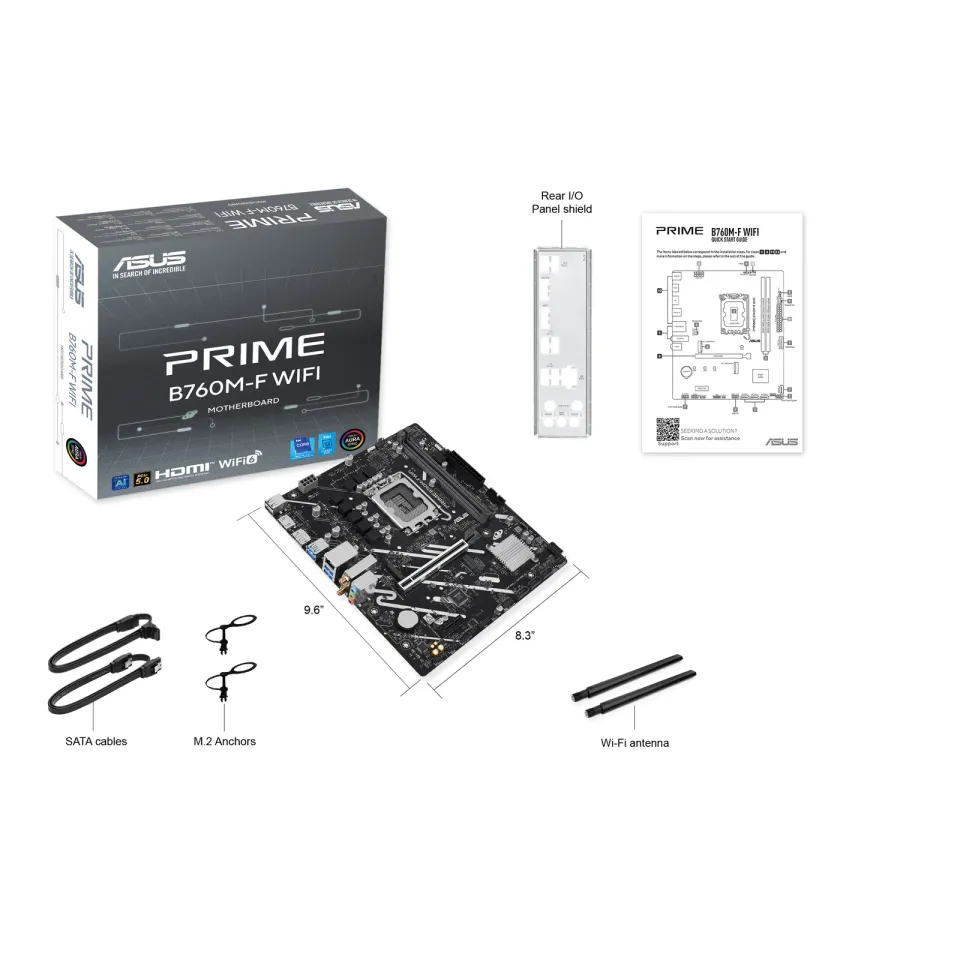

  Accessories
  2 x SATA cables
  1 x ASUS Wi-Fi antenna
  1 x I/O Shield
  2 x M.2 anchors
  1 x Quick start guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  micro-ATX
  9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)

Formát základní desky: micro ATX
Chipset: Intel B760
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
