ASUS MB Sc AM5 ROG STRIX B850-A GAMING WIFI7 NEO, AMD B850, 4xDDR5, 1xHDMI

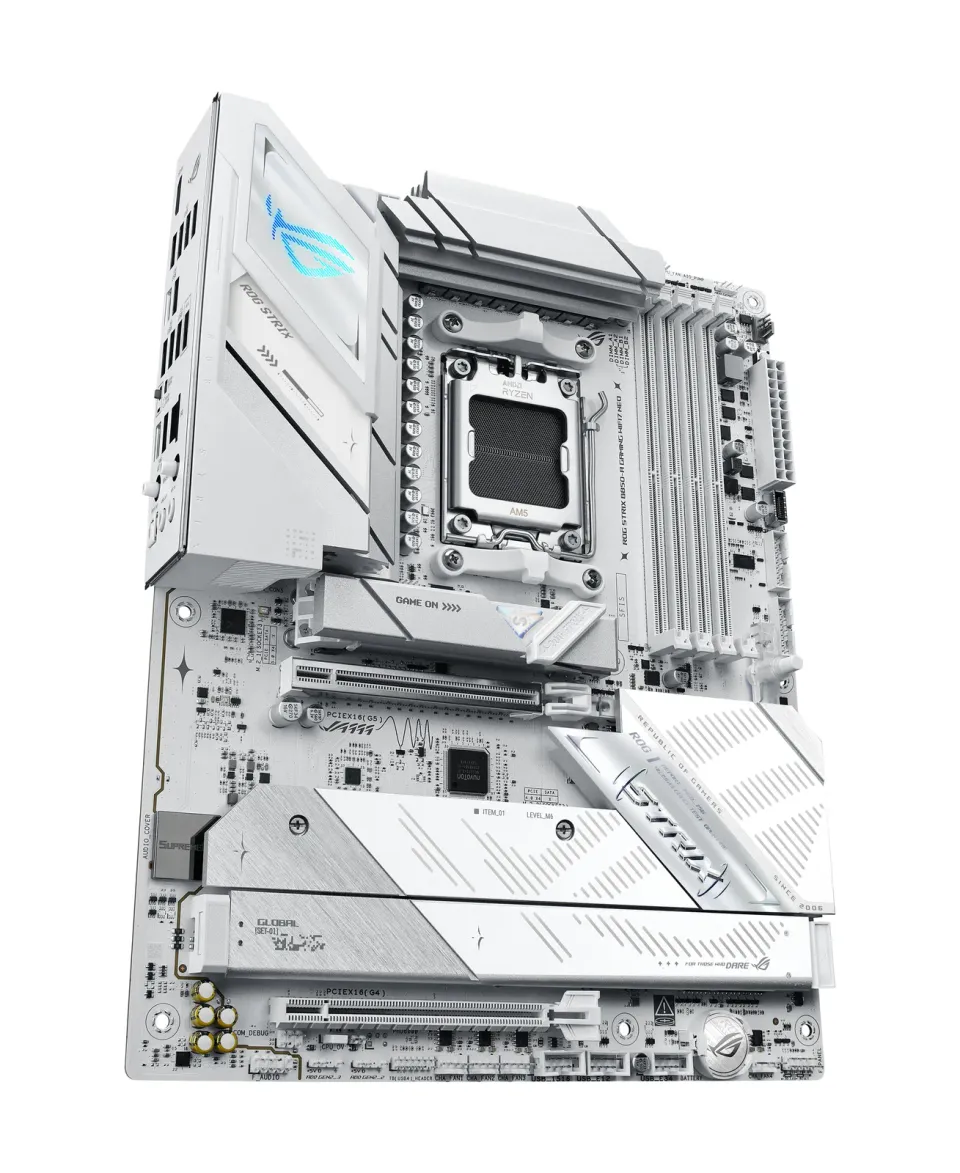

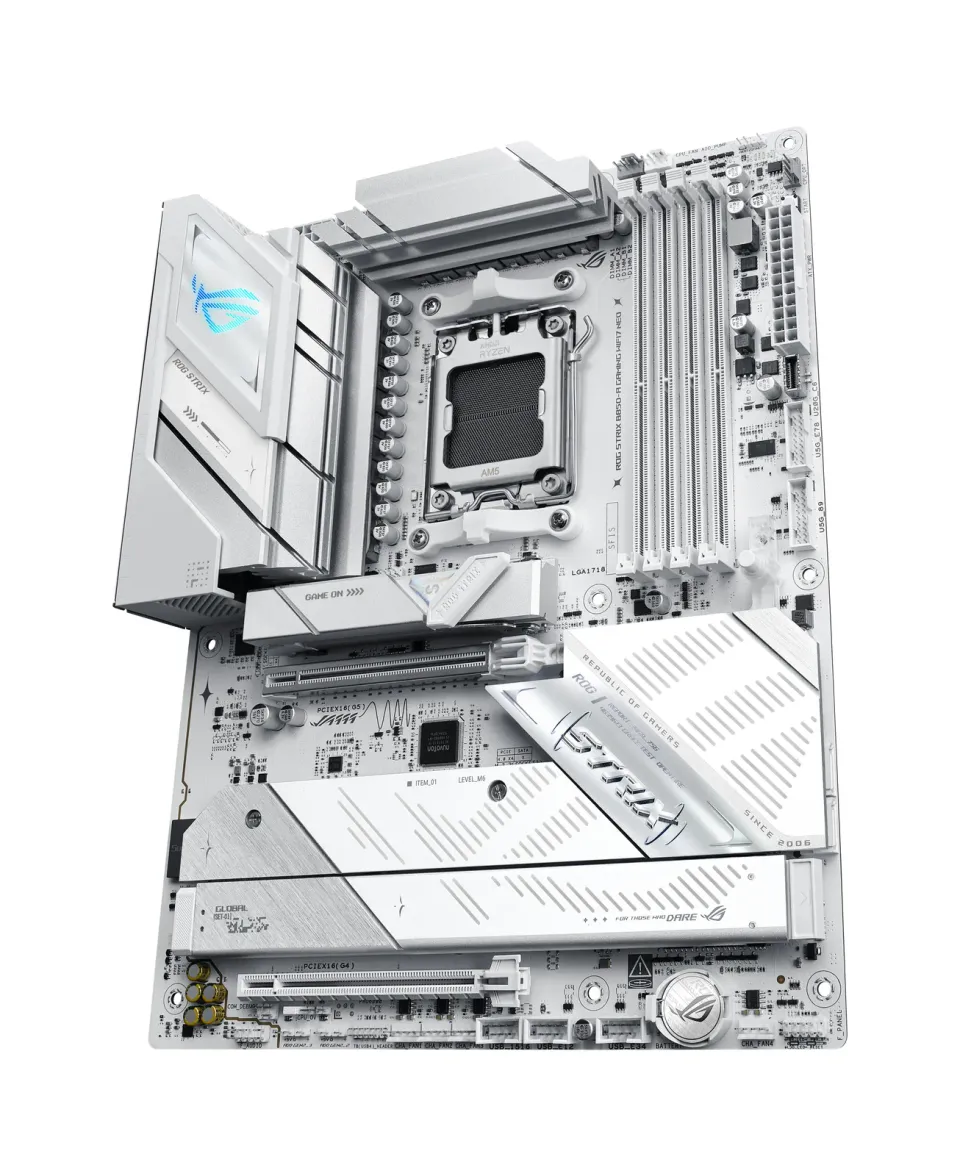

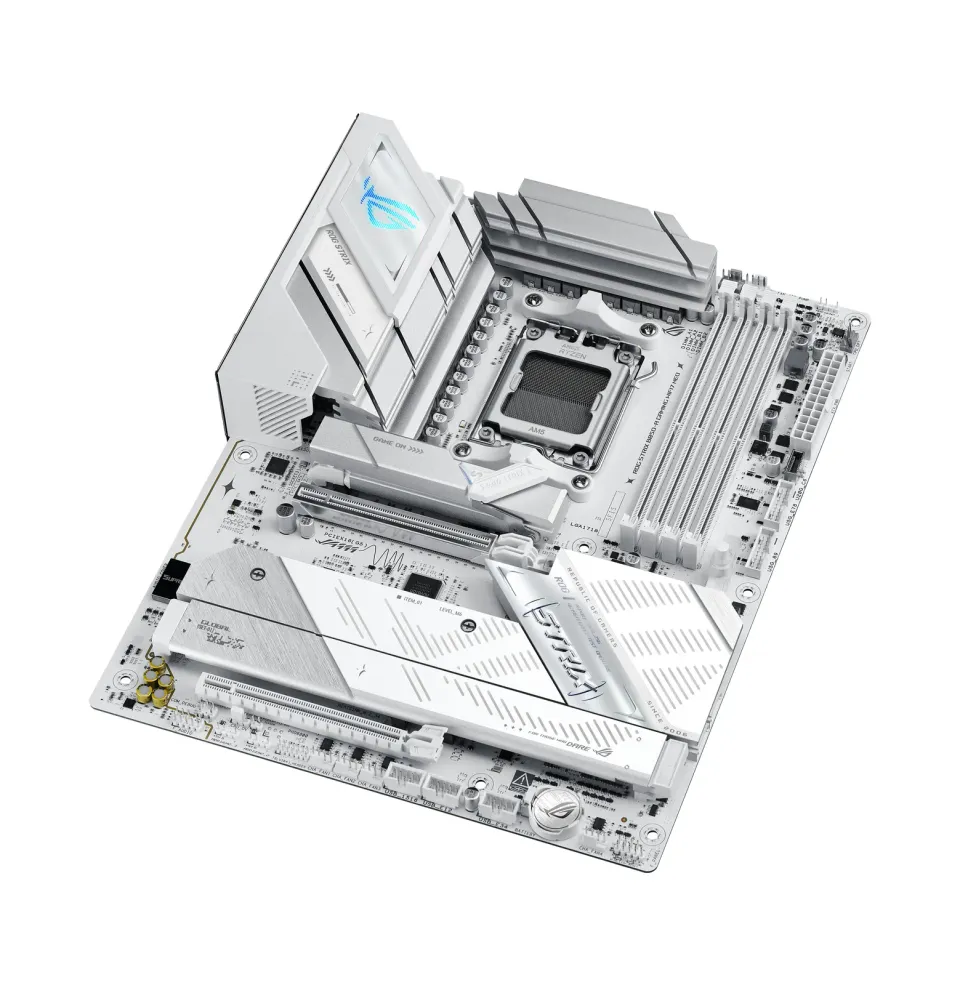

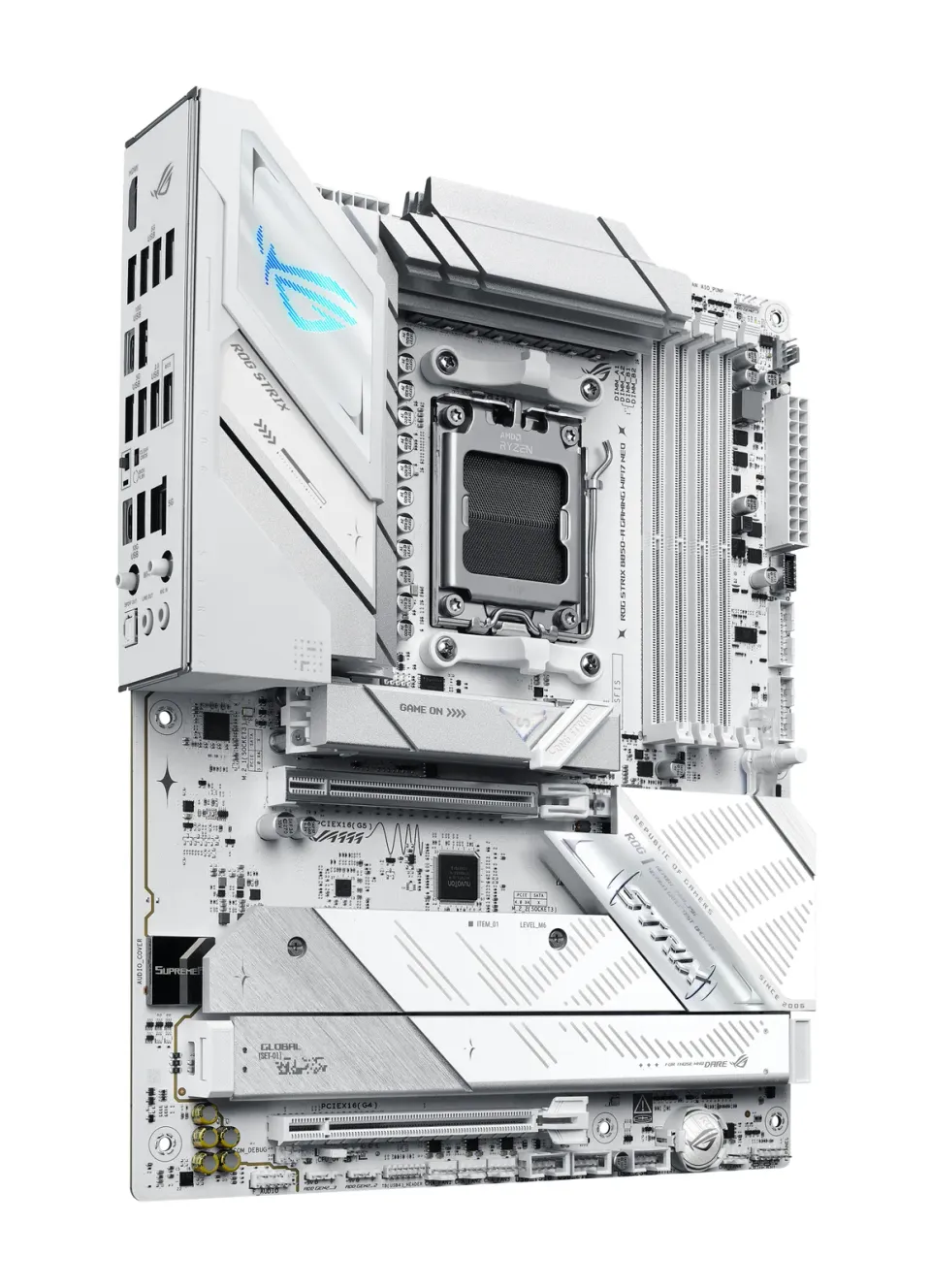

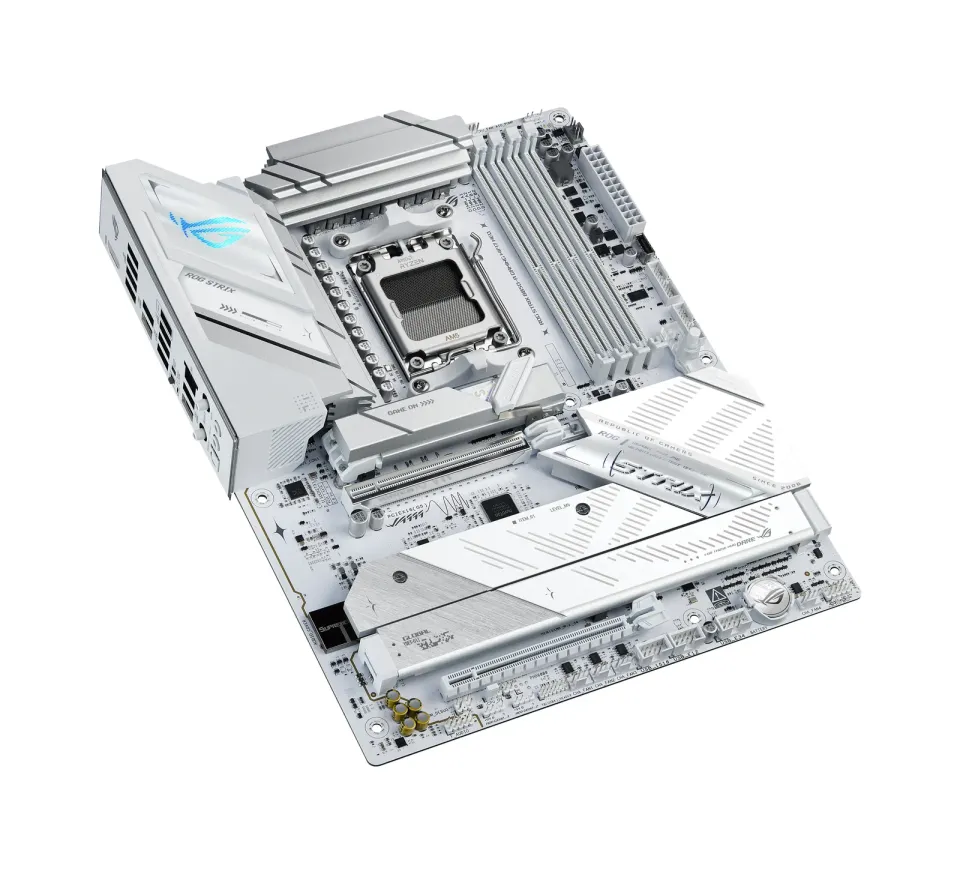

ASUS ROG STRIX B850-A GAMING WIFI7 NEO
The ROG Strix B850-A Gaming WiFi7 NEO combines a sleek, white-themed aesthetic with the raw power of the AMD AM5 platform. Built to fuel Advanced AI PCs and elite gaming rigs, it supports the latest Ryzen™ 9000 series processors with a heavy-duty 16+2+2 power design and optimized thermal management.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD B850 Chipset
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8400+MT/s(OC)/8200+MT/s(OC)* with Ryzen™ 9000 Series Processors
  Supports up to 9000+MT/s(OC)/8600+MT/s(OC)* with Ryzen™ 8000 Series Processors
  Supports up to 8000+MT/s(OC)/8000+MT/s(OC)* with Ryzen™ 7000 Series Processors
  ECC and Non-ECC Un-buffered DIMM
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate and number of DRAM modules vary depending on the CPU and memory configuration.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  ** Max Manual Overclocking achievable with advanced BIOS configuration. Results may vary.
  *** XMP/EXPO/AEMP profile results may vary and can be impacted when four DIMM slots are used.
  Graphics
  1 x HDMI™ port
• Graphics specifications may vary between CPU types.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** VGA resolution support depends on processor or graphics card.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
  1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x8 mode)
  AMD Ryzen™ 8500 & 8300 Series Desktop Processors
  1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x4 mode)
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (supports x4/x2 mode)
• Specifications vary by CPU types.
• Please check the PCIe bifurcation table on ASUS support site.
  Storage
  Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 supports PCIe 5.0 x4 mode
  M.2_2 slot (Key M), type 2280 supports PCIe 4.0 x4 mode
  AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode
  M.2_2 slot (Key M), type 2280 supports PCIe 4.0 x4 mode
  AMD Ryzen™ 8500 & 8300 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode
  M.2_2 slot (Key M), type 2280 supports PCIe 4.0 x2 mode
  AMD B850 Chipset
  M.2_3 slot (Key M), type 2280 supports PCIe 4.0 x4/x2 mode
  M.2_4 slot (Key M), type 2280 supports PCIe 4.0 x4 mode
  2 x SATA 6Gb/s ports
• M.2_3 shares bandwidth with PCIEX16(G4). When both are used, each runs at PCIe 4.0 x2 mode.
  RAID Support
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 & 8000 & 7000 Series Processors support RAID 0/1/5/10
  Ethernet
  1 x Realtek 5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 7 (MediaTek MT7925)
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency bands
  Supports Wi-Fi 7 160MHz bandwidth
  Bluetooth v5.4 with LE Audio
• Wi-Fi and Bluetooth features may vary by operating system and region.
  USB
  Rear USB total 12 ports
  4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C)
  6 x USB 5Gbps (6 x Type-A)
  2 x USB 2.0 (Type-A)
  Front USB total 11 ports
  1 x USB 20Gbps connector (USB Type-C)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
  USB Type-C power delivery output max. 5V/3A
  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  Impedance sense for front and rear headphone outputs
  High quality 120 dB SNR playback and 110 dB SNR recording
  Supports up to 32-Bit/384 kHz playback
  SupremeFX Shielding Technology
  Savitech SV3H712 AMP
  Rear optical S/PDIF out
  Premium audio capacitors
  Dedicated audio PCB layers
  Audio cover

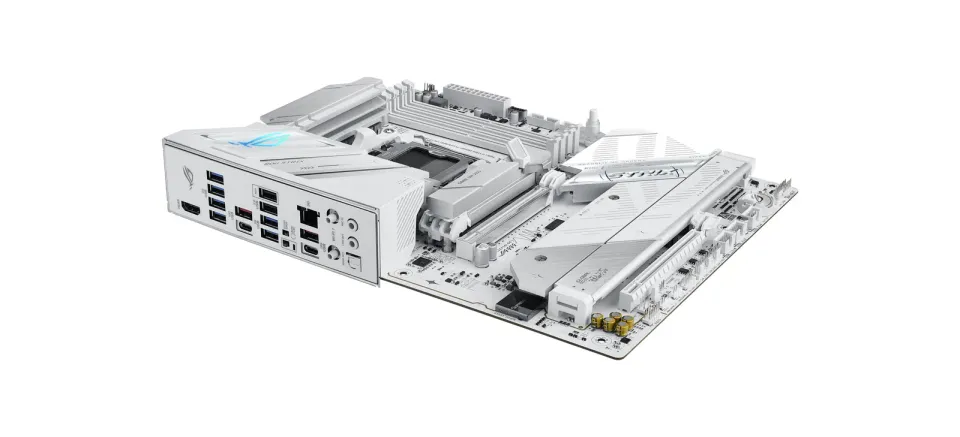

  Back Panel I/O Ports
  USB ports
  HDMI™ port
  Wi-Fi module
  Realtek 5Gb Ethernet
  Audio jacks
  Optical S/PDIF out
  BIOS FlashBack™ button
  Clear CMOS button
  Internal I/O Connectors
  CPU, OPT, AIO and chassis fan headers
  24-pin main power connector
  2 x 8-pin CPU power connectors
  4 x M.2 slots
  2 x SATA 6Gb/s ports
  USB headers including USB 20Gbps Type-C
  Addressable RGB Gen 2 headers
  Thunderbolt™ (USB4) header
  Front panel connectors
  Start button
  Special Features
  Asynchronous Clock
  Extreme Engine Digi+ with 5K black metallic capacitors
  ASUS Q-Design
  ASUS Thermal Solution
  ASUS EZ DIY
  Aura Sync
  Software Features
  ROG Exclusive Software
  ASUS Exclusive Software
  Armoury Crate
  ASUS DriverHub
  AIDA64 Extreme trial
  Adobe Creative Cloud trial
  Norton 360 for Gamers trial
  UEFI BIOS utilities
  BIOS
  512 Mb Flash ROM
  UEFI AMI BIOS
  Manageability
  WOL by PME
  PXE
  Accessories
  2 x SATA 6Gb/s cables

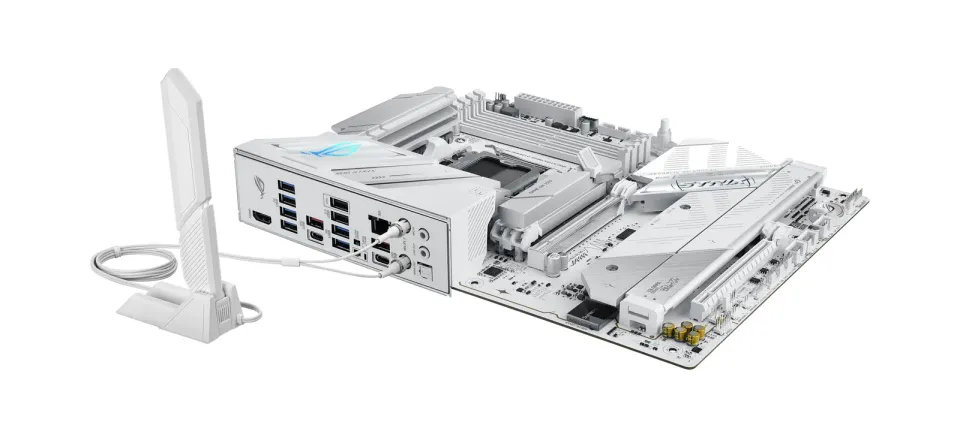

  ASUS WiFi Q-Antenna
  M.2 Q-Latch package
  M.2 Q-Slide package
  ROG key chain
  ROG Strix stickers
  M.2 rubber packages
  Quick start guide
  Operating System
  Windows 11 (22H2 & later)
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Formát základní desky: ATX
Chipset: AMD B850
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 4
SATA 3: 2
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 0
HDMI: 1
VGA: 0
DVI: 0
