ASUS MB Sc AM5 ROG CROSSHAIR 2006, AMD X870E, 4xDDR5, WiFi, 1xHDMI, 2xUSB4

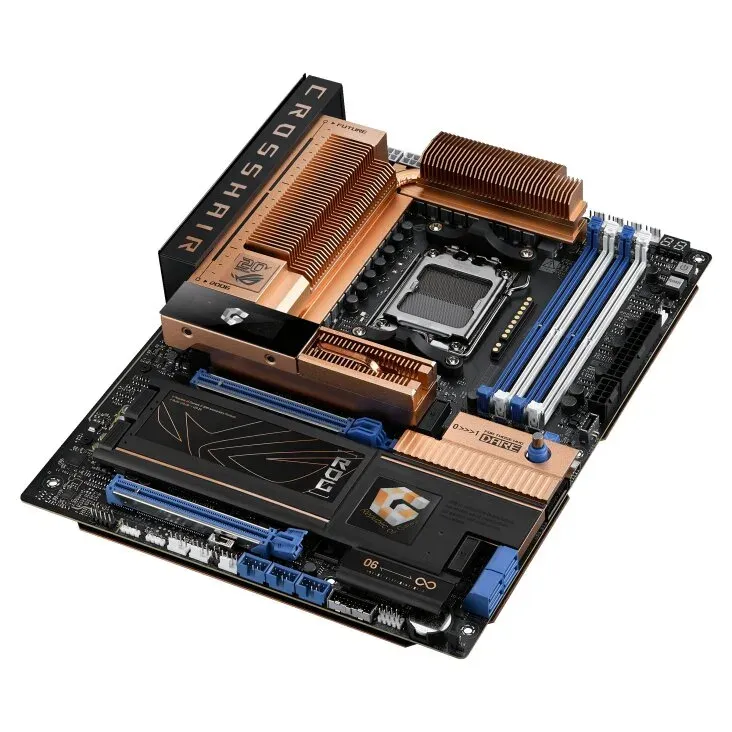

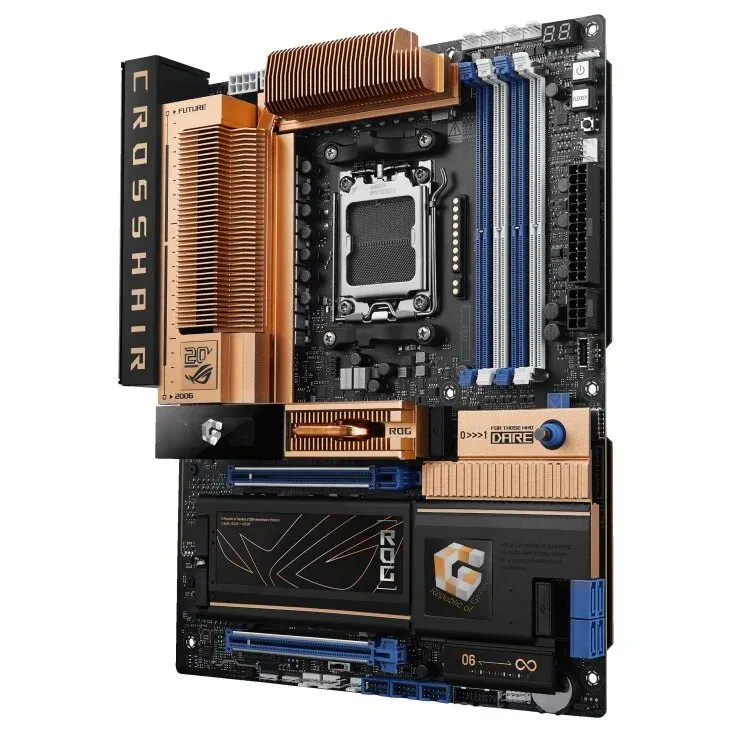

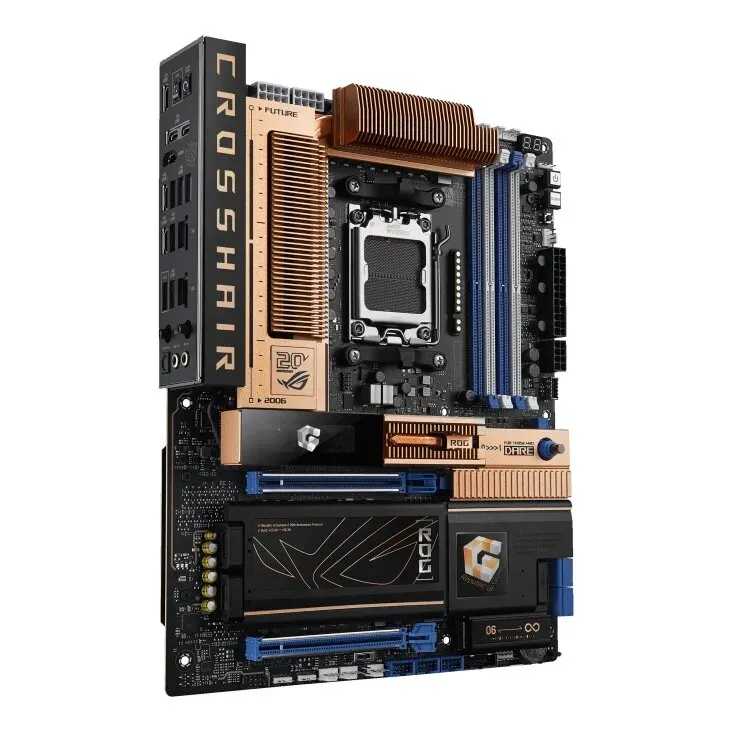

ASUS ROG CROSSHAIR 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD X870E
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to
  8600+MT/s(OC)/8200+MT/s(OC)* with Ryzen™ 9000 Series Processors,
  9600+MT/s(OC)/9200+MT/s(OC)* with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC)/8000+MT/s(OC)* with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC, Un-buffered DIMM*"
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  Supports DIMM Fit and DIMM Fit Pro
  NitroPath DRAM Technology
  ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  ** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
  *** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/
  Graphics
  1 x HDMI™ port*
  2 x USB4 (40Gbps) ports support USB Type-C display outputs***
• Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  *Supports 4K@60Hz as specified in HDMI 2.1.
  Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  The display function of the Type-C port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
  AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
  2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
  AMD Ryzen™ 8500 & 8300 Series Desktop Processors
  2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• Specifications vary by CPU types.
  ** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
  Storage
  Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
  AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
  AMD Ryzen™ 8500 & 8300 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  AMD X870E Chipset
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)
  2 x SATA 6Gb/s ports
  ASMedia ASM1162 Controller
  2 x SATA 6Gb/s ports
  Specifications vary by CPU types.
  ** The USB4 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share the available bandwidth. When a device is installed in the M.2_2 slot, both the USB4 controller and the M.2_2 slot operate at up to x2 mode. By configuring the M.2_2 slot in the BIOS, the M.2_2 slot can operate at up to x4 mode. However, enabling this setting will disable the USB4 40Gbps ports.
  RAID Support
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

• SATA ports from ASM1162 cannot support RAID
  Ethernet
  1 x Realtek 10Gb Ethernet
  1 x Realtek 5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  "Wi-Fi 7 (MediaTek MT7927)
  2x2 Wi-Fi 7* (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 320MHz bandwidth
  Bluetooth v5.4 (suppport LE Audio)***
  Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
  USB

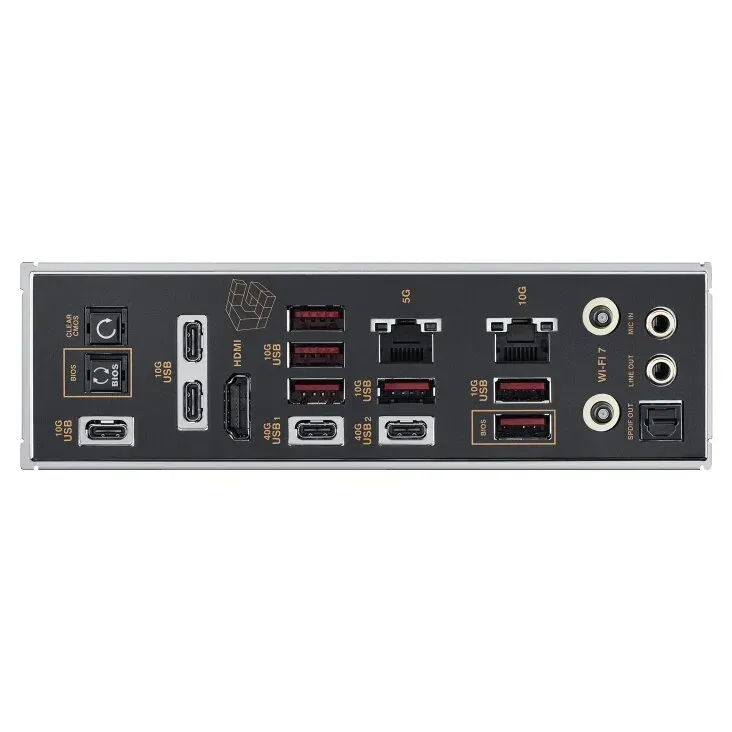

  Rear USB (Total 11 ports)
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C)
  Front USB (Total 12 ports)
  1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*
  1 x USB 20Gbps connector (supports USB Type-C)*
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A
  **USB Type-C pow…
