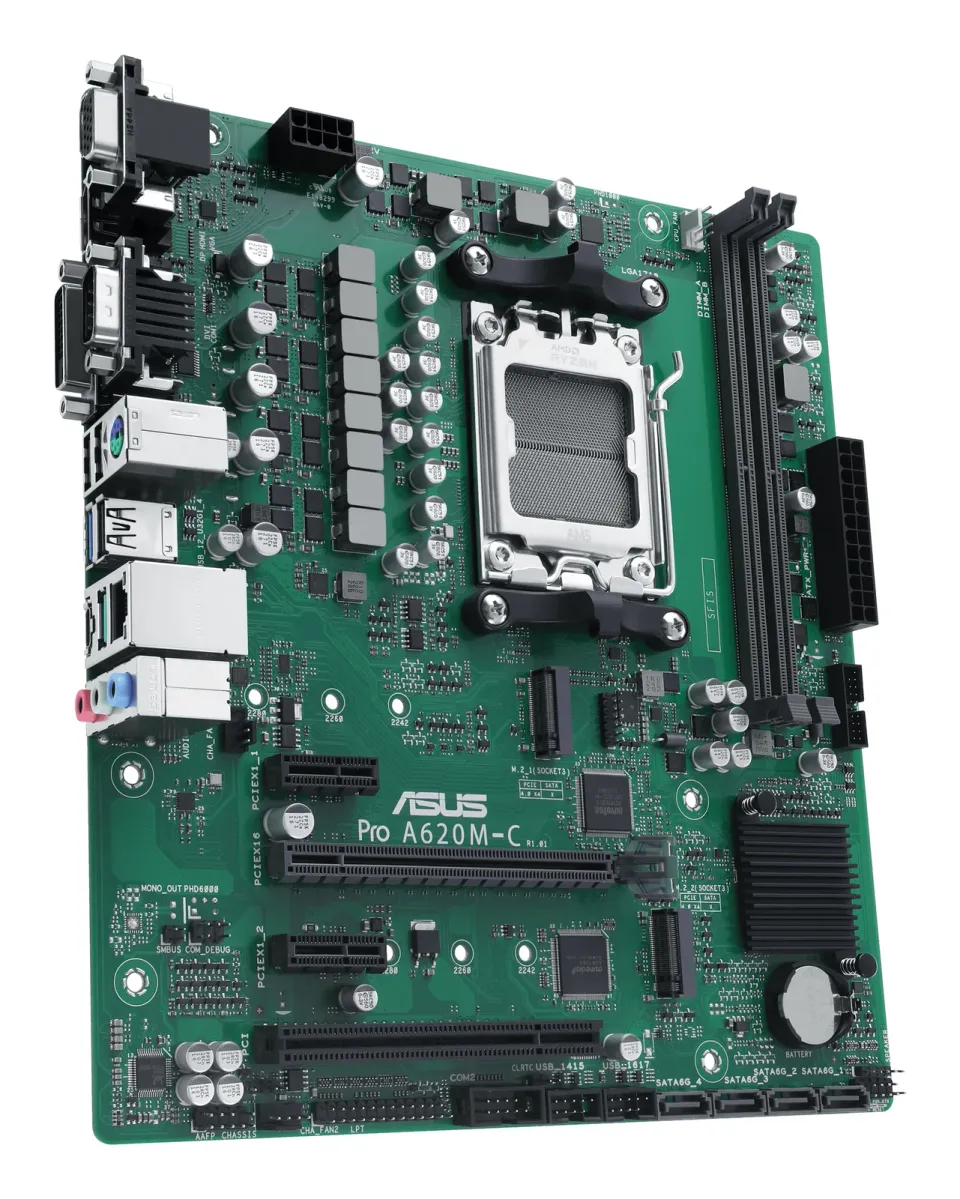

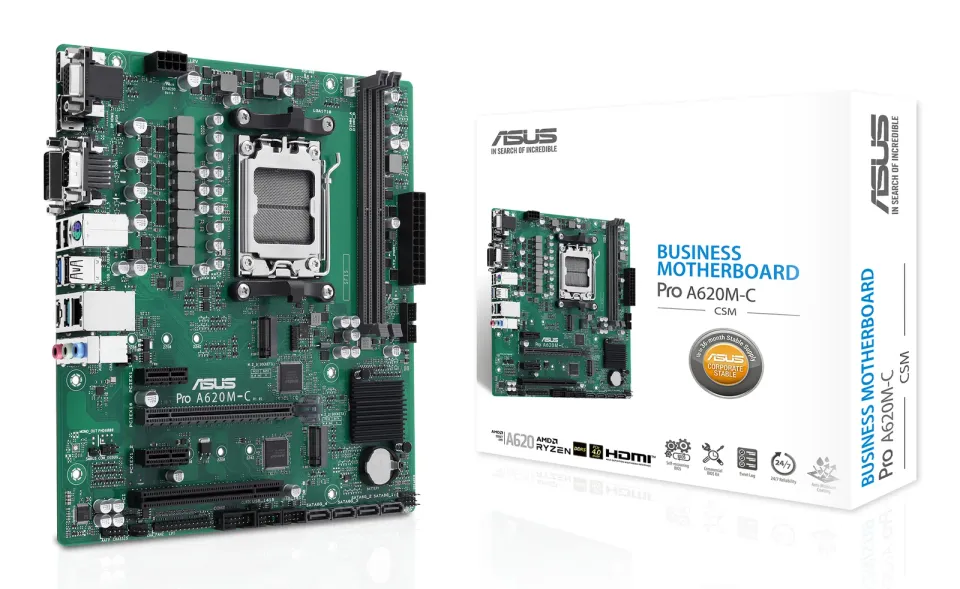

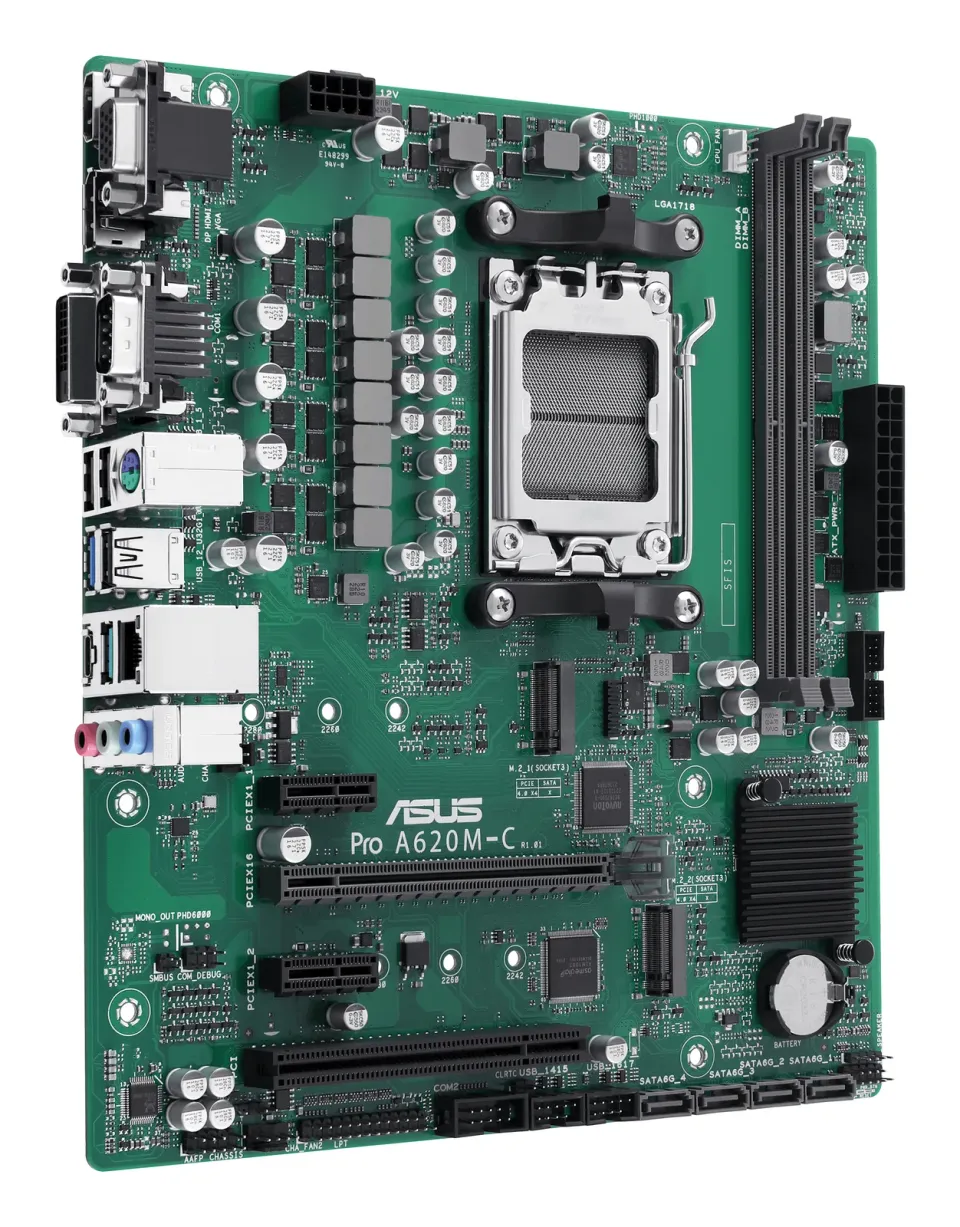

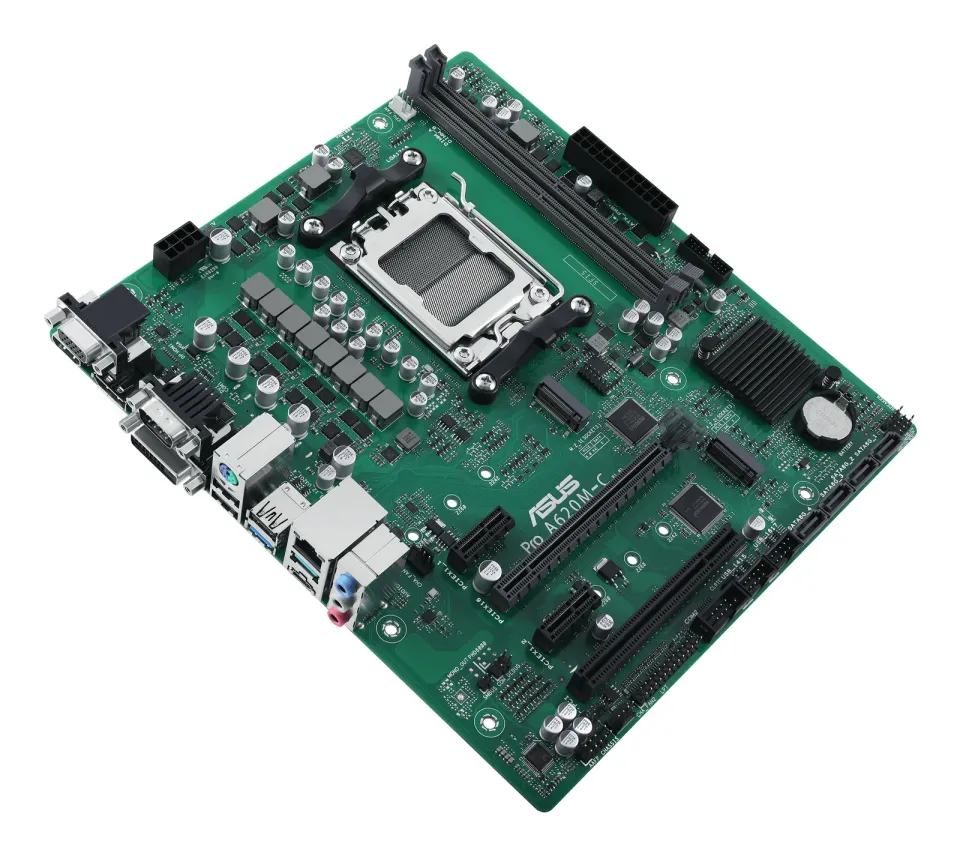

ASUS MB Sc AM5 Pro A620M-C-CSM, AMD A620, 2xDDR5, 1xHDMI, 1xDP, 1xVGA, 1xDVI-D, mATX

ASUS PRO A620M-C-CSM
AMD A620 Micro-ATX business motherboard with enhanced security, reliability, manageability and serviceability

• AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: DDR5, M.2 PCIe 4.0 slots, USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 header
  CPU
  AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  Supports up to AMD 120W CPU

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD A620 Chipset
  Memory
  2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  OptiMem II
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x VGA port
  1 x DVI-D port
  1 x HDMI™ port***
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors*
  1 x PCIe 4.0 x16 slot (supports x16 mode)
  AMD A620 Chipset
  2 x PCIe 3.0 x1 slots
  1 x PCI slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD A620 Chipset
  4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
  1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)
  3 x USB 2.0 ports (3 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Audio
  "Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

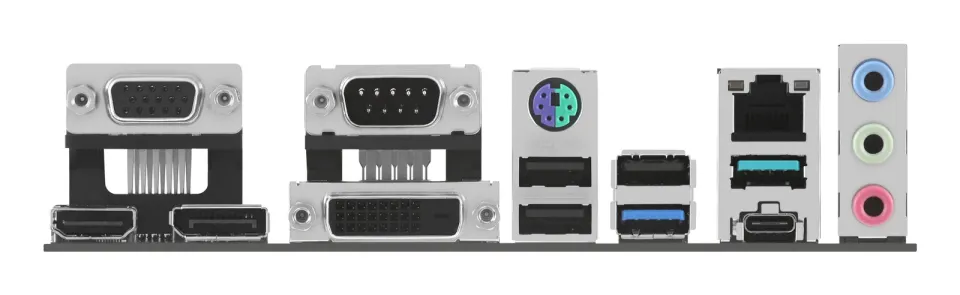

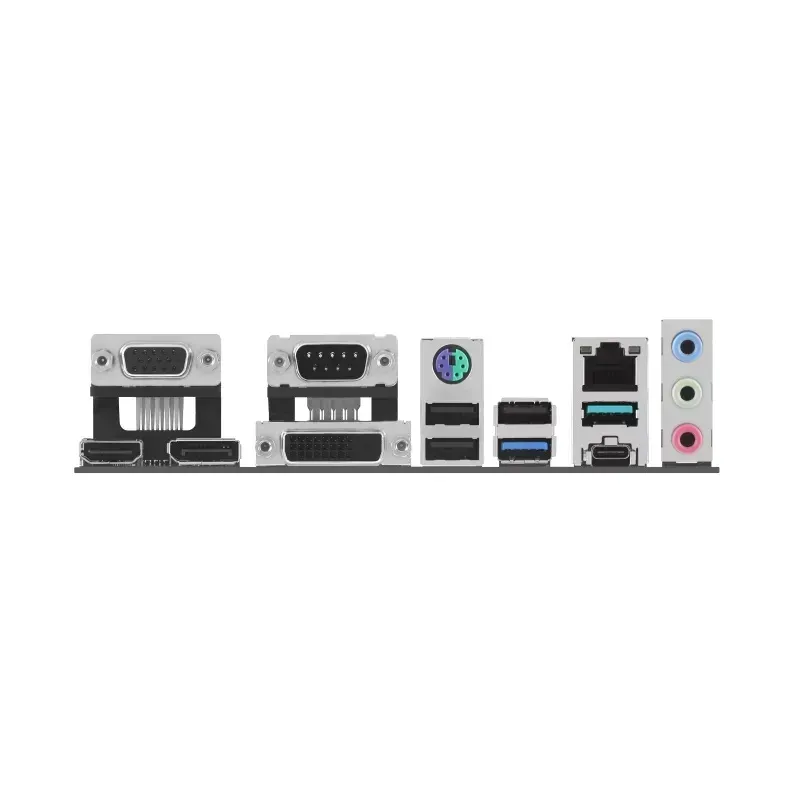

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)
  1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)
  3 x USB 2.0 ports (3 x Type-A)
  1 x DisplayPort
  1 x VGA port
  1 x DVI-D port
  1 x HDMI™ port
  1 x Realtek 1Gb Ethernet port
  1 x COM port
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x Chassis Intrude header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x COM debug header
  1 x LPT header
  1 x SMBUS header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS Q-Design

• Q-DIMM
• Q-LED Core
• Q-Slot
  ASUS Thermal Solution
• Aluminum heatsink design
  ASUS EZ DIY
• Box Headers
  Bespoke Motherboard Design & Business Focused Features
• ASUS Self Recovering BIOS
• ASUS Event Log
• ASUS Commercial BIOS kit*
• Anti-Moisture Coating
• 24/7 Reliability
• Overcurrent Protection

• Please contact local FAE for commercial BIOS kit.
  Software Features
  ASUS Exclusive Software
  IT Management software supported

• ASUS Control Center Express(ACCE)
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

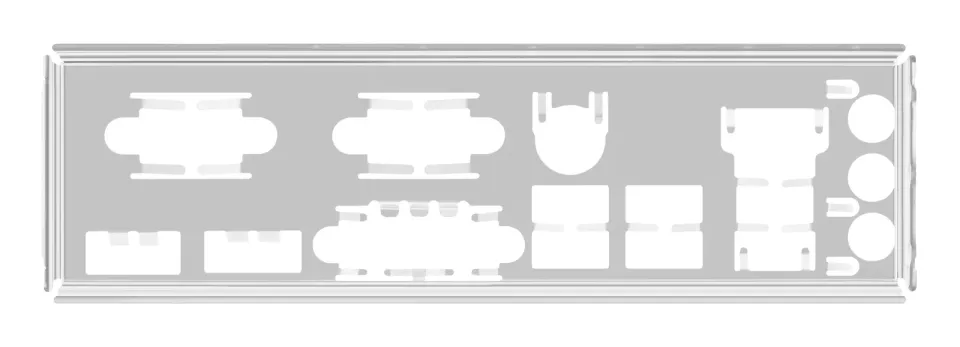

  1 x I/O Shield
  2 x M.2 Anchors
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  micro-ATX Form Factor
  24.4 cm x 22.4 cm

Formát základní desky: micro ATX
Chipset: AMD A620
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 2
PCI: 1
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 1
DVI: 1
USB 2: 7
USB 3: 4
USB C: 1
