ASUS MB Sc AM5 PRIME A620M-K, AMD A620, 2xDDR5, 1xHDMI, 1xVGA, mATX

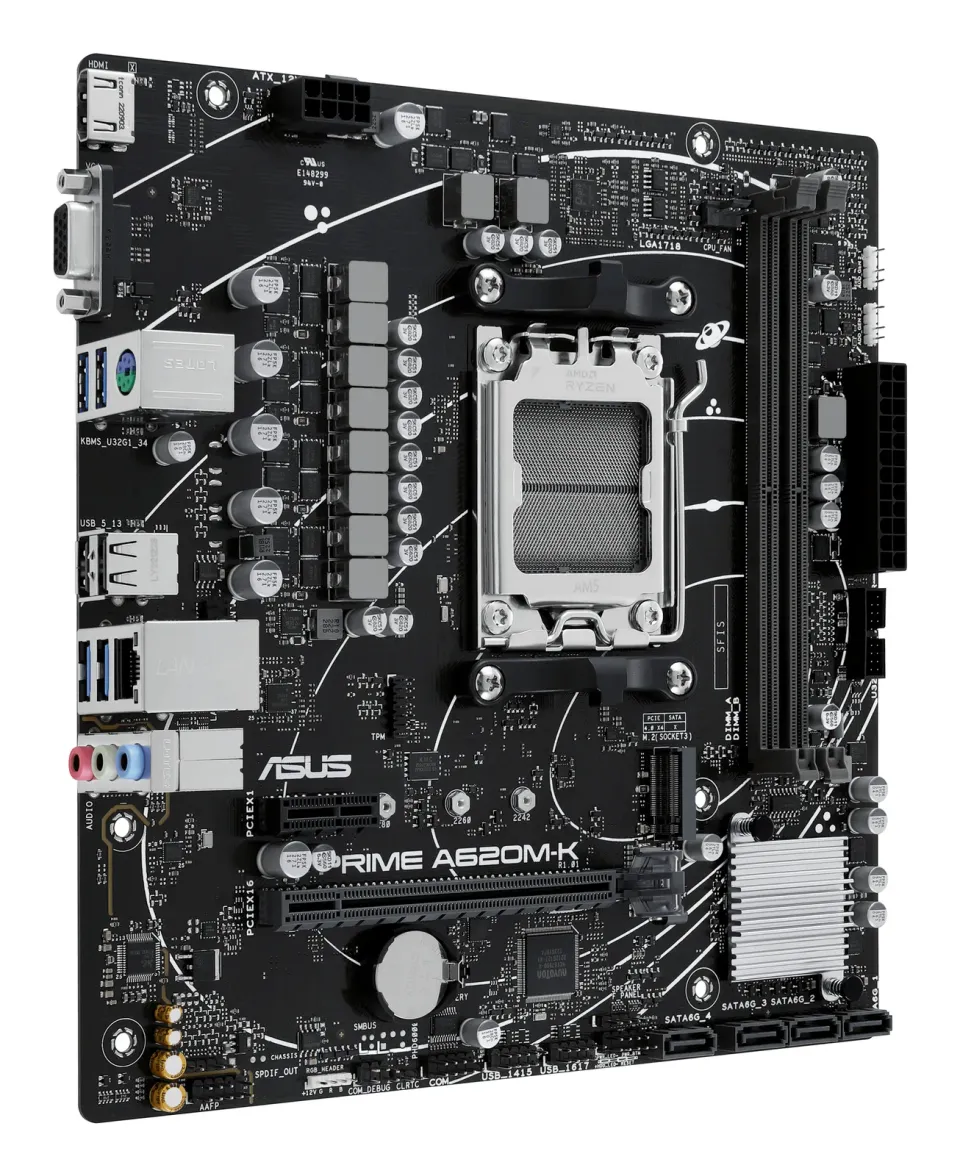

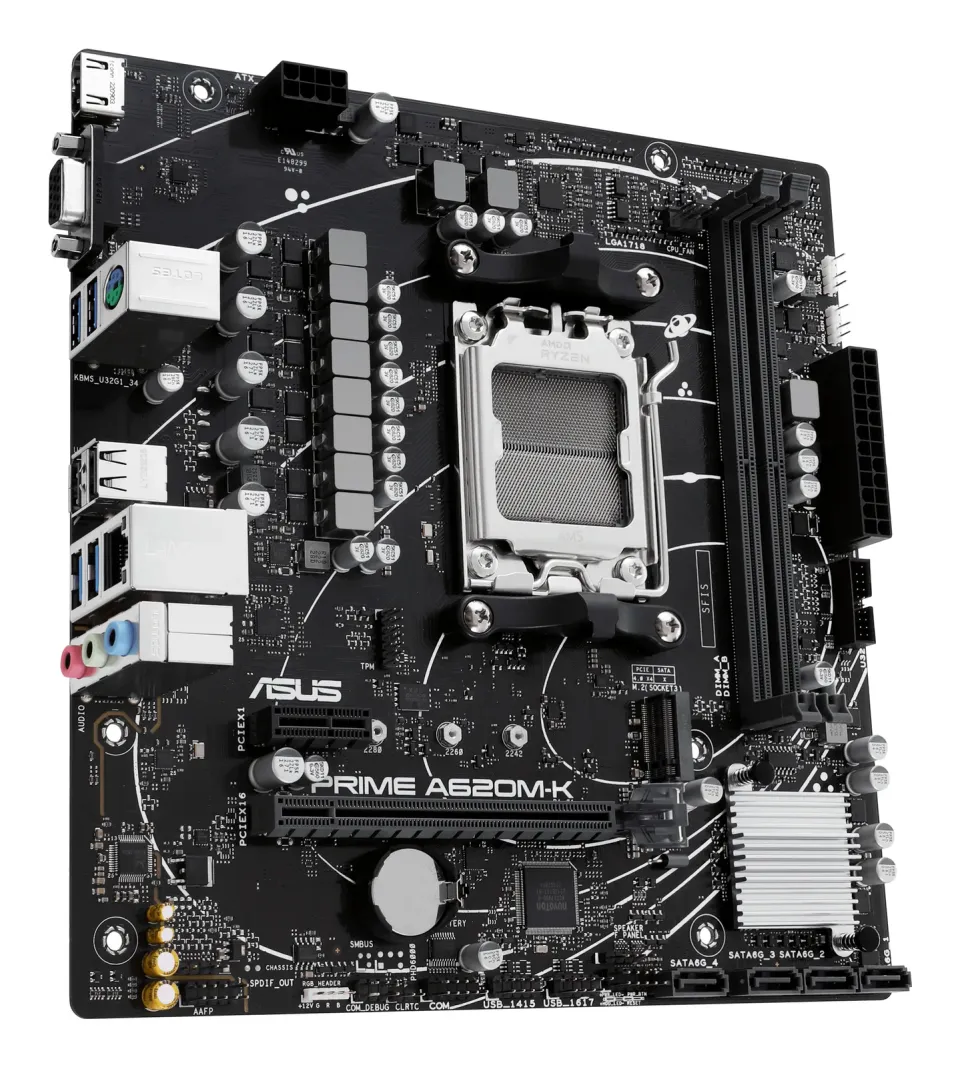

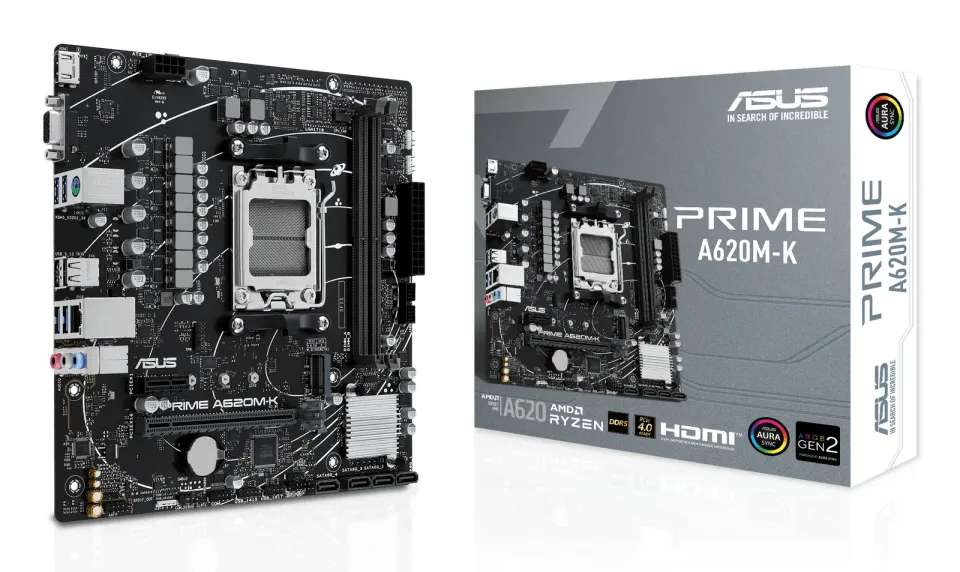

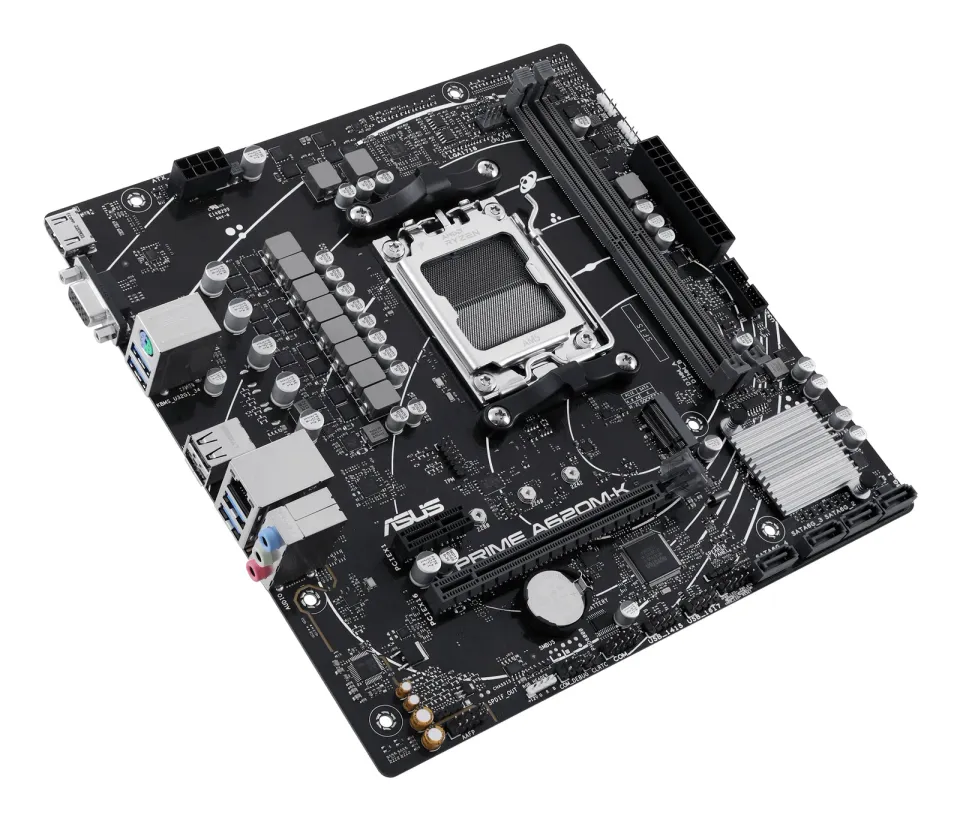

ASUS PRIME A620M-K
AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancellation, Aura Sync

• AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop processors
• Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-way AI Noise-Cancellation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  CPU
  AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  Supports up to AMD 120W CPU

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD A620 Chipset
  Memory
  2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x VGA port
  1 x HDMI™ port**
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors*
  1 x PCIe 4.0 x16 slot (supports x16 mode)
  AMD A620 Chipset
  1 x PCIe 3.0 x1 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD A620 Chipset
  4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  Ethernet
  1 x Realtek 1Gb Ethernet
  USB
  Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Audio
  "Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

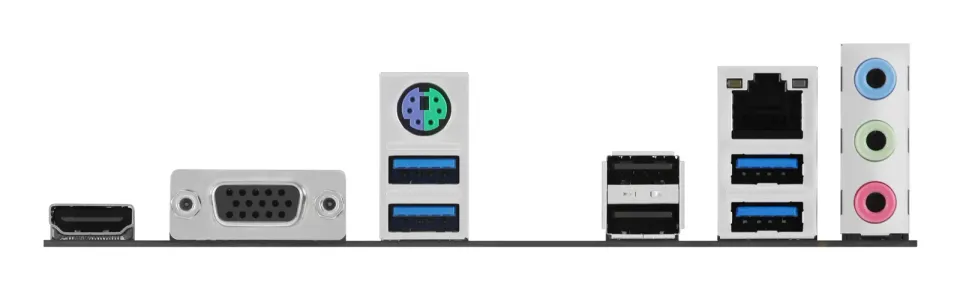

  Back Panel I/O Ports
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMI™ port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
  ASUS Thermal Solution
• Aluminum heatsink design
  Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert
• Power Saving
• Two-Way AI Noise Cancellation
  AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

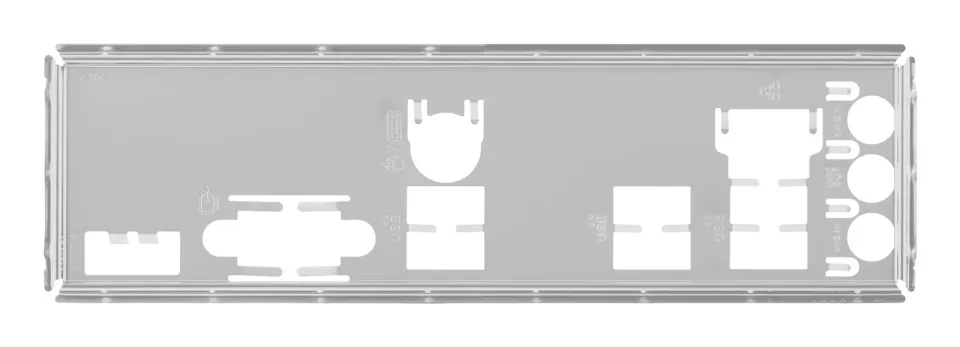

  1 x I/O Shield
  1 x Screw package for M.2 SSD
  Documentation
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  micro-ATX Form Factor
  22.6 cm x 22.1 cm

Formát základní desky: micro ATX
Chipset: AMD A620
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 0
USB 2: 6
USB 3: 6
USB C: 0
