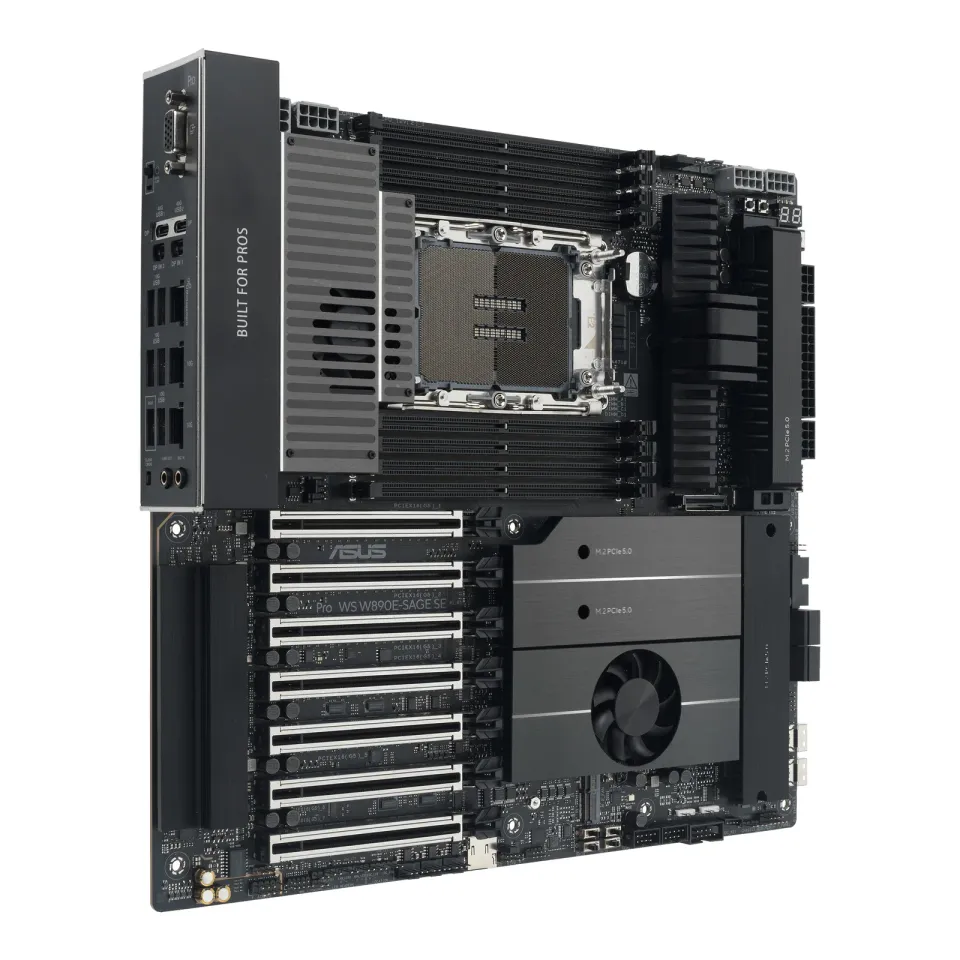

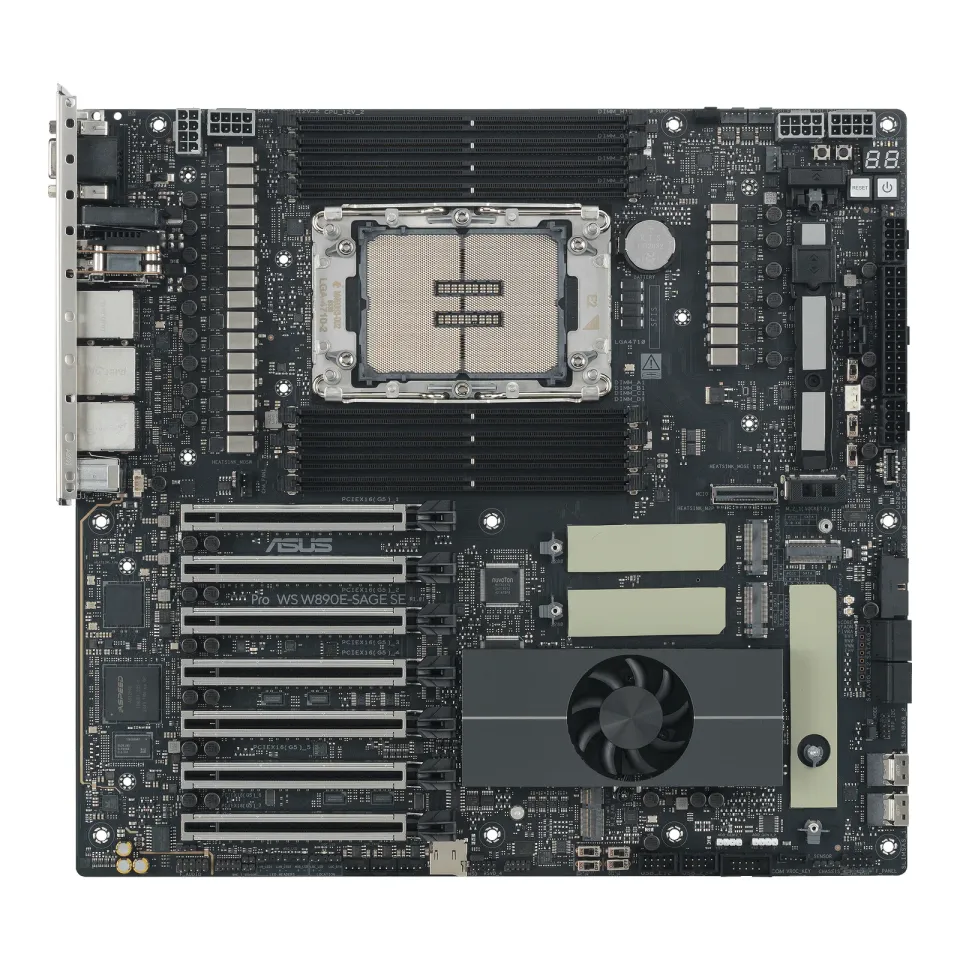

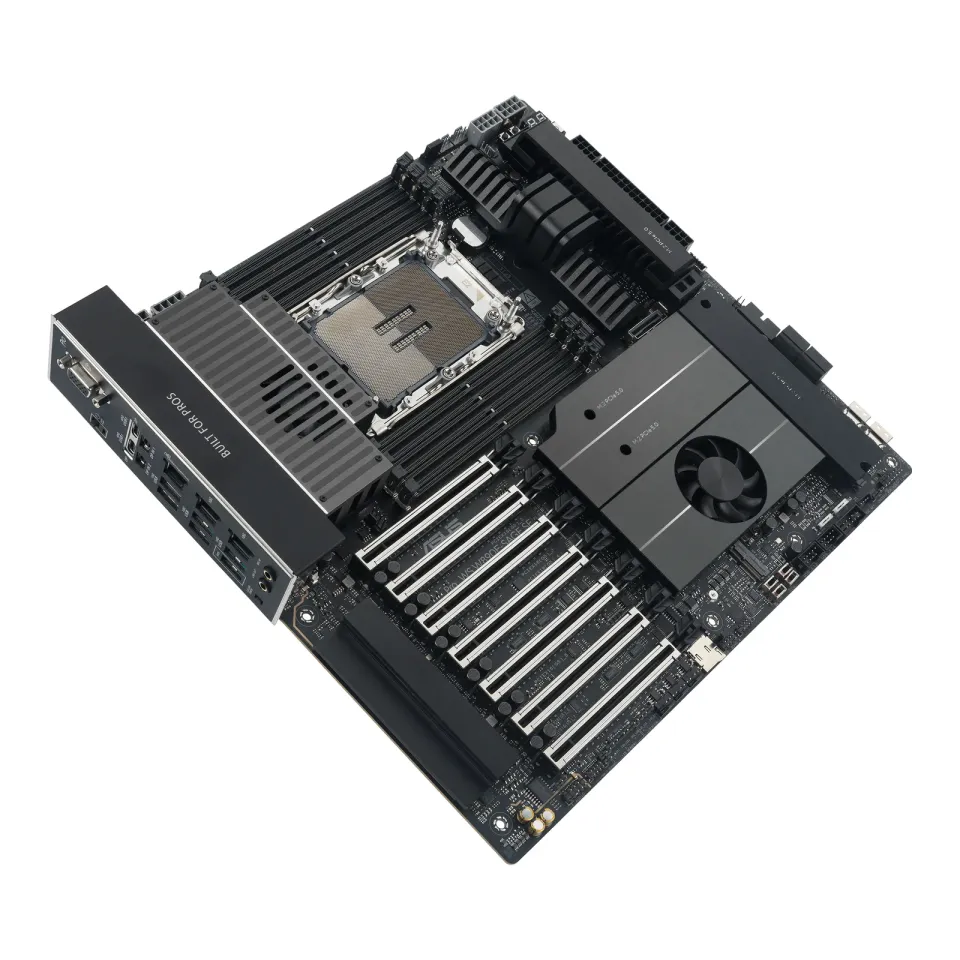

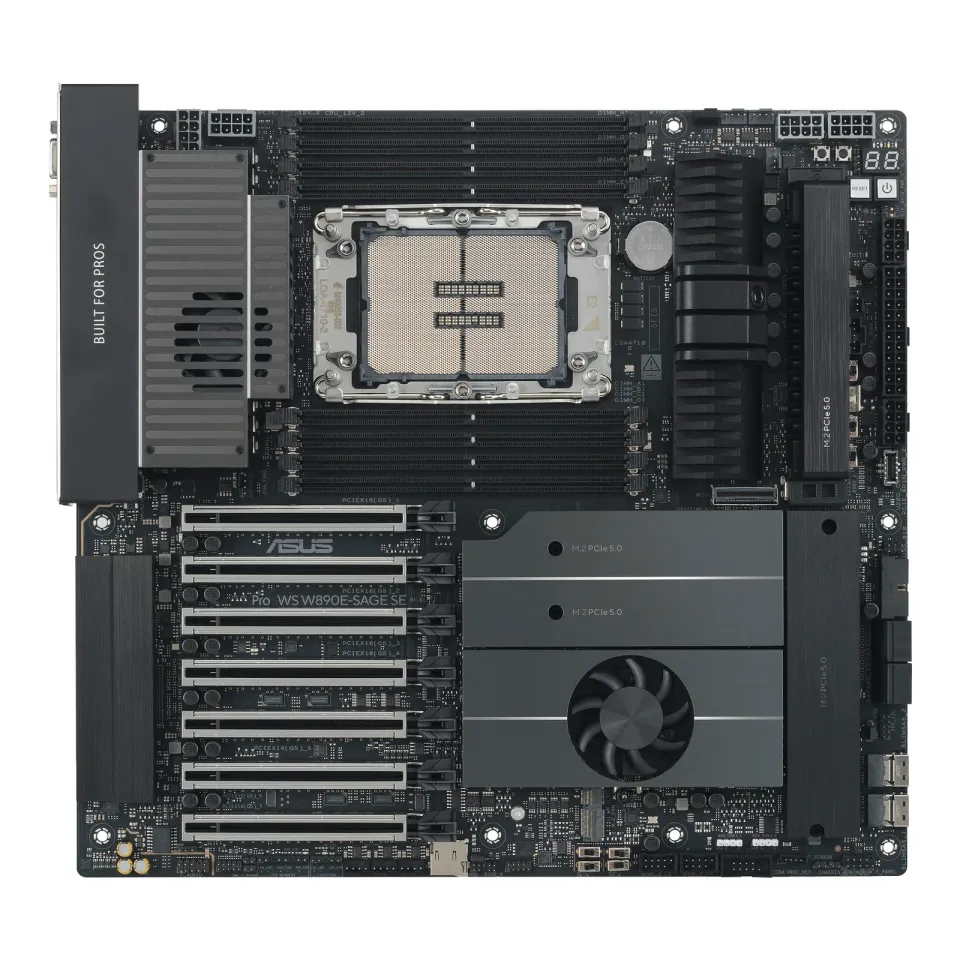

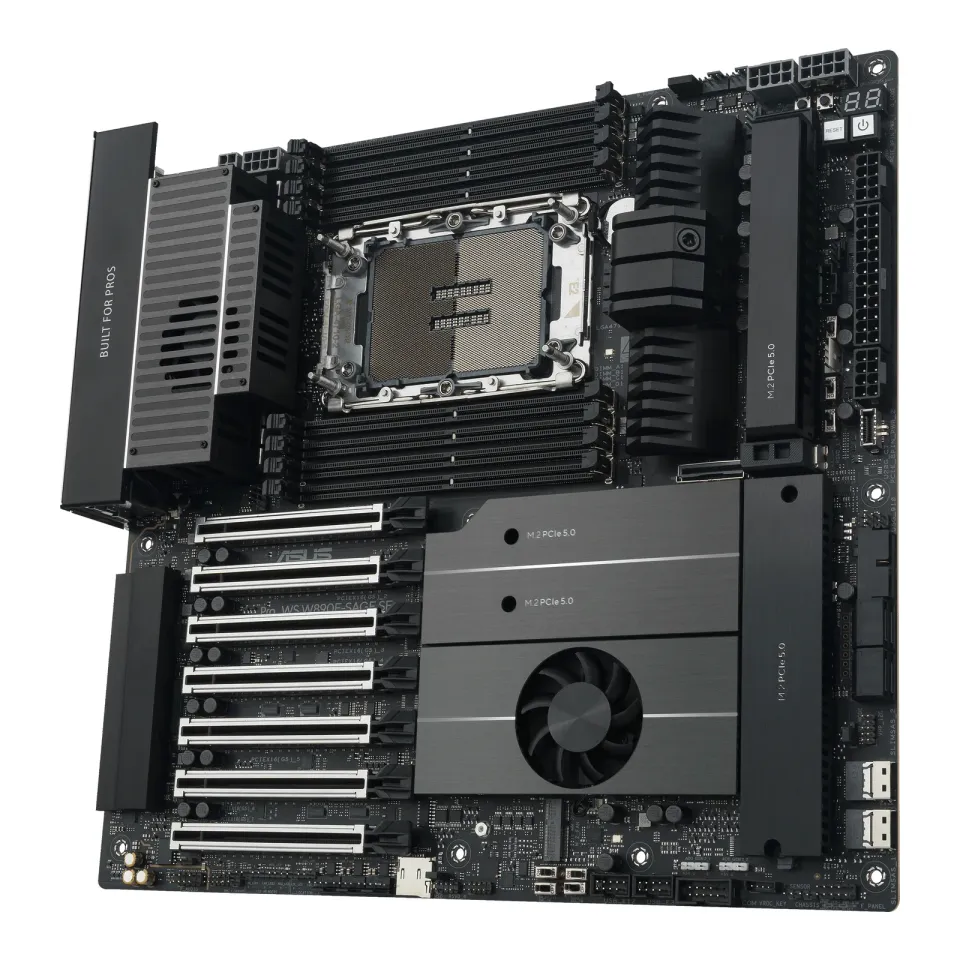

ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB

ASUS Pro WS W890E-SAGE SE

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel Xeon 600 Processors for Workstation.
• Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4 40Gbps Type-C, and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
  Model
  Pro WS W890E-SAGE SE
  News & Updates
  LGA4710-2
  CPU
  Intel Socket LGA4710-2 for Xeon 600 Processors for Workstation
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel W890 Chipset
  Memory
  8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*
  8-channel memory architecture
  Supports Intel Extreme Memory Profile (XMP) memory module
• Only channels A, C, E, and G will function when an Intel Xeon 630 Series Processor is in use.
  ** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  Graphics
  1 x VGA port from AST2600
  2 x USB 40Gbps (USB4) ports support USB Type-C display outputs*
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  ** Output at USB4 Type-C ports requires Mini DisplayPort IN to DisplayPort adapter cable.
  *** The display function depends on CPU or GPU.
  Expansion Slots
  Intel Xeon 690/670/650 Series Processors*
  7 x PCIe 5.0 slot(s)
  Intel Xeon 630 Series Processor*
  7 x PCIe 5.0 slot(s)
• Specifications vary by CPU types.
  Storage
  Total supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb/s ports
  M.2 slots support PCIe 5.0
  SlimSAS supports PCIe 4.0
  Supports Intel VROC and VMD
  Ethernet
  1 x Intel dual 10Gb Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  M.2 slot only (Wi-Fi module sold separately)
  USB
  Rear USB: 2 x USB4, 6 x USB 10Gbps
  Front USB: USB-C, USB 5Gbps, USB 2.0 headers
  Audio
  Realtek ALC1220P 7.1 Surround Sound
  High quality playback and recording
• 32-Bit/192 kHz not supported for 7.1

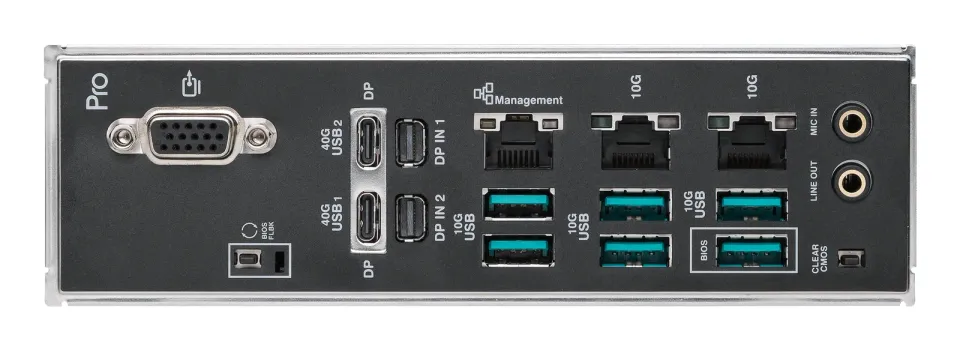

  Back Panel I/O Ports
  USB4, USB 10Gbps, VGA, LAN, Audio jacks, BIOS FlashBack™
  Internal I/O Connectors
  Fan headers, power connectors, storage connectors, USB headers
  RGB headers, buttons, sensors
  Special Features
  ASUS 5X PROTECTION III
  ASUS Q-Design
  ASUS Thermal Solution
  ASUS EZ DIY
  Aura Sync
  Software Features
  Armoury Crate, ASUS DriverHub, WinRAR, Norton 360
  UEFI BIOS utilities
  Remote Management Features
  ASUS Control Center Express (ACCE)
  BMC Related
  Switches, LEDs, microSD, monitoring features
  BIOS
  512Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

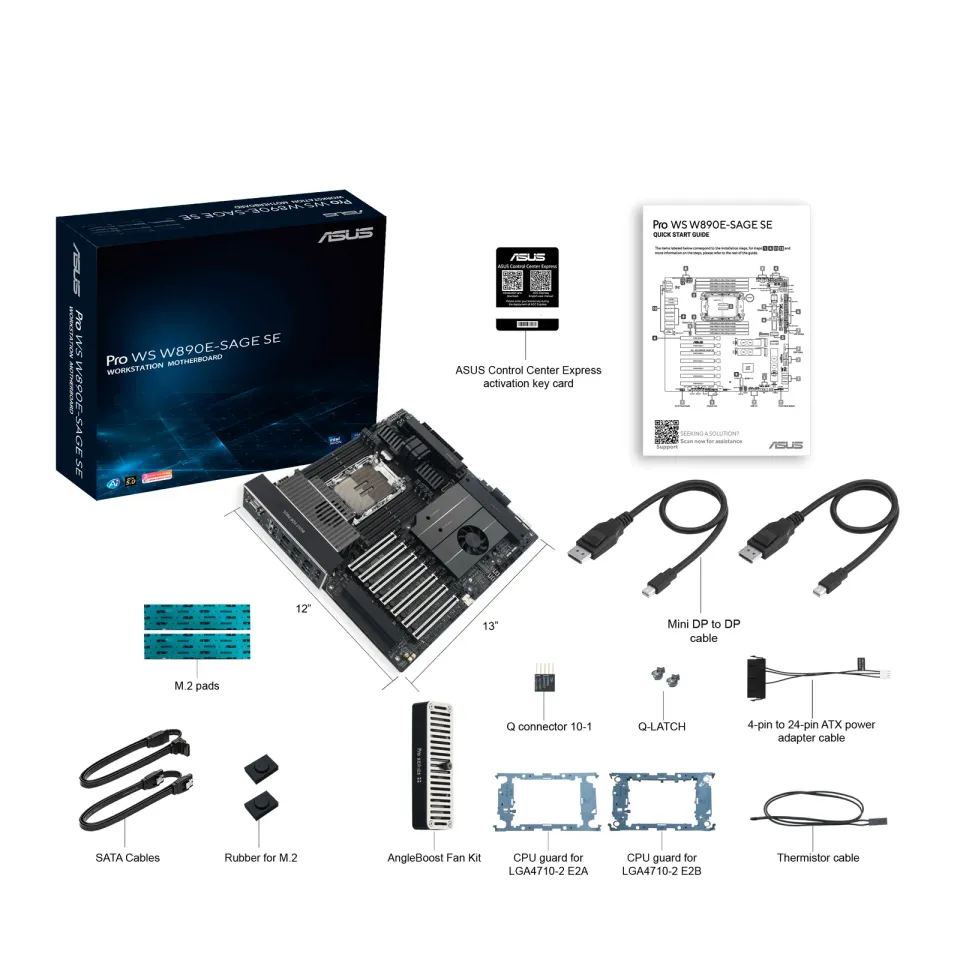

  Accessories
  SATA cables, thermistor cable, adapters
  Operating System
  Windows 11
  Form Factor
  EEB Form Factor
  12 inch x 13 inch (30.5 cm x 33 cm)

Formát základní desky: EEB
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 8
M.2 slot: 4
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 7
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
LAN: 1Gbit/s, 10Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 0
VGA: 1
DVI: 0
DisplayPort Type-C: 0
Počet Thunderbolt: 0
USB 2: 4
USB 3: 8
