ASUS MB PRO WS W890-SAGE, Intel W890, 8xDDR5, 2xUSB-C, CEB

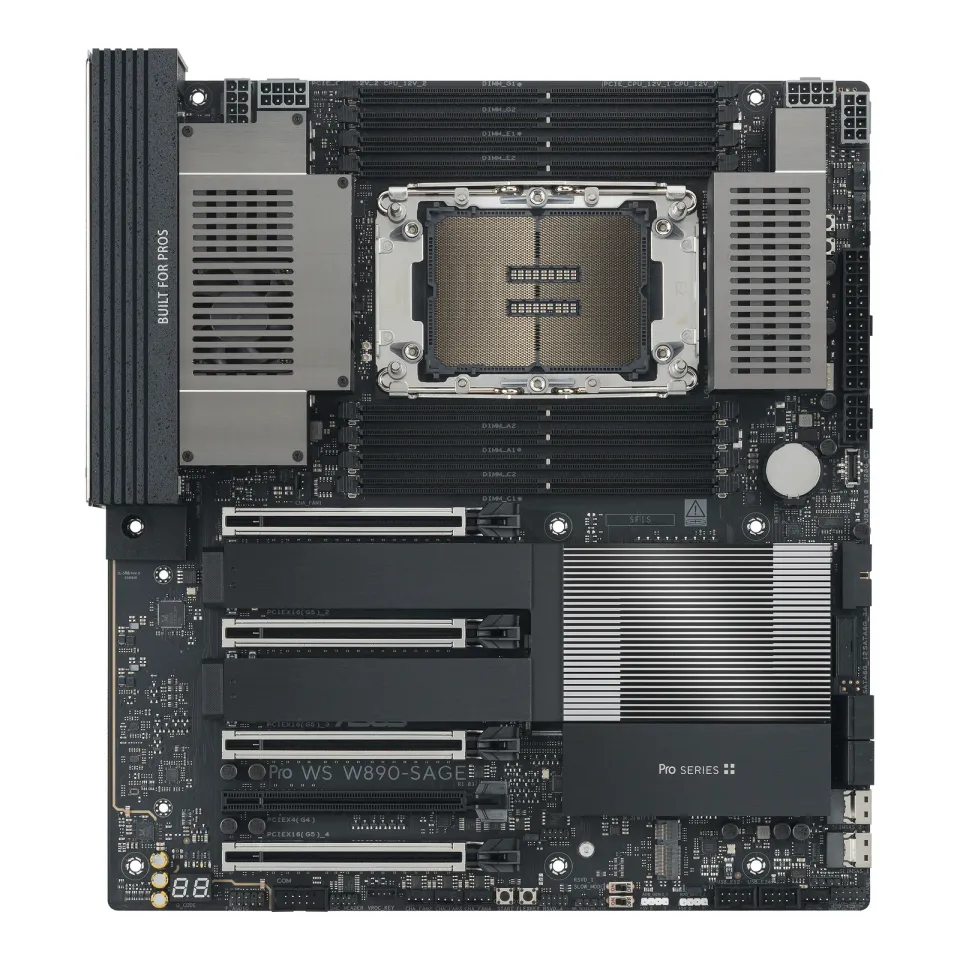

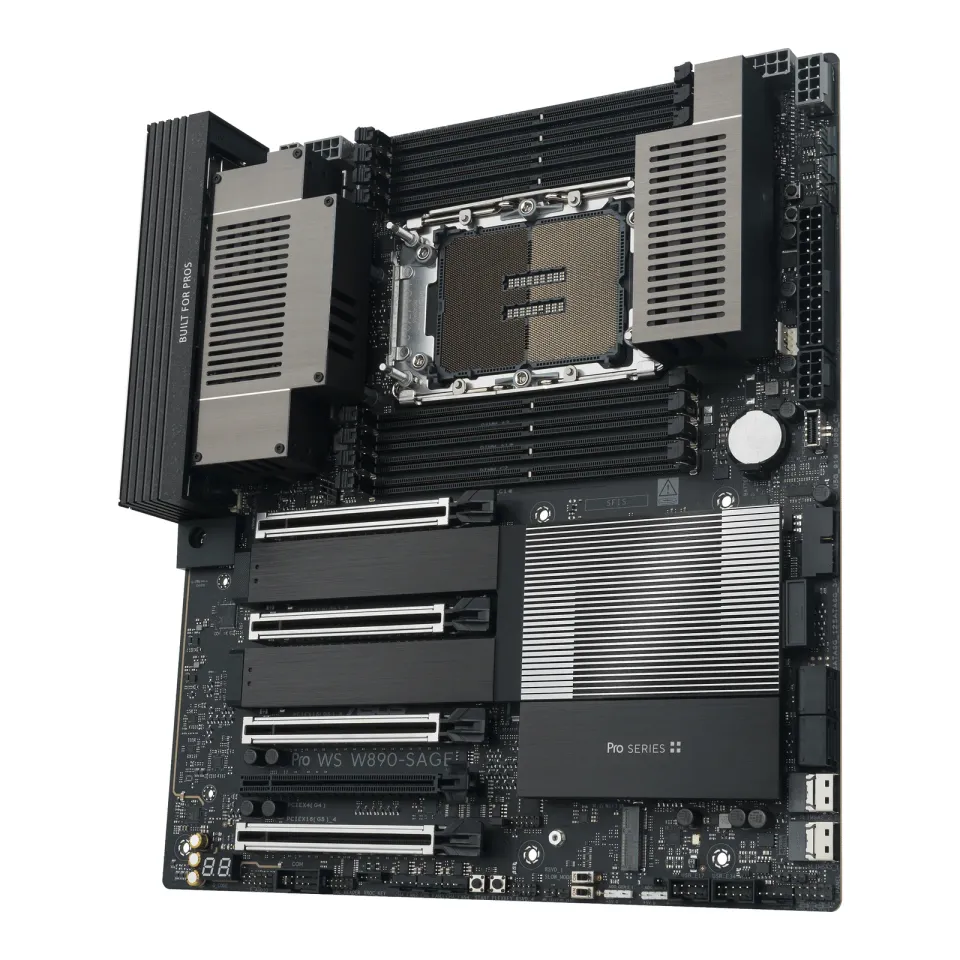

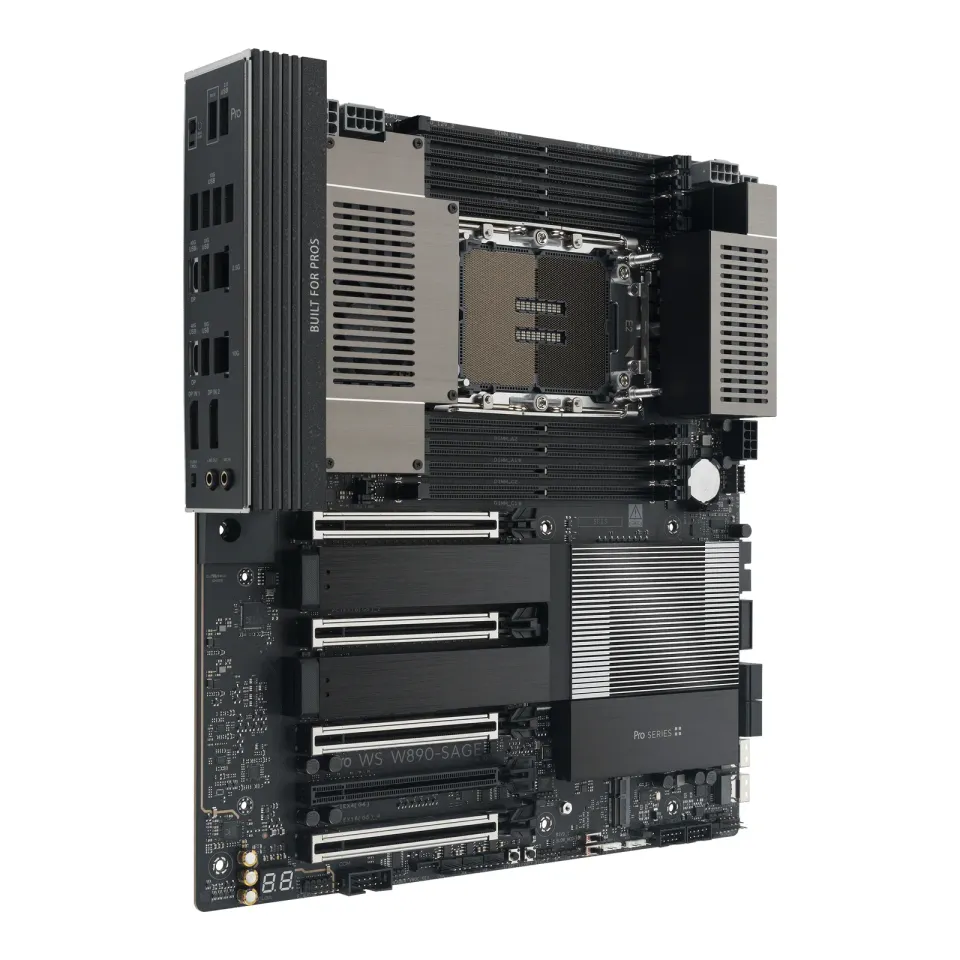

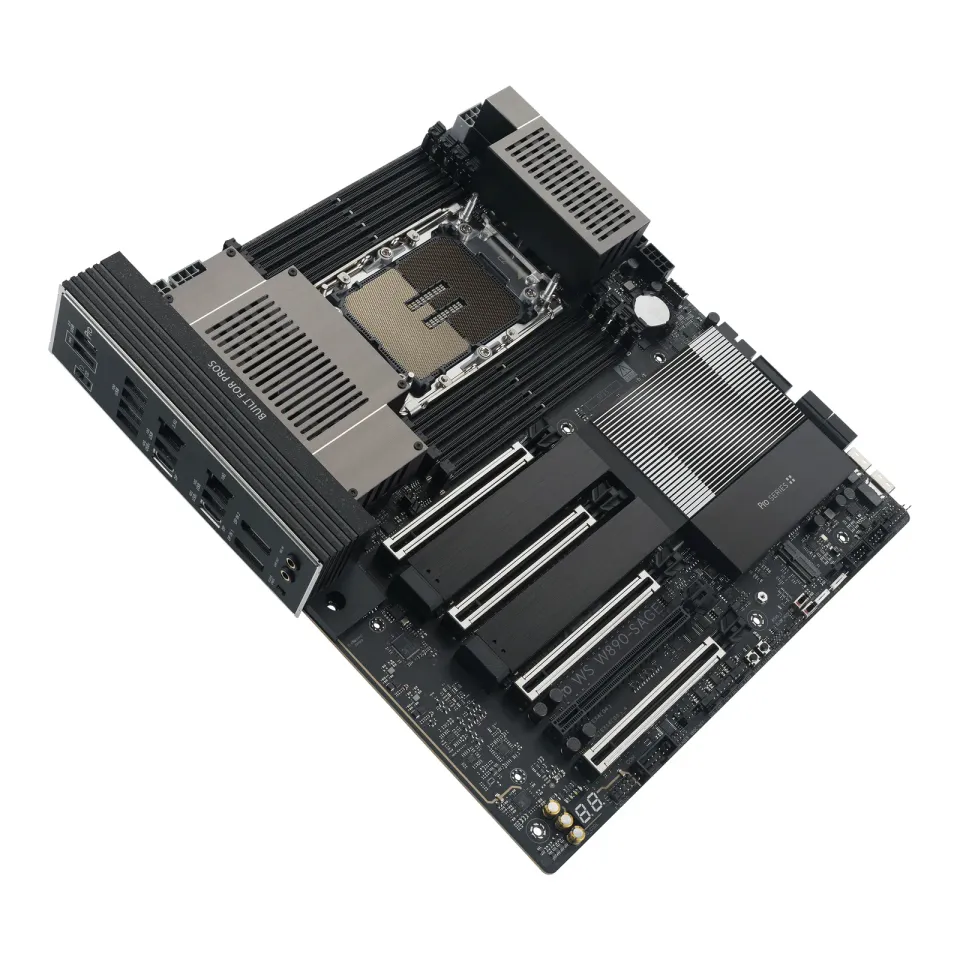

ASUS PRO WS W890-SAGE
The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
CPU
Intel Socket LGA4710-2 for Xeon 600 Processors for Workstation
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel W890 Chipset
  Memory
  8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*
  4-channel memory architecture
  Supports Intel Extreme Memory Profile (XMP) memory module
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  Graphics
  2 x USB 40Gbps (USB4) ports support USB Type-C display outputs*
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  ** Output at USB4 Type-C 40G USB 1 or USB4 Type-C 40G USB 2 ports, each requires a DisplayPort IN to DisplayPort adapter cable.
  For more information on display connection and video output configuration using the DisplayPort IN ports, please refer to the user manual.
  *** The display function of the Type-C port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.
  Expansion Slots
  Intel Xeon 690/670/650/630 Series Processors*
  4 x PCIe 5.0 x16 slots (supports x16 mode)
  Intel W890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
  Storage
  Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
  Intel Xeon 690/670/650/630 Series Processors*
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  Intel W890 Chipset
  SlimSAS_1 connector supports PCIe 4.0 x4 mode
  SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is purchased separately.
  4 x SATA 6Gb/s ports

• Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (Intel VMD)
  ** Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
  Ethernet
  1 x Realtek 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  M.2 slot only (Key E, CNVi & PCIe)*
• Wi-Fi module is sold separately.
  USB
  Rear USB (Total 10 ports)
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C)*
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A
  Audio
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Unique de-pop circuit

• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

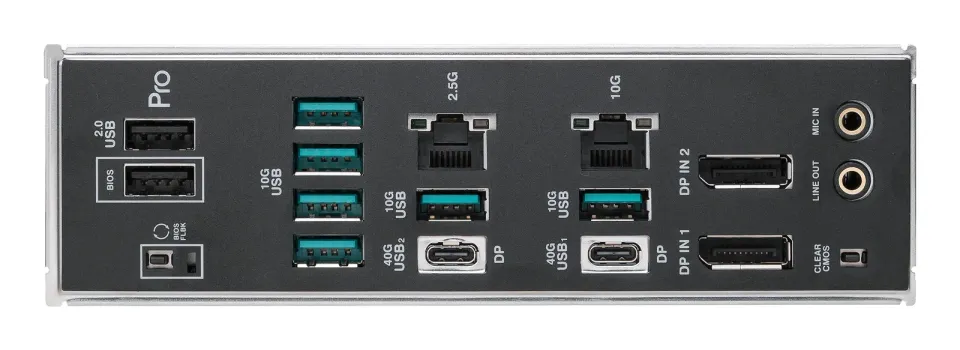

  Back Panel I/O Ports
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  6 x USB 10Gbps ports (6 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x Realtek 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  2 x Audio jacks
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  2 x DP IN ports
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  5 x 4-pin Chassis Fan headers
  1 x W_PUMP+ header
  1 x 4-pin VRM Fan header (with VRM fan onboard)
  Power Related
  1 x 24-pin Main Power connector
  1 x 4-pin to 24-pin Main Power connectors
  2 x 8-pin +12V CPU Power connector
  2 x 8-pin PCIe to CPU power connectors
  1 x 8-pin PCIe Power connector
  Storage Related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  2 x SlimSAS connector
  USB
  1 x USB 20Gbps connector (supports USB Type-C)*
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable RGB Gen 2 header(s)
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x CPU Over voltage jumper
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x M.2 slot (Key E)
  1 x ReTry button
  2 x RSVD header(s)/switch(es)
  1 x Safe Boot button
  1 x Slow Mode switch
  1 x Start button
  1 x 10-1 pin Front Panel System header
  1 x VROC header
  1 x Thermal Sensor header
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards…
